DELIXI ELECTRIC · CDQC-G
Product overview
DELIXI CDQC-G is the revised AC EV charging station with a matchedGB-standard connector. Select single ordual gun and the documented charging/payment version.
Technical selection summary
| Supply / per-gun load | Single-phaseAC220V; 50Hz; 32A and 7kW maximum per gun |
|---|---|
| Ports / feeder | 1 or 2 guns; dual-gun feeder reference64A in the manual, not 32A total |
| Modes | Z:direct; S:card; W:QR; SW is the combined card/QR version marked on the original main photograph |
| Communication / standby | 4G module;≤5W standby; payment/backend functionality depends on the matched service |
| Protection | Input residual-current/overcurrent/short-circuit protection; emergency stop; use exact factory/manual protection coordination |
| Outline | Manufacturer revised housing250mm width×360mm height×92mm depth maximum; mounting-hole diagram supplied |
| Connections | Separate CDQC-1-G and CDQC-2-G diagrams. Manual copper L/N minimum6mm² single or 10mm² dual; PE minimum6mm²; confirm project installation requirements |
| Standards | GB/T18487.1-2015 and GB/T20234.1-2015 printed in the exact manual |

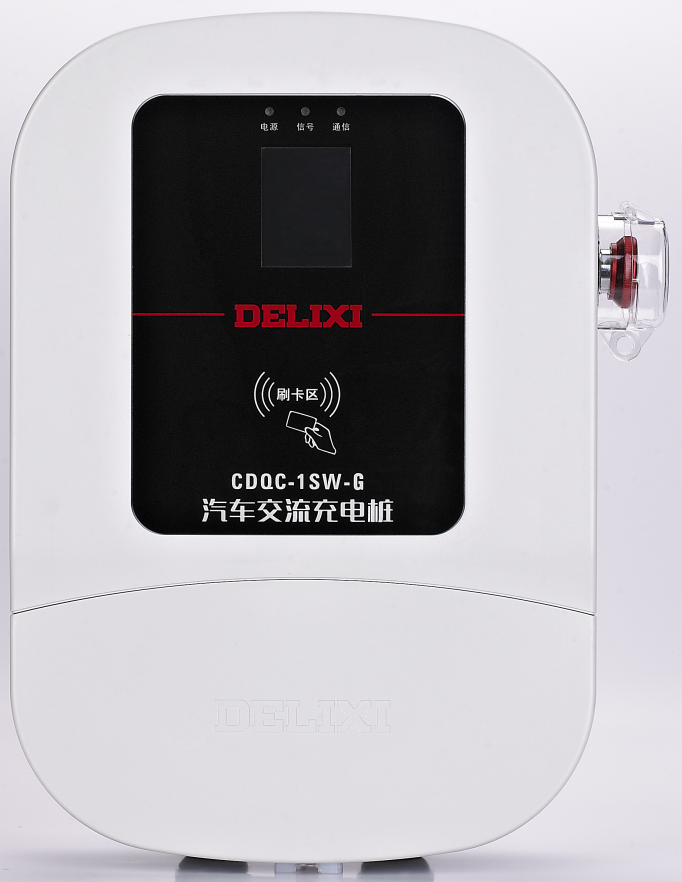

The current/power values are per gun. The manual supplies different single/dual feeder andwiring diagrams. No Type2, Type1, OCPP oroverseas payment compatibility is added without an exact confirmed version. The original photograph illustrates the 1SW-G family.
Typical applications
- DELIXI CDQC-G is the revised AC EV charging station with a matchedGB-standard connector.
Specify your enquiry
For a focused quotation, include:
- Guns: 1, 2
- Payment: Direct, Card, QR, Card+QR
- Required quantity, circuit duty and installation conditions.
CDQC-G exact single/dual-gun installation manual (Chinese PDF)
Product reference images and drawings
