DELIXI ELECTRIC · CDZC
Product overview

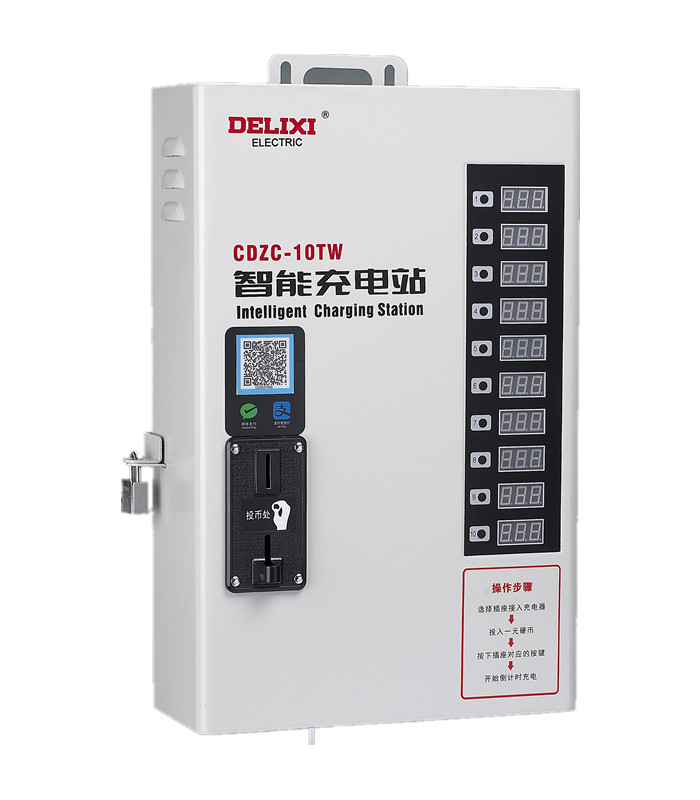

DELIXI CDZC manages separate e-bike charging outlets. This page covers the ordinary4-, 6- and 10-outlet family shown by the CDZC-10TW photograph, not the-T adjustable or-Y LCD construction.
Technical selection summary
| Supply / frequency | AC220V; 50Hz |
|---|---|
| Outlets | 4, 6 or 10 independent outlets |
| Per-outlet load | 800W maximum and 3.6A maximum carrying current in the 2022 normal-family table |
| Protection settings | 3.6A adjustable overload setting; 30mA charge-completion threshold. The completion threshold is not a residual-current protection rating |
| Standby / functions | 2W; overload protection, full-charge stop and power-failure memory |
| Payment versions | Direct, coin, card or QR in the 2022 guide; coin+QR combinations in the original exact model list; QR operation requires a matched service/backend |
| Dimensions / mounting | Use the original normal-family outline for the selected outlet count; do not use the-J or-Y enclosure dimensions |
Payment capability is a hardware/backend version, not a guarantee of overseas payment-service availability. State the installation country, selected outlet count and payment requirements with the enquiry.
Typical applications
- DELIXI CDZC manages separate e-bike charging outlets.
Specify your enquiry
For a focused quotation, include:
- Outlets: 4, 6, 10
- Payment: Direct, Coin, Card, QR, Coin+QR
- Required quantity, circuit duty and installation conditions.
CDZC ordinary4/6/10-outlet catalogue (Chinese PDF)
CDZC original complete model list (Chinese PDF)
Product reference images and drawings
