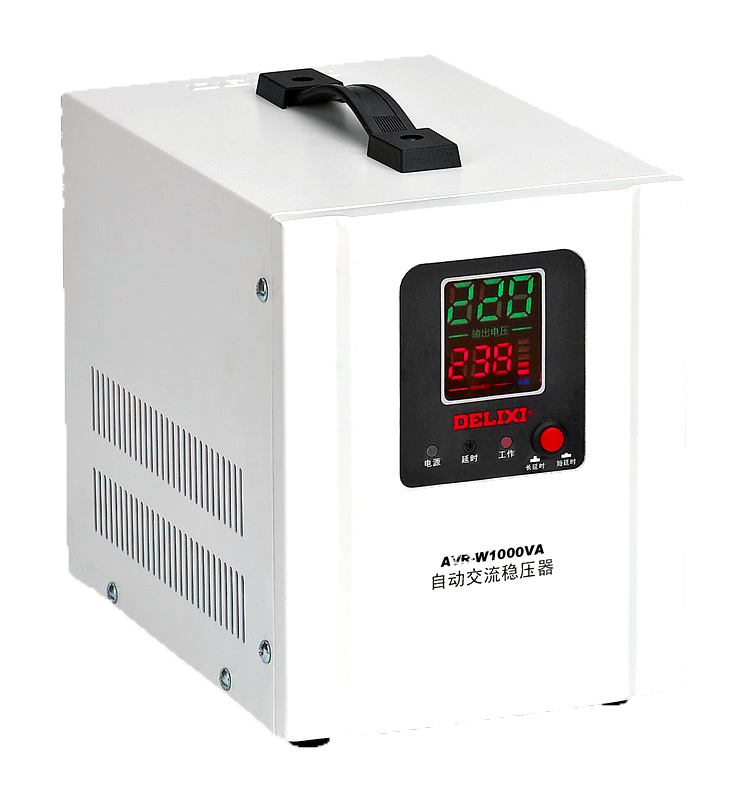

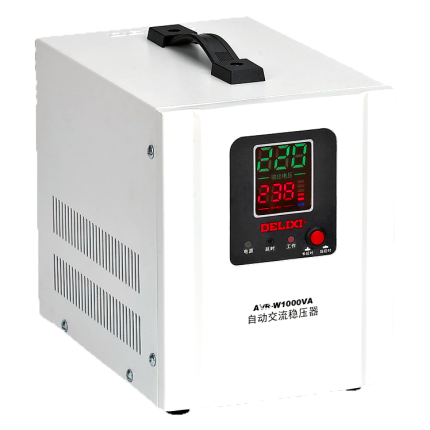

DELIXI · Wide-range automatic AC voltage stabilizer
Product overview
The DELIXI AVR-W is a wide-input-range automatic AC stabilizer. The manufacturer’s 2022 reference documents 1–5 kVA desktop models with 105–270 V input, 220 V output and integrated voltage, overload and temperature protection references.
Technical selection summary
| Brand and series | DELIXI AVR-W |
|---|---|
| Capacity references | 1, 1.5, 2, 3 and 5 kVA |
| Input-voltage reference | 105–270 V |
| Output / regulation reference | 220 V ±8% |
| Frequency | 50/60 Hz |
| Voltage-protection references | Overvoltage 246±4 V; undervoltage 184±4 V |
| Temperature / overload references | 85±5°C; overload reference 120% of rated current |
| Response / efficiency references | Response <10 ms; efficiency >92% |
| Construction | Single-phase desktop references |
| Outline examples W×L×H | 1/1.5/2 kVA: 165×255×218 mm; 3/5 kVA: 215×305×265 mm; confirm the exact version |
Select capacity from the actual load and supply conditions, including starting current. The wide input range and response reference are not confirmation that every load can be supplied at full nameplate capacity under all conditions. Confirm the exact AVR-W code, protection requirements and installation arrangement.
Typical applications
- Voltage stabilization for equipment within the selected model’s supply and load limits
- Low-voltage installations requiring a matched regulator capacity and protection configuration
Specify your enquiry
For a focused quotation, include:
- Complete manufacturer model code and required quantity
- Single/three-phase supply, actual minimum/maximum input voltage and required output
- Rated load kVA/kW, power factor, starting current and operating duty
- Required protection, delay/bypass configuration and ambient conditions
- Installation dimensions, ventilation, wiring and terminal requirements
