DELIXI ELECTRIC · DJW-G / SJW-G
Product overview

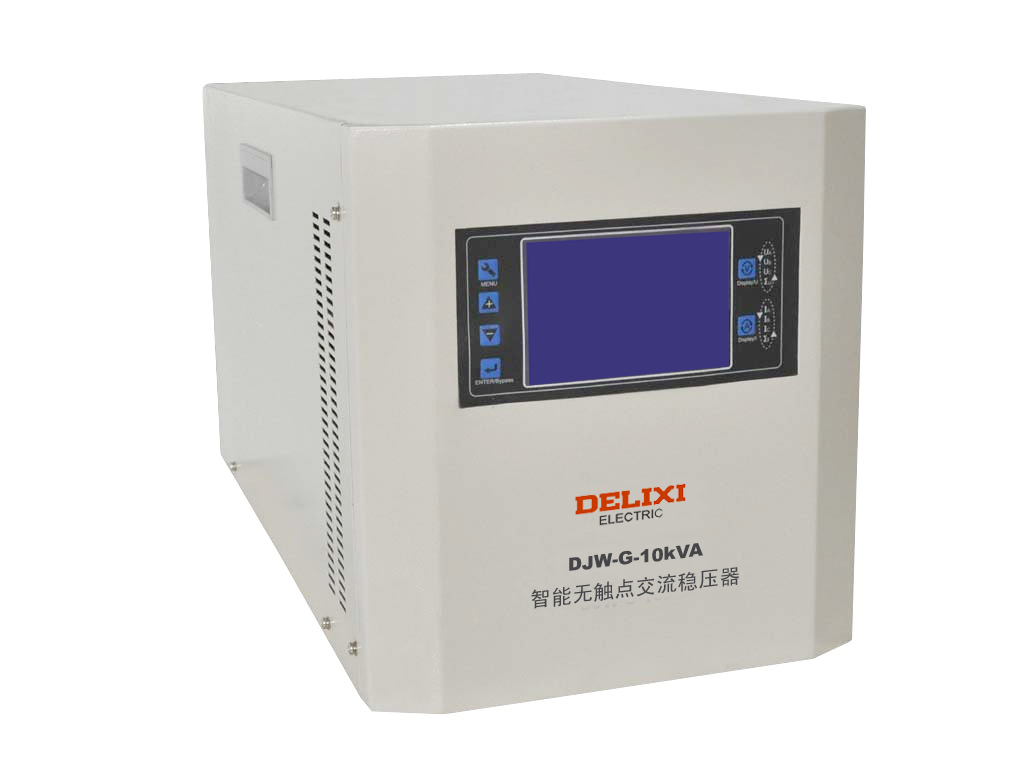

DELIXI DJW-G single-phase and SJW-G three-phase stabilizers use SCR-based contactless regulation. Select the linked phase/output and documented capacity.
Technical selection summary
| DJW-G | Single-phase; 220V output; 187–253V input; 10, 15, 20, 30, 40, 50kVA |
|---|---|
| SJW-G | Three-phase; 380V output; 323–437V input; 20–1600kVA exact ordering capacities |
| Accuracy / response | ±1–5% settable; <300ms |
| Frequency / efficiency | 50/60Hz; >98% |
| Protection | Over/undervoltage and overcurrent; actual bypass arrangement must match the ordered version |
| Installation | Indoor, ventilated; -5 to+40°C; above 1000m requires derating; do not parallel outputs |
| Dimensions | Confirm the exact factory outline for the ordered capacity before layout |
Capacity is linked to the single-phase or three-phase version. Confirm the exact factory outline, bypass arrangement and load derating before installation.
Typical applications
- AC voltage regulation for industrial equipment, production lines and other specified loads.
Specify your enquiry
For a focused quotation, include:
- Version / Phase / Output: DJW-G / 1-phase / 220V, SJW-G / 3-phase / 380V
- Rated Capacity: 10kVA, 15kVA, 20kVA, 30kVA, 40kVA, 50kVA, 60kVA, 80kVA, 100kVA, 120kVA, 150kVA, 200kVA, 250kVA, 300kVA, 400kVA, 500kVA, 600kVA, 1000kVA, 1200kVA, 1600kVA
- Actual circuit voltage, load duty, installation conditions and quantity.

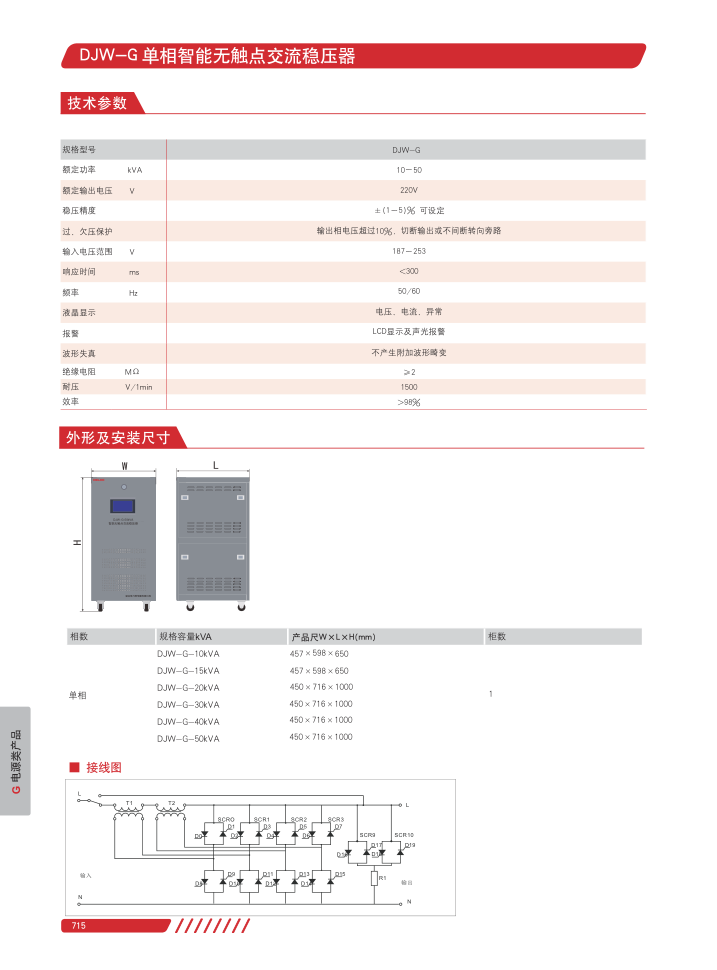

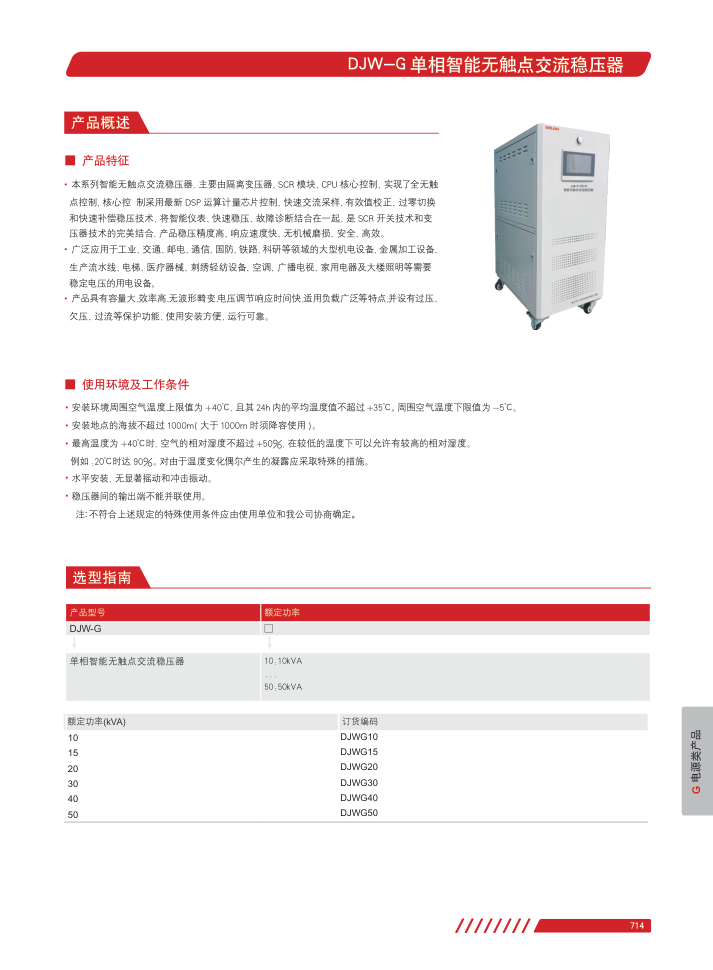

DJW-G manufacturer selection reference (PDF)

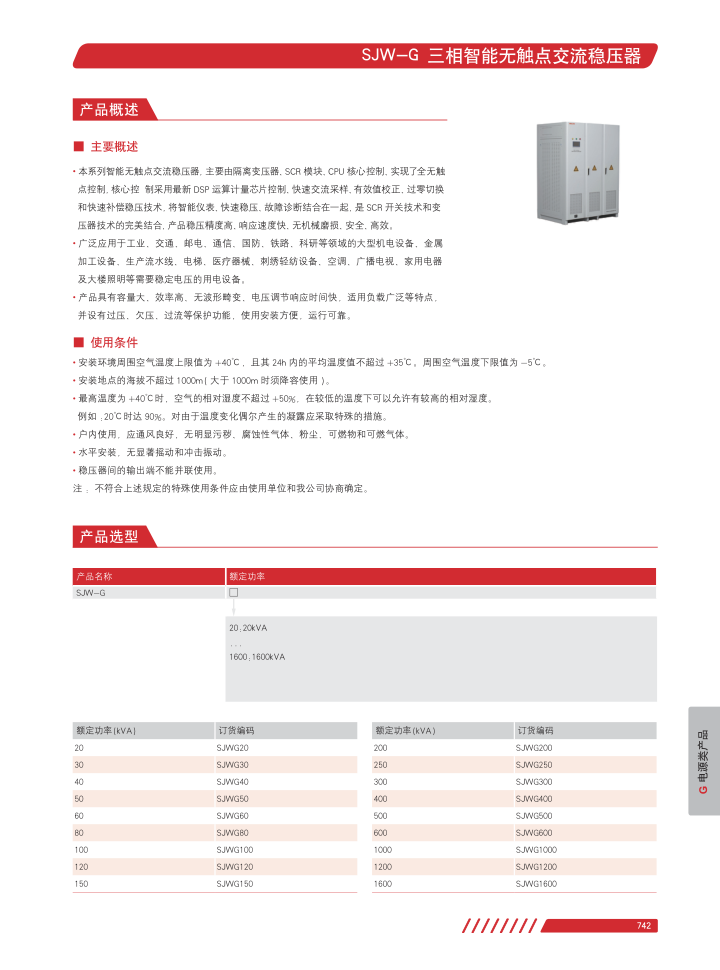

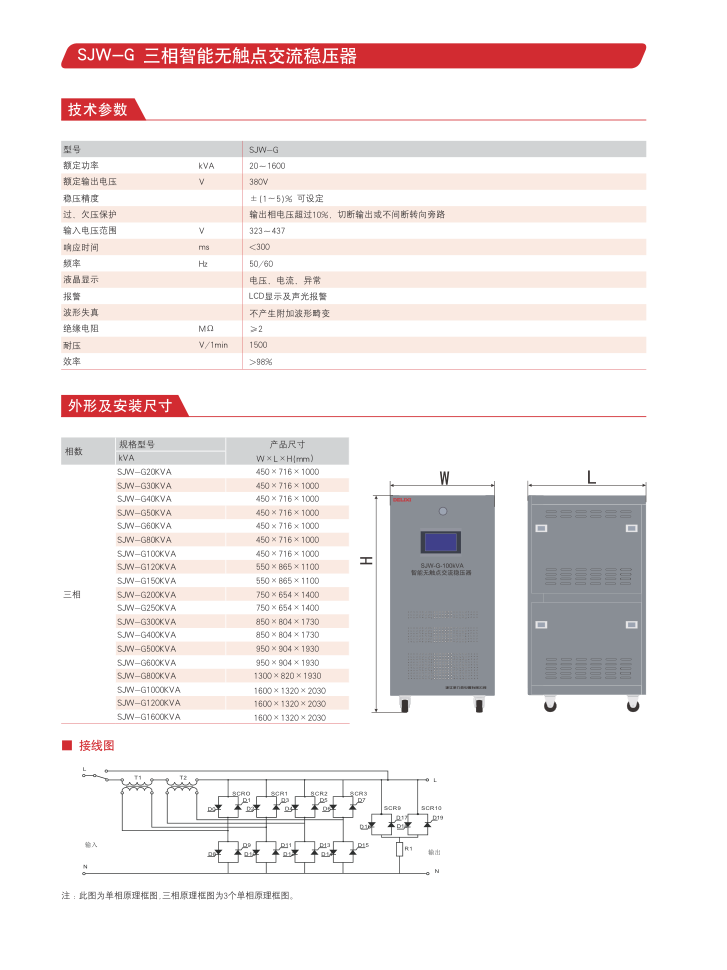

SJW-G manufacturer selection reference (PDF)
Product reference images and drawings
