DELIXI ELECTRIC · SBK
Product overview

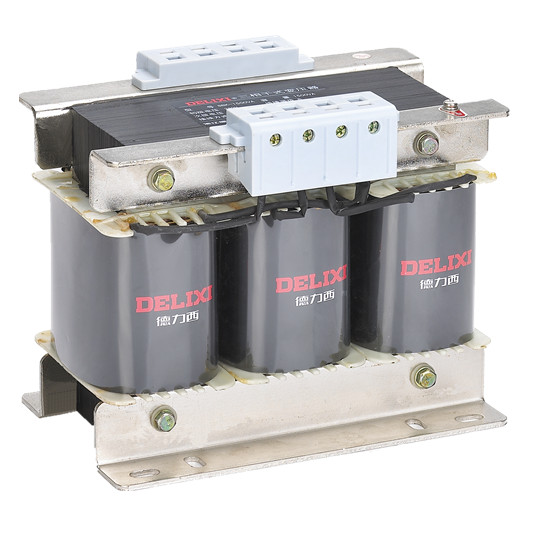

DELIXI SBK is a three-phase dry-type transformer supplied to the required voltage and winding specification. Select capacity and construction, then provide the primary and secondary requirements for quotation.
Technical selection summary
| Phase / frequency | Three-phase; 50/60Hz |
|---|---|
| Capacity selection | 0.3–100kVA exact dimension-table ratings plus the explicitly listed500kVA catalogue endpoint; other ratings require an exact factory reference |
| Factory construction families | D:standard custom; T:steel-enclosed custom; G:isolation custom; Z:steel-enclosed isolation custom |
| Input / output voltage | Made to specification; no fixed voltage pair is assumed |
| Voltage ordering codes | D001–D999, T001–T999, G001–G999, Z001–Z999 are factory-assigned specification codes, not voltage magnitudes |
| Mandatory enquiry information | Primary voltage, secondary voltage(s), frequency, vector group/neutral arrangement, required isolation and load duty |
| Environment / layout | -5 to+40°C; altitude≤2000m; indoor location protected from rain/snow; confirm dimensions for the ordered voltage/build |
| Capacity / real power | kVA is apparent power; it is not an assumed kW motor rating |
This is a custom-transformer enquiry specification, not a completed stock ordering code. Provide the actual input/output voltages and winding requirements before the factory assigns the finalD/T/G/Z code. The selection does not assume380→220V or any particular vector group.
Typical applications
- Custom three-phase supply conversion for control equipment, rectification, charging and other specified loads.
Specify your enquiry
For a focused quotation, include:
- Rated Capacity: 0.3kVA, 0.5kVA, 0.75kVA, 1kVA, 1.5kVA, 2kVA, 2.5kVA, 3kVA, 4kVA, 5kVA, 6kVA, 7kVA, 8kVA, 10kVA, 15kVA, 20kVA, 25kVA, 30kVA, 40kVA, 50kVA, 60kVA, 80kVA, 100kVA, 500kVA
- Construction: Standard, Steel enclosure, Isolation, Enclosed isolation
- Required primary and secondary voltage(s), frequency, vector group/neutral arrangement, isolation requirements, load duty and quantity.

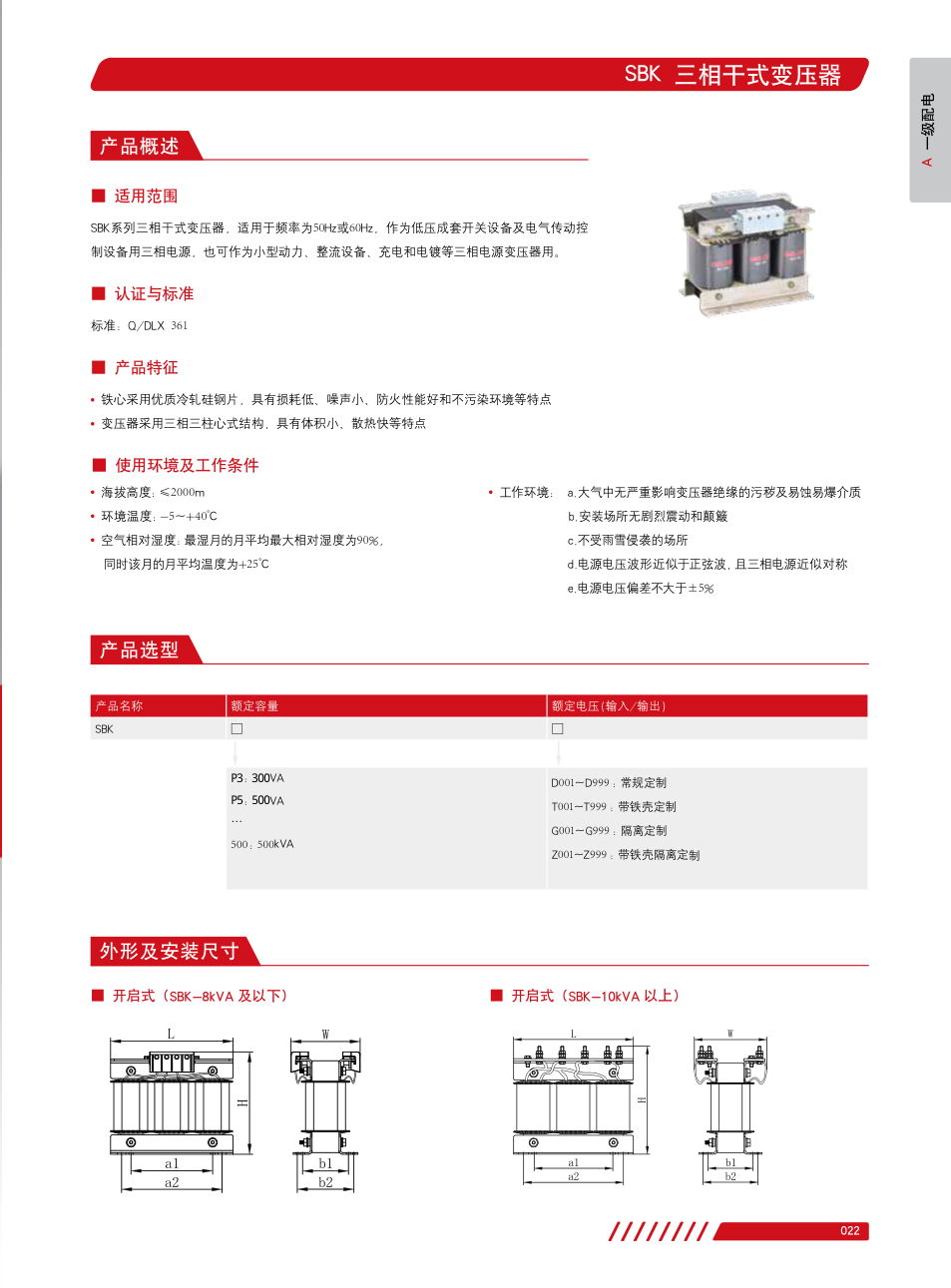

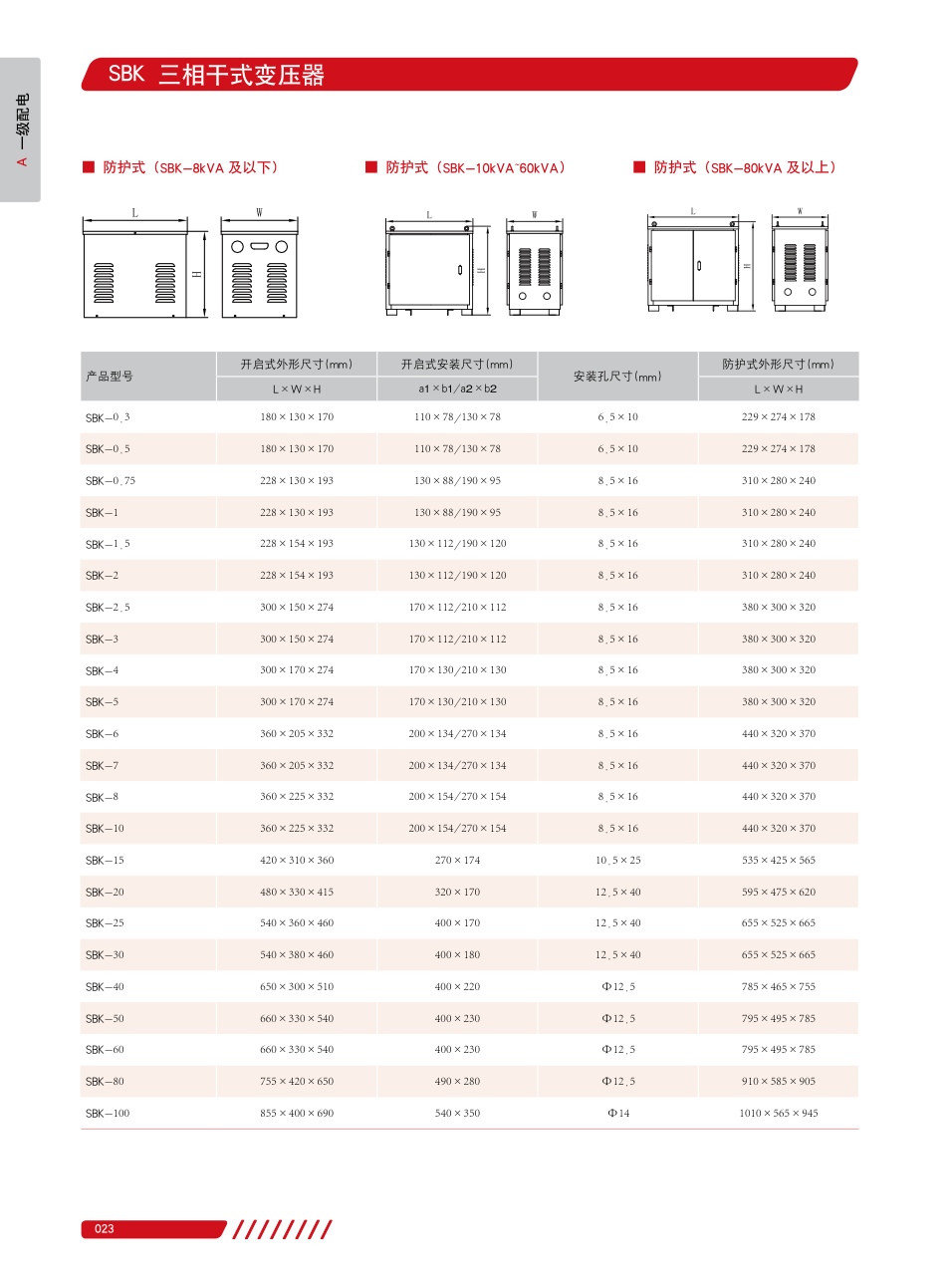

SBK manufacturer selection reference (PDF)
Product reference images and drawings
