DELIXI ELECTRIC · TND

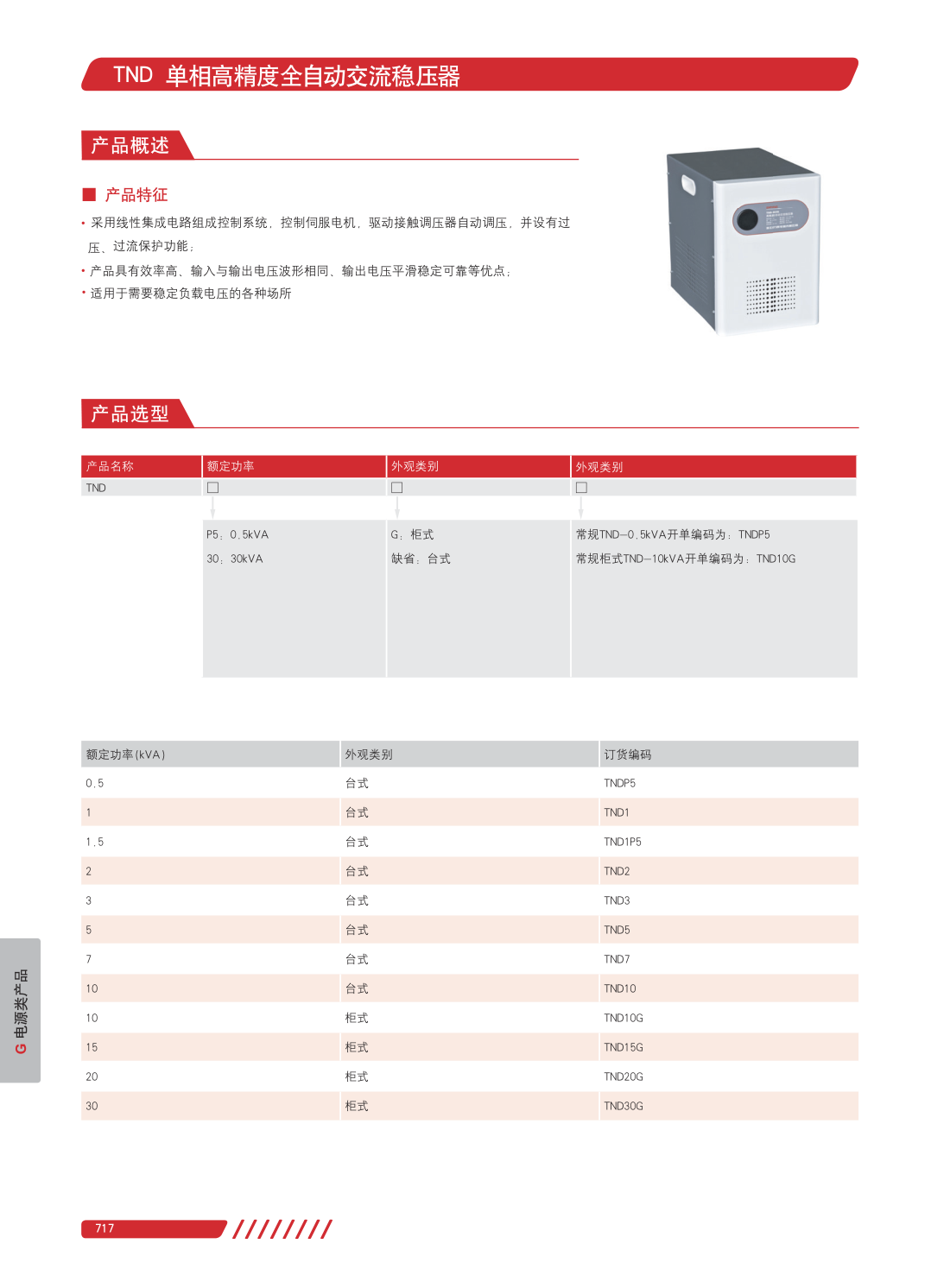

Product overview
DELIXI TND uses servo-driven voltage regulation for single-phase loads. Select rated capacity and the documented desktop or cabinet enclosure.

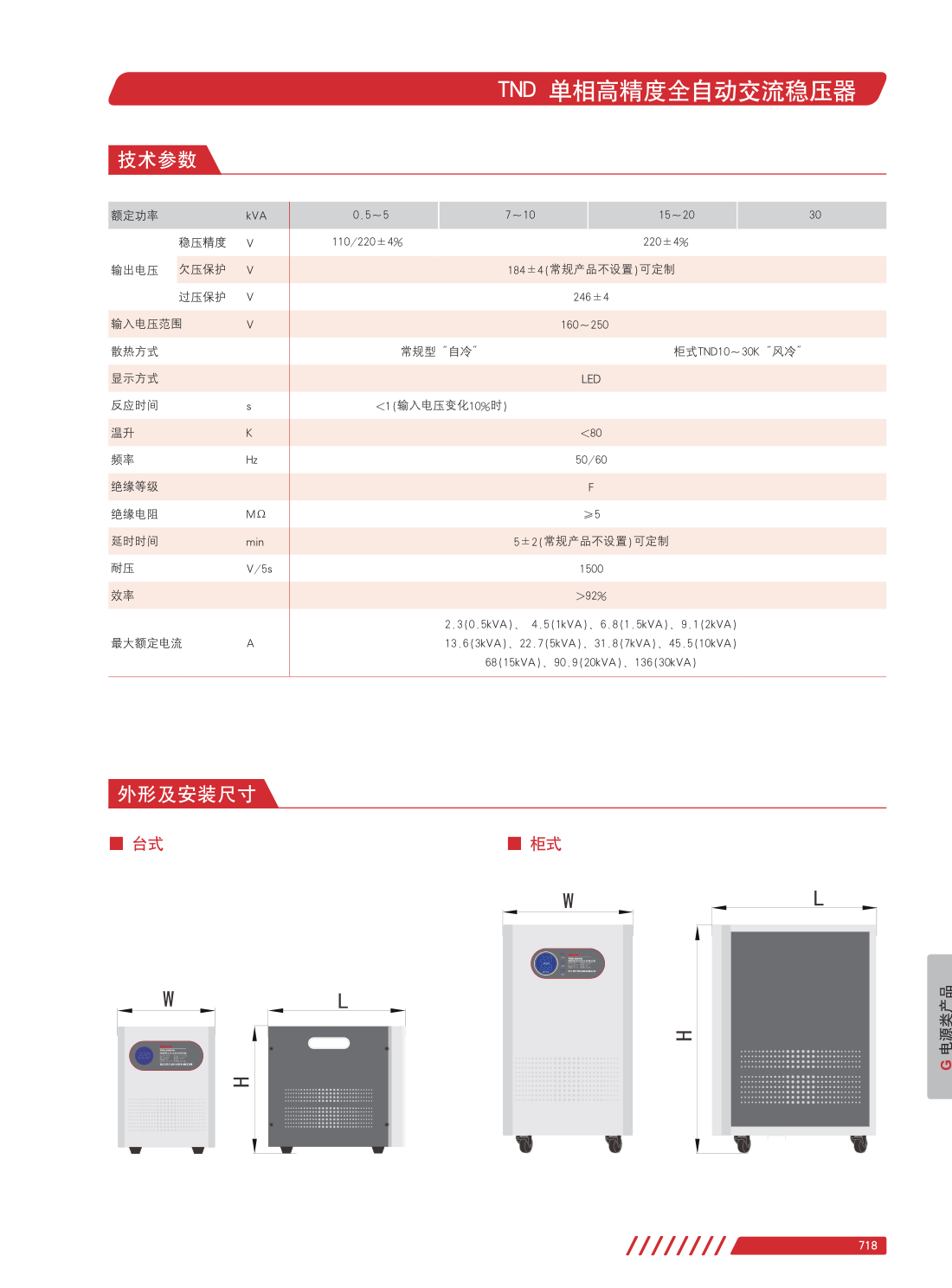

Technical selection summary
| Input / main output | AC160–250V input; AC220V output, ±4% in the current product catalogue |
|---|---|
| Capacity / current | 0.5/1/1.5/2/3/5/7/10/15/20/30kVA; maximum output current2.3/4.5/6.8/9.1/13.6/22.7/31.8/45.5/68/90.9/136A respectively |
| Auxiliary output | 110V outlet for0.5–5kVA: no more than35% of nominal capacity in the English manufacturer manual |
| Frequency / efficiency | 50/60Hz; > 92% |
| Overvoltage / delay | 246±4V overvoltage; undervoltage184±4V and5±2minute delay are optional in the current catalogue |
| Enclosure | Desktop0.5–10kVA; cabinet10–30kVA; 10kVA has both versions |

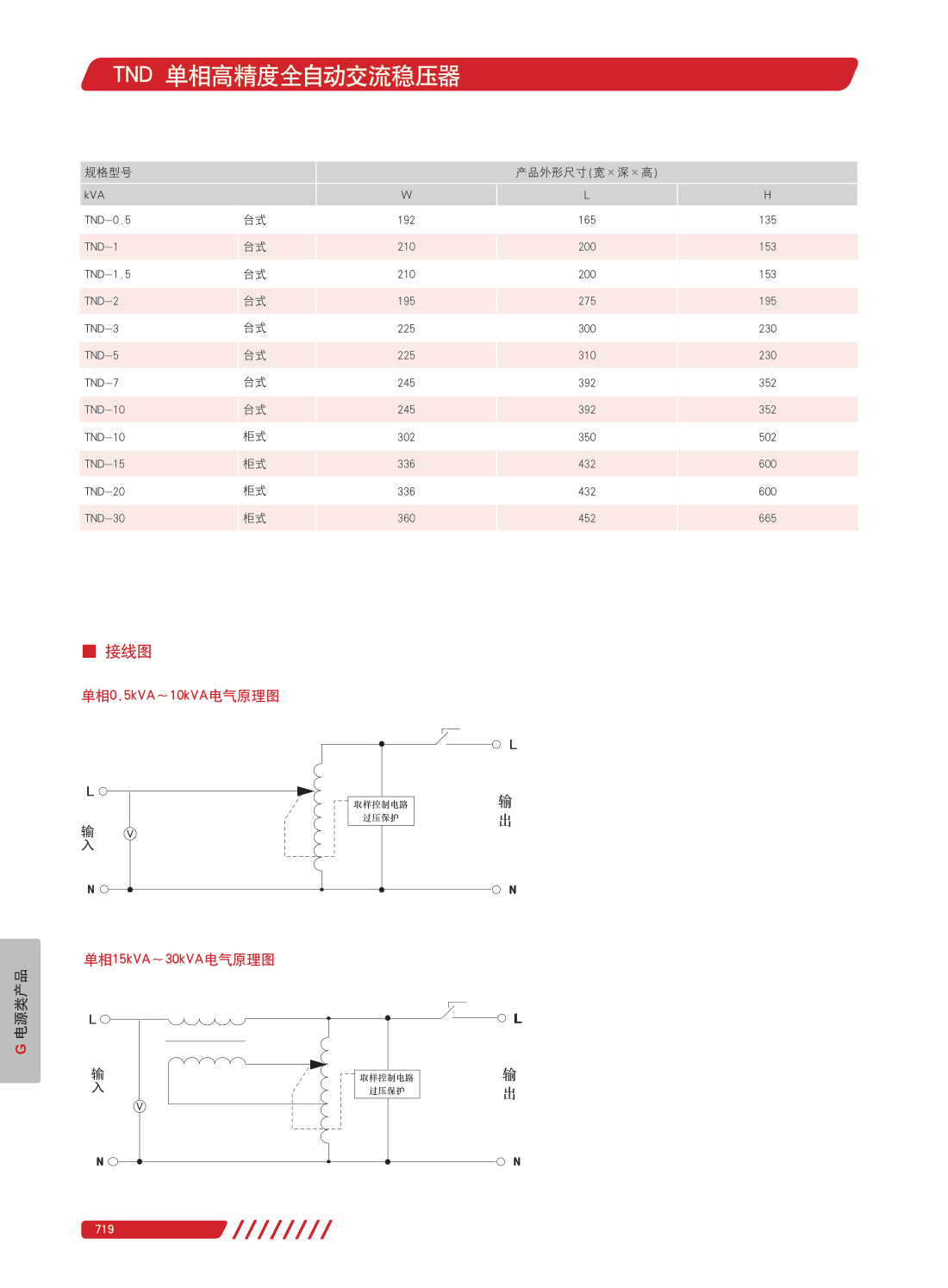

| Dimensions / wiring | Exact capacity/enclosure dimensions and circuit diagrams are supplied in the catalogue |
Capacity and enclosure are linked. The 110V outlet does not inherit a full220V output power or a protection claim by assumption. Identify this TND family separately from the TND2 and TND3 design series.
Typical applications
- DELIXI TND uses servo-driven voltage regulation for single-phase loads.
Specify your enquiry
For a focused quotation, include:
- Rated Capacity: 0.5kVA, 1kVA, 1.5kVA, 2kVA, 3kVA, 5kVA, 7kVA, 10kVA, 15kVA, 20kVA, 30kVA
- Enclosure: Desktop, Cabinet
- Required quantity, circuit duty and installation conditions.
TND 2025 selection and dimensions (Chinese PDF)
TND/SJW manufacturer instructions (English PDF)

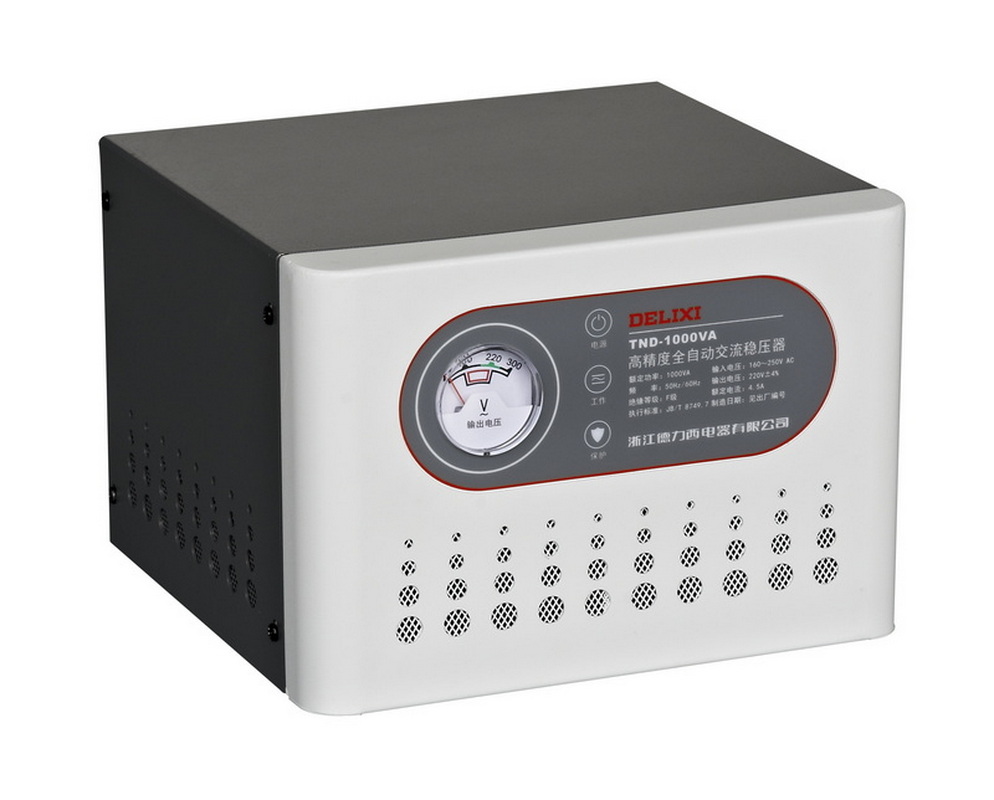

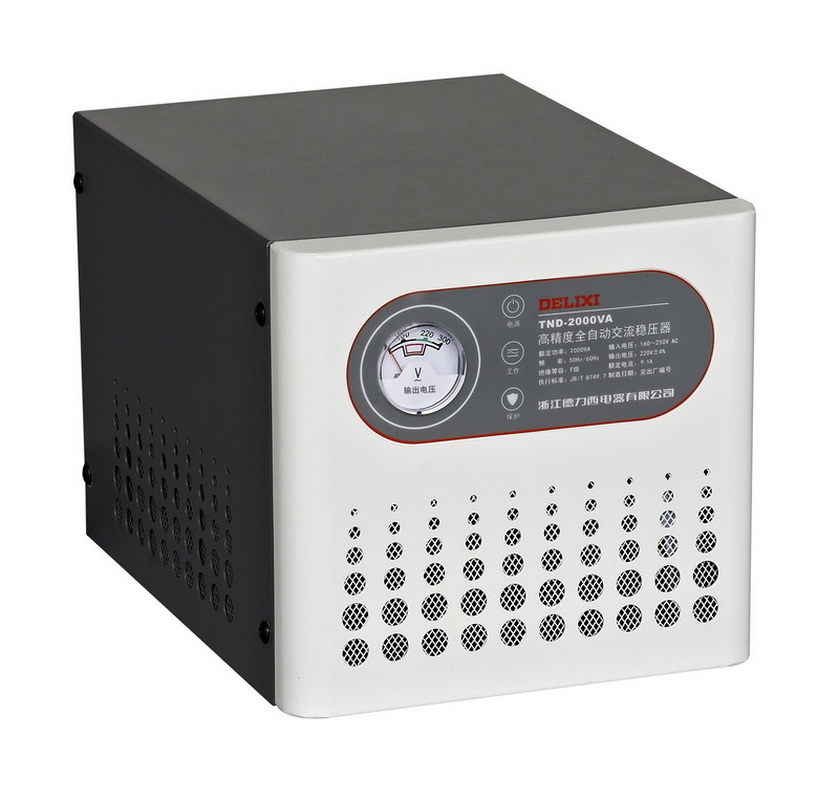

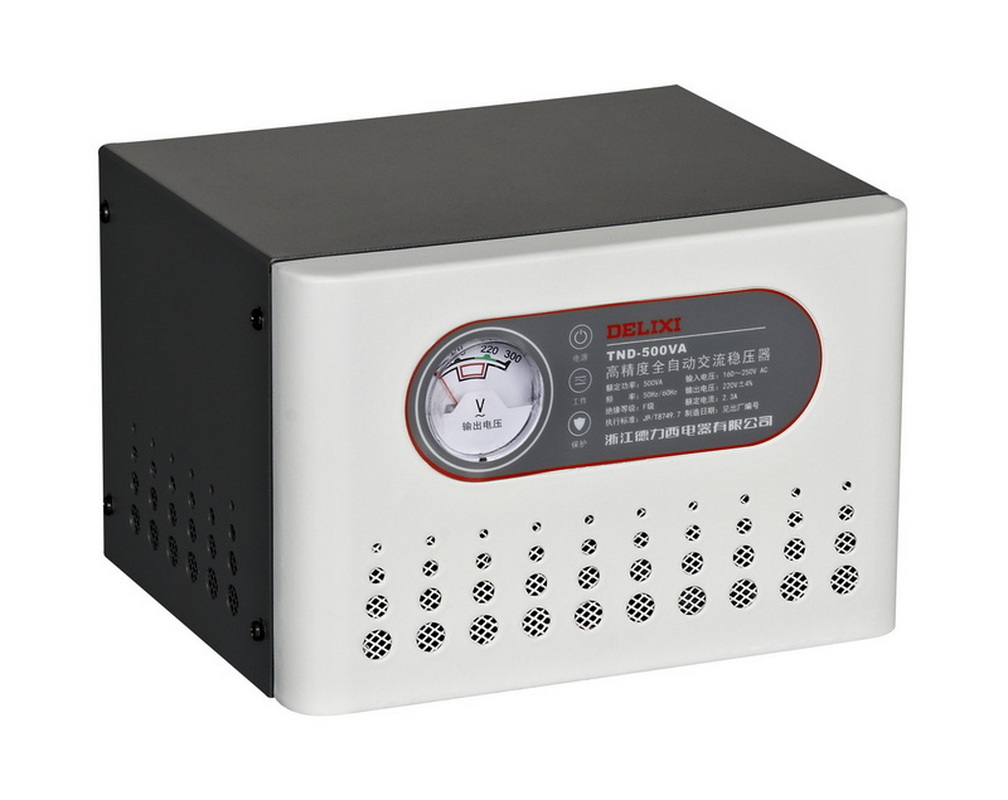

Product reference images and drawings
