DELIXI · Portable AC voltage stabilizer
Product overview

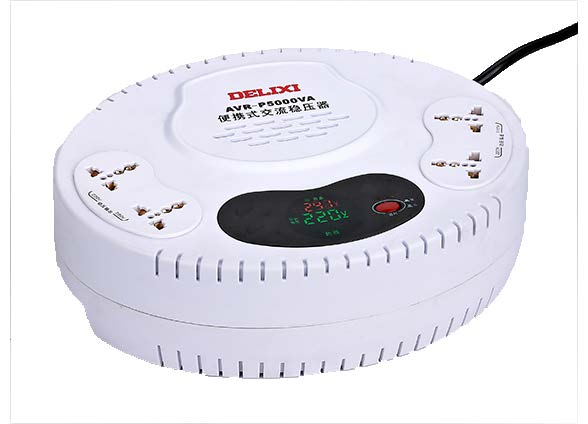

The DELIXI AVR-P portable stabilizer uses relay-controlled autotransformer regulation and multiple output sockets. The manufacturer reference distinguishes regulated and direct-mains socket arrangements, so specify the required outlet function together with the capacity.
Technical selection summary
| Brand and series | DELIXI AVR-P |
|---|---|
| Phase / construction | Single-phase portable relay-type AC stabilizer |
| Capacity references | 1000, 1500, 2000, 3000 and 5000 VA |
| Input-voltage reference | 140–260 V |
| Output / regulation reference | 220 V ±8% |
| Frequency | 50/60 Hz |
| Delay references | 1000/1500/2000 VA: 3 s; 3000/5000 VA: 6 s / 180 s reference. Confirm the exact delay configuration. |
| Protection references | Overvoltage, undervoltage and overtemperature functions; manufacturer temperature reference 110±10°C |
| Load / efficiency references | Output power-factor reference cos φ 0.8; efficiency >95% |
| Operating-temperature reference | −10°C to +45°C |
| Socket arrangement | Confirm regulated-output versus direct-mains outlets for the exact assembly |
VA is apparent-power capacity and must not be treated as a universal watt rating. Confirm the actual load, power factor and starting current. Not every socket is necessarily regulated; check the required outlet arrangement and delay version before ordering.
Typical applications
- Voltage stabilization for equipment within the selected model’s supply and load limits
- Low-voltage installations requiring a matched regulator capacity and protection configuration
Specify your enquiry
For a focused quotation, include:
- Complete manufacturer model code and required quantity
- Single/three-phase supply, actual minimum/maximum input voltage and required output
- Rated load kVA/kW, power factor, starting current and operating duty
- Required protection, delay/bypass configuration and ambient conditions
- Installation dimensions, ventilation, wiring and terminal requirements
- Required socket type, number and regulated/direct-mains functions
