DELIXI ELECTRIC · CDZC-10-Y
Product overview
DELIXI CDZC-10-Y manages ten e-bike charging outlets with an LCD and load-based charging management. Select the documented payment version.
Technical selection summary
| Supply / frequency | AC220V; 50Hz |
|---|---|
| Per-outlet load | 800W maximum; 3.5A maximum carrying current |
| Protection / completion | 3.5A overload value; 30mA charge-completion threshold, not a declared RCD sensitivity |
| Standby | 5W |

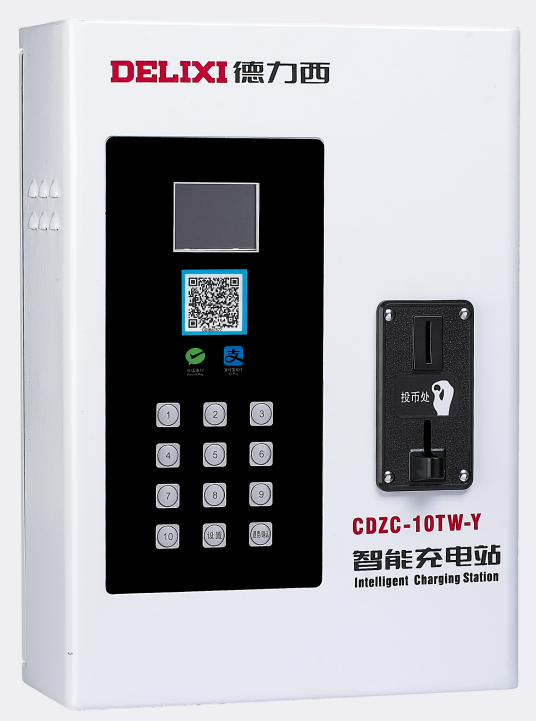

| Payment versions | T:coin; S:card; W:QR in the-Y ordering guide; TW:coin+QR as marked on the original-Y photograph |
| Management | Load-power billing, remote monitoring/settings and revenue query require the matched operating backend |
| Enclosure | Exact-Y mounting outline below; do not use the ordinary or-J enclosure as its dimension drawing |
The source describes payment capabilities but does not establish that a China QR/card service works in another country. TheTW combined payment version is supported by the original product marking; other unlisted combinations are not freely concatenated.
Typical applications
- DELIXI CDZC-10-Y manages ten e-bike charging outlets with an LCD and load-based charging management.
Specify your enquiry
For a focused quotation, include:
- Payment: Coin, Card, QR, Coin+QR
- Required quantity, circuit duty and installation conditions.
CDZC-10-Y exact catalogue (Chinese PDF)
Product reference images and drawings
