DELIXI ELECTRIC · CDXY-16
Product overview

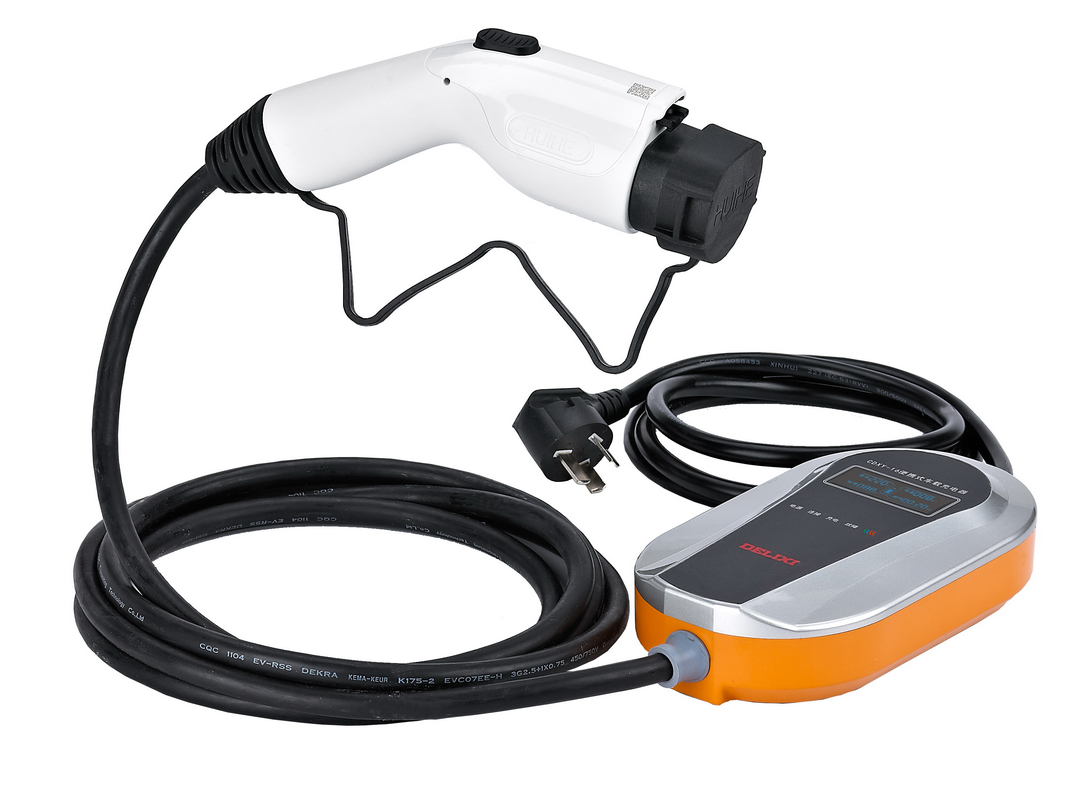

DELIXI CDXY-16 is a portable AC EV charging assembly with LCD metering and LED status indication. The manufacturer table distinguishes13A rated current from 16A maximum output.
Technical selection summary
| Supply / output | AC220V±15%; 50±1Hz |
|---|---|
| Current / power | 13A rated; maximum 16A output; 3.5kW catalogue power |
| Cable / protection | 5m cable; control boxIP67; charging connectorIP55 |
| Protection functions | Short-circuit, over/undervoltage, overcurrent, residual-current, overtemperature and surge functions in the manufacturer catalogue |
| Dimensions / weight | Control assembly210×120×50mm; net1.7kg; package360×250×130mm, 2.2kg gross |
| Connection | Original L/N/PE andCP/CC connector diagram below; use the supplied vehicle connector and mains plug |
| Standard | GB/T18487.1 in the exact manufacturer sheet |
The16 model designation is not relabelled as a 16A continuous rating. No Type2, Type1 or alternative mains-plug option is generated without a matching factory version; include the vehicle inlet and installation country in an enquiry for a different connector.
Typical applications
- DELIXI CDXY-16 is a portable AC EV charging assembly with LCD metering and LED status indication.
Specify your enquiry
For a focused quotation, include:
- Required quantity, circuit duty and installation conditions.
CDXY-16 rated/max current and wiring (Chinese PDF)
Product reference images and drawings
