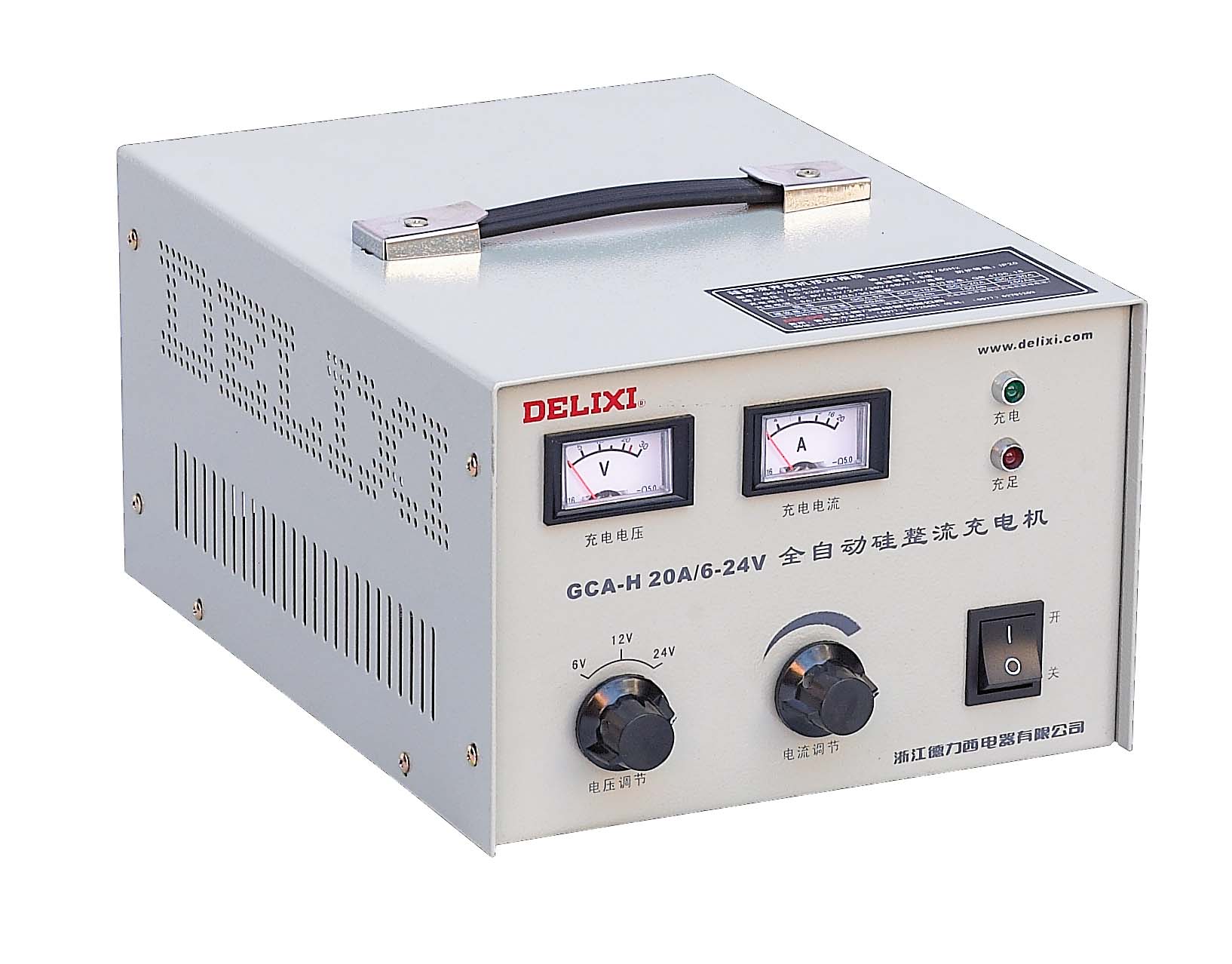

DELIXI ELECTRIC · GCA-H
Product overview
DELIXI GCA-H uses transformer isolation, full-wave rectification andadjustable charging for the documented battery-voltage/current versions. Select the exact linked charging range and current.
Technical selection summary
| Input | AC220V±10%; 50/60Hz |
|---|---|
| Charging versions | 6–12V:5/10/20A; 6–24V:10/20/30A; 6–36V:10/20A; 6–48V:20/30A in the 2025 order list |
| Control | Manual voltage-range selection; adjustable current; automatic full-charge stop and short float-charge intervals |
| Temperature / standard | Whole-unit temperature rise≤60°C; Q/DLX343 |
| Dimensions / wiring | Original variant-specific W/L/H table andtransformer/rectifier wiring supplied. The48V30A order row has no matching dimension row; obtain the exact outline for installation |
| Battery matching | Specify battery chemistry, nominal voltage andcapacity; the catalogue does not establish universal lithium-battery/BMS compatibility |
The current buttons are linked to the explicit2025 order pairs. The dimension table includes a 6–48V10A outline but no matching10A order row, and does not give a 6–48V30A outline; neither gap is silently filled from a neighbouring size.
Typical applications
- DELIXI GCA-H uses transformer isolation, full-wave rectification andadjustable charging for the documented battery-voltage/current versions.
Specify your enquiry
For a focused quotation, include:
- Charging Voltage: 6–12V, 6–24V, 6–36V, 6–48V
- Charging Current: 5A, 10A, 20A, 30A
- Required quantity, circuit duty and installation conditions.
GCA-H2025 voltage/current order matrix (Chinese PDF)
Product reference images and drawings
