CHINT NJDC-17 Miniature Electromagnetic Relay
Click to enlarge
Home Electrical Accessories Others CHINT NJDC-17 Miniature Electromagnetic Relay
CHINT NXJ Miniature Electromagnetic Relay
CHINT NXJ Miniature Electromagnetic Relay
Back to products
CHINT NXQ Electromagnetic DOL Motor Starter, up to 45 kW
CHINT NXQ Electromagnetic DOL Motor Starter, up to 45 kW

CHINT NJDC-17 Miniature Electromagnetic Relay

Miniature electromagnetic relay for control, switching and interface functions in compact electrical systems.

Model
Coil Voltage
Add to Enquiry
SKU: NJDC-17 Categories: Electrical Accessories, Others
  • Description
  • Catalog
Description

CHINT · Miniature relay with test button

Product overview

The CHINT NJDC-17 miniature relay uses a self-locking test button and a transparent dust cover for control and interface switching. Match the contact construction, coil supply, indicator/suppression options and socket pin layout.

Technical selection summary

Manufacturer familyNJDC-17
Contact construction2Z / 2ZS: two changeover sets; 3ZS: three; 4ZS: four
Resistive contact load2Z: 10 A; 2ZS and 3ZS: 5 A; 4ZS: 3 A at 250 VAC / 30 VDC
Coil and contact circuitsAC/DC coil voltage is separate from contact switching voltage and load
Operating / release timeUp to 25 ms in the manufacturer reference conditions
Mounting and socketsPlug-in and PCB constructions; 2Z uses CZT08-family sockets, 2ZS/3ZS/4ZS use the matched CZY08/11/14 families
Ambient reference-40°C to +70°C; maximum altitude 2000 m

2Z and 2ZS have different contact ratings and pin arrangements; do not replace one with the other using contact count alone. Indicator, diode, arc-shield, silver-alloy and terminal suffixes must be specified in the complete order code. Follow the manufacturer restriction on prolonged energization of the AC 380 V coil.

Typical applications

  • Control-panel interface circuits
  • Machine-control and signal switching

Product reference images and drawings

Use the drawing and rating row for the complete manufacturer model and supplied version. Family references may show other constructions.

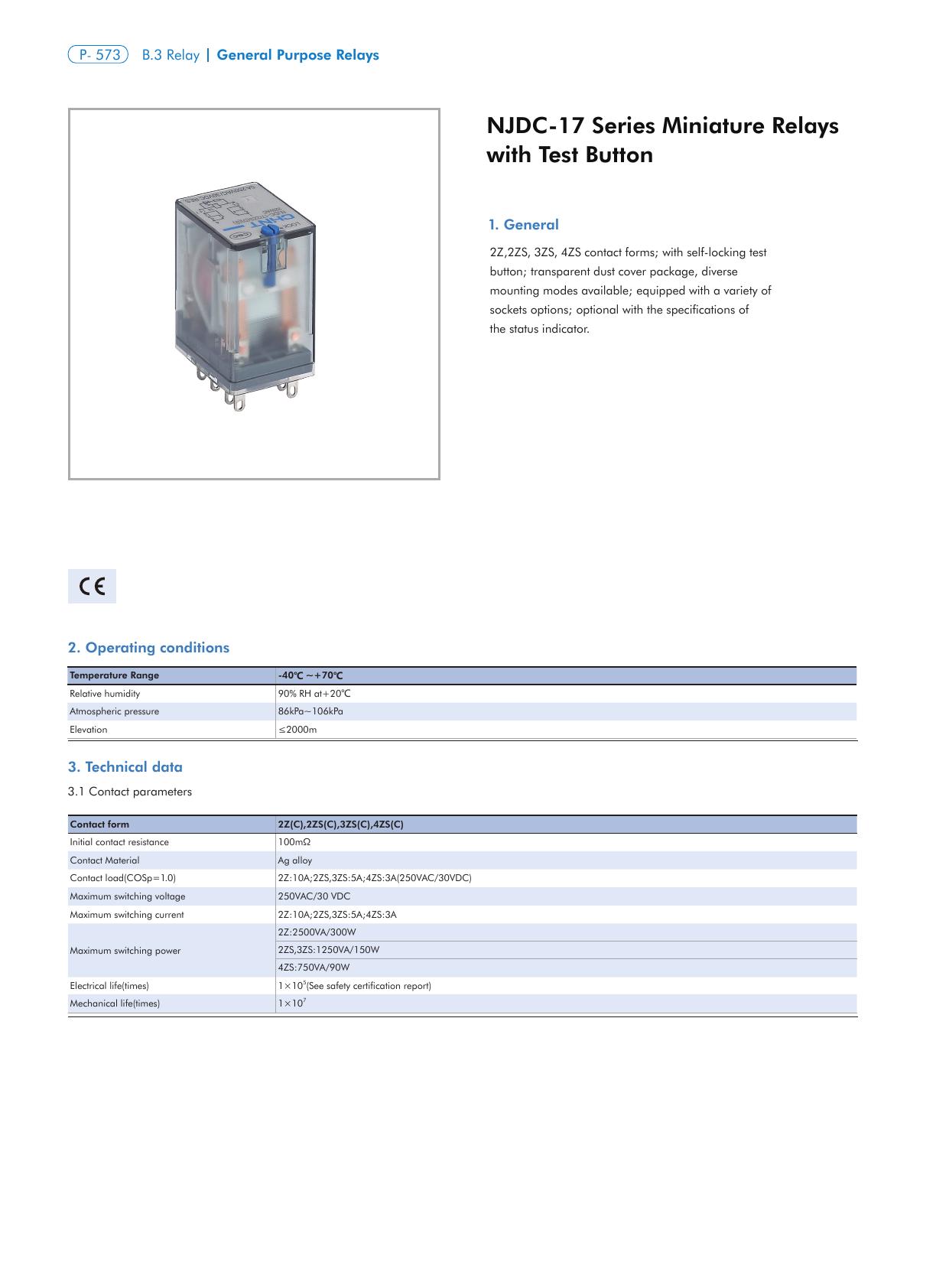

NJDC-17 technical reference 1NJDC-17 technical reference 2
Catalog
NameSizeRelease timeOperate
