CHINT NKG1 Programmable Time Switch with 16 Schedules

CHINT NKG1 switches lighting and other control circuits to a programmed timetable. It provides manual on/off and automatic operation; use an external contactor when switching three-phase equipment or loads beyond the contact rating.

Model
Request a Quote

Send quantities and requirements together. Availability and final specifications are confirmed with your quotation.

SKU: NKG1 Category:
Description

CHINT · NKG1

Product overview

CHINT NKG1 switches lighting and other control circuits to a programmed timetable. It provides manual on/off and automatic operation; use an external contactor when switching three-phase equipment or loads beyond the contact rating.

Technical selection summary

Series NKG1
Supply AC 220 V, 50/60 Hz
Programming 16 groups
Time control range 1 minute–168 hours
Output One normally open contact; AC-15 3 A at 240 V
Backup Replaceable AA battery

The table summarizes the series. Available combinations depend on the exact manufacturer code, load duty and supply voltage. Confirm the selected configuration with your quotation.

Typical applications

  • Lighting timetables
  • Advertising sign control
  • Scheduled equipment control

Specify your enquiry

For a focused quotation, include:

  • Required switching schedule
  • Load duty and contactor requirement
  • Installation and backup requirements

Download CHINT NKG1 catalogue (PDF)

Related products

CHINT NDK Single-Phase Control Transformer, 25–5000 VACHINT NJBK1 Motor Protection Relay, 1–400 ACHINT NJX3 Miniature HVAC Relay with Quick-Connect Terminals

Product reference images and drawings

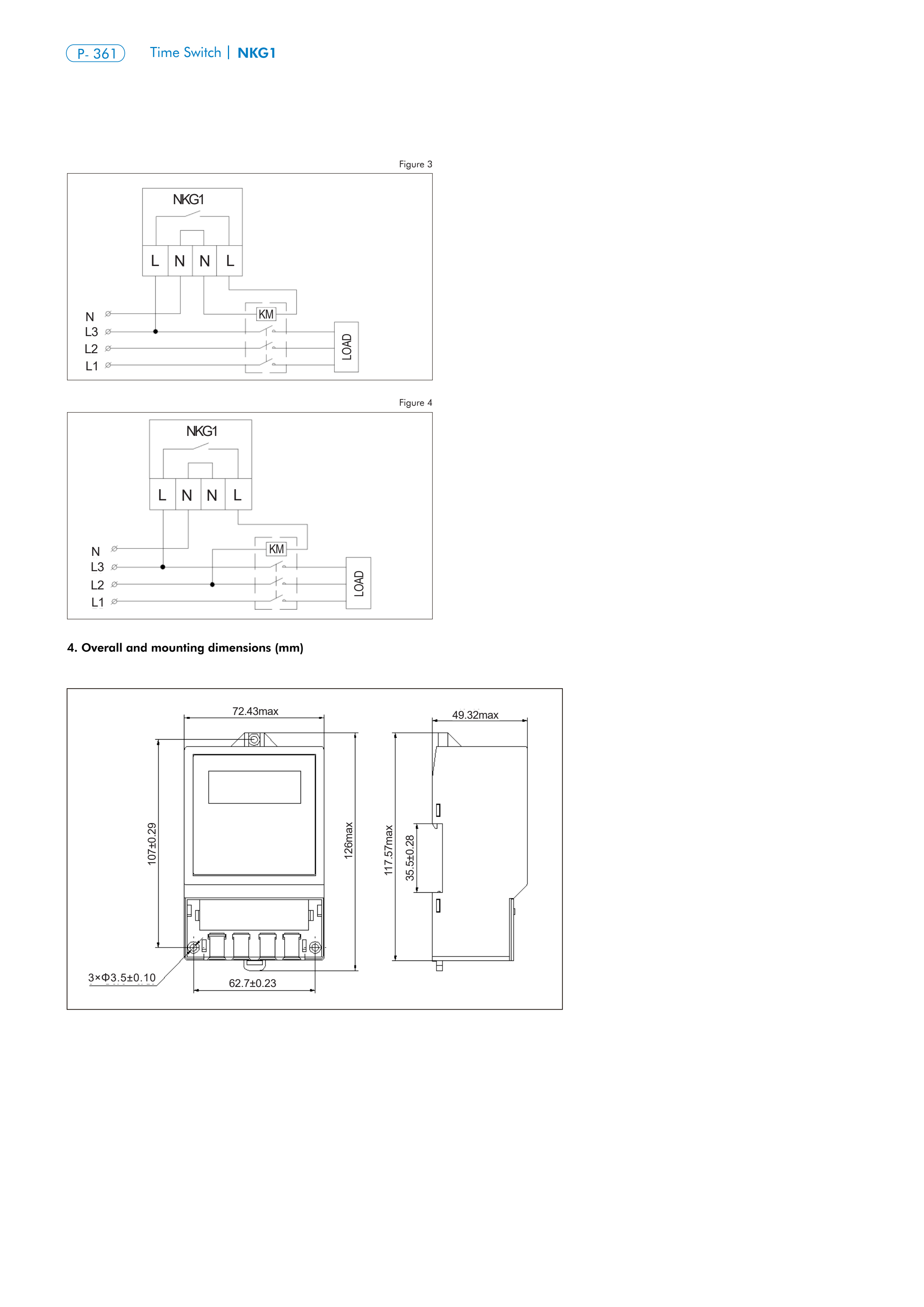

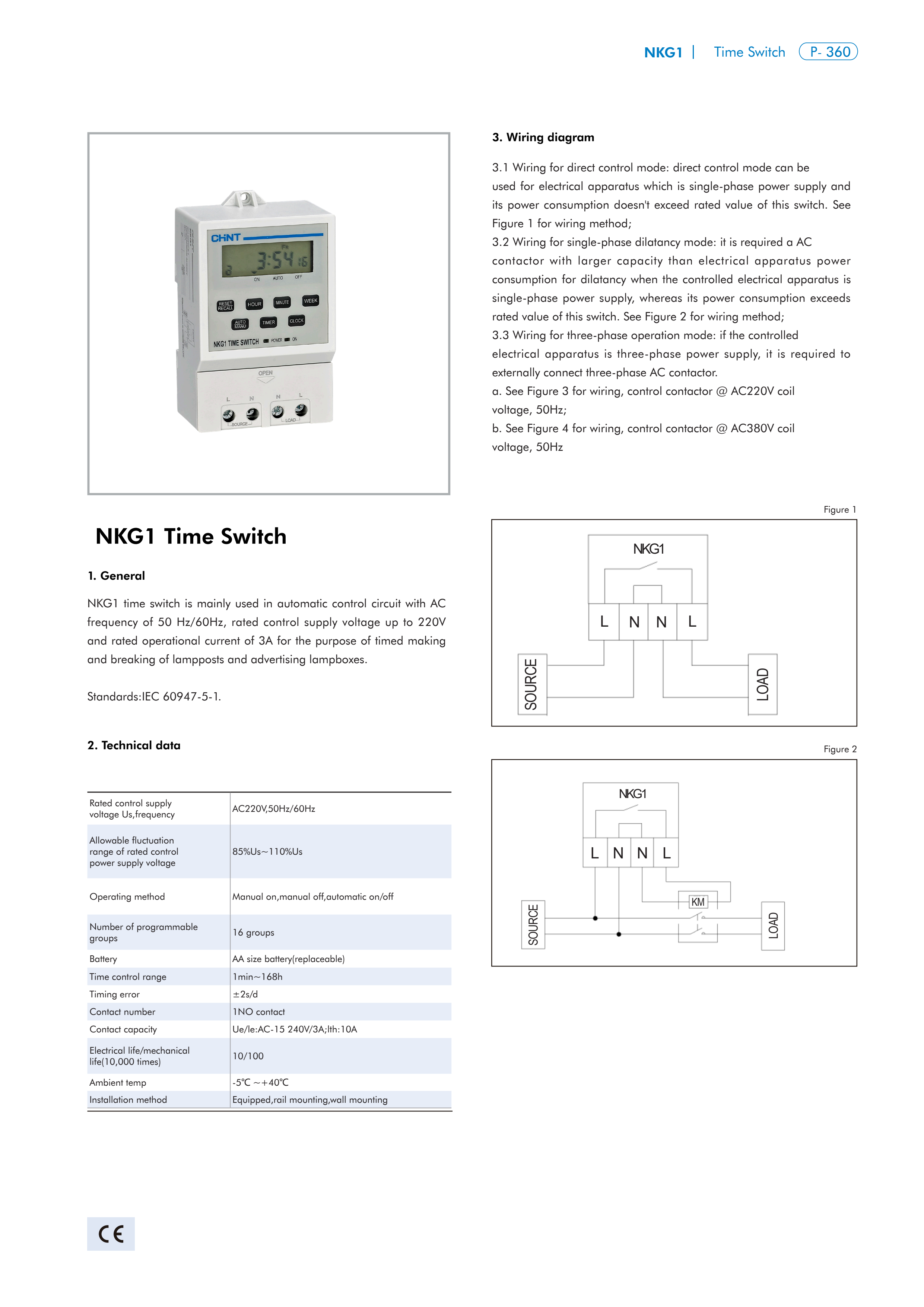

CHINT NKG1 manufacturer technical page 1CHINT NKG1 manufacturer technical page 2
Additional information
Model

NKG1
Technical Documents

TECHNICAL RESOURCES

Documents for CHINT NKG1 Programmable Time Switch with 16 Schedules

Check the exact model, rating and configuration in the linked document before ordering.

Download CHINT NKG1 catalogue (PDF)

Drawings and compliance documents

Tell us the model and destination market if you need dimensions, a wiring diagram or a certification document. Available documents and approvals depend on the exact product configuration.

Ask for product documents

Supplier: Shanghai Newtrend Electric Co., Ltd. Brand and manufacturer details are stated separately for each product.

Selection & Ordering

BEFORE YOU ORDER

Selection and ordering questions

What should I specify when ordering NKG1?

Required switching schedule; Load duty and contactor requirement; Installation and backup requirements. Include the quantity and destination.

Can I enquire about several products together?

Add each selected configuration to the quote list, set its quantity and submit the list in one enquiry.
