CHINT · NJX3
Product overview

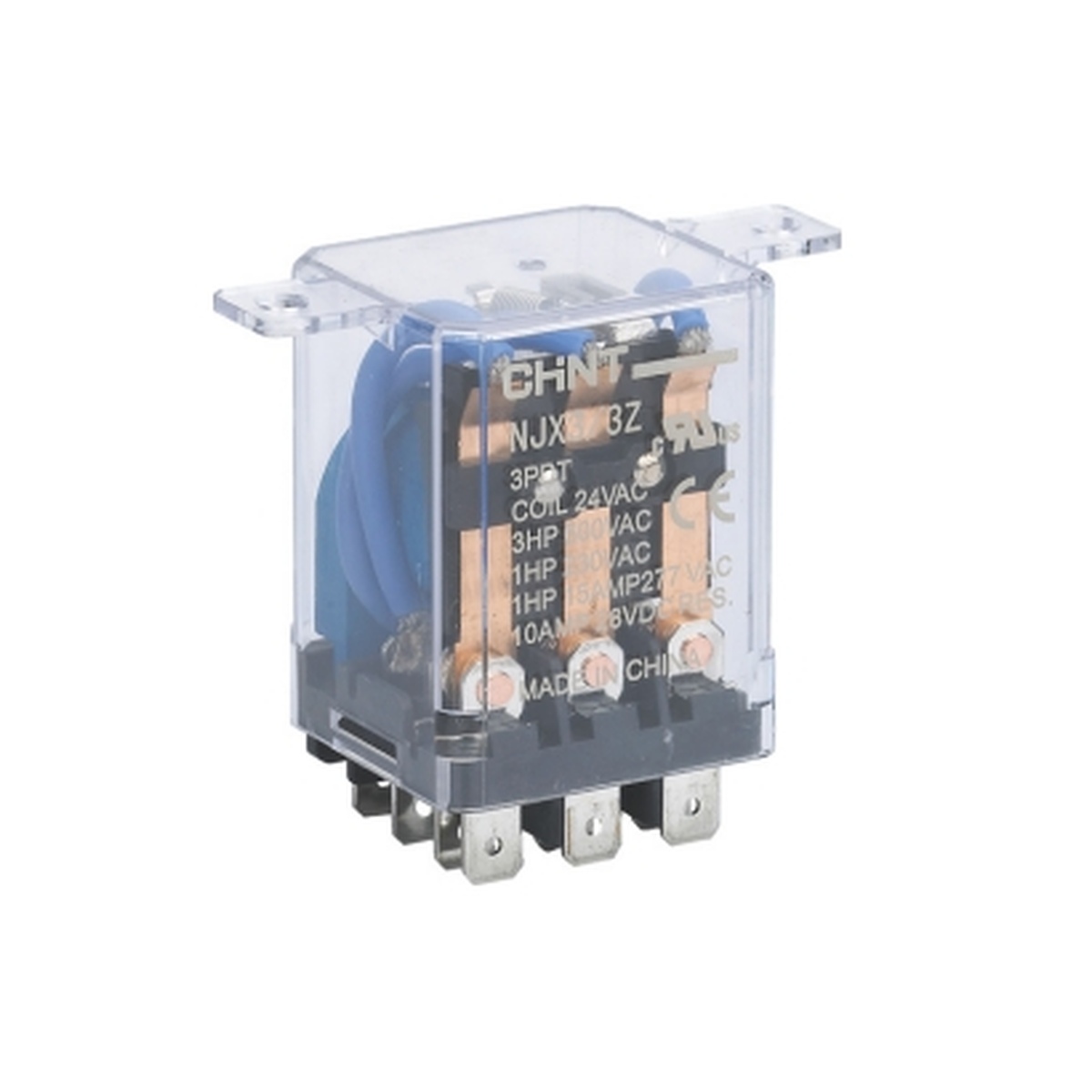

CHINT NJX3 miniature relays are designed for HVAC control, including condenser, compressor and air-conditioning equipment. Quick-connect terminals allow direct wiring without a relay socket; choose the contact group and check its rating for the actual load.

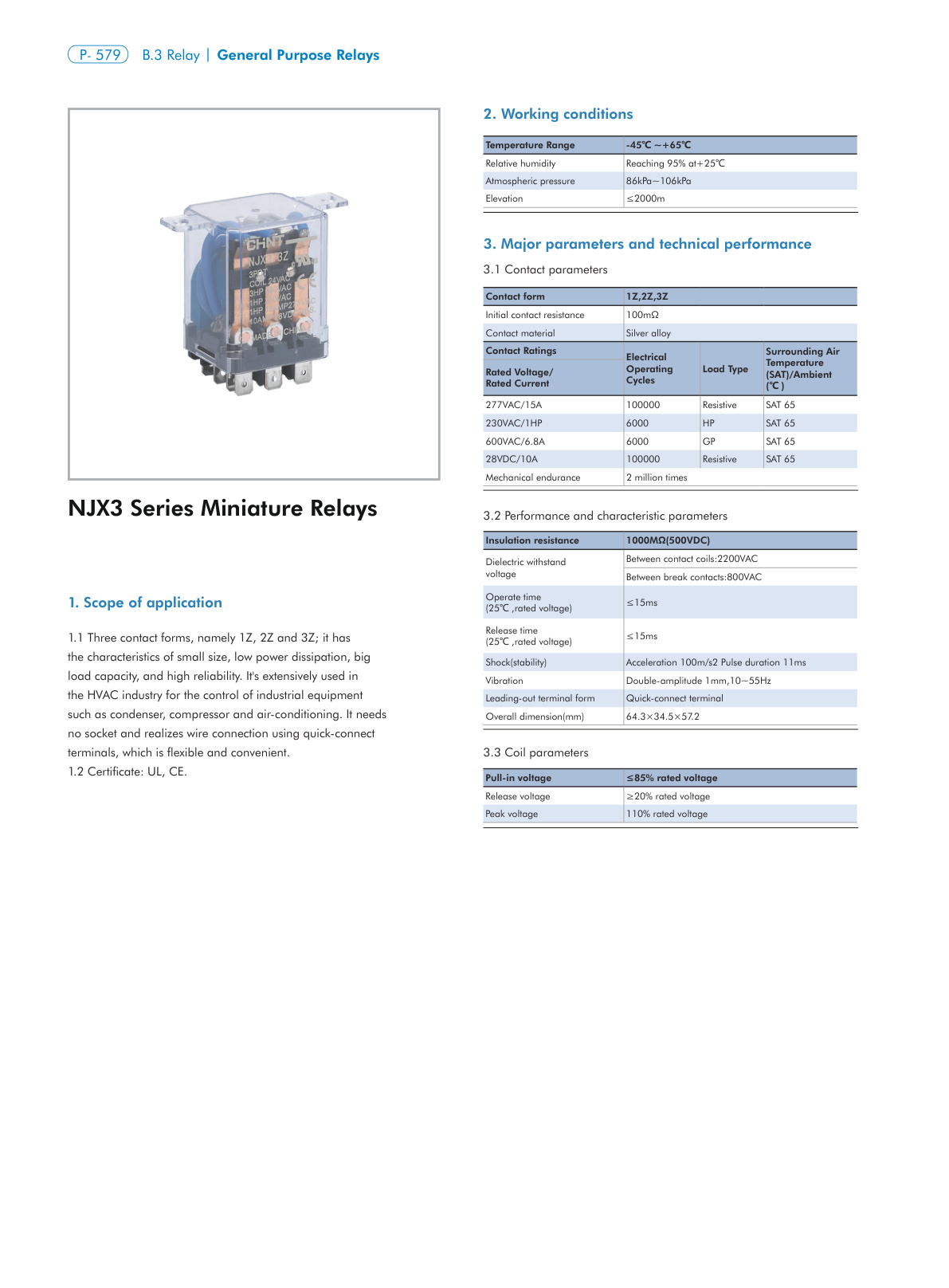

Technical selection summary

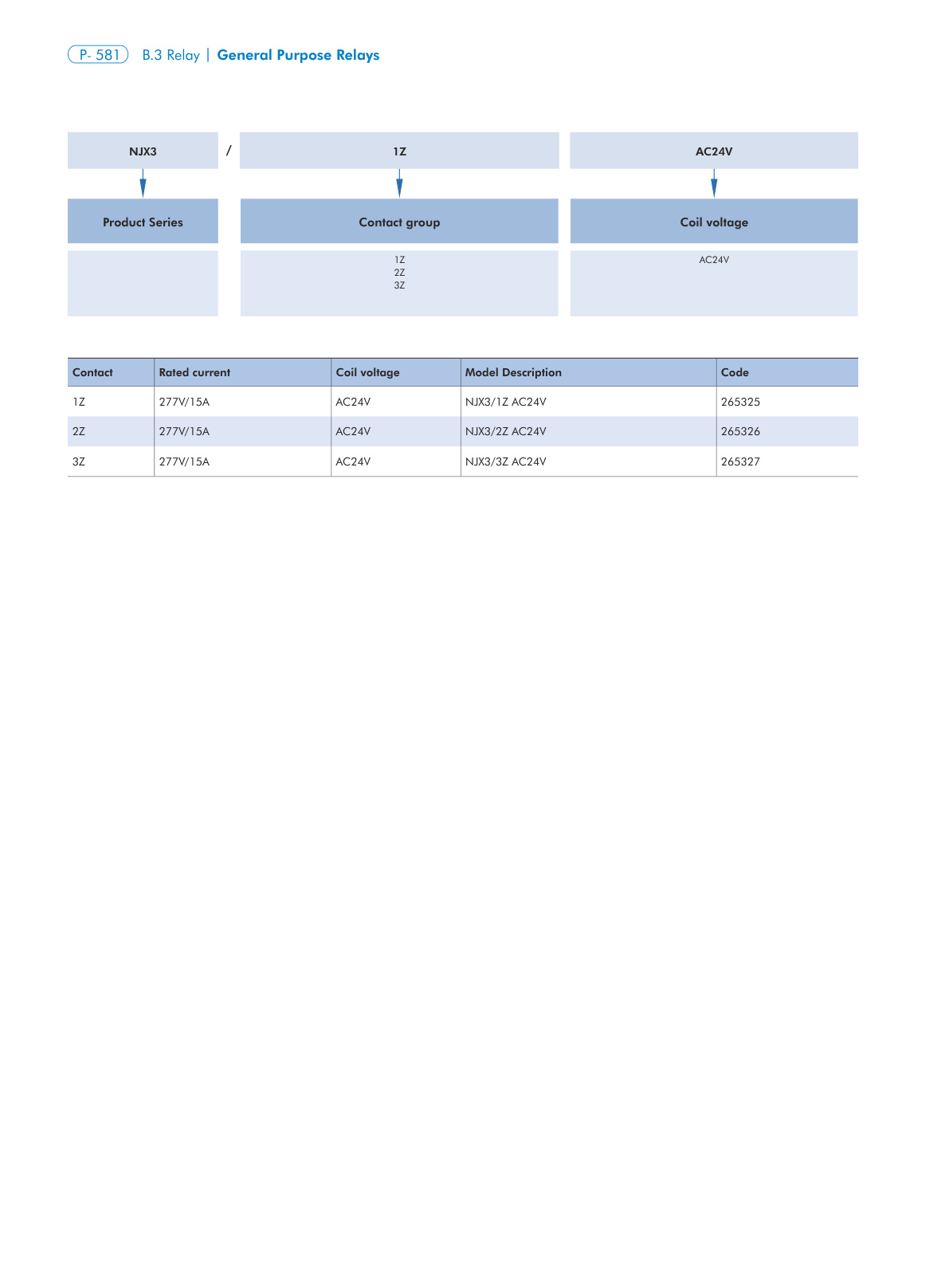

| Series | NJX3 |
|---|---|
| Contact configurations | 1Z, 2Z and 3Z |
| Coil shown in catalogue | AC 24 V |
| Resistive contact rating | 15 A at 277 V AC; other load duties have separate ratings |
| Connection | Quick-connect terminals; no socket required |
Typical applications
- HVAC control assemblies
- Air-conditioning equipment
- Compressor and condenser control
