CHINT · Electronic counter
Product overview

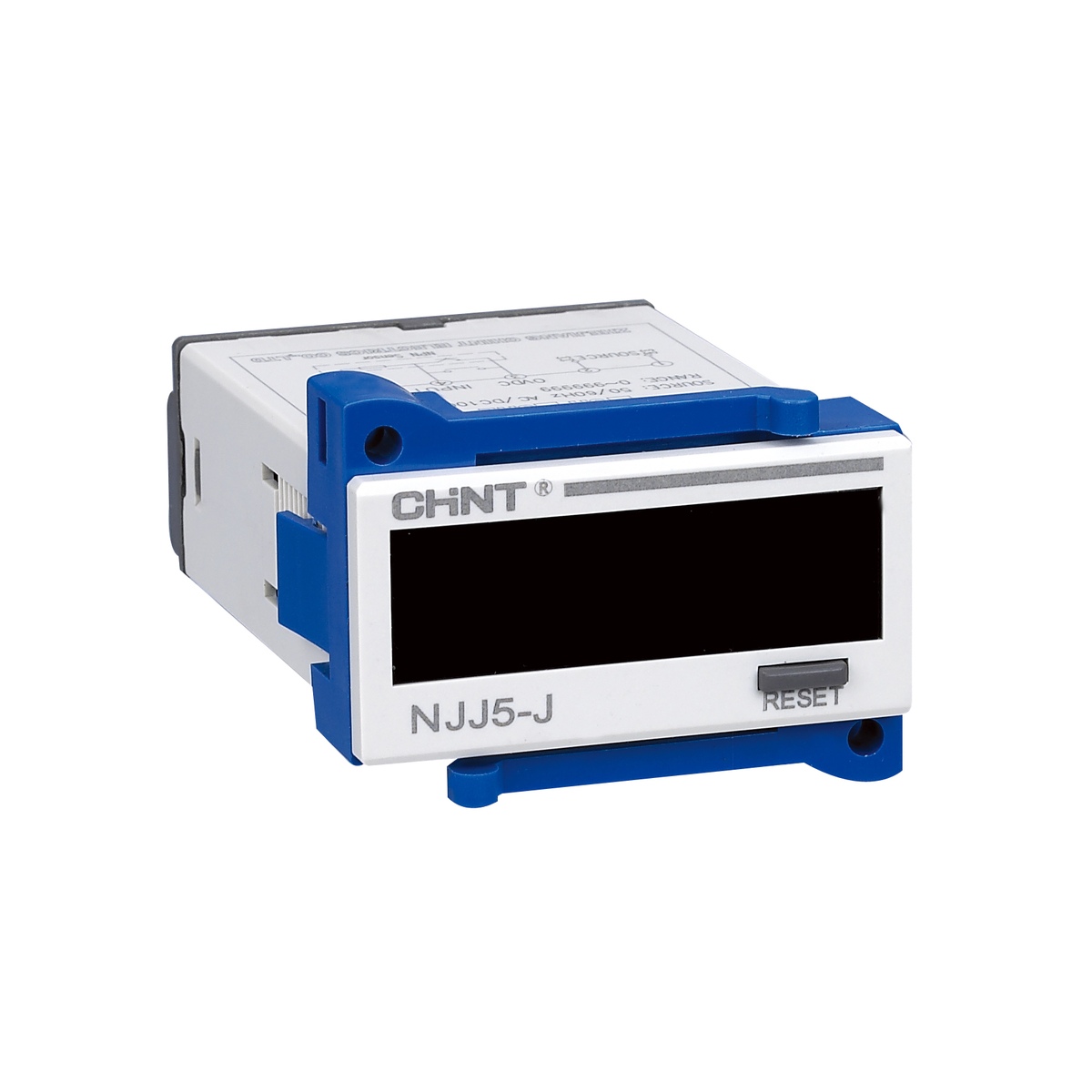

The CHINT NJJ5-J records events and machine cycles using contact or NPN sensor input. The illustrated NJJ5-J belongs to the six-digit addition-counter family; choose the speed suffix, supply and panel construction to match the application.
Technical selection summary
| Manufacturer / model | CHINT NJJ5-J electronic counter |
|---|---|
| Counting function | Six-digit addition counting; no control output in the 2026 catalogue |
| Speed suffix L | Low-speed version: 10 counts per second |
| Speed suffix H | High-speed version: 1000 counts per second |
| Supply references | AC/DC 100–240 V (50 Hz AC reference), or DC 24 V; confirm the complete power-supply marking |
| Supply tolerance | 85–110% of rated control supply |
| Input | Contact signal or NPN sensor input; use the matching wiring diagram |
| Reset | Front-panel reset button; catalogue minimum reset pulse width ≥20 ms |
| Counting error | ≤±1 count |
| Panel version | Standard panel; E suffix denotes extended-panel construction |
| Ambient temperature | −5 to +40 °C |
| Power / memory | Approximately 1.5 VA; power-loss memory more than 10 years |
L and H are separate speed versions, not two selectable speeds established for every unit. The 2026 sample specifies front-panel reset; the retained older English page also mentions terminal reset, so verify the exact unit/manual before relying on external reset. This counter does not provide a switching output. Confirm the full suffix and supply before ordering.
Typical applications
- Counting machine cycles and production events
- Contact or NPN-sensor pulse accumulation

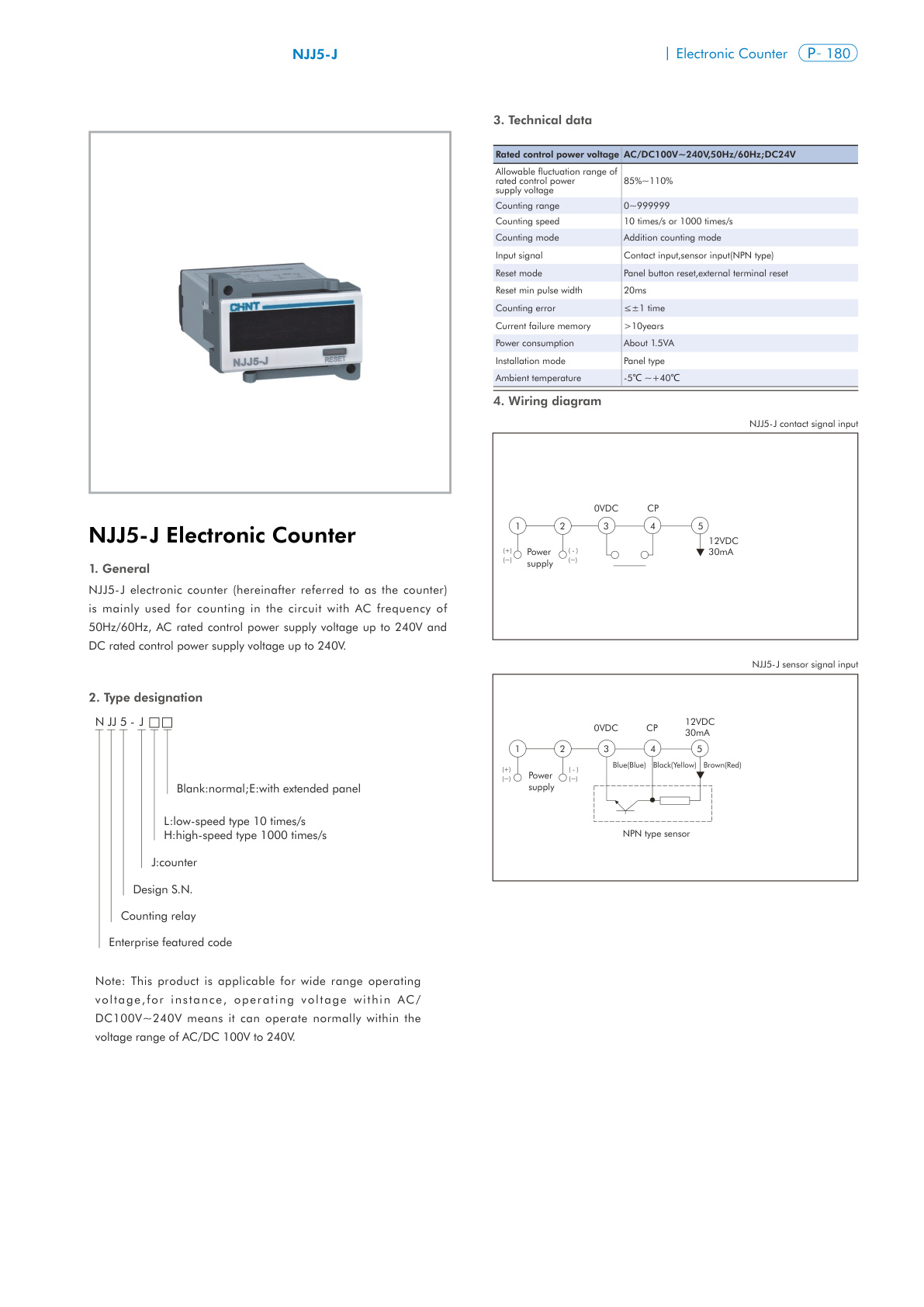

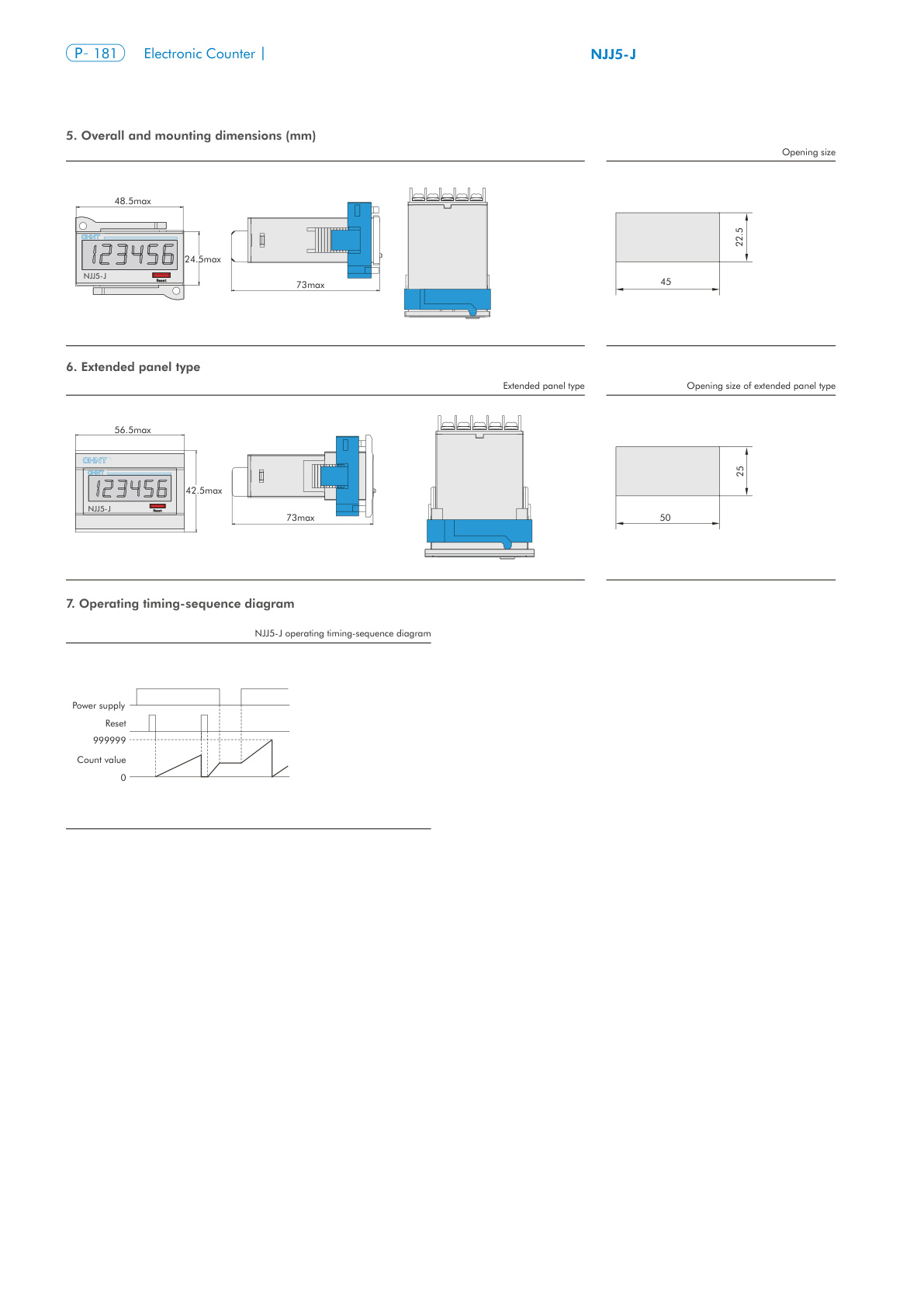

CHINT NJJ5-J official product documents
