NewTrend Plastic PV Combiner Box, 2-12 Inputs
NewTrend Plastic PV Combiner Box, 2-12 Inputs
NewTrend Plastic PV Combiner Box, 2-12 Inputs
NewTrend Plastic PV Combiner Box, 2-12 Inputs
Click to enlarge
NewTrend Plastic PV Combiner Box, 2-12 Inputs
NewTrend Plastic PV Combiner Box, 2-12 Inputs
NewTrend Plastic PV Combiner Box, 2-12 Inputs
NewTrend Plastic PV Combiner Box, 2-12 Inputs
Home Solar PV Products PV Combiner Box NewTrend Plastic PV Combiner Box, 2-12 Inputs
NewTrend PVJB-4 PV Combiner Box, 4 Inputs 1 Output
NewTrend PVJB-4 PV Combiner Box, 4 Inputs 1 Output
Back to products
CHINT NB1-63 3P Miniature Circuit Breaker, 1–63 A
CHINT NB1-63 3P Miniature Circuit Breaker, 1–63 A

NewTrend Plastic PV Combiner Box, 2-12 Inputs


You save

Series/configuration illustration; the quoted build defines its internal parts. NewTrend plastic photovoltaic combiner boxes built for the selected input/output layout and DC voltage. The internal protection assembly is matched to that configuration.

Model
Rated Voltage
Input / Output
String Fuse
Protection
Add to Enquiry
SKU: 1600622934743 Category: PV Combiner Box
  • Description
  • Catalog
Description

NewTrend · PV

Product overview

NewTrend plastic photovoltaic combiner boxes built for the selected input/output layout and DC voltage. The internal protection assembly is matched to that configuration.

Technical selection summary

ParameterSpecification
ConstructionInsulating plastic enclosure
Input / output scope2 in / 1 out;4 in / 1 out;6 in / 1 out;8 in / 1 out;12 in / 1 out;2 in / 2 out;4 in / 2 out;6 in / 2 out;8 in / 2 out
Supply voltage optionsDC500V;DC1000V; the completed assembly and every internal protective component must match the ordered voltage
String reference15A string-fuse reference in original product data; permissible continuous string current is subject to the final engineered assembly
Protection functionsPV fuse protection,DC output switching/protection and DC surge protection; exact internal models selected for the ordered circuit
Output ratingCalculated and selected for the actual string currents,output grouping,cable temperature and protective coordination; not a universal63A or90A selection

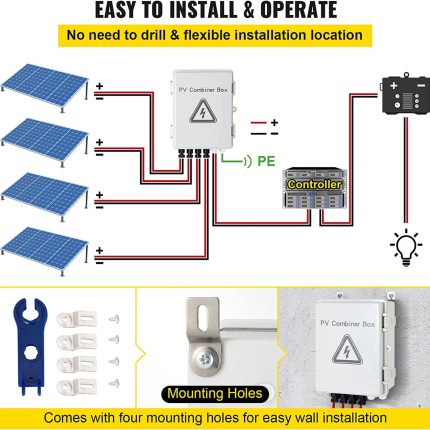

InstallationWall mounting,PE connection and cable entries as illustrated; final terminal and polarity diagram supplied with the specific assembly
Quotation detailsSpecify moduleVoc andIsc at design conditions,strings per output,inverter input limit,cable/connector and required protection arrangement

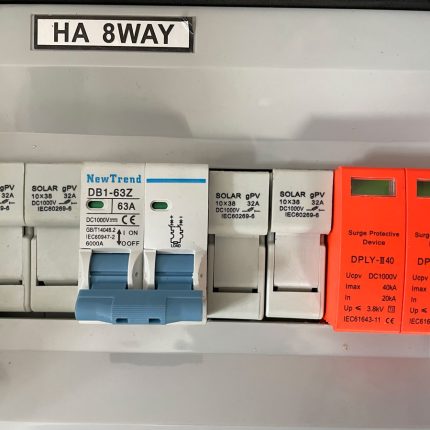

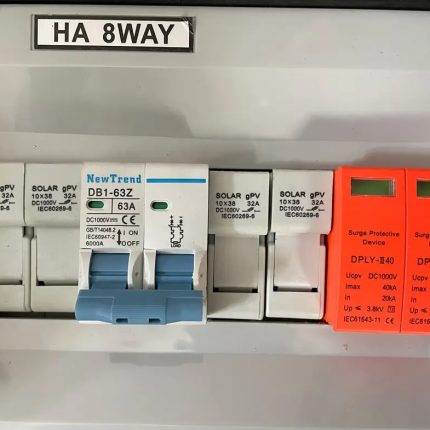

Series/configuration illustration: photographed switch,fuse andSPD ratings describe the pictured build only. Current supply supports the listed voltage options; the quotation and supplied assembly drawing define the completeBOM,output current and terminal connections. Do not treat the same photographed internal parts as interchangeable across500/600/1000V versions.

Typical applications

  • Photovoltaic array connection and maintenance

Open technical reference image

Product reference images and drawings

PV technical reference 1PV technical reference 2PV technical reference 3PV technical reference 4
Catalog
NameSizeRelease timeOperate
