CHINT · AX-5 Auxiliary Contact for NL1 RCCB
Product overview
CHINT AX-5 provides remote on/off indication when assembled with the NL1 residual-current circuit breaker.
Technical selection summary
| Compatible family | NL1 |
|---|---|
| AC-12 | AC415 V / 3 A; AC240 V / 6 A |
| DC-12 | DC130 V / 1 A; DC48 V / 2 A; DC24 V / 6 A |
AX-5 is not AX-X1. Do not assume compatibility with NXB-63 or NXB-40 from the similar accessory name.
Typical applications
- CHINT AX-5 provides remote on/off indication when assembled with the NL1 residual-current circuit breaker.
Specify your enquiry
For a focused quotation, include:
- Selected manufacturer model and configuration
- Application and required quantity
- Destination and required technical documents

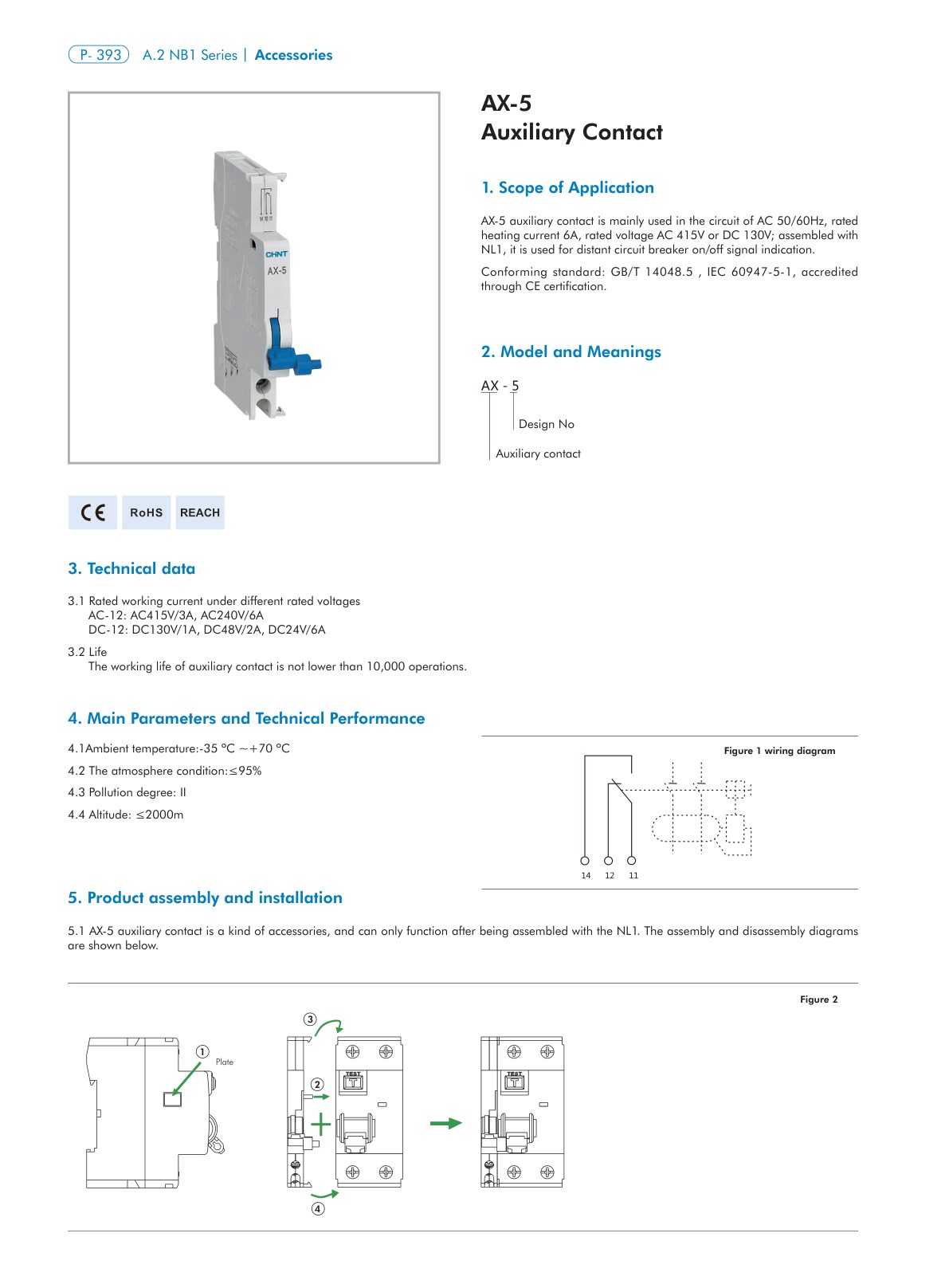

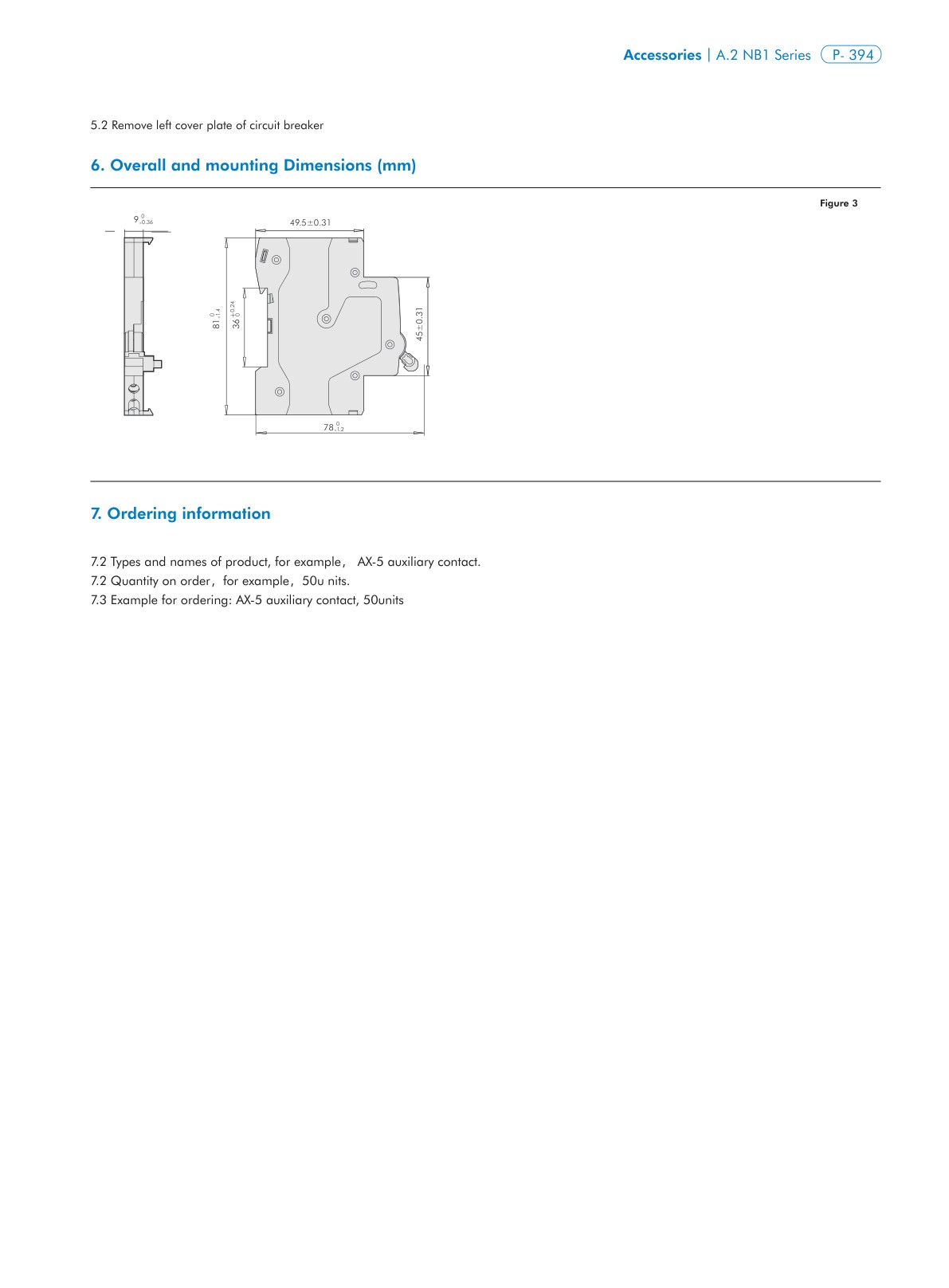

Original CHINT English technical document (PDF)

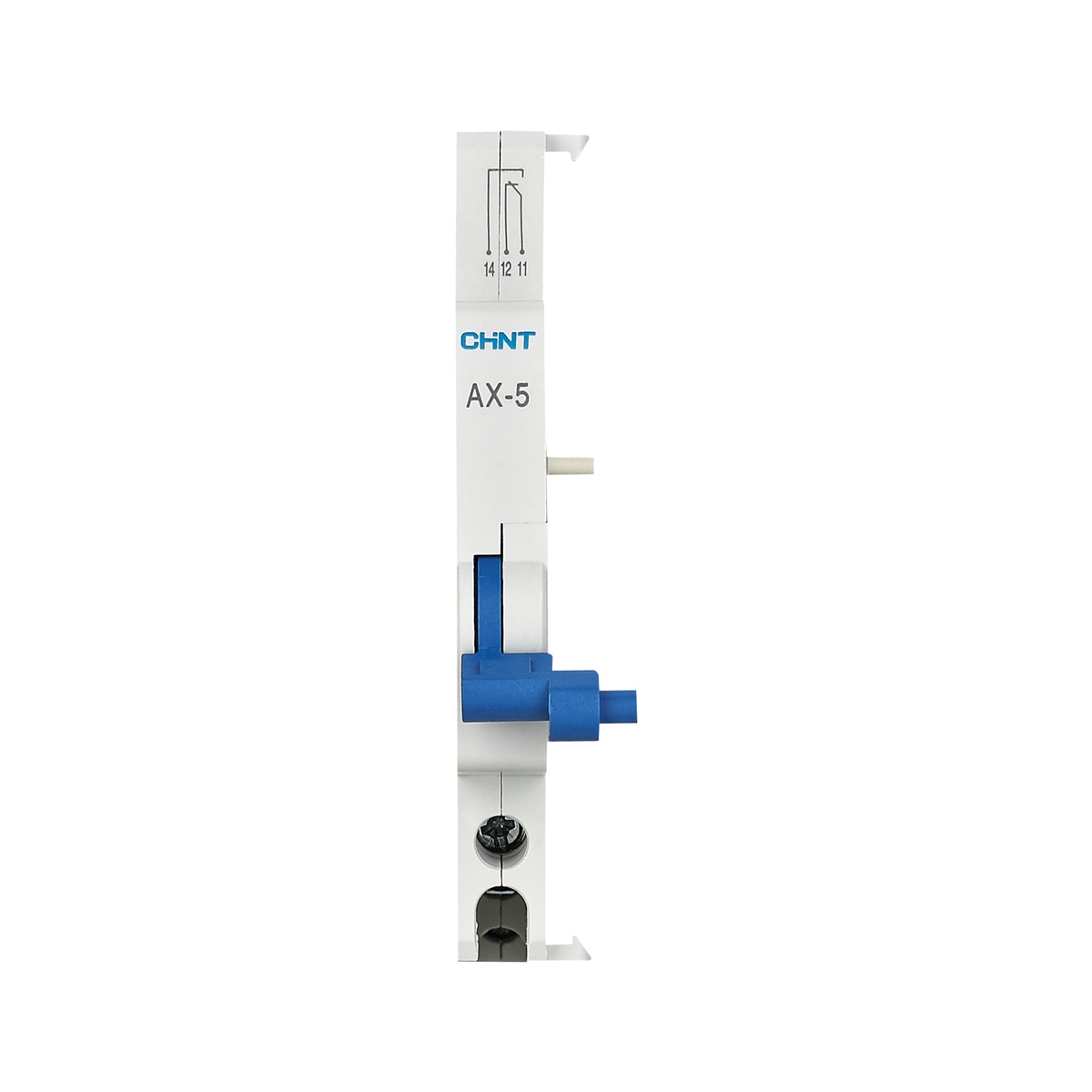

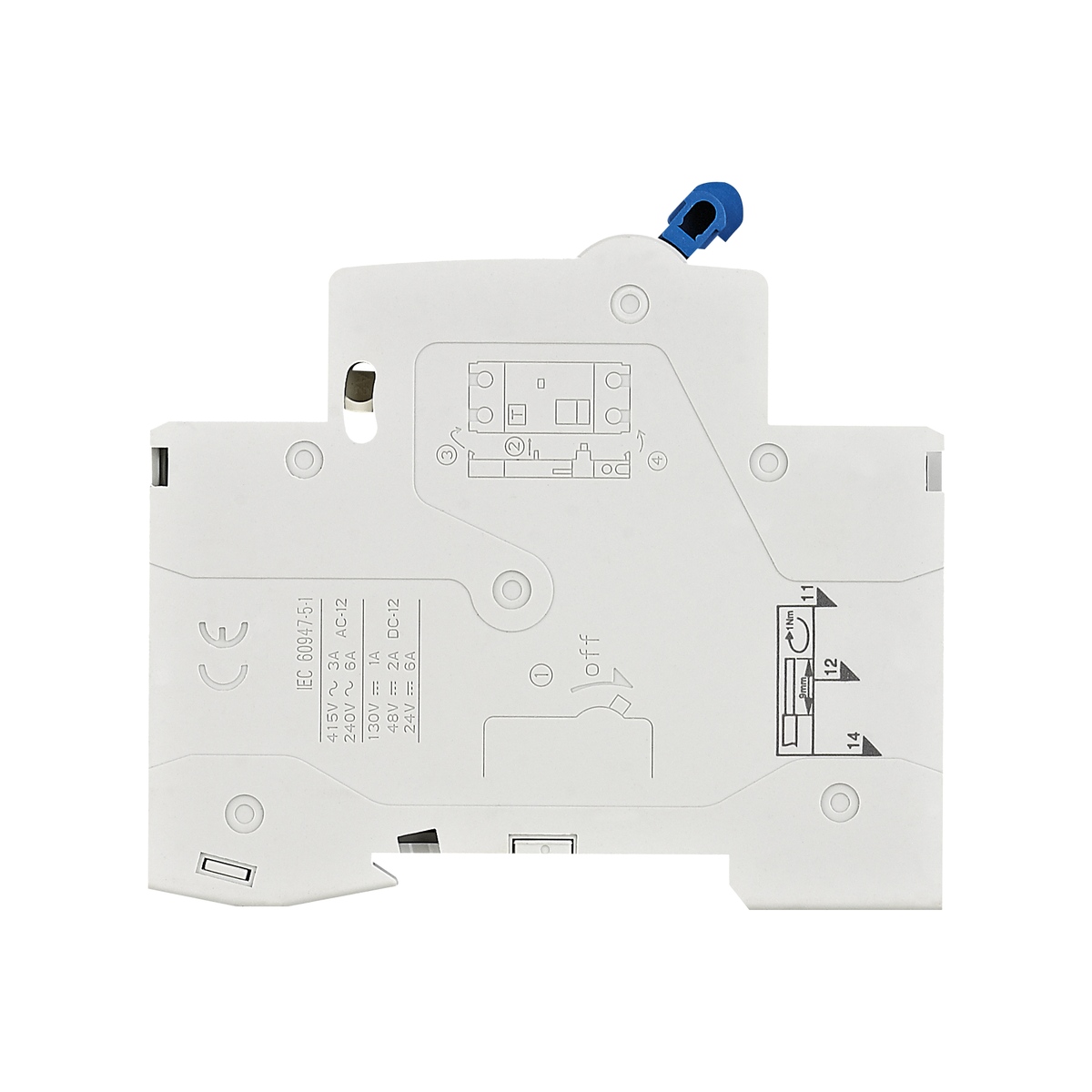

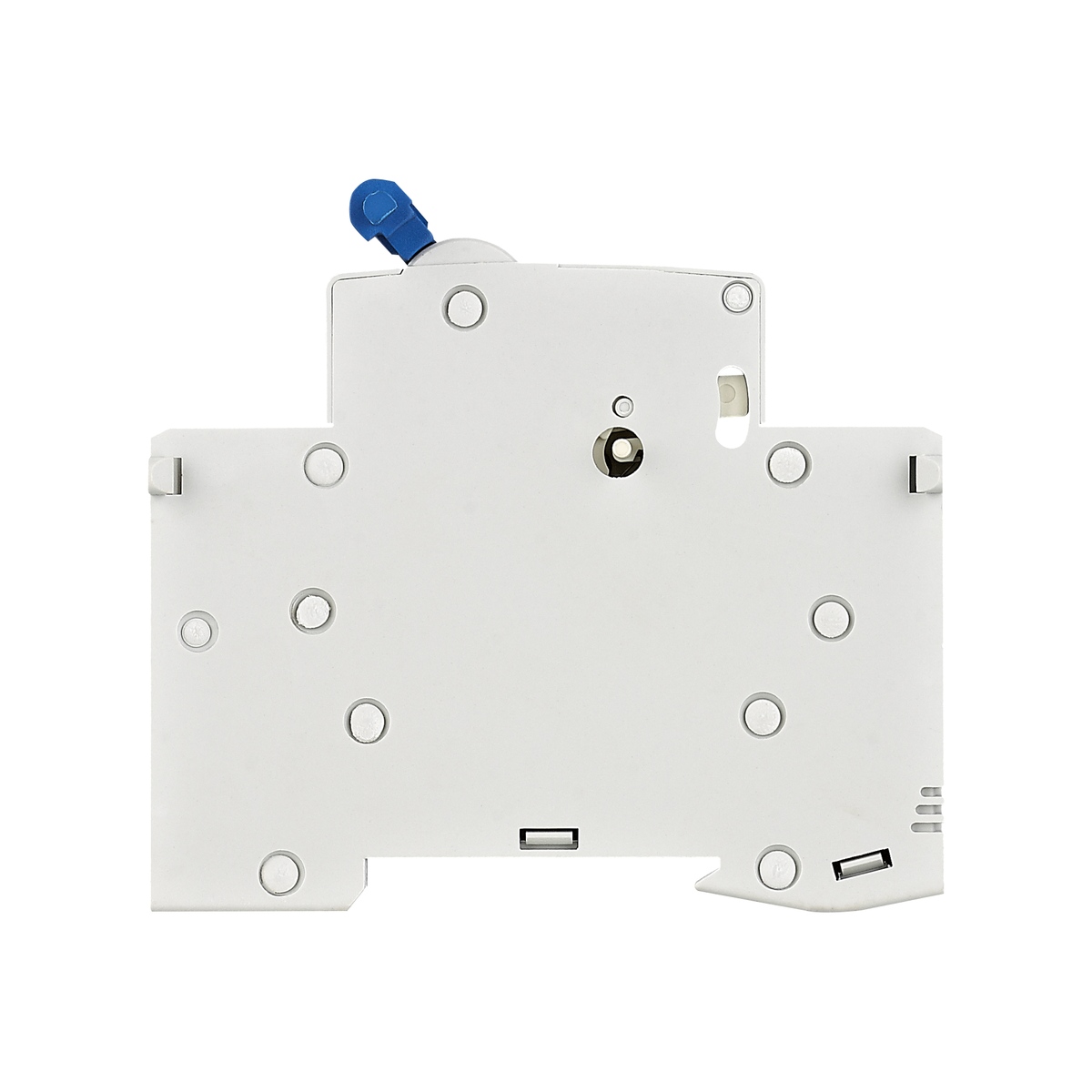

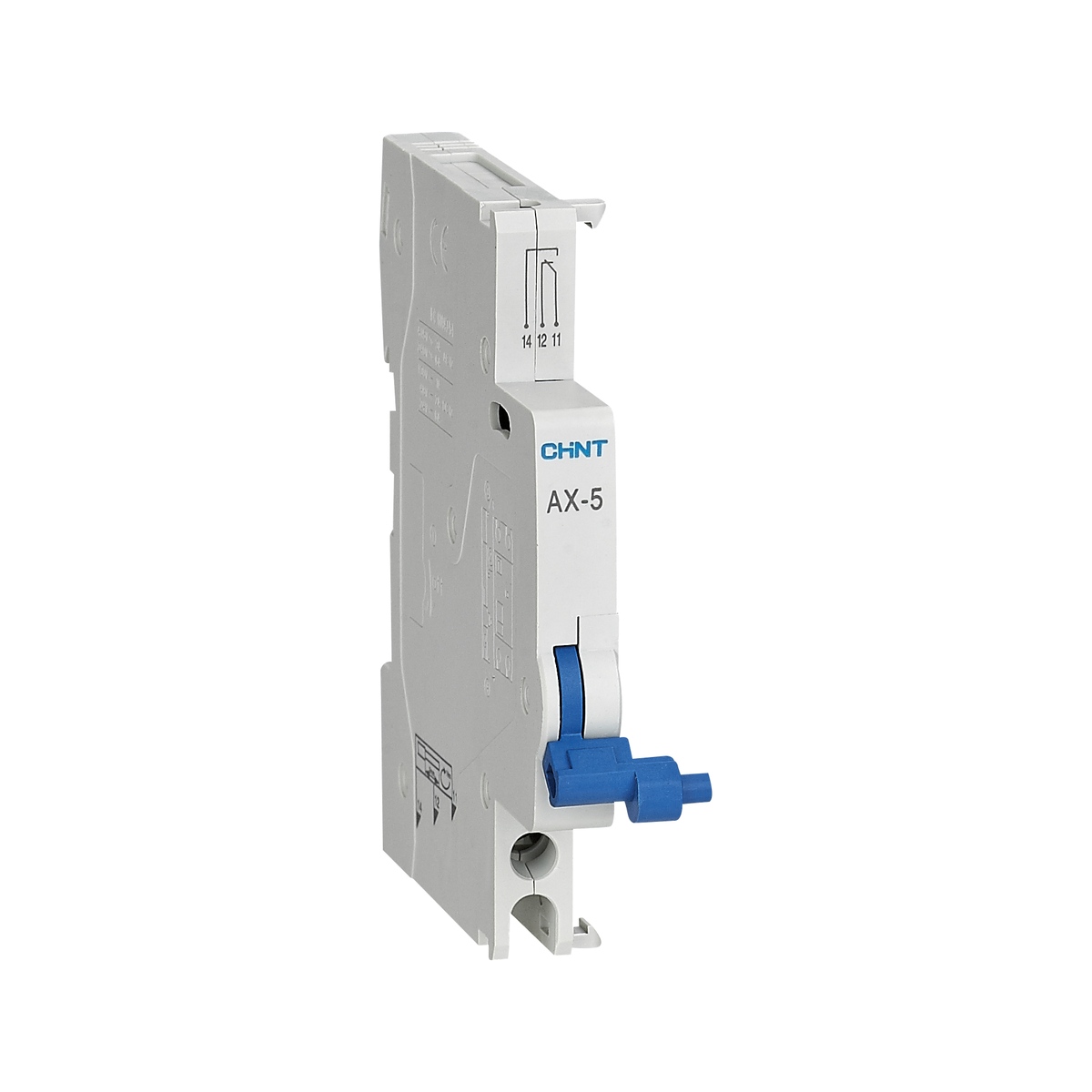

Product reference images and drawings
