CHINT · Motor-driven mechanism
Product overview
The CHINT MOD-1 is a motor-driven operating accessory for the documented NXB-125 single-pole circuit-breaker assembly. It provides remote opening and closing with the applicable control and communication arrangement.
Technical selection summary
| Exact model | MOD-1 |
|---|---|
| Matched breaker | NXB-125 1P in the manufacturer product reference; do not extend this to every pole count |
| Control supply reference | DC48–60V on the current manufacturer product page; match the supplied version |
| Communication reference | RS485 with Modbus, 9600bps on the manufacturer page; confirm firmware, register map and terminals |

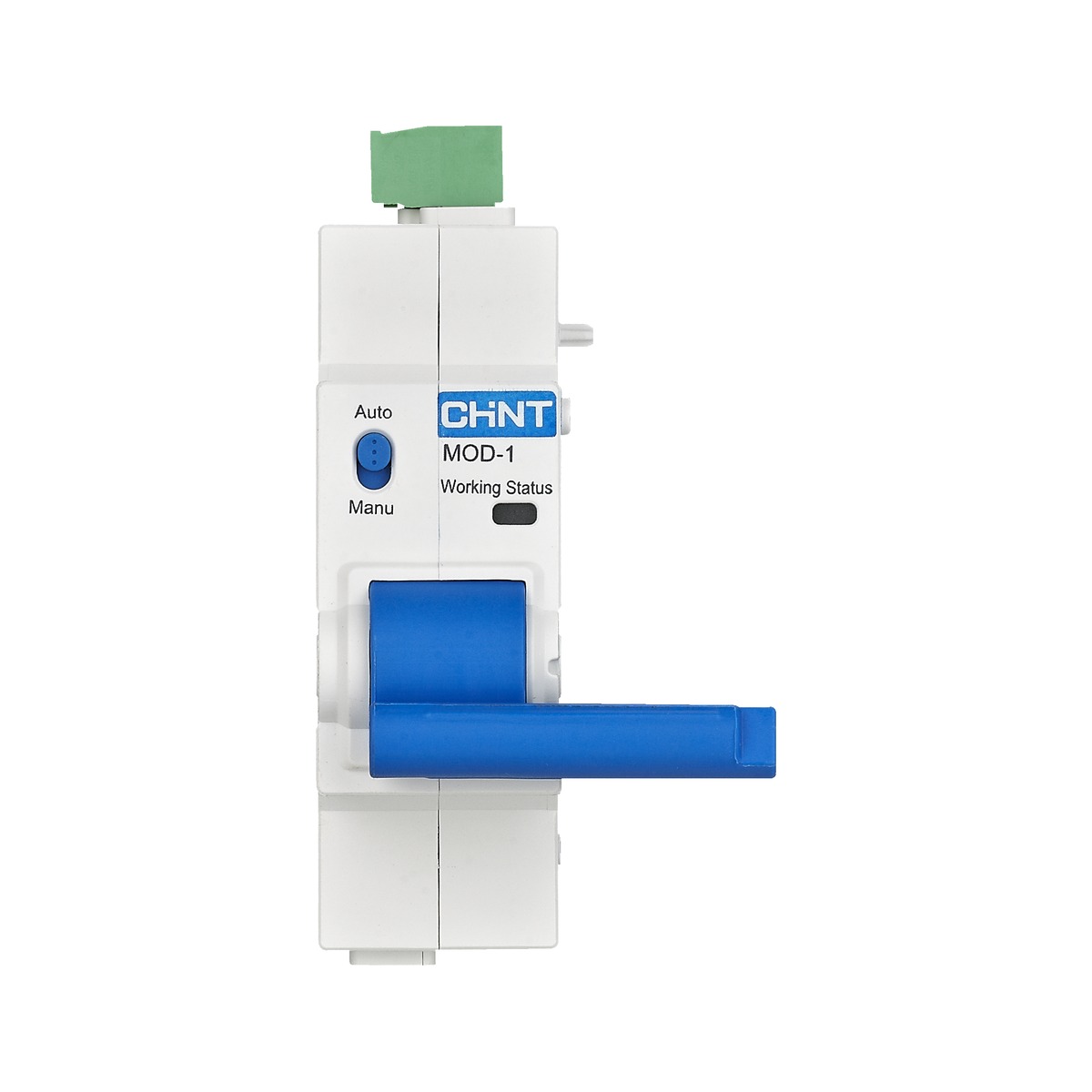

| Operating mode | Manual/automatic mode selection; remote operation depends on the selected mode and control wiring |
| Installation reference | 27mm product width; approved matched breaker assembly and rail mounting |
Remote motor operation is not automatic source-transfer logic. Check the full control diagram, interlocking, manual override and actual unit marking. Obtain the exact revision instructions before commissioning.
Typical applications
- Matched low-voltage distribution and control assemblies
- Replacement procurement using exact manufacturer codes and mounting drawings
Specify your enquiry
For a focused quotation, include:
- MOD-1 and exact NXB-125 1P breaker code, quantity
- DC control supply, required commands, communication and firmware
- Terminal diagram, interlocks, manual operation and mounting
View CHINT MOD-1 manufacturer references

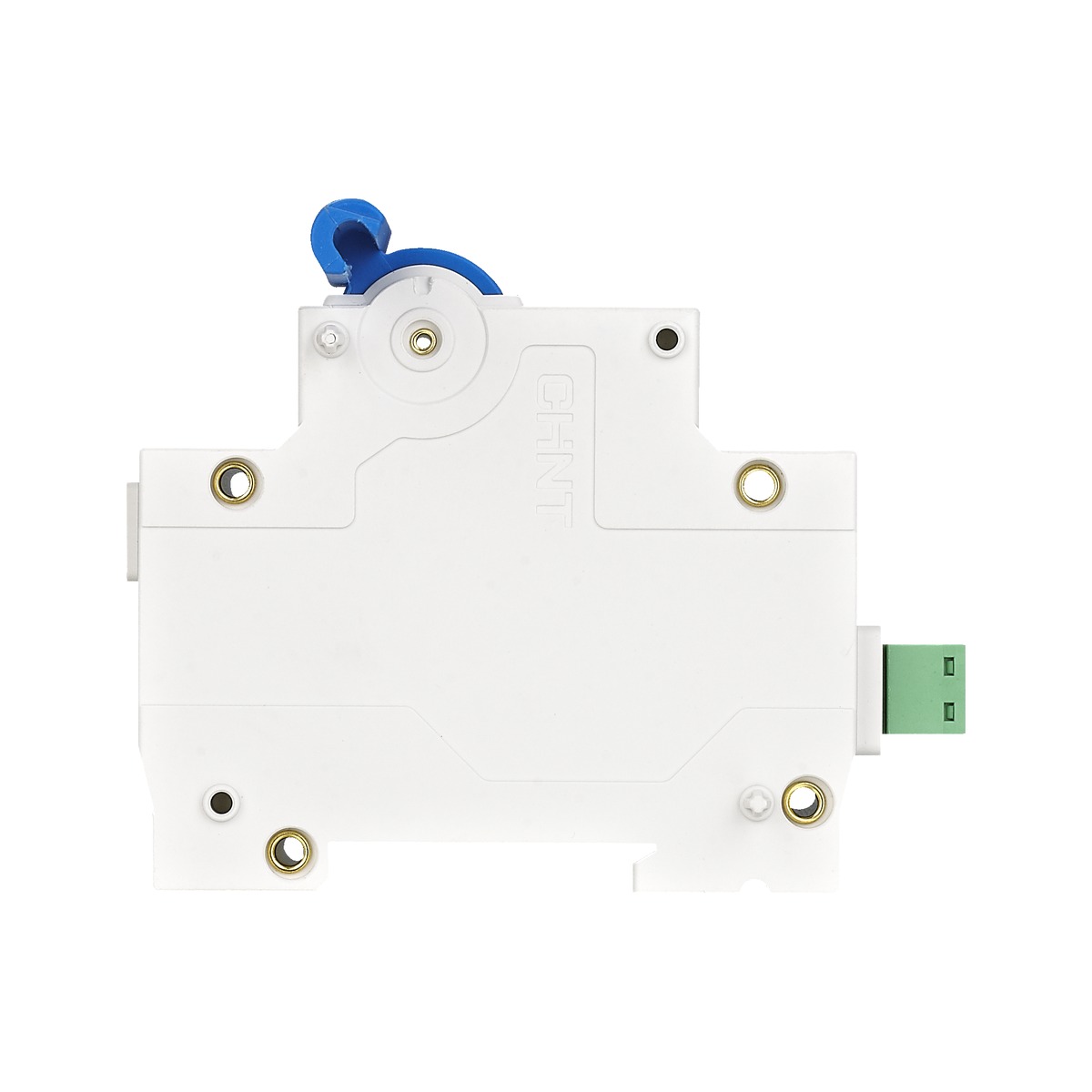

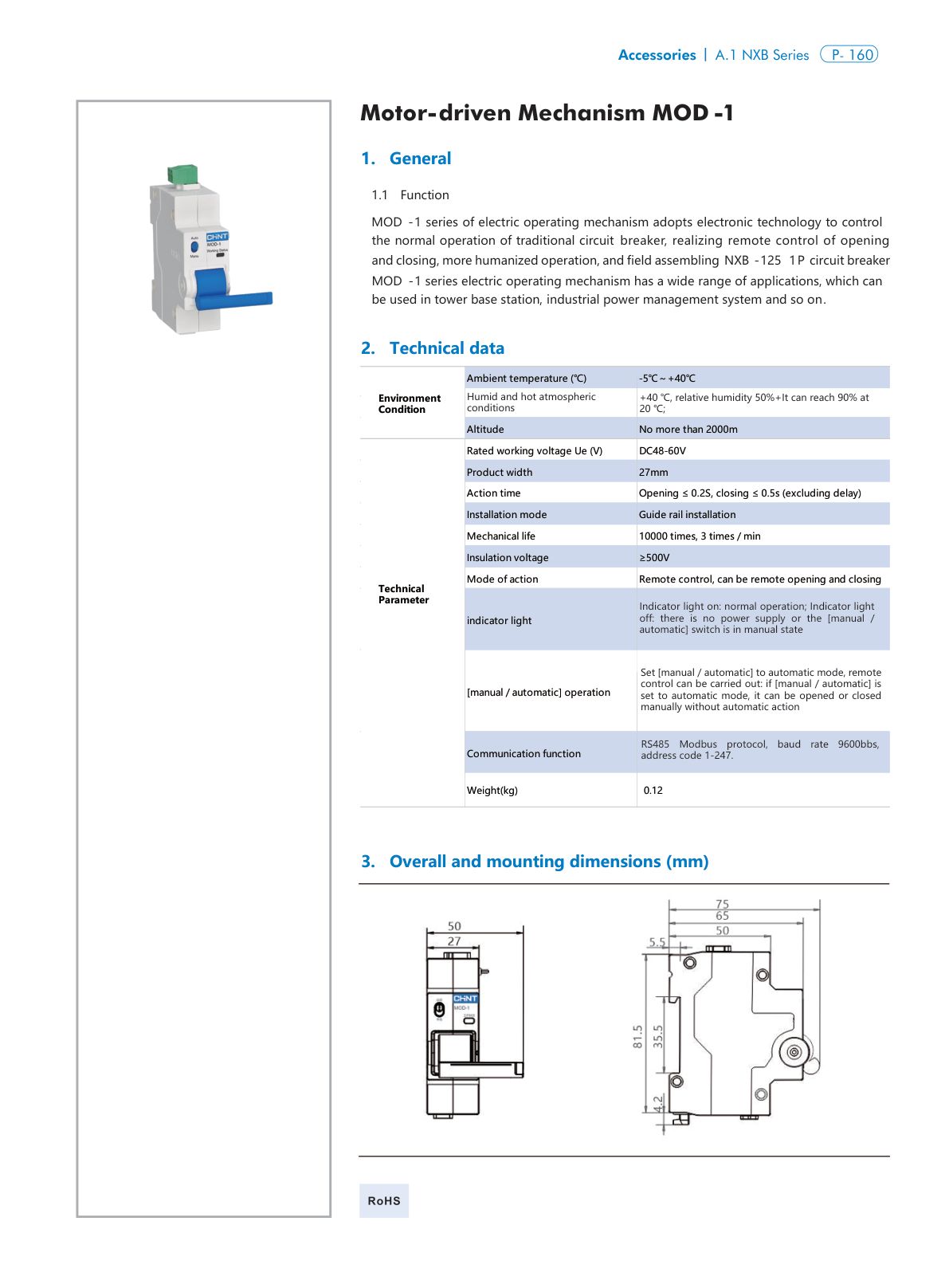

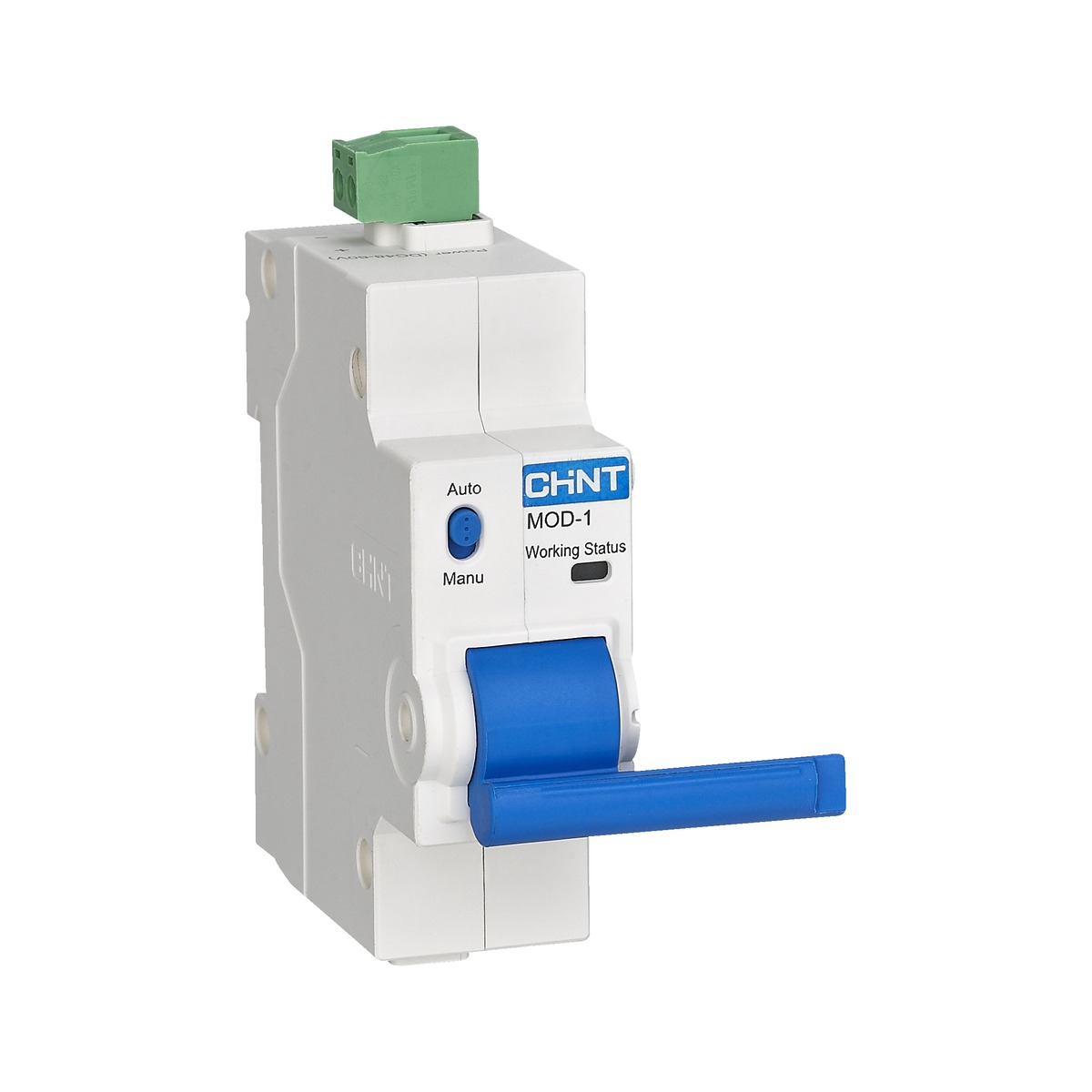

Product reference images and drawings

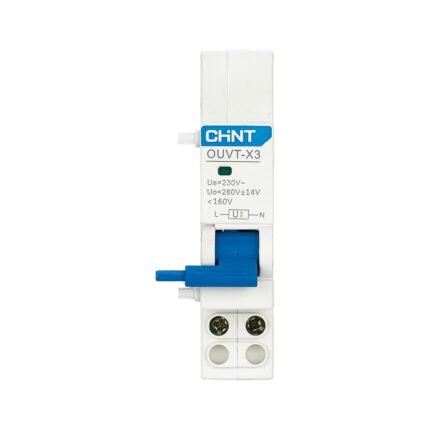

Match the exact accessory and approved circuit-breaker assembly. Retained family references may show other constructions.
