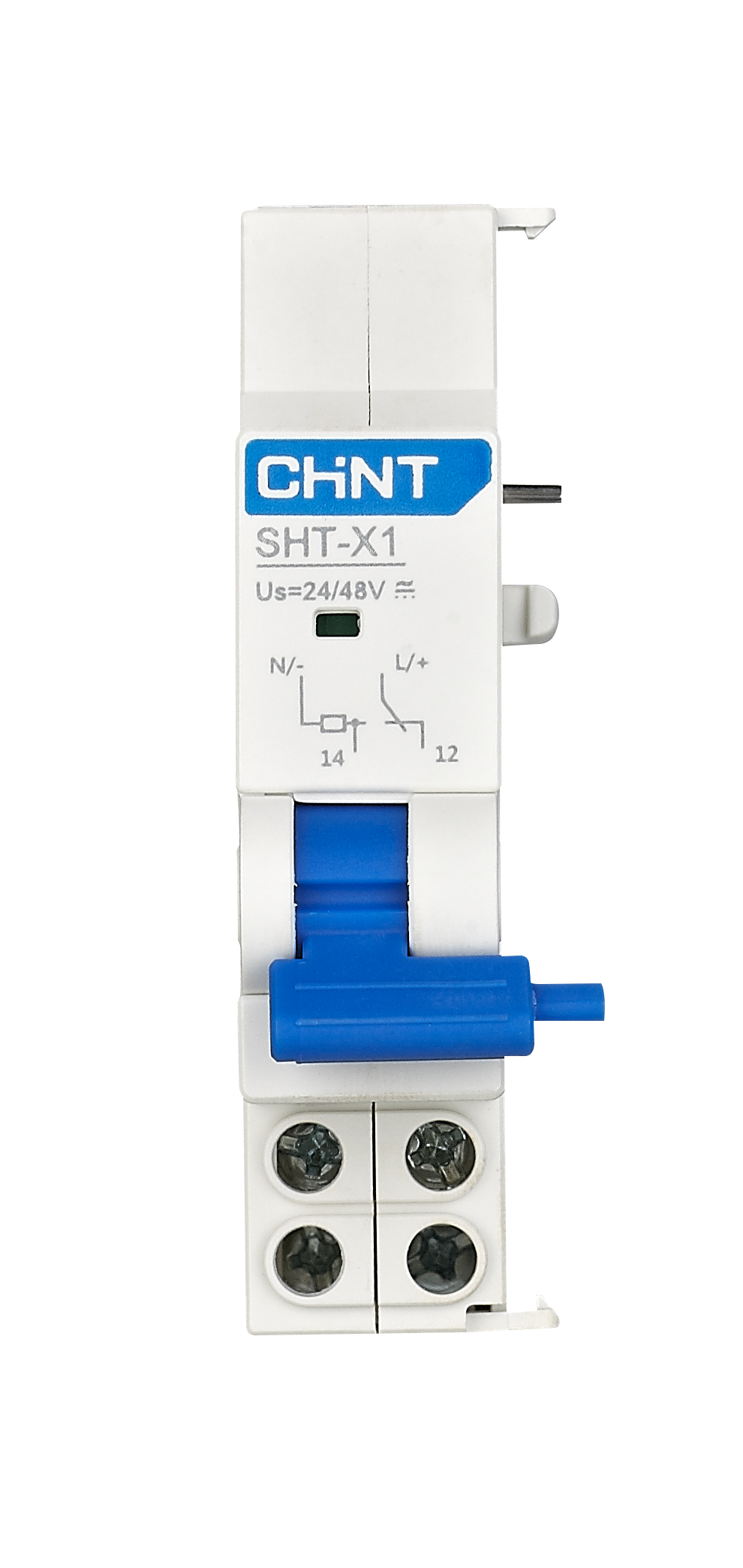

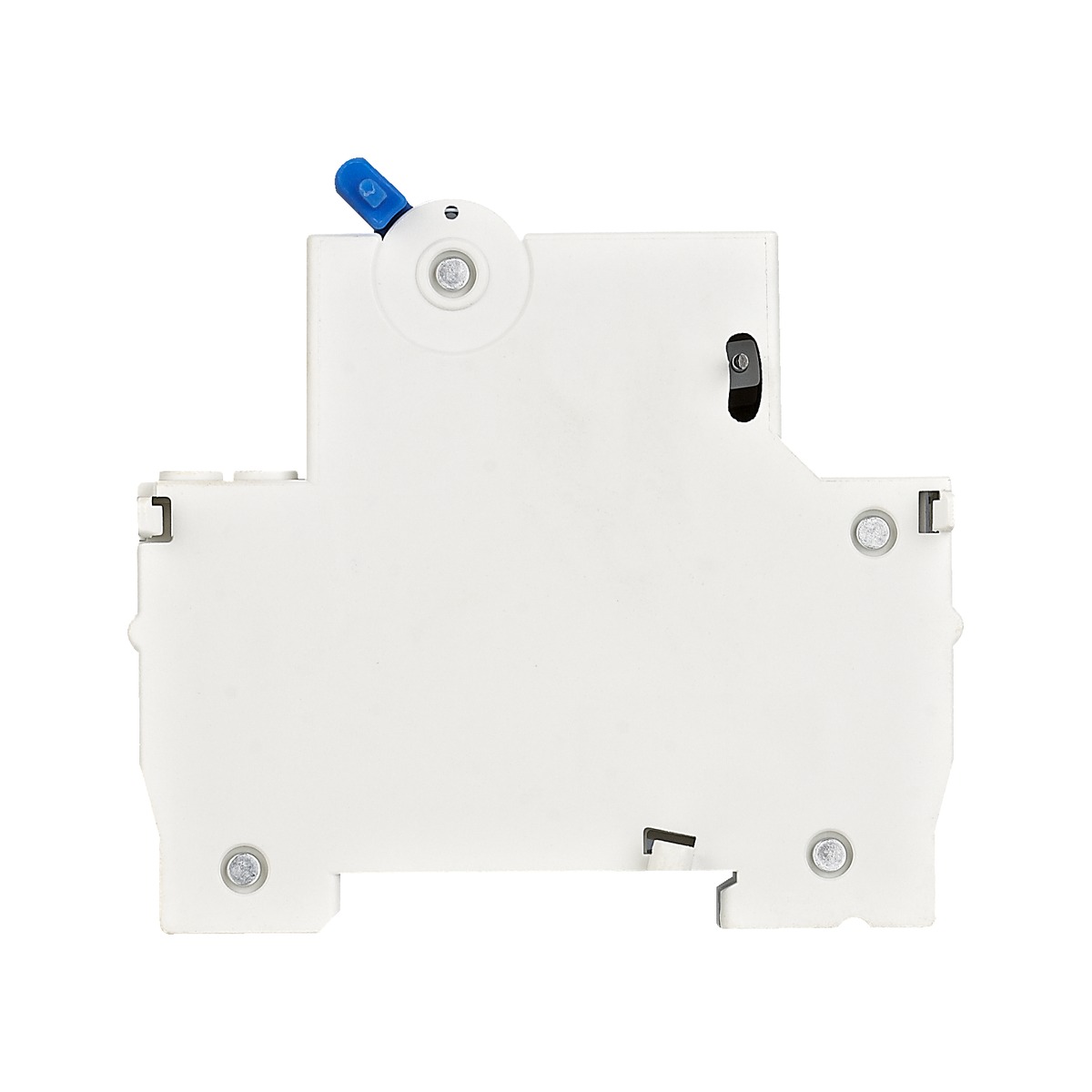

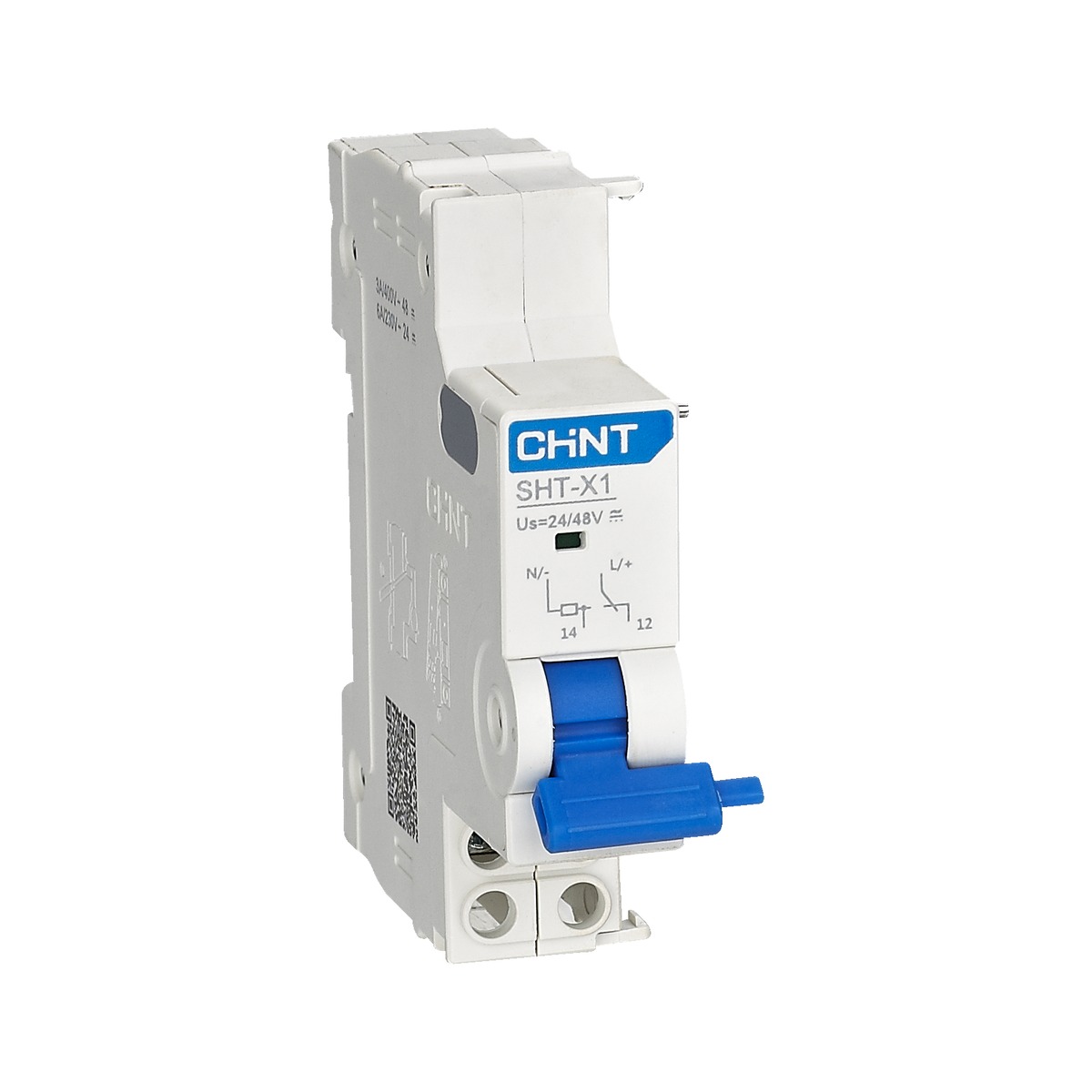

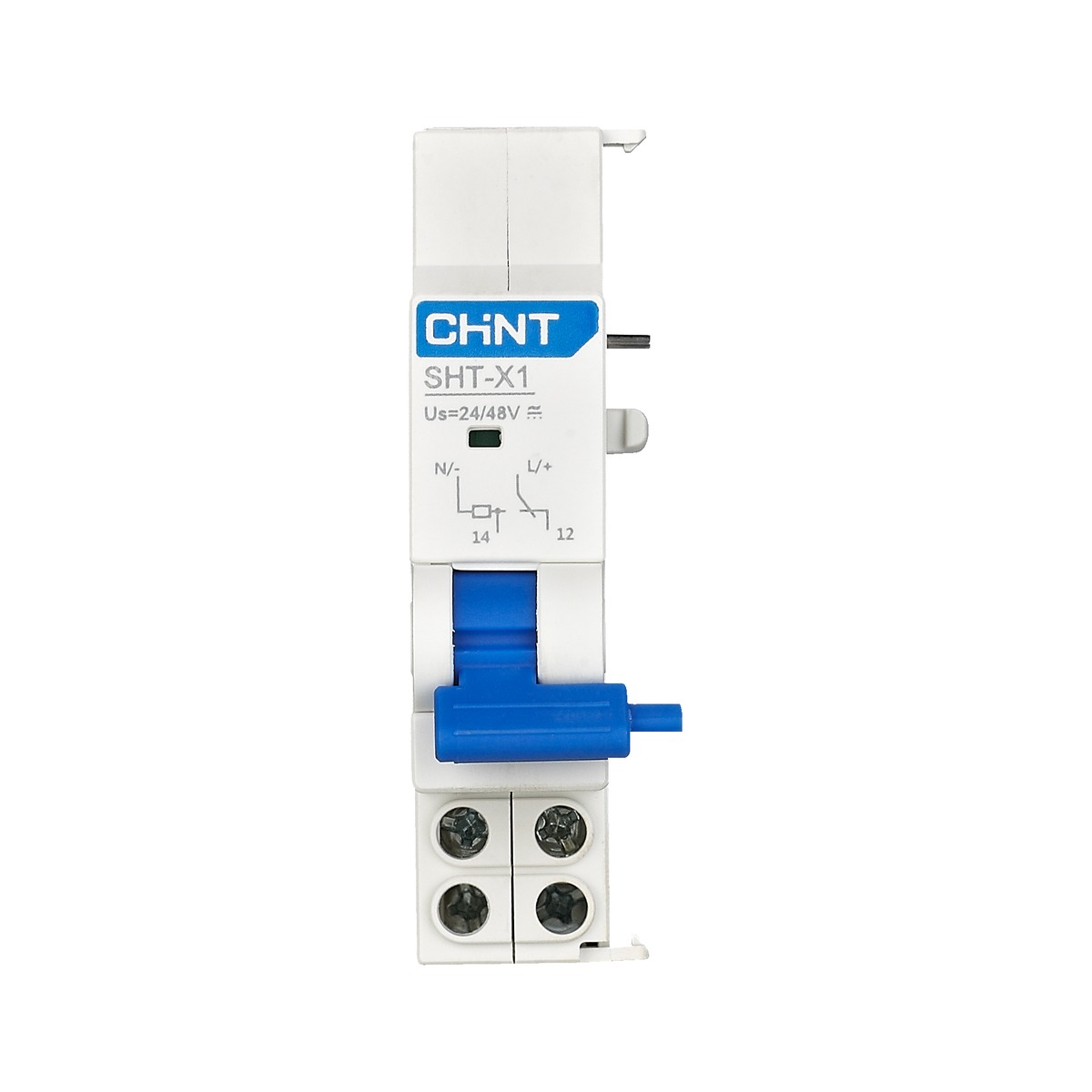

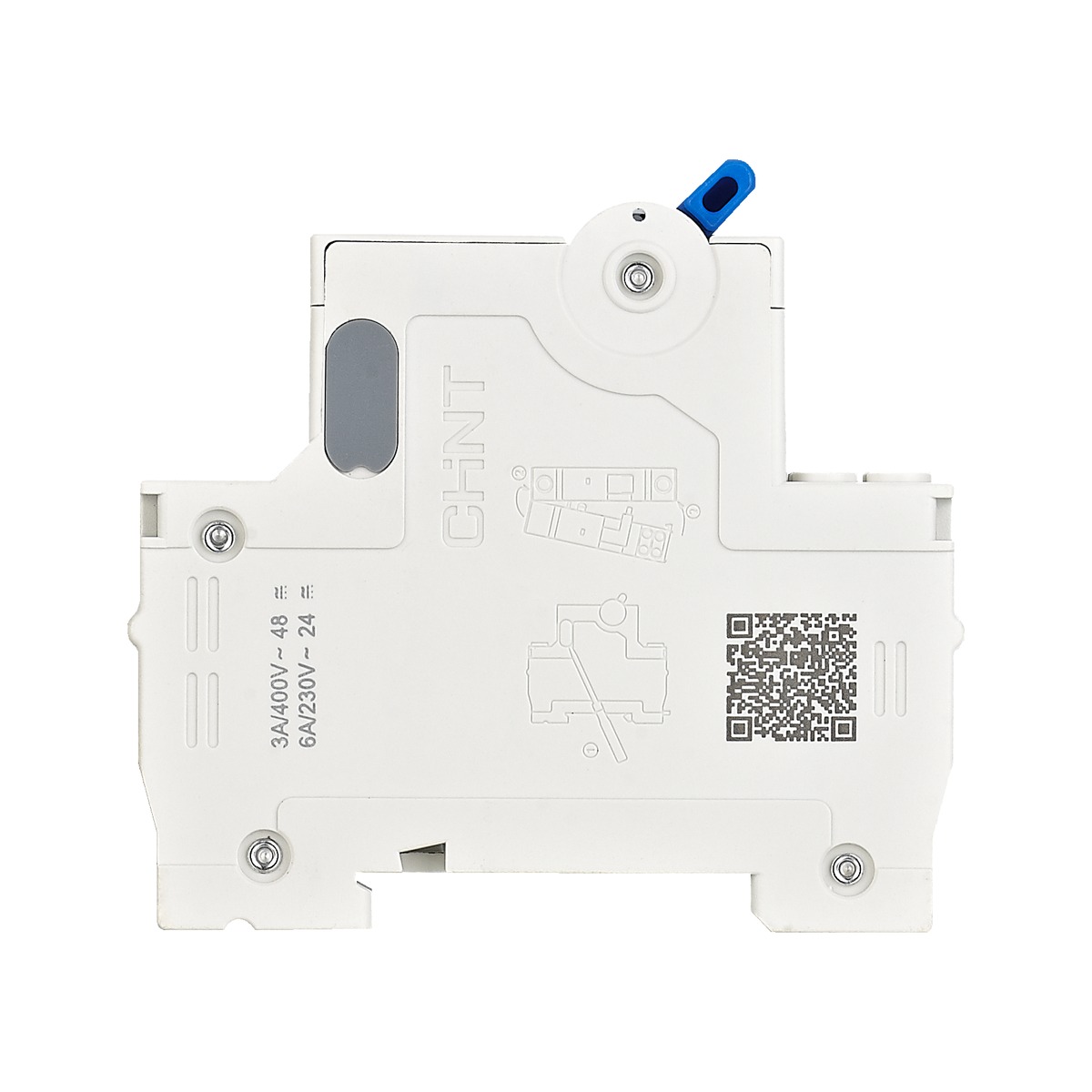

CHINT SHT-X1 Shunt Release for NXB-63 / NXB-40 MCB Accessories

Brand Name: CHINT
Product Type: Shunt Release
Model: SHT-X1
Compatible Series: NXB-63 and NXB-40
Application: Low-voltage breaker accessory for panel and distribution systems
Category:

What is Chint Shunt Release?

The CHINT SHT-X1 Shunt Release for NXB-63 / NXB-40 MCB Accessories is a shunt trip release - an electrical accessory that mounts on MCBs (Miniature Circuit Breakers) to enable remote tripping. When control voltage (230V / 400V) is applied, the shunt release instantly trips the MCB, disconnecting the circuit.

Common Applications

  • Emergency Stop - Central emergency shutdown of multiple circuits
  • Fire Safety Systems - Interface with fire alarm to cut non-essential power
  • Remote Control - Switch off circuits from control room
  • Automation Integration - Controlled by BMS or PLC systems
  • Alarm Integration - Trip on security/intrusion alarms

How It Works

The shunt release contains an electromagnet coil. When energized with control voltage, the coil creates a magnetic field that mechanically trips the MCB's operating mechanism. The MCB latches in the OFF position until manually reset.

Technical Specifications

ModelChint
Control Voltage230V / 400V
CompatibilityChint NXB, NB1, NBH8 series MCBs
MountingLeft side mounting on MCB
OperationInstant trip on voltage application

Installation Note

The Chint mounts on the left side of compatible MCBs. It requires a control voltage source (separate from the protected circuit). For emergency stop applications, use normally-open push buttons in series with the control voltage supply.

Description

CHINT SHT-X1 is an original CHINT breaker accessory designed for NXB-63 and NXB-40 miniature circuit breaker applications. It is suitable for low-voltage power distribution panels, switchboards and OEM assemblies that require reliable accessory functions and clean panel integration.

1. Product overview

The SHT-X1 is used as a CHINT MCB accessory for final power distribution applications. It is designed for compact assembly with compatible breakers and is suitable for industrial panels, commercial electrical systems and project purchasing requirements.

2. Main features

  • Original CHINT SHT-X1 accessory
  • Product type: Shunt Release
  • Compatible with NXB-63 and NXB-40 breaker series
  • Compact design for panel assembly
  • Suitable for low-voltage distribution and OEM applications
  • Designed for practical integration with CHINT breaker systems

3. Technical and application notes

Please confirm the compatible breaker series, target voltage system, installation method and project requirement before ordering. If your project needs exact matching with CHINT NXB accessories, we can help confirm the correct model based on your breaker type and market requirement.

4. Typical applications

  • Final power distribution panels
  • Commercial electrical switchboards
  • Industrial control cabinets
  • OEM panel assemblies
  • Wholesale and project procurement

5. Ordering support

If you need help confirming compatibility, send us the breaker model, pole configuration and application target. We can help recommend the correct CHINT accessory model for your order.

6. Product catalog

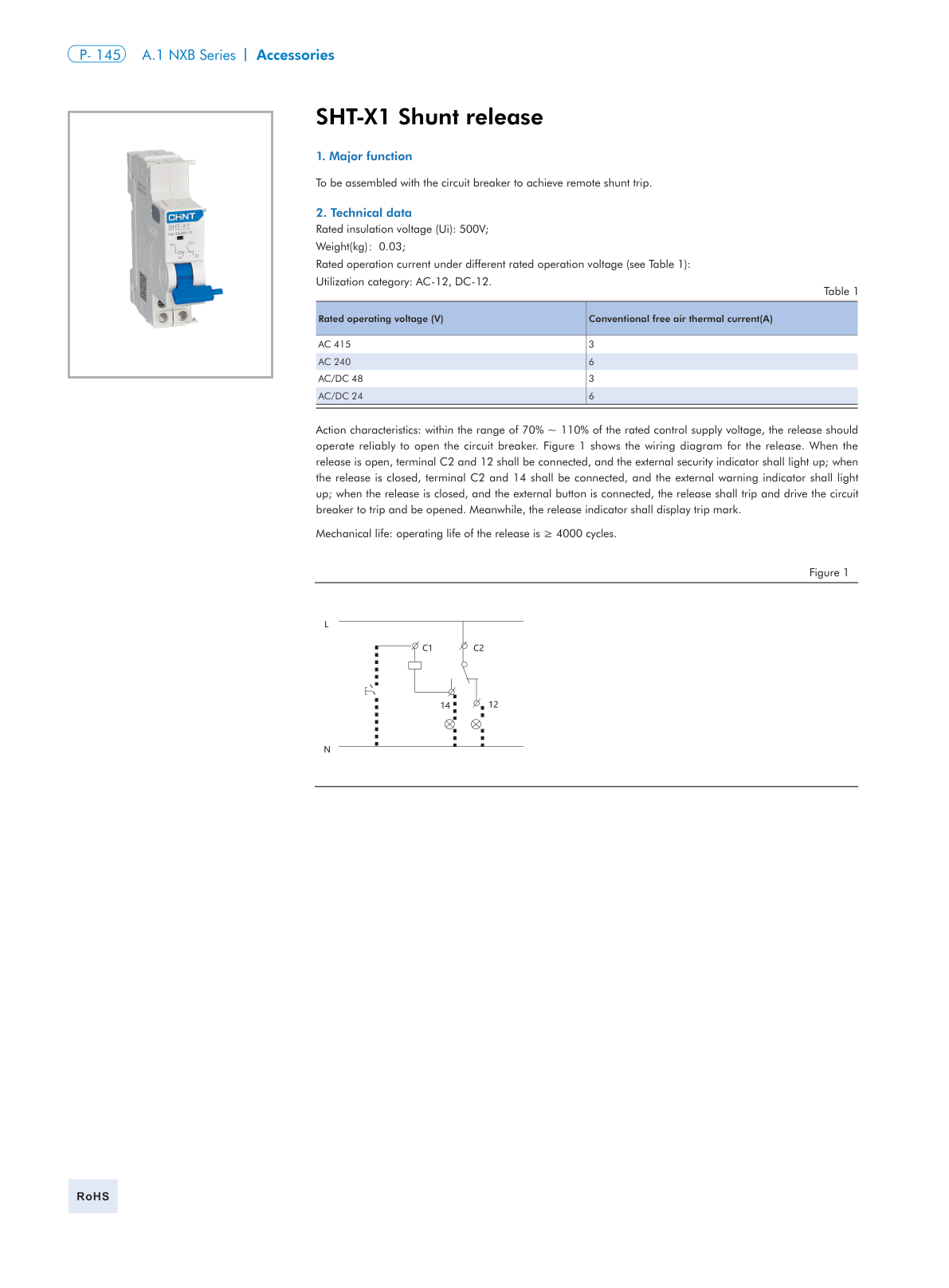

SHT-X1 catalog page 1

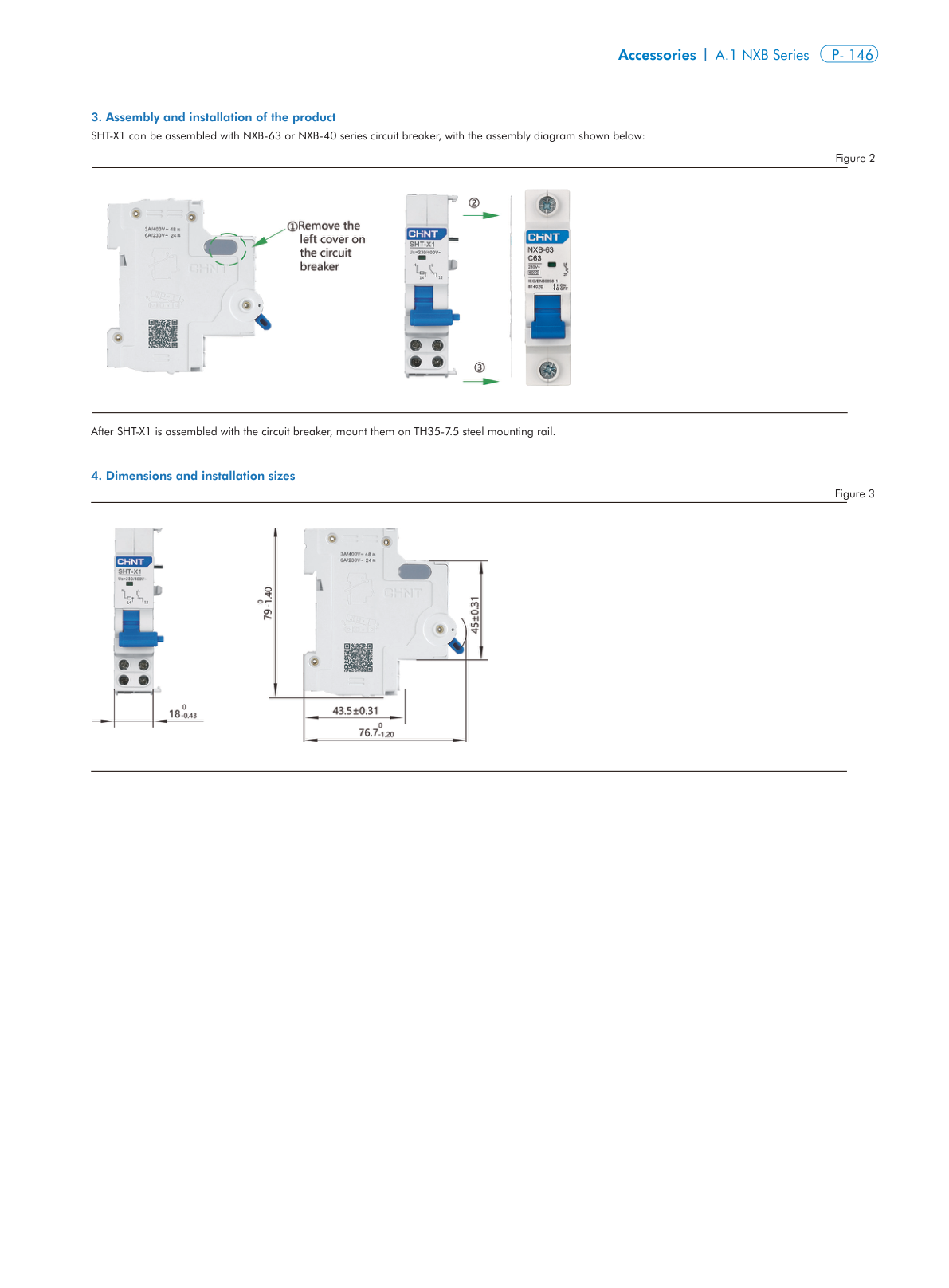

SHT-X1 catalog page 2

Technical Datasheet & Downloads

📄 Technical Documentation & Product Specifications

Download official engineering datasheets, certified test standards (IEC / UL / CE), wiring diagrams, and dimensional drawings for CHINT SHT-X1 Shunt Release for NXB-63 / NXB-40 MCB Accessories.

📥
Official Technical Datasheet (PDF) Complete electrical ratings, tripping characteristics, dimensions, and compliance specifications.
Request Official Datasheet (PDF)
📐
2D/3D CAD & Dimensional Drawings STEP, DXF, and PDF CAD drawing files for panel builders and switchgear designers.
Request CAD Model
Certified Standards: IEC 60898-1, IEC 60947-2, CE, RoHS, ISO 9001:2015
Manufacturer: Shanghai Newtrend Electric Co., Ltd. (Global Export Compliance)
Engineering Support: 24-hour response for custom voltage ratings, auxiliary contacts, and technical consulting.
Technical FAQ & Selection Guide

💡 Frequently Asked Technical Questions & Selection Guide

Pure engineering specifications, tripping curve parameters, and electrical selection guidance for panel builders and system designers.

Curve Selection

How to choose between Tripping Curves B, C, and D for this miniature circuit breaker?

A

Curve B trips at 3–5 In (designed for resistive loads, electric heating, and domestic appliances with negligible inrush). Curve C trips at 5–10 In (the standard international choice for residential and commercial lighting, socket outlets, and small induction motors). Curve D trips at 10–14 In (specifically engineered for high-inrush inductive equipment such as industrial transformers, heavy motors, compressors, and welding circuits).

Breaking Capacity

How do I determine whether 6kA or 10kA breaking capacity is required for my installation?

A

Breaking capacity (Icn/Icu) must exceed the calculated prospective short-circuit fault current at the installation point. 6kA (IEC 60898-1) is standard for residential consumer units and sub-distribution branch circuits located downstream. 10kA (IEC 60947-2) is required for industrial facilities, main switchboards, commercial distribution panels, or circuits situated close to supply transformers where fault levels are high.

Poles & Neutral Isolation

How to choose the correct number of poles (1P, 1P+N, 2P, 3P, 3P+N, 4P) for single-phase and three-phase circuits?

A

For single-phase 230V circuits: 1P provides active phase protection; 1P+N or 2P isolates both live and neutral lines simultaneously (essential for TT earthing systems and sensitive sub-panels). For three-phase 400V systems: 3P protects balanced 3-wire motor loads; 3P+N or 4P is required for 4-wire mixed single-phase loads to ensure complete neutral disconnection during isolation.

DC vs AC Application

Can this circuit breaker be used in DC circuits (Solar PV, Battery Storage, Telecom)?

A

Standard AC breakers cannot safely extinguish DC arcs due to the absence of natural zero-crossing current. For DC circuits (60V to 1000V DC), select specialized DC breakers (such as DZ158-125 DC or NM8NDC series) equipped with permanent magnetic arc-blowout chutes and strictly observe polarity wiring to prevent arc re-ignition.

Modular Accessories & Interlocks

What modular accessories and mechanical interlocks can be fitted to this breaker?

A

Standard modular clip-on accessories can be mounted directly on the side without tools: OF (Auxiliary Contact for remote status indication), SD (Alarm Contact for trip fault signaling), MX (Shunt Trip for remote emergency tripping), MN (Under-voltage Release for voltage loss protection), and NXBZ mechanical interlock kits for manual generator/mains transfer switches.
