CHINT NB1-63 Miniature Circuit Breaker


You save

The CHINT NB1-63 series provides overload and short-circuit protection for domestic, commercial and industrial distribution circuits. This listing is for the NB1-63 family; confirm a different suffix separately when the project specifies NB1-63H or NB1-63-H2.

Model
Number of Poles
Rated Current
Tripping Curve
Add to Enquiry
SKU: 60474178845 Category: Chint MCB
  • Description
  • Catalog
Description

CHINT · Miniature circuit breaker

Product overview

The CHINT NB1-63 series provides overload and short-circuit protection for domestic, commercial and industrial distribution circuits. This listing is for the NB1-63 family; confirm a different suffix separately when the project specifies NB1-63H or NB1-63-H2.

Technical selection summary

SeriesNB1-63
Rated current1–63 A
Pole options1P, 2P, 3P and 4P
Tripping curvesB, C and D
MountingDIN rail
Version selectionConfirm the exact breaking-capacity version and its applicable standard

Typical applications

  • Residential distribution
  • Commercial panel assembly
  • Replacement procurement with exact model verification

Product reference images and drawings

CHINT NB1-63 manufacturer technical page 1CHINT NB1-63 manufacturer technical page 2CHINT NB1-63 manufacturer technical page 3CHINT NB1-63 manufacturer technical page 4CHINT NB1-63 manufacturer technical page 5CHINT NB1-63 manufacturer technical page 6CHINT NB1-63 manufacturer technical page 7CHINT NB1-63 manufacturer technical page 8CHINT NB1-63 manufacturer technical page 9CHINT NB1-63 manufacturer technical page 10CHINT NB1-63 manufacturer technical page 11CHINT NB1-63 manufacturer technical page 12CHINT NB1-63 manufacturer technical page 13CHINT NB1-63 manufacturer technical page 14CHINT NB1-63 manufacturer technical page 15CHINT NB1-63 manufacturer technical page 16CHINT NB1-63 manufacturer technical page 17CHINT NB1-63 manufacturer technical page 18CHINT NB1-63 manufacturer technical page 19CHINT NB1-63 manufacturer technical page 20CHINT NB1-63 manufacturer technical page 21CHINT NB1-63 manufacturer technical page 22CHINT NB1-63 manufacturer technical page 23
Catalog
NameSizeRelease timeOperate
Chint NB1-63 Miniature Circuit Breaker.pdf760.67 KB2026-11-14Download

Related products

CHINT NB7 Miniature Circuit Breaker, 1–63 A

CHINT NB7 Miniature Circuit Breaker, 1–63 A

CHINT NB7 protects branch circuits against overload and short circuits. Its breaking capacity depends on the current and trip curve: select the exact combination rather than treating every NB7 as a 6 kA device.

Chint NBH8-40 DPN MCB
Chint NBH8-40 DPN MCB

Chint NBH8-40 DPN MCB

BCD Curve:C
Type:MCB
Brand Name:Chint
Place of Origin:China
Model Number:NBH8
Protection:LSI
Breaking Capacity:4500A, 6000A
Rated Voltage:230/240V
Type:Mini
Pole:1P+N
Chint NXU-IIG Surge Arrester
Chint NXU-IIG Surge Arrester

Chint NXU-IIG Surge Arrester

The retained NXU-II G overview compares pole, AC/DC voltage and discharge-current selections, with the G/F reference identifying an alarm-terminal option.

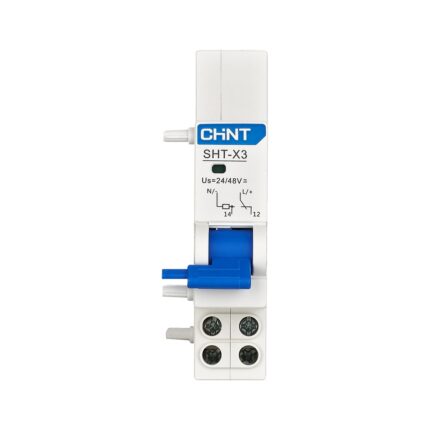

Chint SHT-X3 Shunt Release
Chint SHT-X3 Shunt Release

Chint SHT-X3 Shunt Release

Brand Name:Chint
Place of Origin:China
Model Number:SHT-X3
rated voltage:AC 230V 400V AC DC 24V 48V
Catalogue operating current (voltage-dependent):3A, 6A
CHINT OUVT-X1 Over/Under Voltage Release, AC230V
CHINT OUVT-X1 Over/Under Voltage Release, AC230V

CHINT OUVT-X1 Over/Under Voltage Release, AC230V

CHINT OUVT-X1 trips a compatible NXB-40 or NXB-63 circuit breaker when its monitored supply exceeds the release operating limits.
CHINT NBH-100NGV 2P PV Grid-Connection Circuit Breaker, 63–100A

CHINT NBH-100NGV 2P PV Grid-Connection Circuit Breaker, 63–100A

CHINT NBH-100NGV photovoltaic grid-connection breaker with overcurrent protection and automatic opening on voltage faults, followed by automatic reconnection after voltage recovery.
CHINT UVT-X1 Under Voltage Release for NXB-63 / NXB-40 MCB Accessories
CHINT UVT-X1 Under Voltage Release for NXB-63 / NXB-40 MCB Accessories

CHINT UVT-X1 Under Voltage Release for NXB-63 / NXB-40 MCB Accessories

Brand Name: CHINT
Product Type: Under Voltage Release / Undervoltage Release
Model: UVT-X1
Compatible Series: NXB-63, NXB-40
Rated Operation Voltage Ue: AC 240V
Rated Insulation Voltage Ui: 500V
Mounting: TH35-7.5 DIN rail after assembly with circuit breaker
Application: Automatic breaker trip and closing prevention under undervoltage conditions
CHINT OUVR-2 Self-Recovery Overvoltage and Undervoltage Protector
CHINT OUVR-2 Self-Recovery Overvoltage and Undervoltage Protector

CHINT OUVR-2 Self-Recovery Overvoltage and Undervoltage Protector

CHINT OUVR-2 disconnects a single-phase AC 230 V supply during overvoltage or undervoltage and reconnects after voltage recovers and the specified delay expires.
