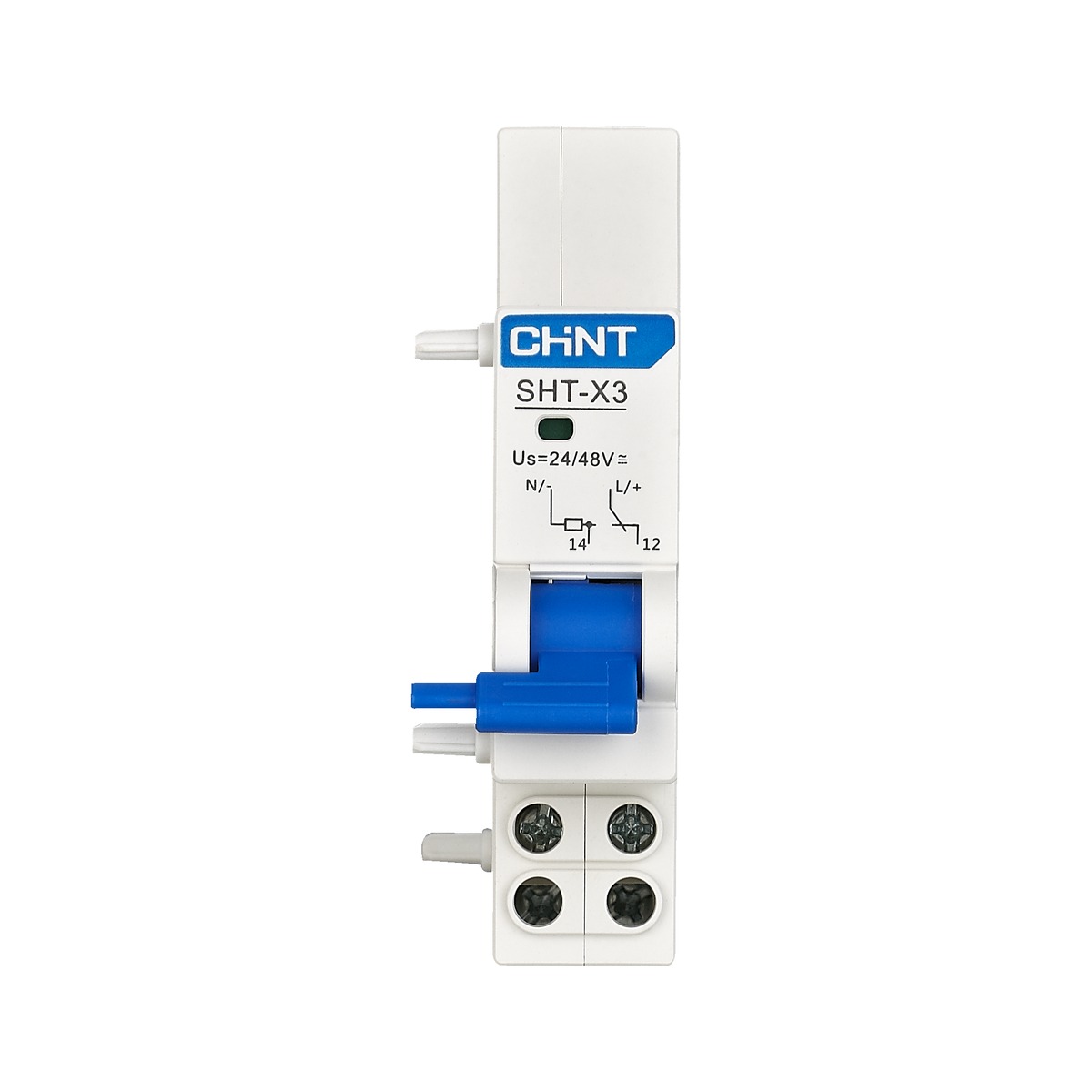

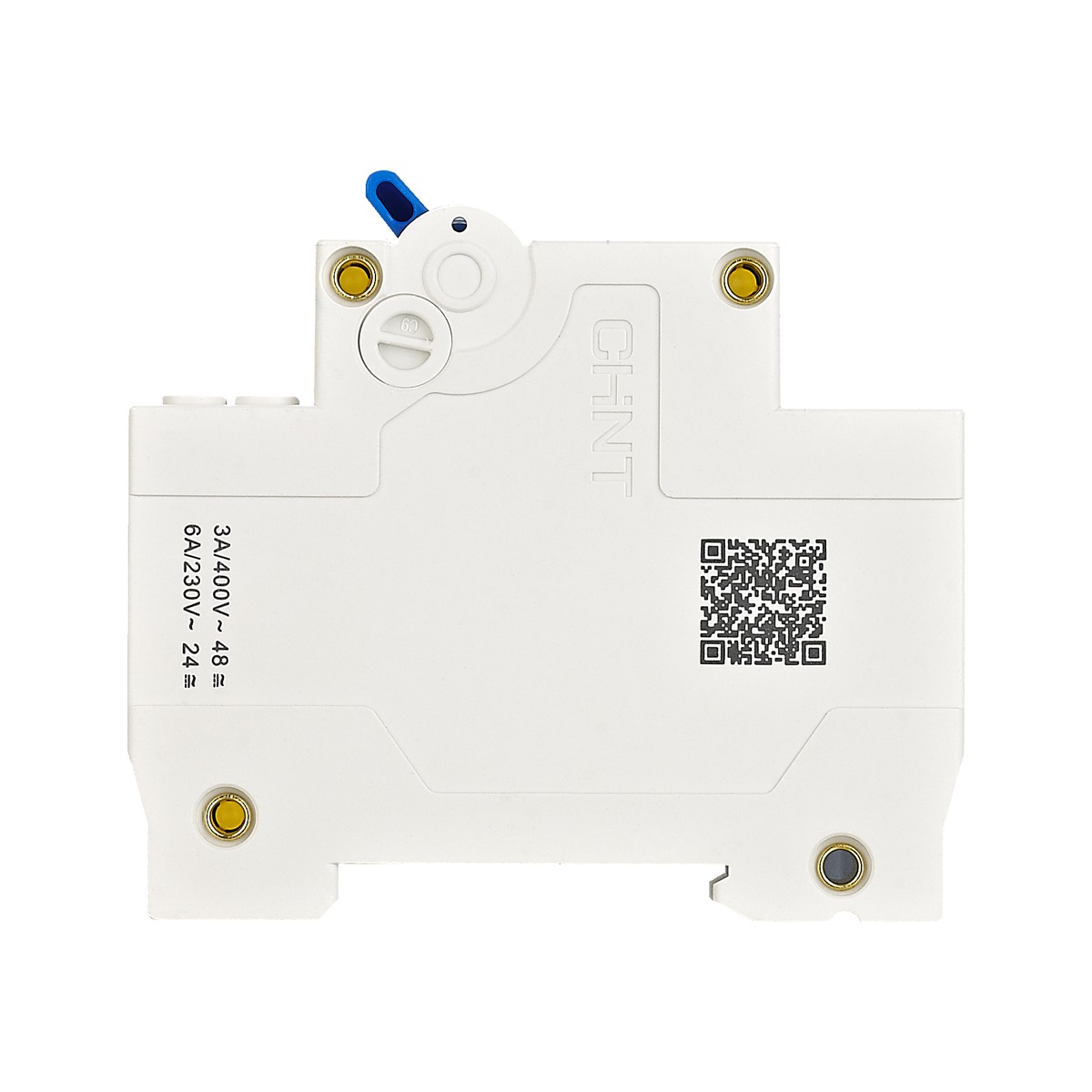

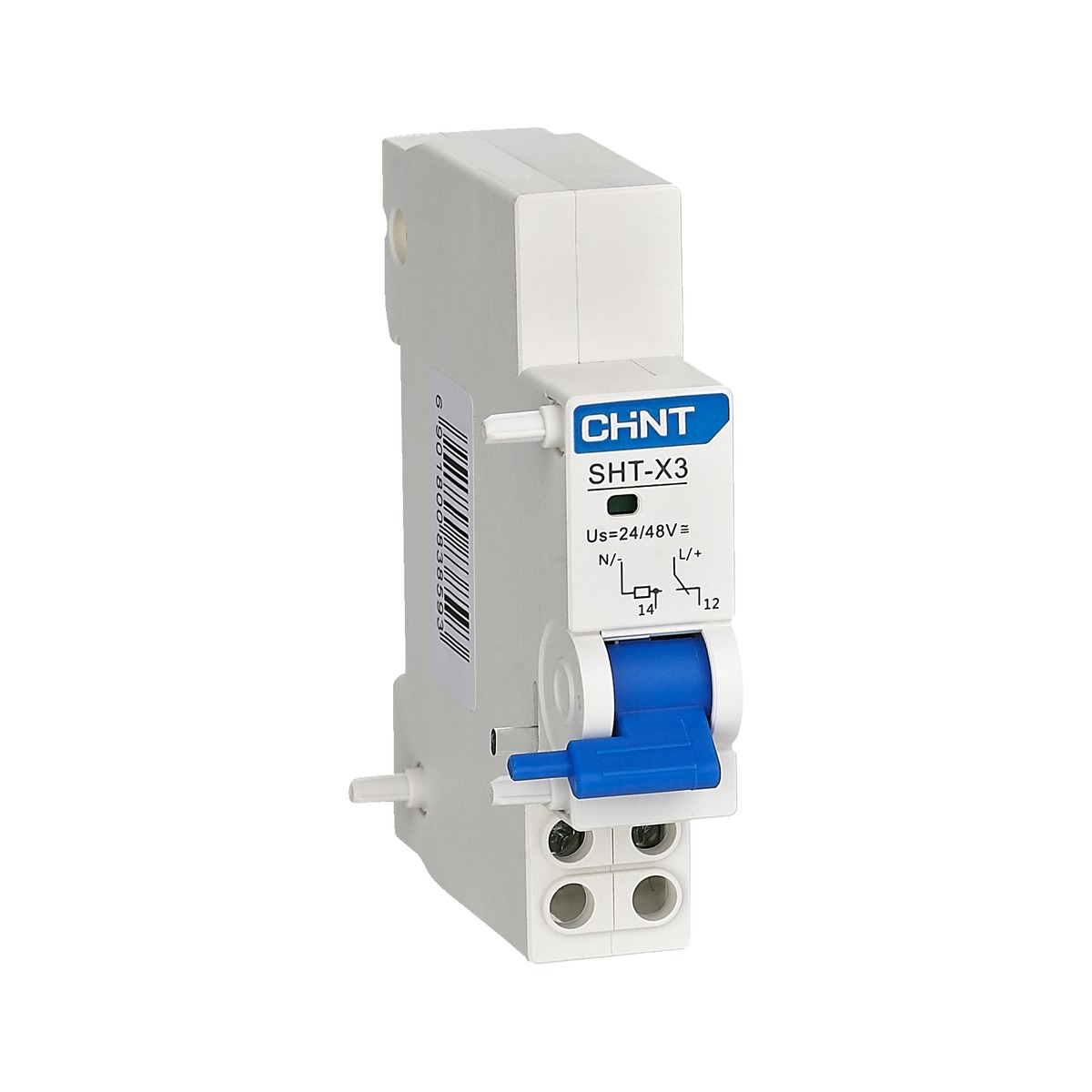

Chint SHT-X3 Shunt Release

Brand Name:Chint
Place of Origin:China
Model Number:SHT-X3
rated voltage:AC 230V 400V AC DC 24V 48V
Catalogue operating current (voltage-dependent):3A, 6A
Add to Enquiry
SKU: 1770403297245536256 Category: Chint MCB
  • Description
  • Catalog
Description

CHINT · Shunt release accessory

Product overview

CHINT SHT-X3 shunt releases provide remote tripping when assembled with a matching NXB-125 circuit breaker. Select the control-voltage version and verify the exact assembly instructions.

Technical selection summary

Matched breakerThe referenced manufacturer catalogue and 2020.04 manual identify NXB-125. This is not a universal compatibility claim for every MCB.
Operating-current tableAC 400 V: 3 A; AC 230 V: 6 A; AC/DC 48 V: 3 A; AC/DC 24 V: 6 A. These are catalogue operating-current entries under their stated voltages, not power in watts or a coil-consumption value.
Insulation versus control voltageUi is 500 V; the rated control voltage must be chosen separately from this insulation value.
Operating characteristicThe catalogue specifies reliable operation within 70–110% of rated control supply voltage. Match the required control supply and wiring diagram.

Installation-side wording differs between the linked catalogue and the 2020.04 manual. Confirm the supplied revision and its assembly drawing before installation; no universal left/right-side instruction is given here. Keep auxiliary indication terminals separate from the breaker power circuit.

Typical applications

  • Remote tripping of a matching NXB-125 circuit breaker.
  • Control circuits using the selected shunt-release supply voltage and revision-specific wiring.

Product reference images and drawings

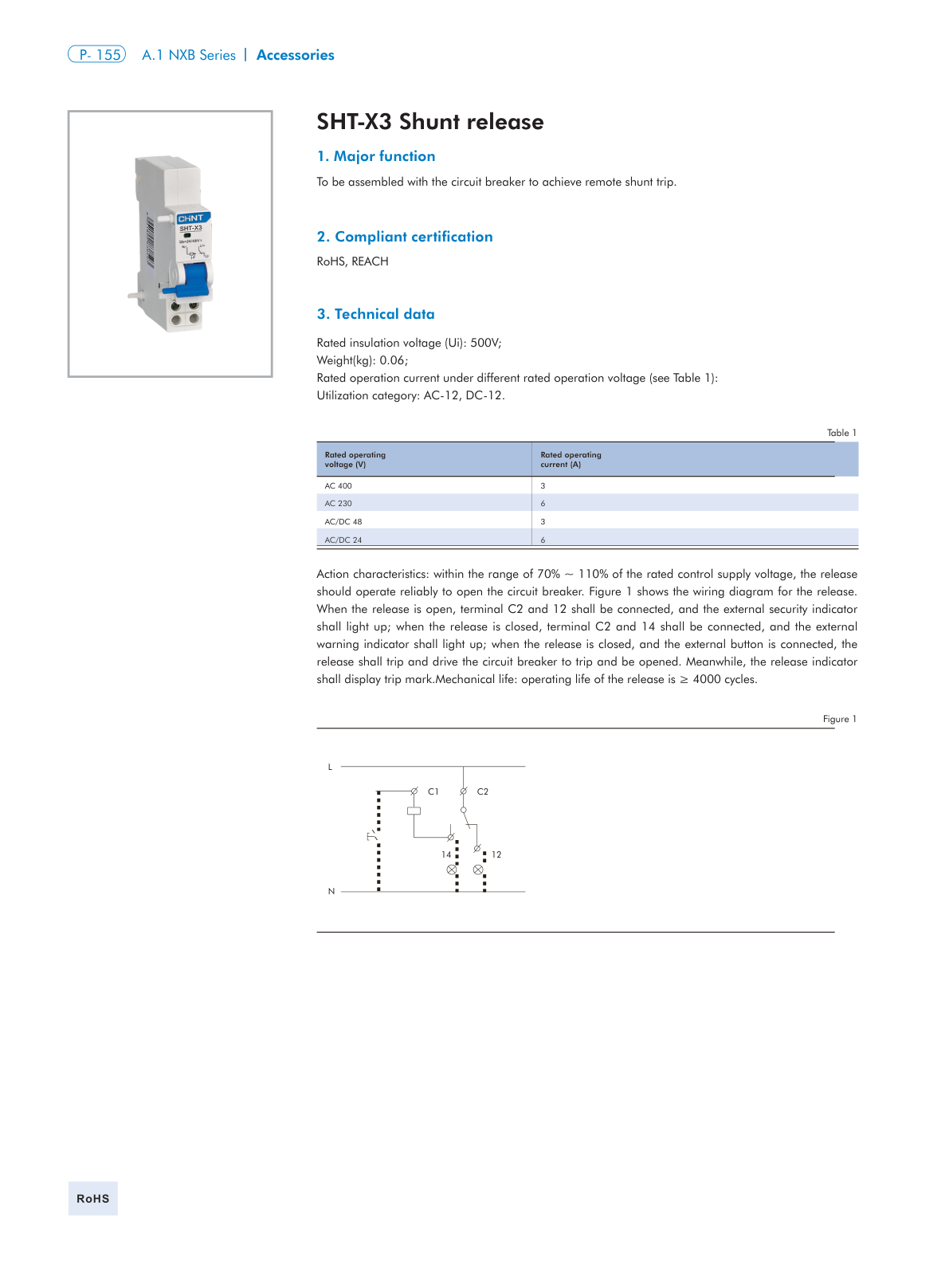

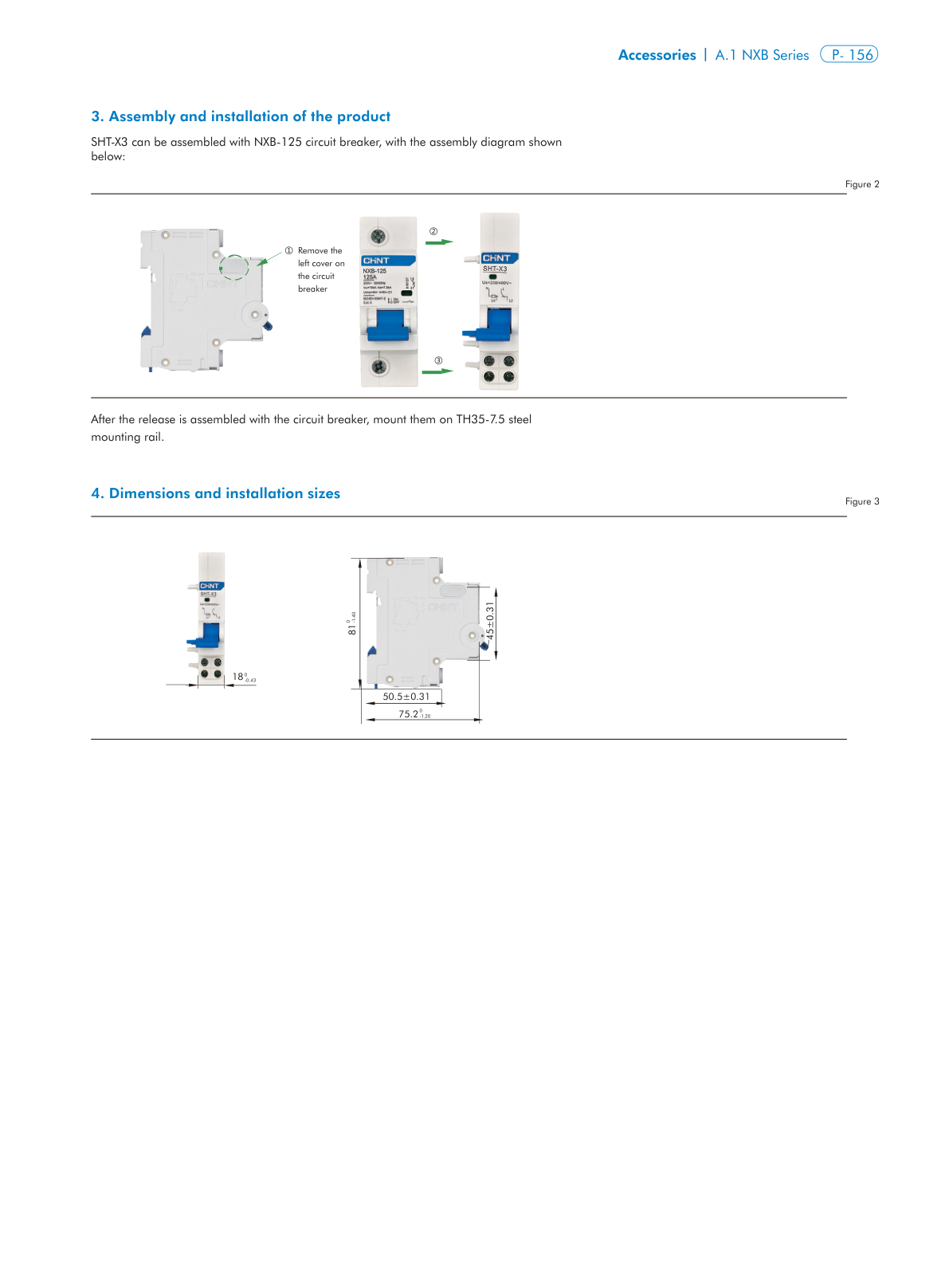

CHINT SHT-X3 manufacturer technical page 1CHINT SHT-X3 manufacturer technical page 2
