CHINT · UVT-X3 Under Voltage Release for NXB-125
Product overview
CHINT UVT-X3 is a undervoltage release used with the specified matching circuit breaker. The accessory operates the breaker mechanism when its supply reaches the stated trip range.
Technical selection summary
| Exact accessory | UVT-X3 |
|---|---|
| Rated voltage / frequency | AC230V;50/60Hz |
| Compatible breaker | NXB-125 |
| Undervoltage operating range | 35%Ue≤U≤70%Ue |
| Insulation / enclosure | Ui500V;IP20 |
| Assembly side | Right side of the breaker |
| Wiring | Copper conductor1mm²;9mm strip length;0.8N·m |
Use this exact release and mounting side. This is a breaker accessory, not a standalone voltage protector or an overcurrent breaker. The previous OVT-X3 overvoltage image has been replaced with the correct UVT-X3 manual.
Typical applications
- CHINT UVT-X3 is a undervoltage release used with the specified matching circuit breaker.

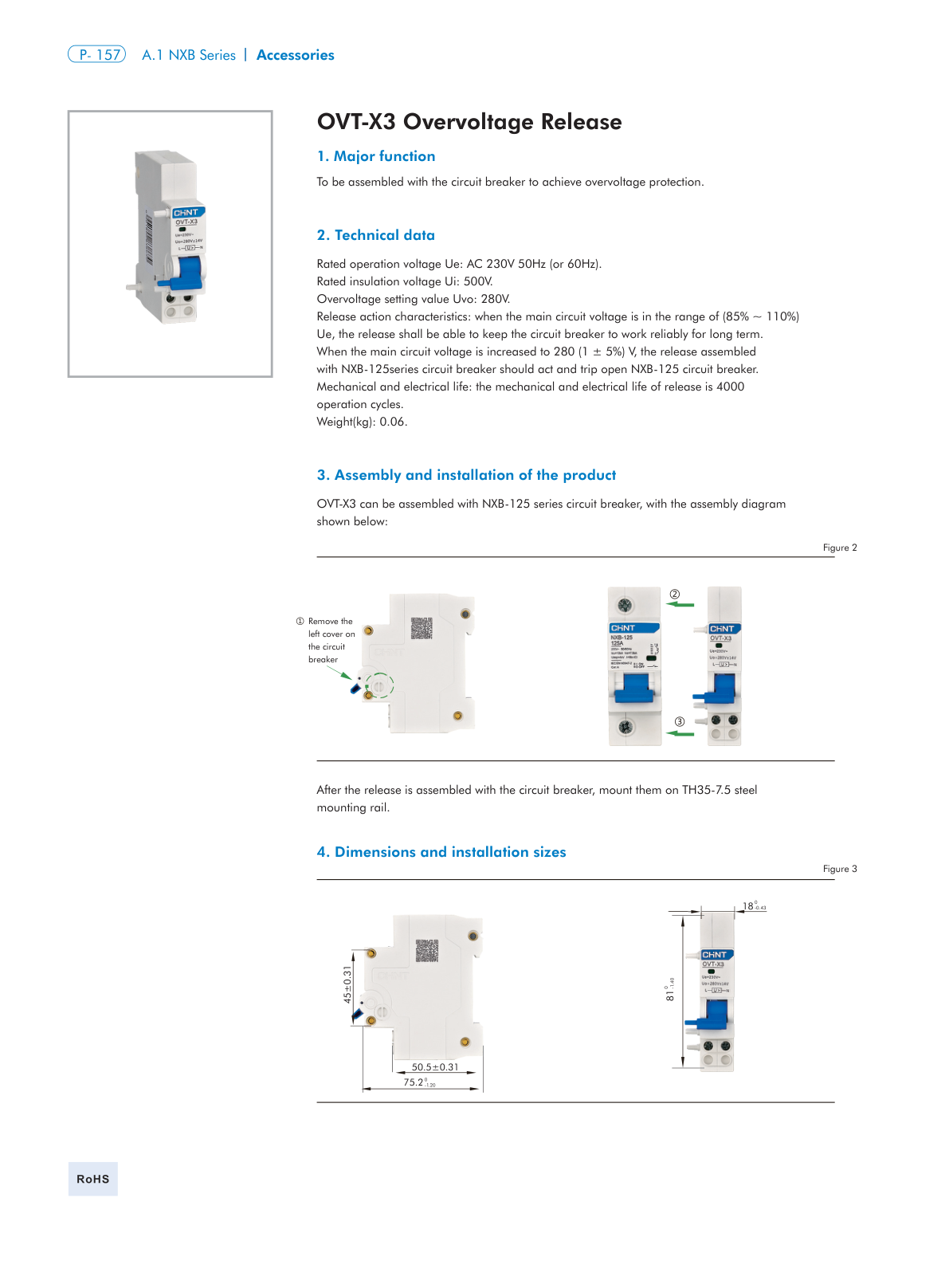

Open retained manufacturer catalogue image

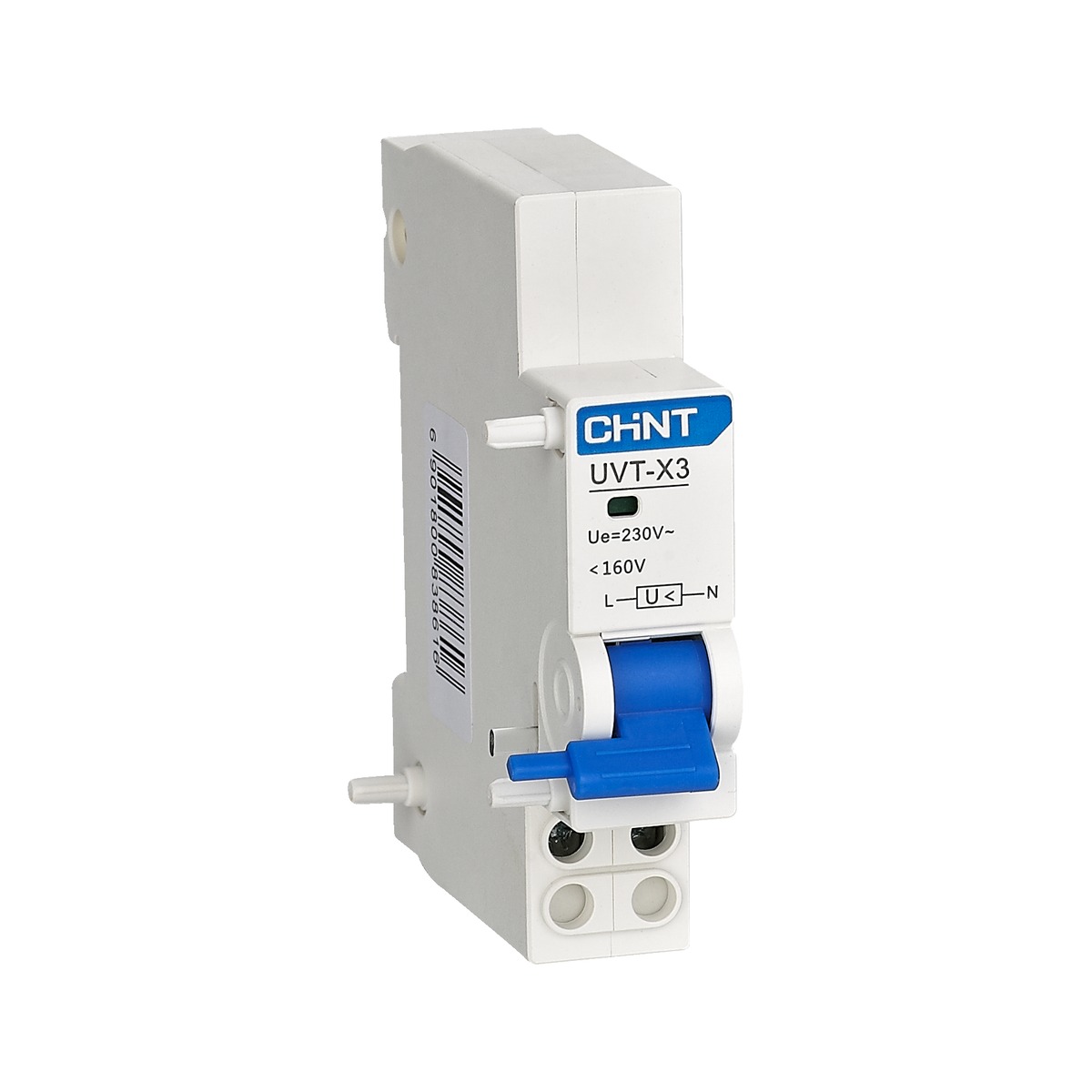

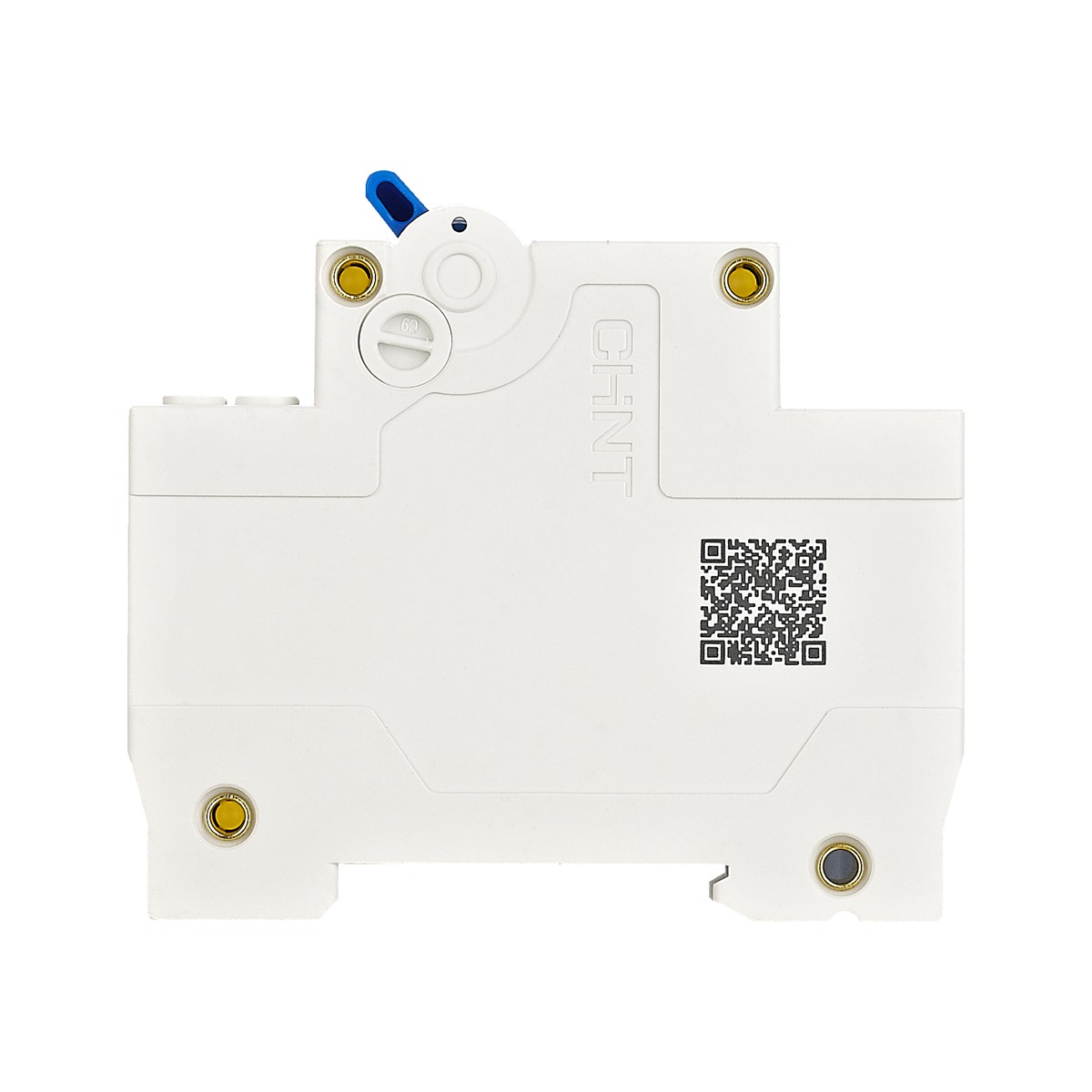

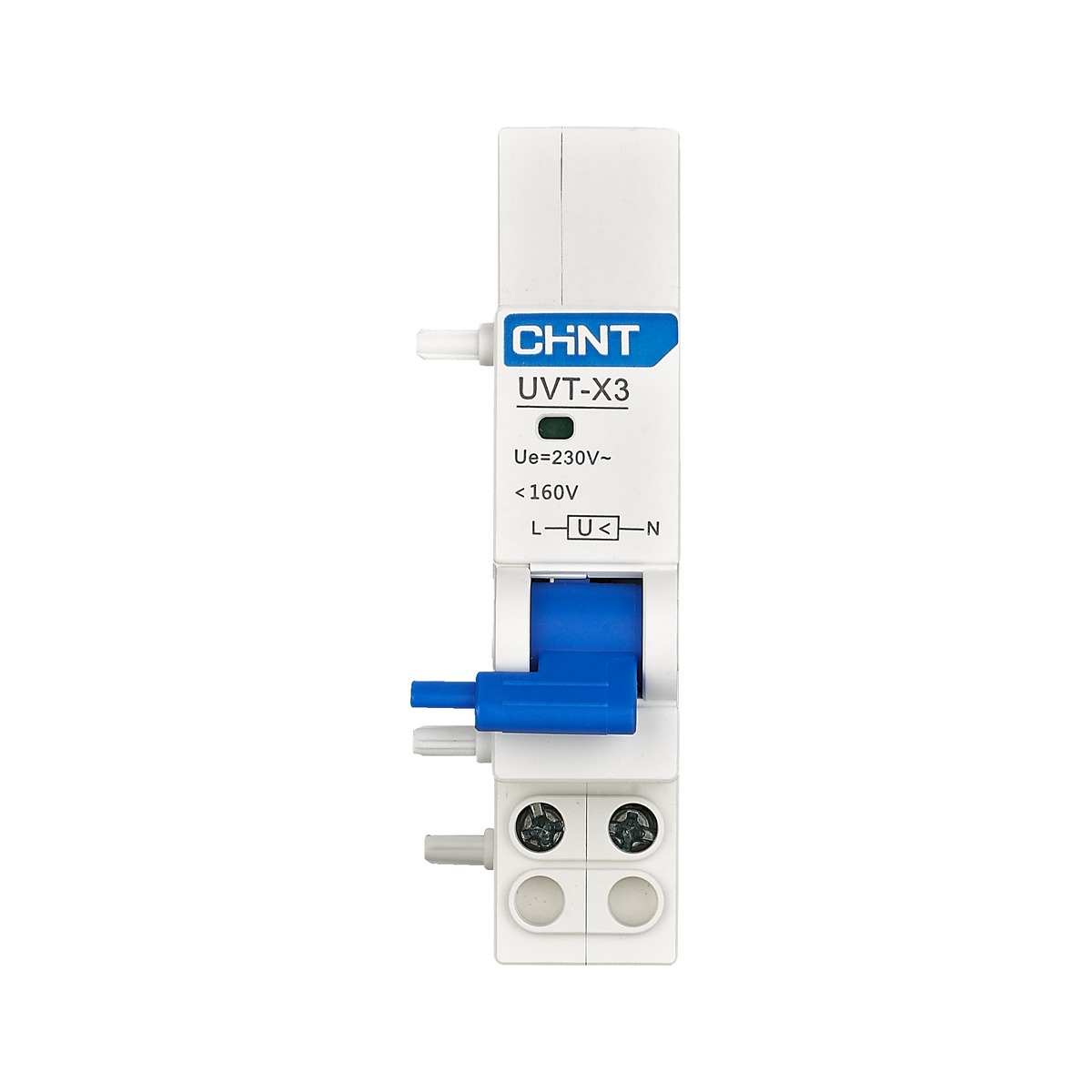

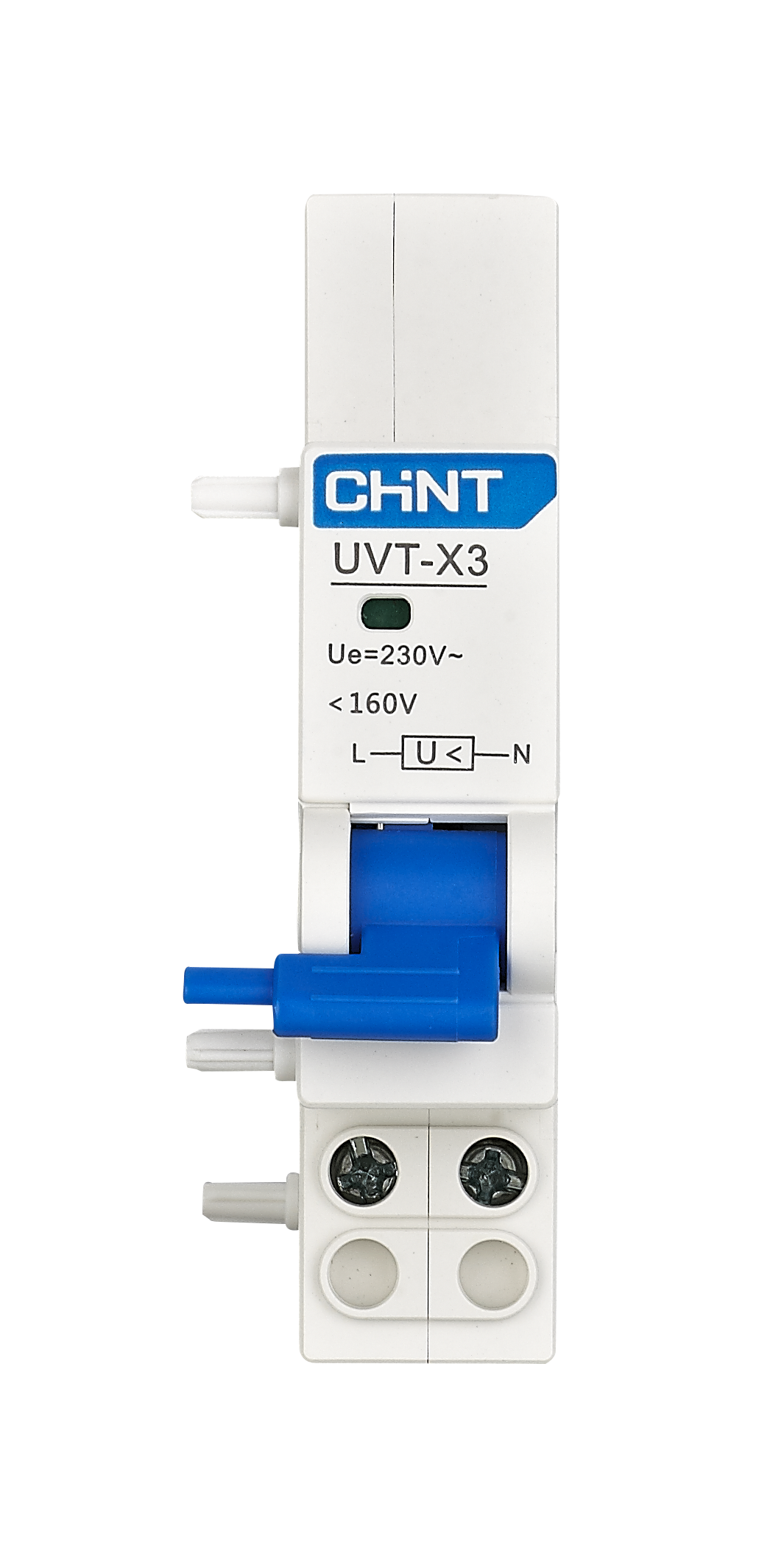

Product reference images and drawings
