NJJ3 Counting Relay

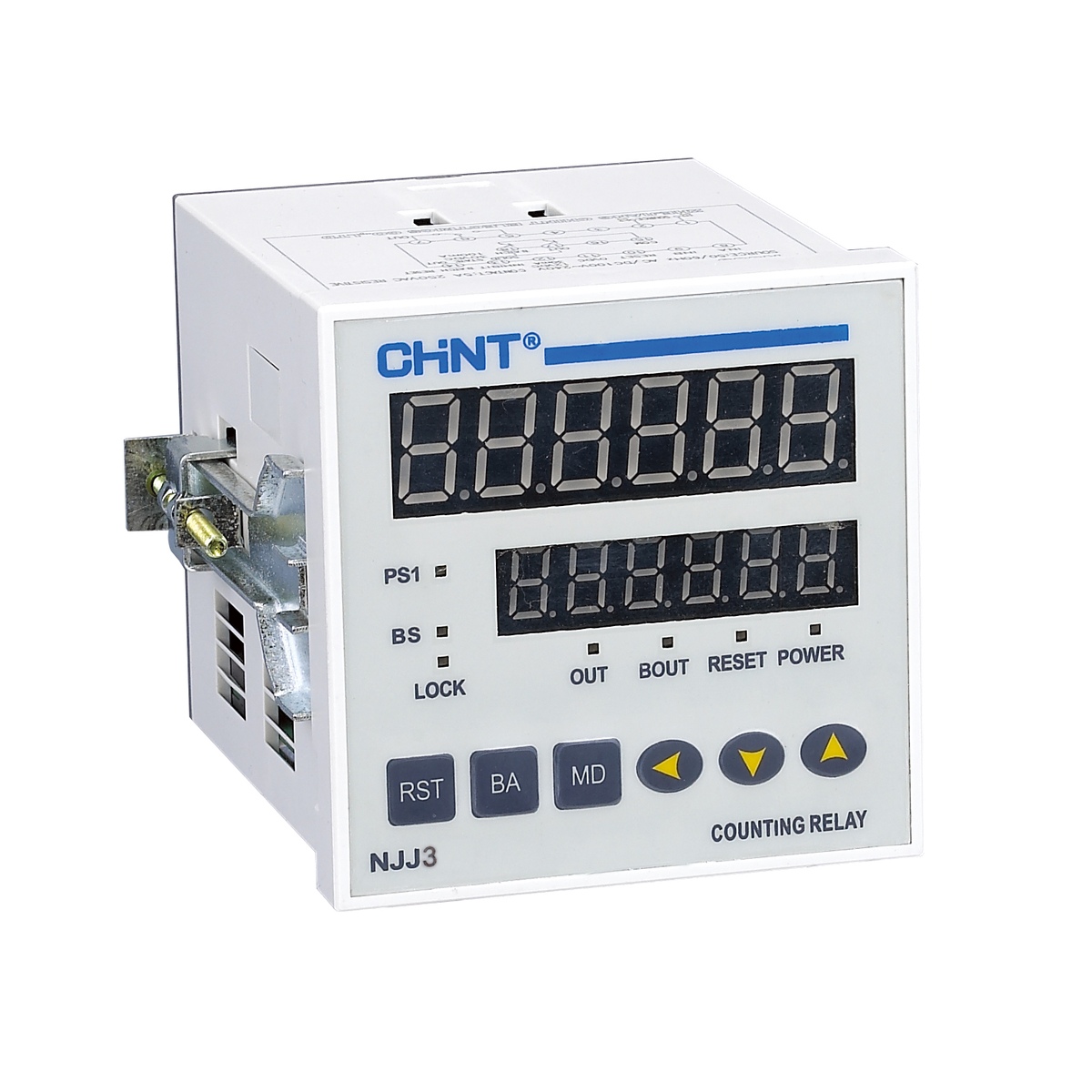

Name: CHINT NJJ3 Electromagnetic Counting Relay
Brand: CHINT
SKU: NJJ3

Description

Product Overview

Digital counting relay for AC/DC control circuits, addition/subtraction/reversible counting

Main Features

Designed for industrial automation and control systems
Reliable performance and long service life
Easy installation and operation
LED display for clear indication

Technical Specifications

Parameter	Specification
Function	Counting and counting control
Frequency	AC 50Hz/60Hz
Voltage	AC/DC up to 240V
Standards	IEC 60947-5-1
Counting Modes	Addition, Subtraction, Reversible
Memory	Non-volatile, >10 years

Typical Applications

Industrial automation systems
Production line control
Machinery and equipment monitoring
Process control systems

Ordering Support

For detailed ordering information and technical support, please contact our sales team.

Product Catalog

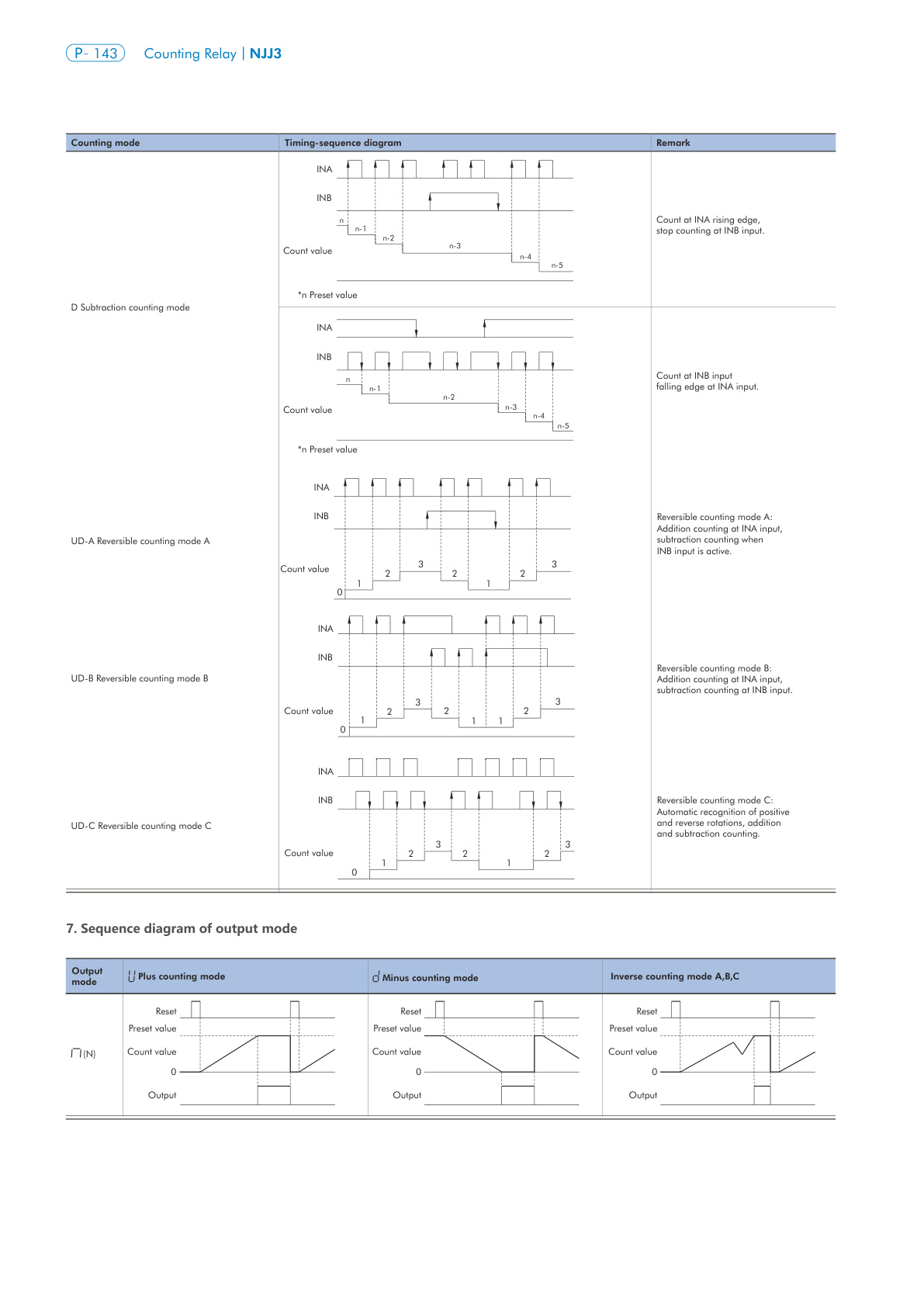

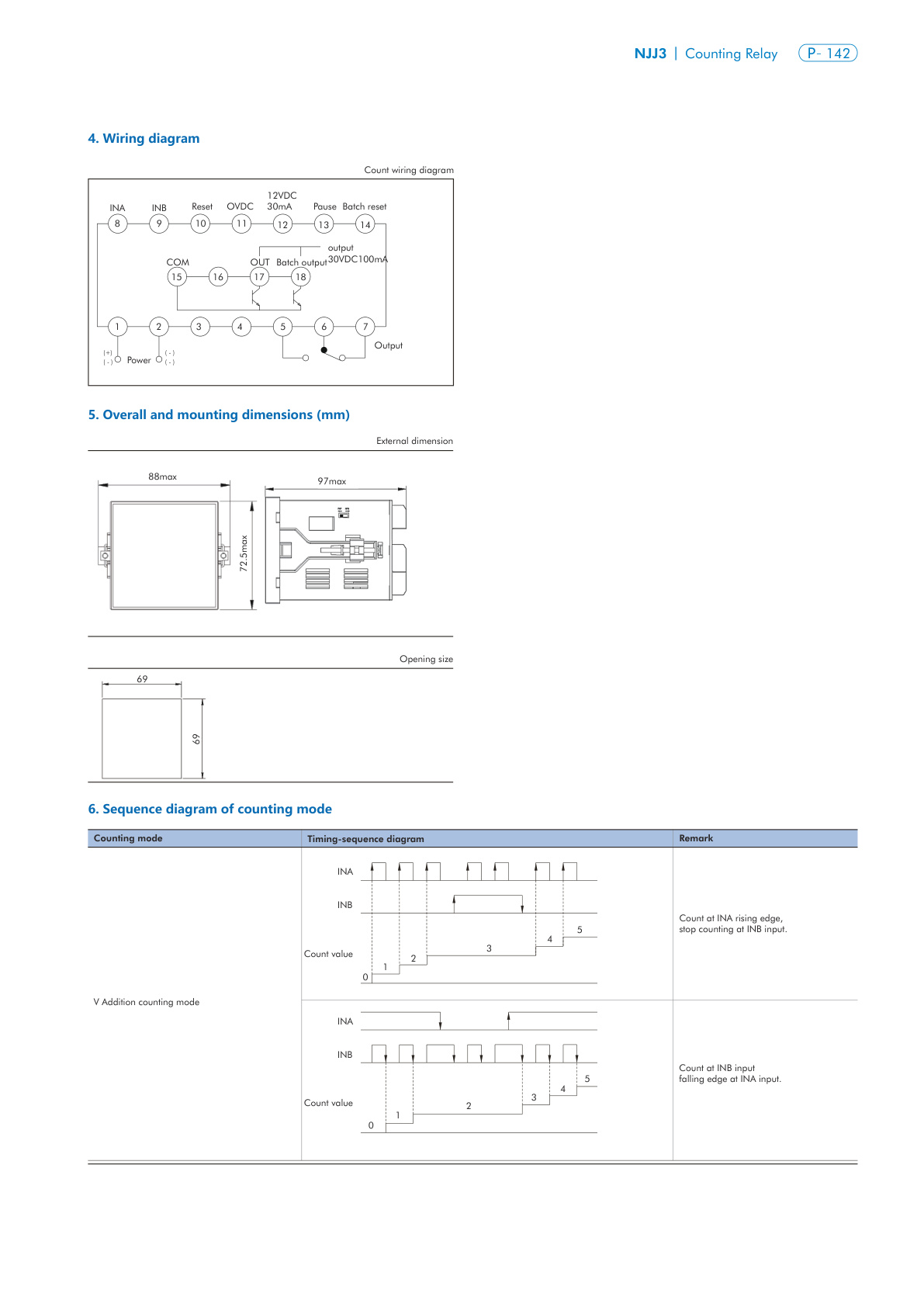

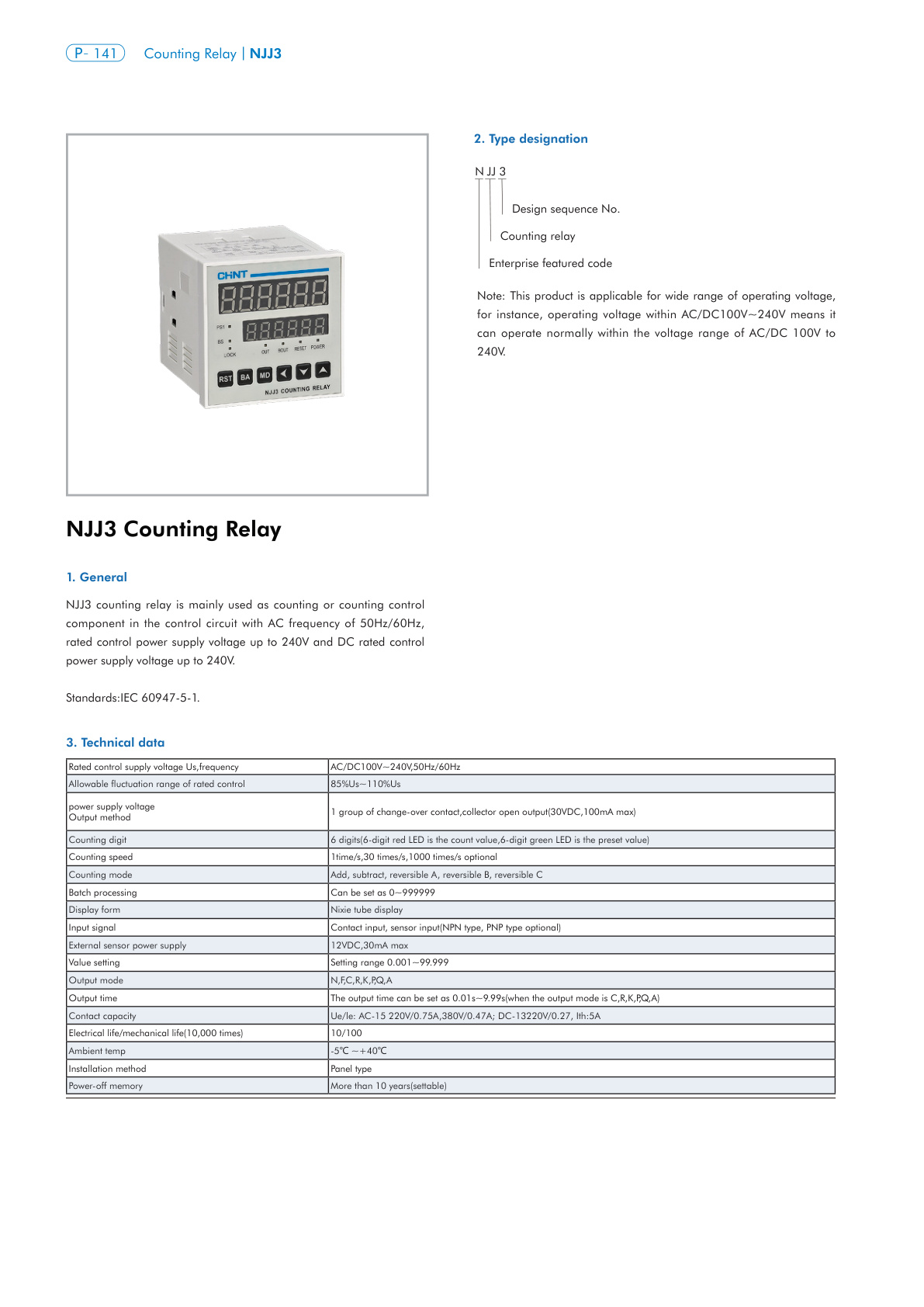

Please refer to the catalog images below for detailed specifications:

Technical Datasheet & Downloads

📄 Technical Documentation & Product Specifications

Download official engineering datasheets, certified test standards (IEC / UL / CE), wiring diagrams, and dimensional drawings for CHINT NJJ3 Electromagnetic Counting Relay.

📥

Official Technical Datasheet (PDF) Complete electrical ratings, tripping characteristics, dimensions, and compliance specifications.

📐

2D/3D CAD & Dimensional Drawings STEP, DXF, and PDF CAD drawing files for panel builders and switchgear designers.
