CHINT NB1-63-H2 DIN Rail Circuit Breaker, 10 kA
CHINT NB1-63-H2 DIN Rail Circuit Breaker, 10 kA

CHINT NB1-63-H2 DIN Rail Circuit Breaker, 10 kA

This CHINT NB1-63-H2 listing corresponds to the NB1-63H/2 designation used in the linked manufacturer catalogue. Confirm the complete nameplate code, trip curve and rated fault-breaking requirement when preparing a quotation.

Model
Poles
Rated Operational Voltage Ue
Rated Current In
Add to Enquiry

Send quantities and requirements together. Availability and final specifications are confirmed with your quotation.

SKU: NB1-63-H2 Categories: ,
Description

CHINT · DIN rail circuit breaker

Product overview

This CHINT NB1-63-H2 listing corresponds to the NB1-63H/2 designation used in the linked manufacturer catalogue. Confirm the complete nameplate code, trip curve and rated fault-breaking requirement when preparing a quotation.

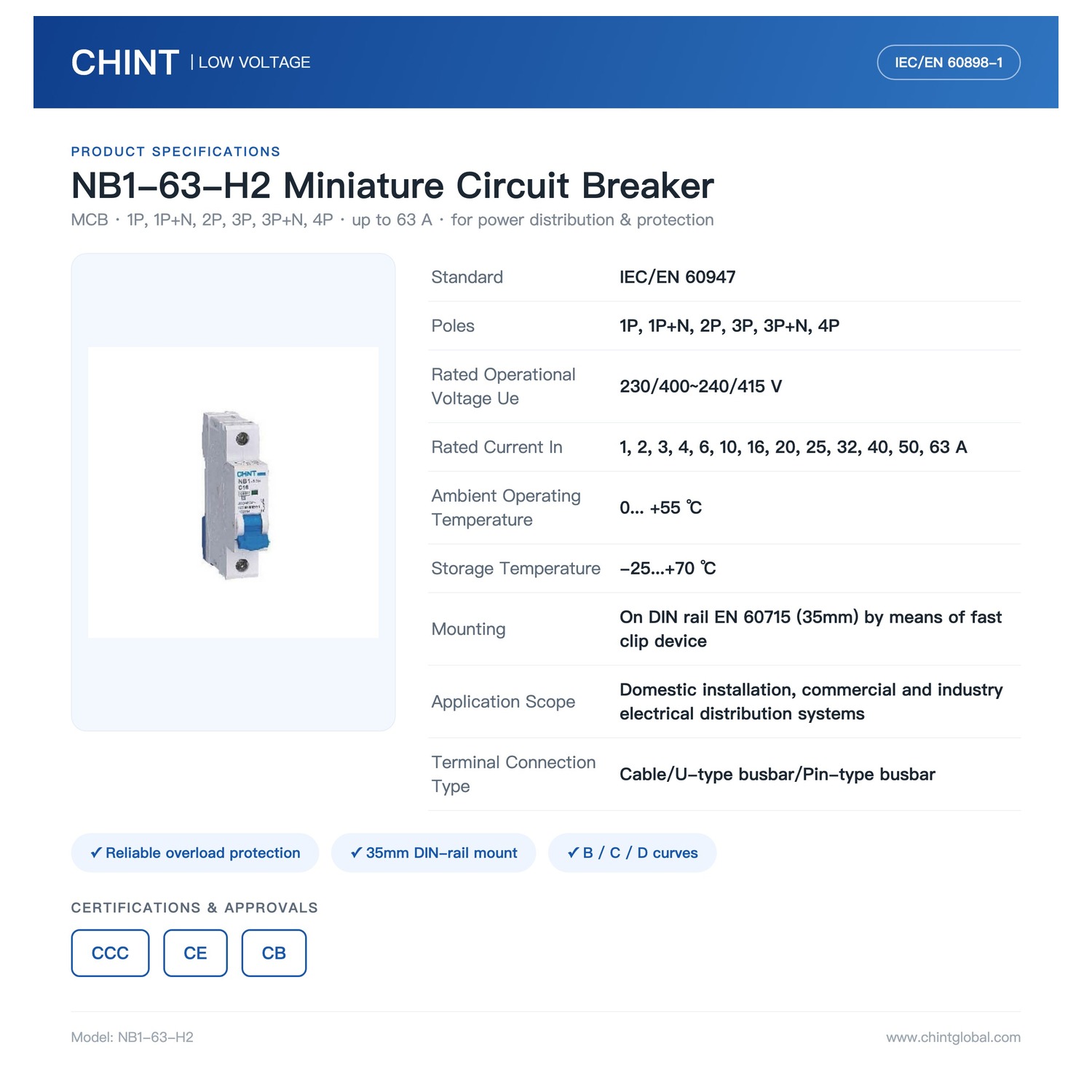

Technical selection summary

SeriesNB1-63-H2
Manufacturer catalogue designationNB1-63H/2
Rated current1–63 A
Breaking capacity10 kA
Trip curvesB, C and D
Pole families1P, 1P+N, 2P, 3P, 3P+N and 4P
AC voltage family230/400–240/415 V

This table summarizes the series. Not every option is available in every combination; confirm the complete manufacturer code and its rating at the actual operating voltage.

Typical applications

  • Building distribution panels
  • Commercial branch protection
  • Industrial panel procurement

Specify your enquiry

For a focused quotation, include:

  • Full manufacturer designation
  • Poles, current and trip curve
  • Operating voltage and required breaking capacity

Download CHINT NB1-63-H2 catalogue (PDF)

Related products

CHINT NXB-63G DIN Rail Circuit Breaker, 1–63 A

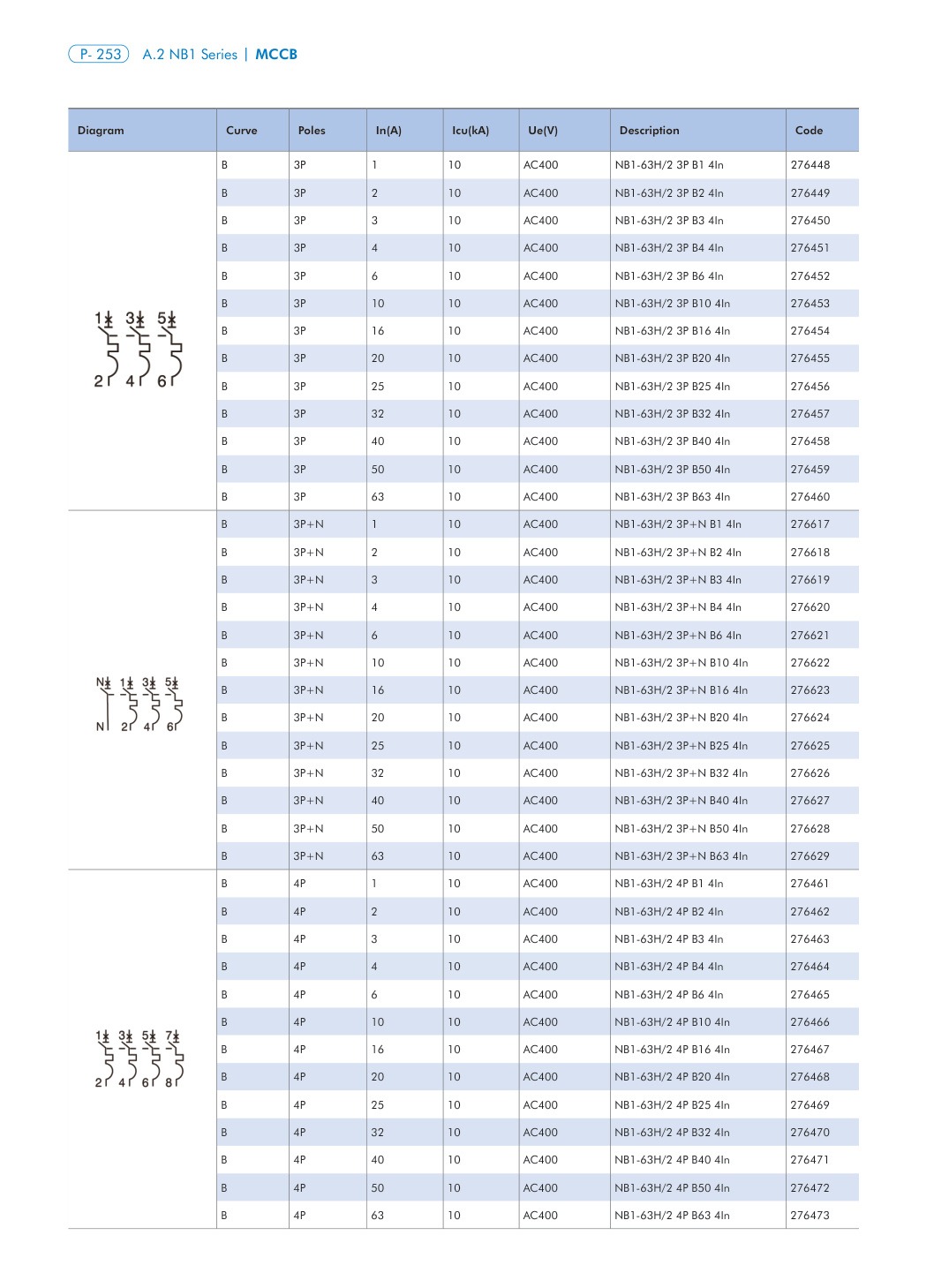

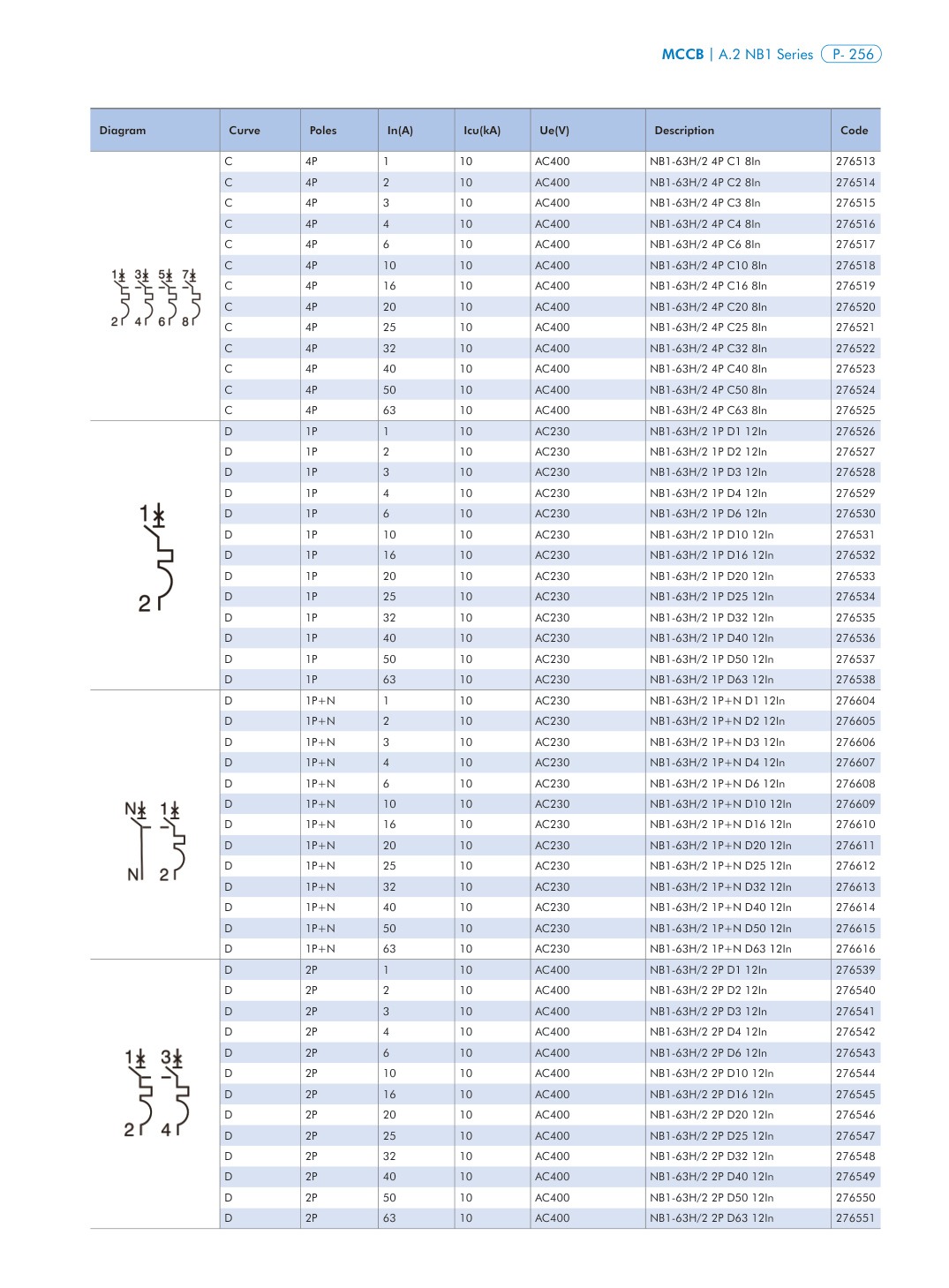

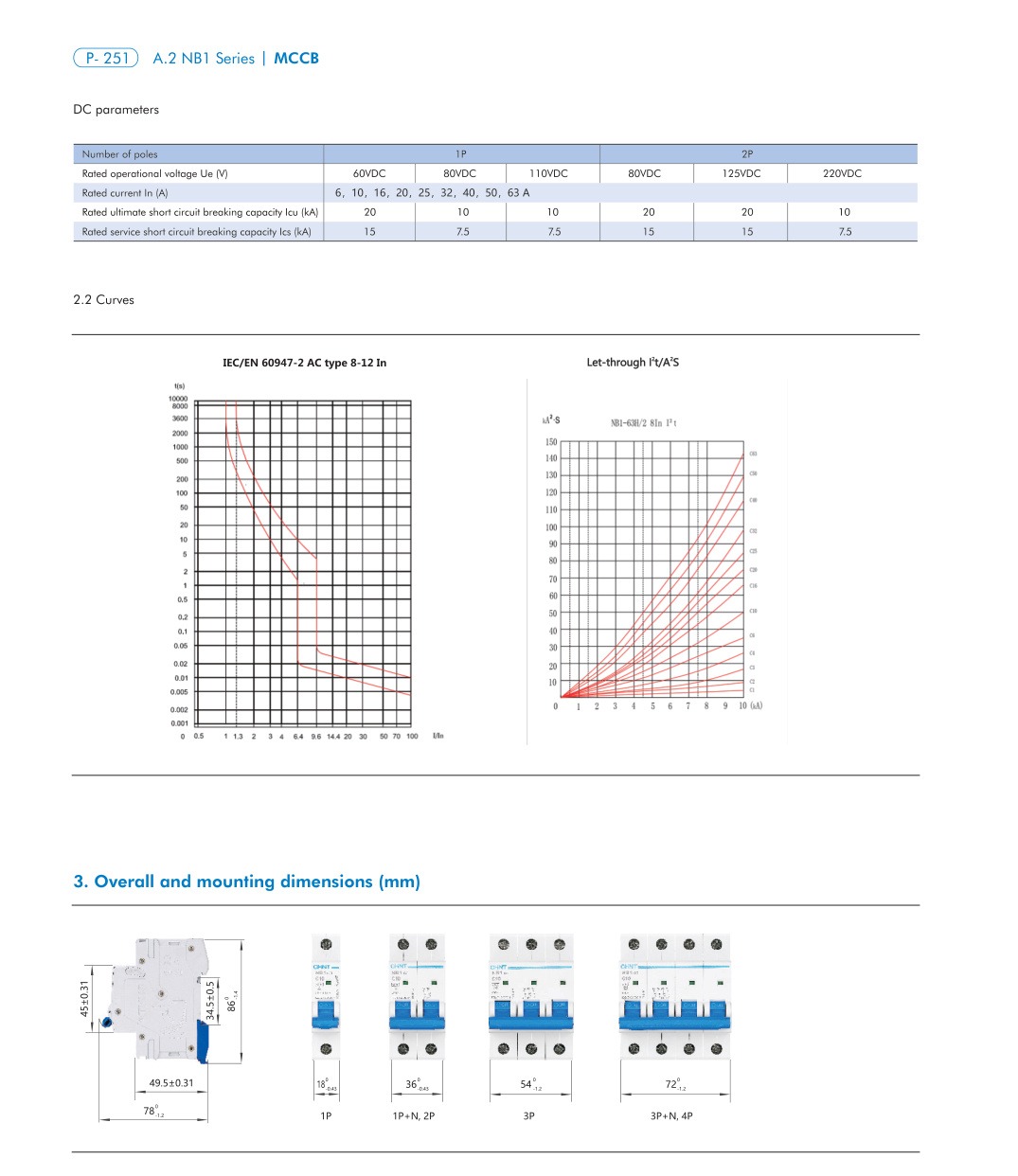

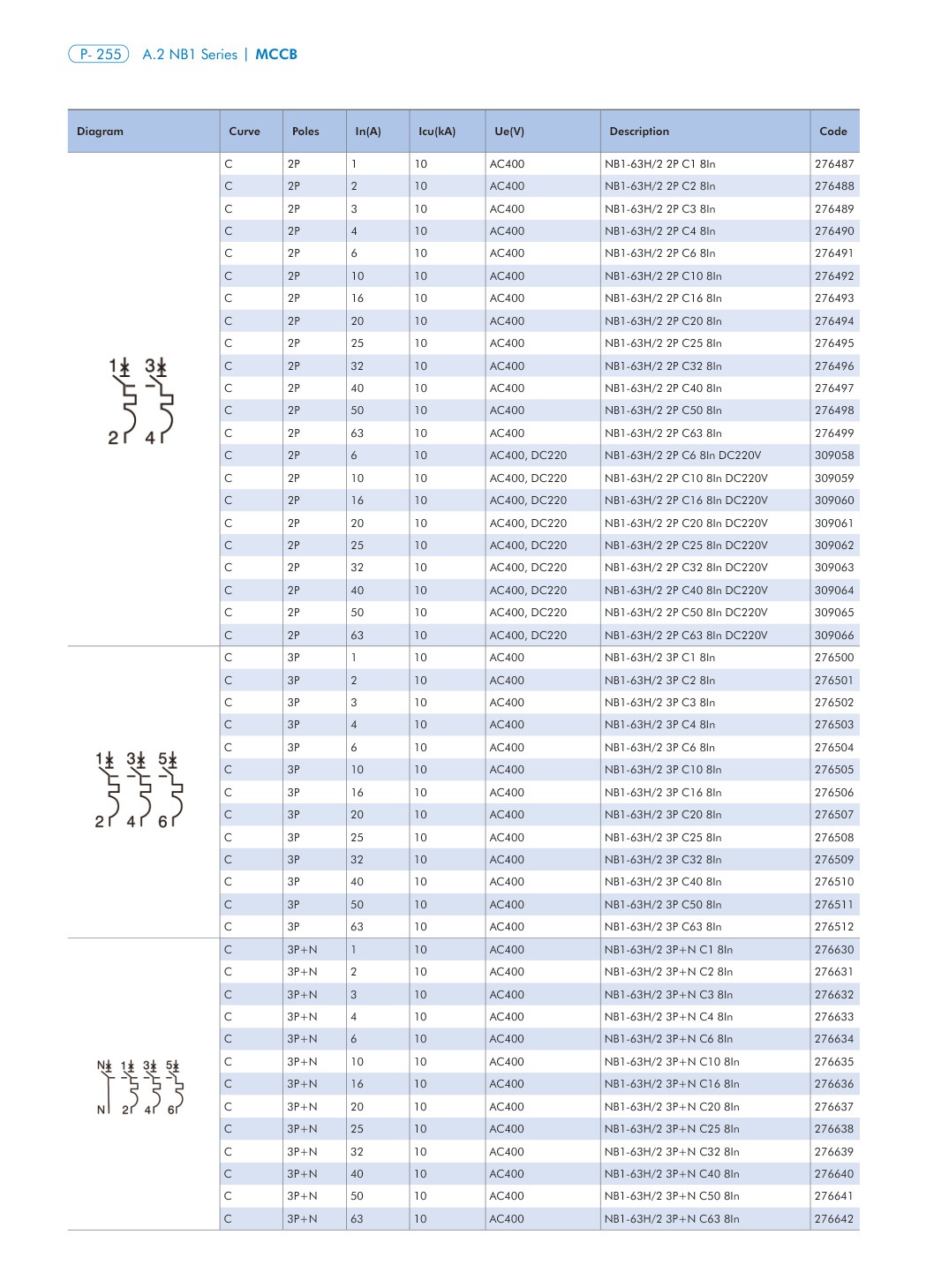

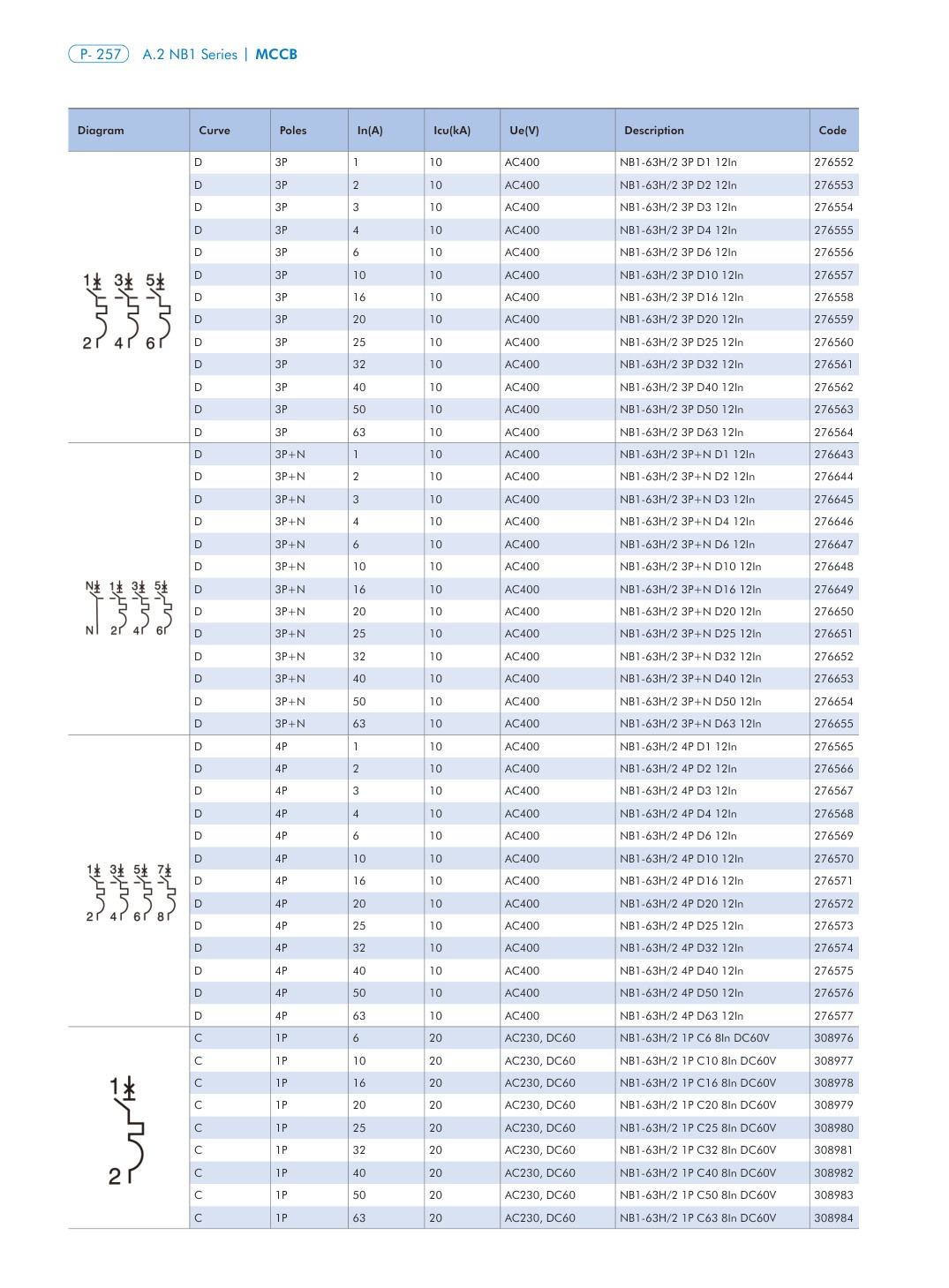

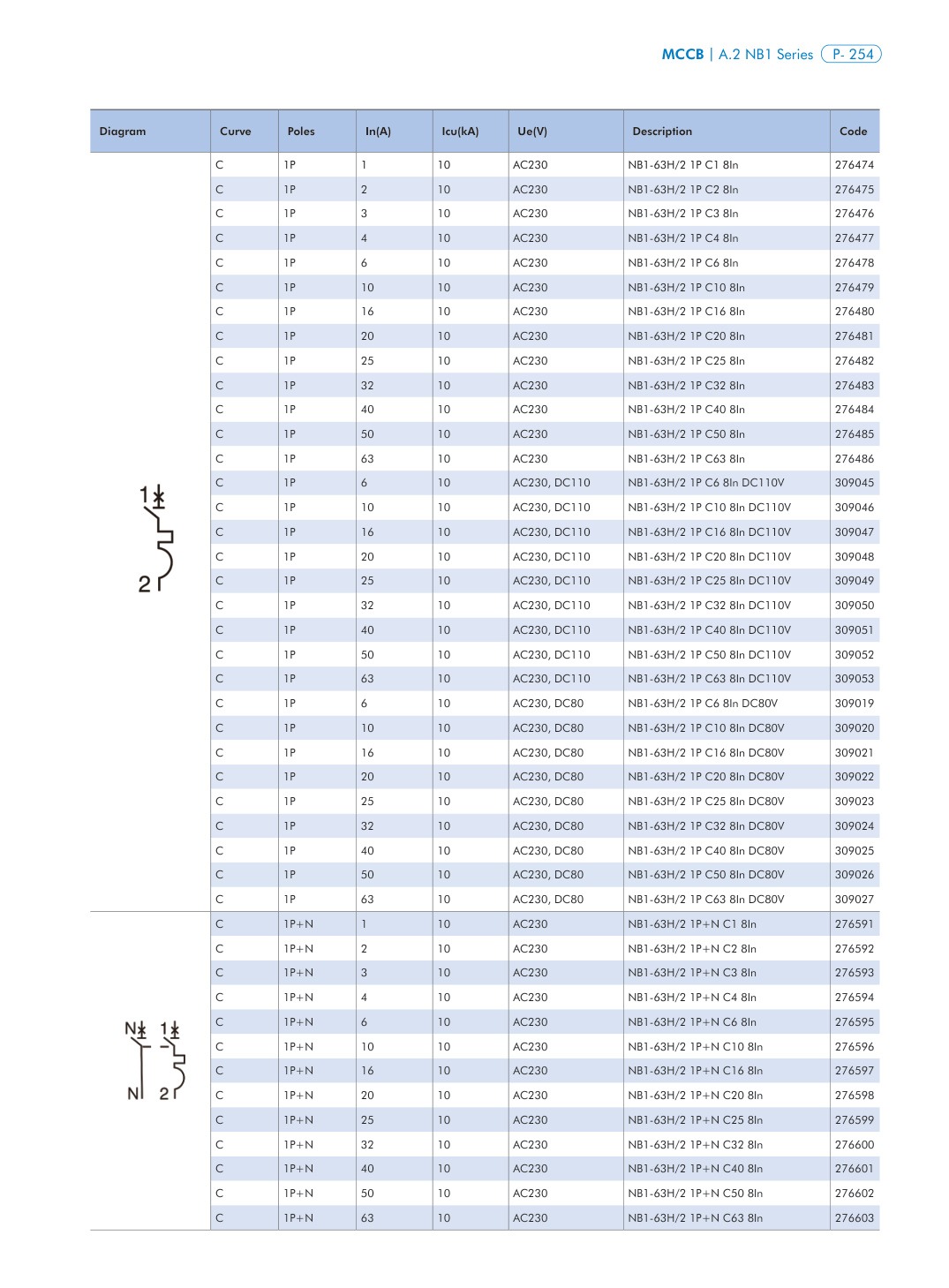

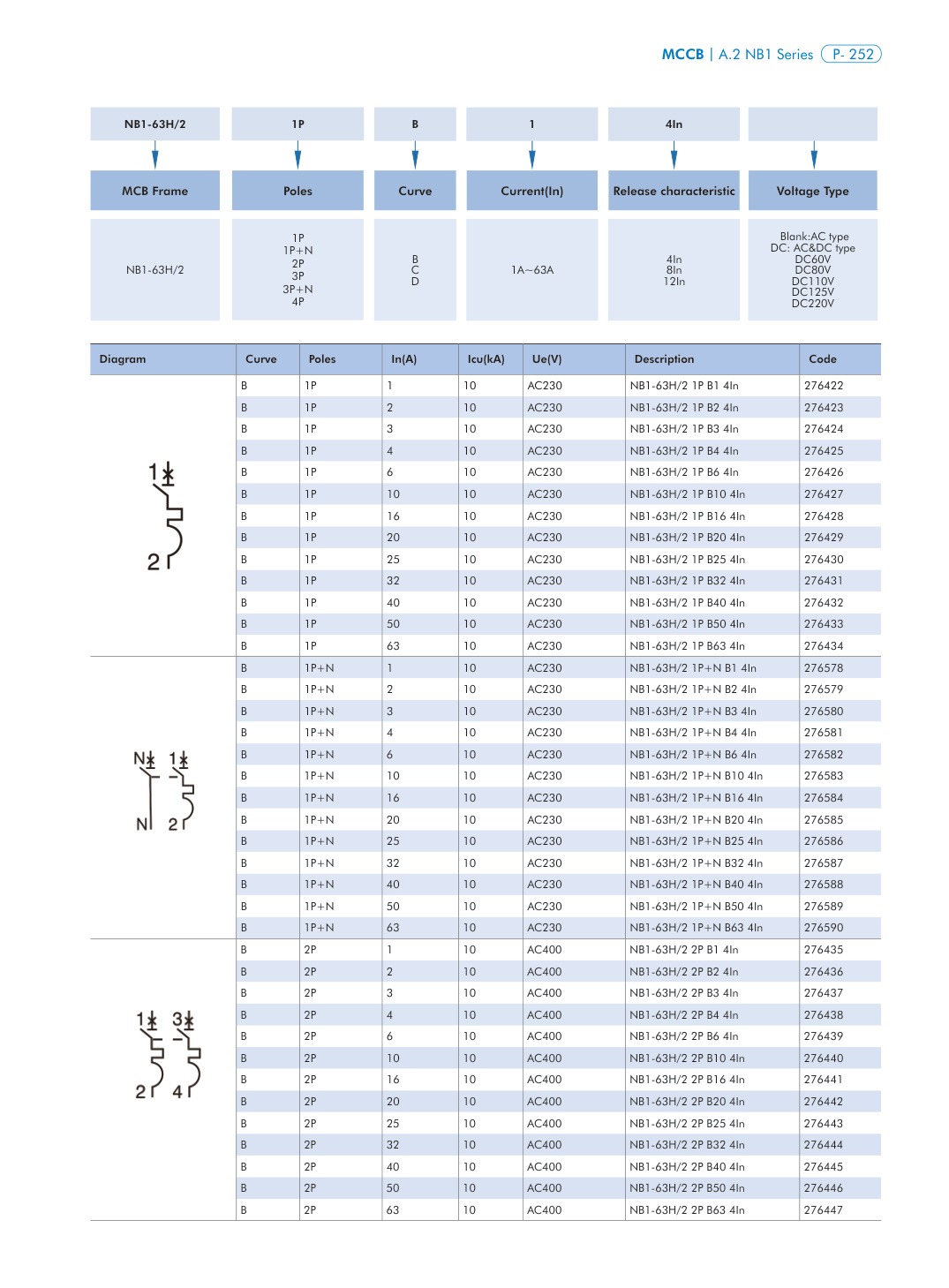

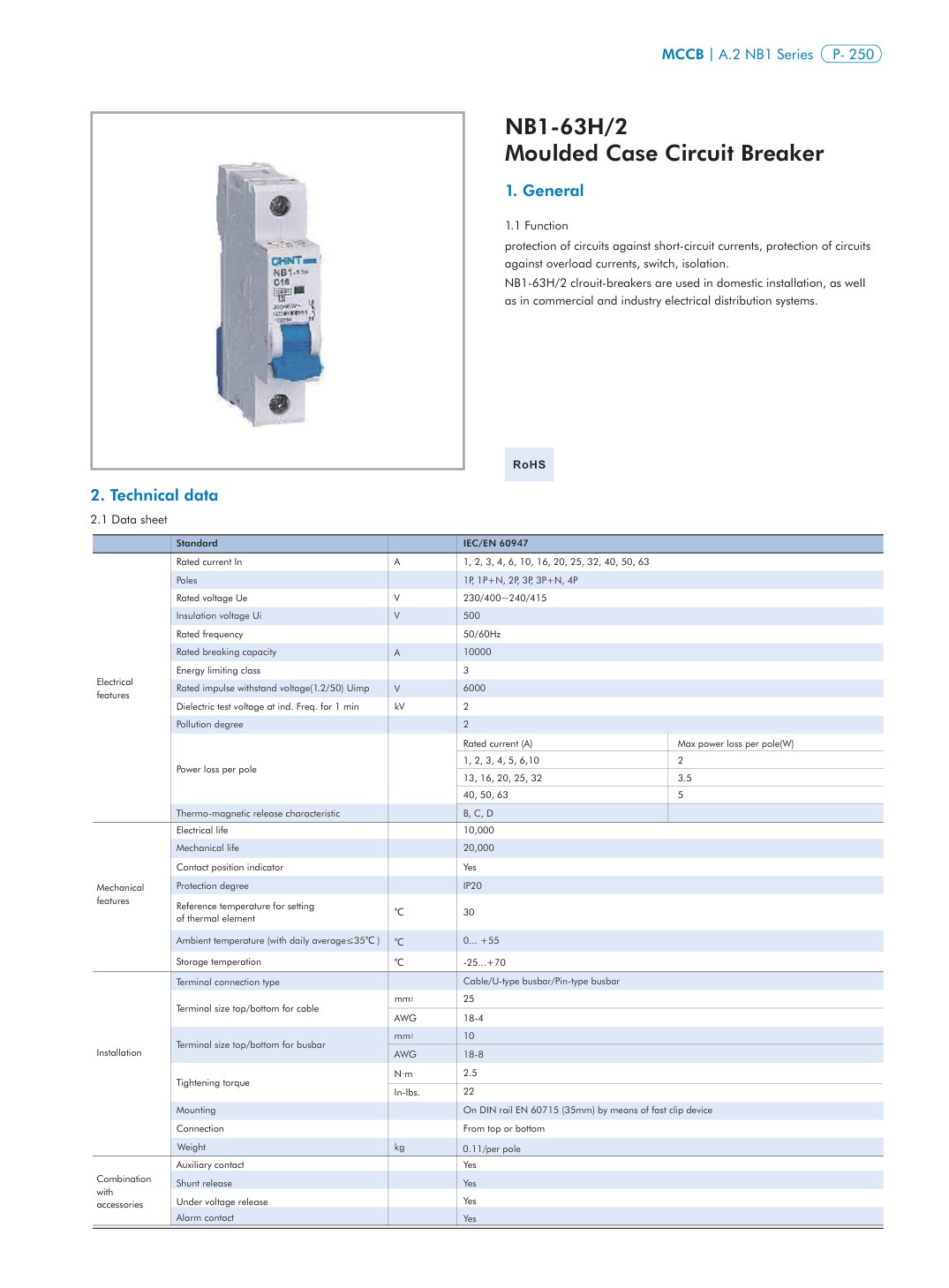

Product reference images and drawings

CHINT NB1-63-H2 manufacturer technical page 1CHINT NB1-63-H2 manufacturer technical page 2CHINT NB1-63-H2 manufacturer technical page 3CHINT NB1-63-H2 manufacturer technical page 4CHINT NB1-63-H2 manufacturer technical page 5CHINT NB1-63-H2 manufacturer technical page 6CHINT NB1-63-H2 manufacturer technical page 7CHINT NB1-63-H2 manufacturer technical page 8CHINT NB1-63-H2 manufacturer technical page 9
Additional information
Poles

1P, 1P+N, 2P, 3P, 3P+N, 4P

Rated Operational Voltage Ue

230/400~240/415 V

Rated Current In

1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 A

Model

NB1-63-H2

Technical Documents

TECHNICAL RESOURCES

Documents for CHINT NB1-63-H2 DIN Rail Circuit Breaker, 10 kA

Check the exact model, rating and configuration in the linked document before ordering.

Download CHINT NB1-63-H2 catalogue (PDF)

Drawings and compliance documents

Tell us the model and destination market if you need dimensions, a wiring diagram or a certification document. Available documents and approvals depend on the exact product configuration.

Ask for product documents

Supplier: Shanghai Newtrend Electric Co., Ltd. Brand and manufacturer details are stated separately for each product.

Selection & Ordering

BEFORE YOU ORDER

Selection and ordering questions

What should I specify when ordering NB1-63-H2?

Full manufacturer designation; Poles, current and trip curve; Operating voltage and required breaking capacity. Include quantity and destination.

Can this product be included in a mixed enquiry?

Yes. Select the required configuration, add it to the quote list and send your product quantities together.
