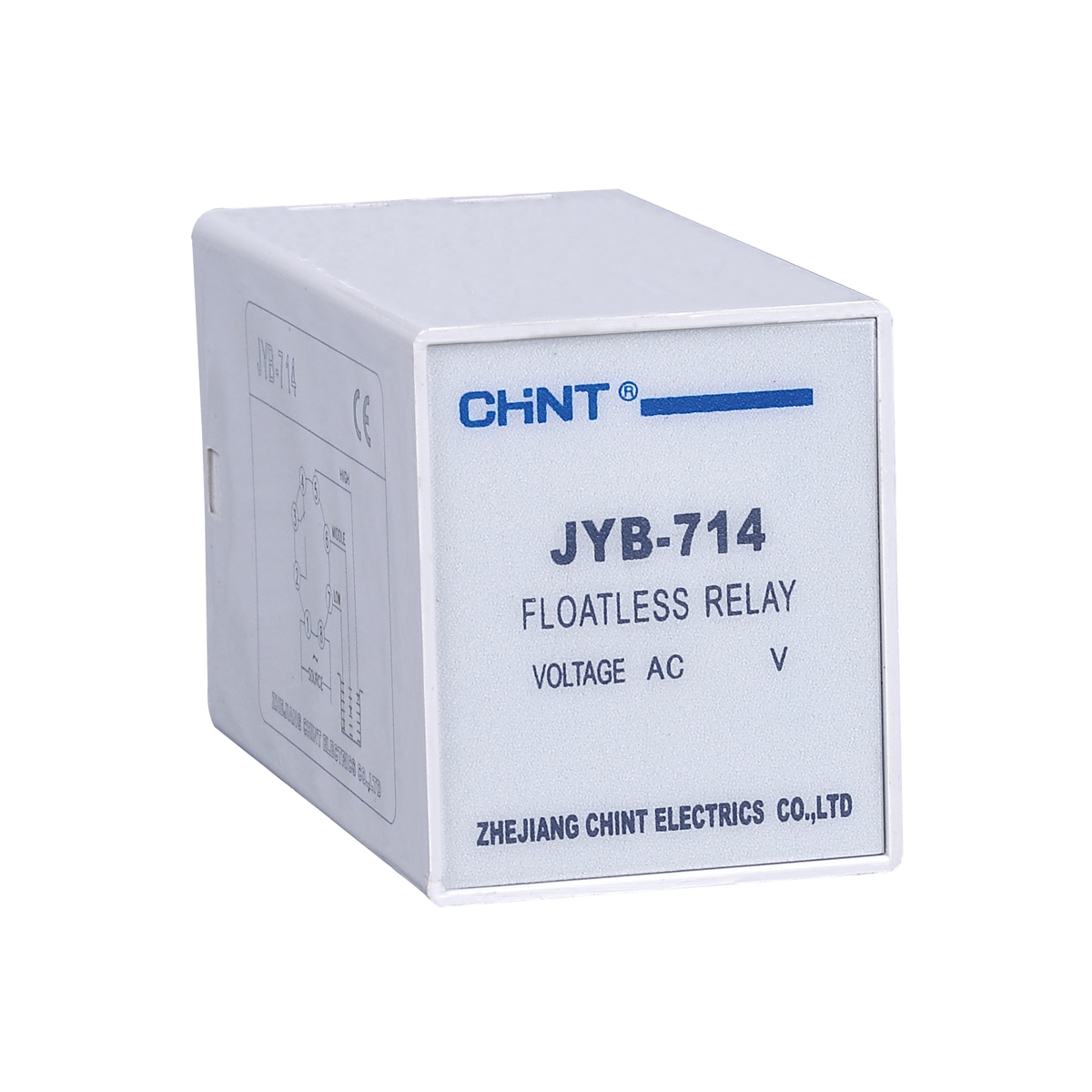

Product Overview
The JYB-714 Liquid Level Control Relay automatically controls liquid filling and drainage in tanks and reservoirs, maintaining set liquid levels without manual intervention. It is ideal for water towers, cisterns, and industrial liquid storage systems.
Main Features
- Automatic Level Control: Maintains liquid levels without manual intervention
- Multiple Voltage Options: 36V, 110V, 220V, 380V AC (50/60Hz)
- Long-Distance Sensors: Supports probe lengths up to 1 km
- Flexible Installation: DIN rail or panel mounting options
- Conductive Liquid Compatible: For tap water and process water
- Multiple Models: JYB-714, JYB-714B, JYB-714C variants available
Technical Specifications
| Parameter | Specification |
|---|---|
| Control Voltage | 36V, 110V, 220V, 380V AC (50/60Hz) |
| Max Probe Distance | Up to 1 km |
| Liquid Type | Conductive liquids (tap water, process water) |
| Mounting | DIN rail or panel mounting |
| Functions | Automatic filling and drainage control |
Technical and Application Notes
The JYB-714 series floatless relay is used for automatic liquid level control in applications such as water towers and cisterns. It monitors liquid levels using electrode probes and automatically controls pumps or valves to maintain desired levels. The relay is not recommended for oil, pure water, or flammable and high-density liquids.
Typical Applications
- Water tower level control
- Cistern and reservoir management
- Industrial liquid storage tanks
- Wastewater treatment systems
- Irrigation systems
- Cooling tower water level control
Ordering Support
When ordering JYB-714 liquid level relays, please specify:
- Control voltage (36V, 110V, 220V, or 380V AC)
- Model variant (JYB-714, JYB-714B, or JYB-714C)
- Probe length requirements
- Mounting preference (DIN rail or panel)

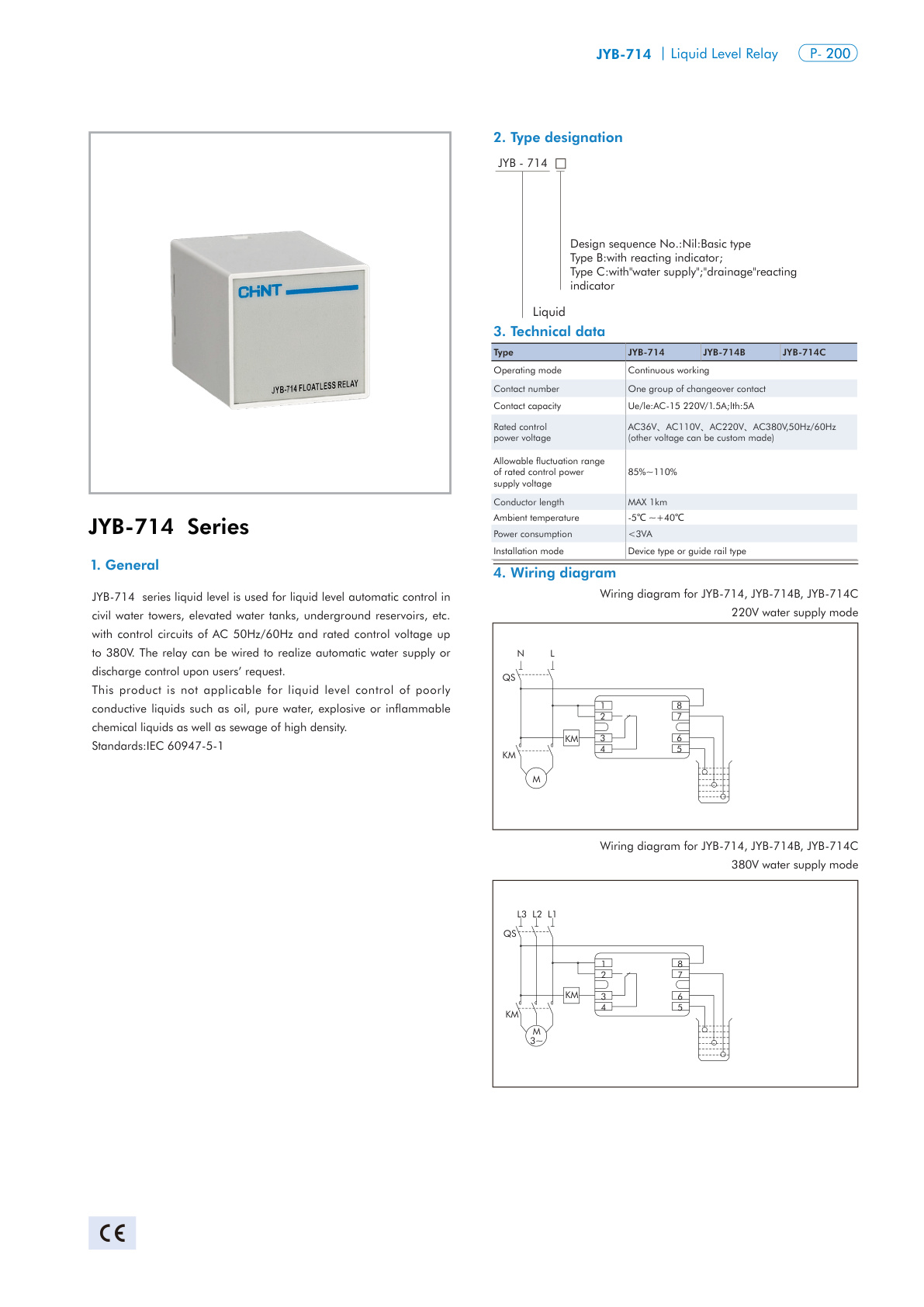

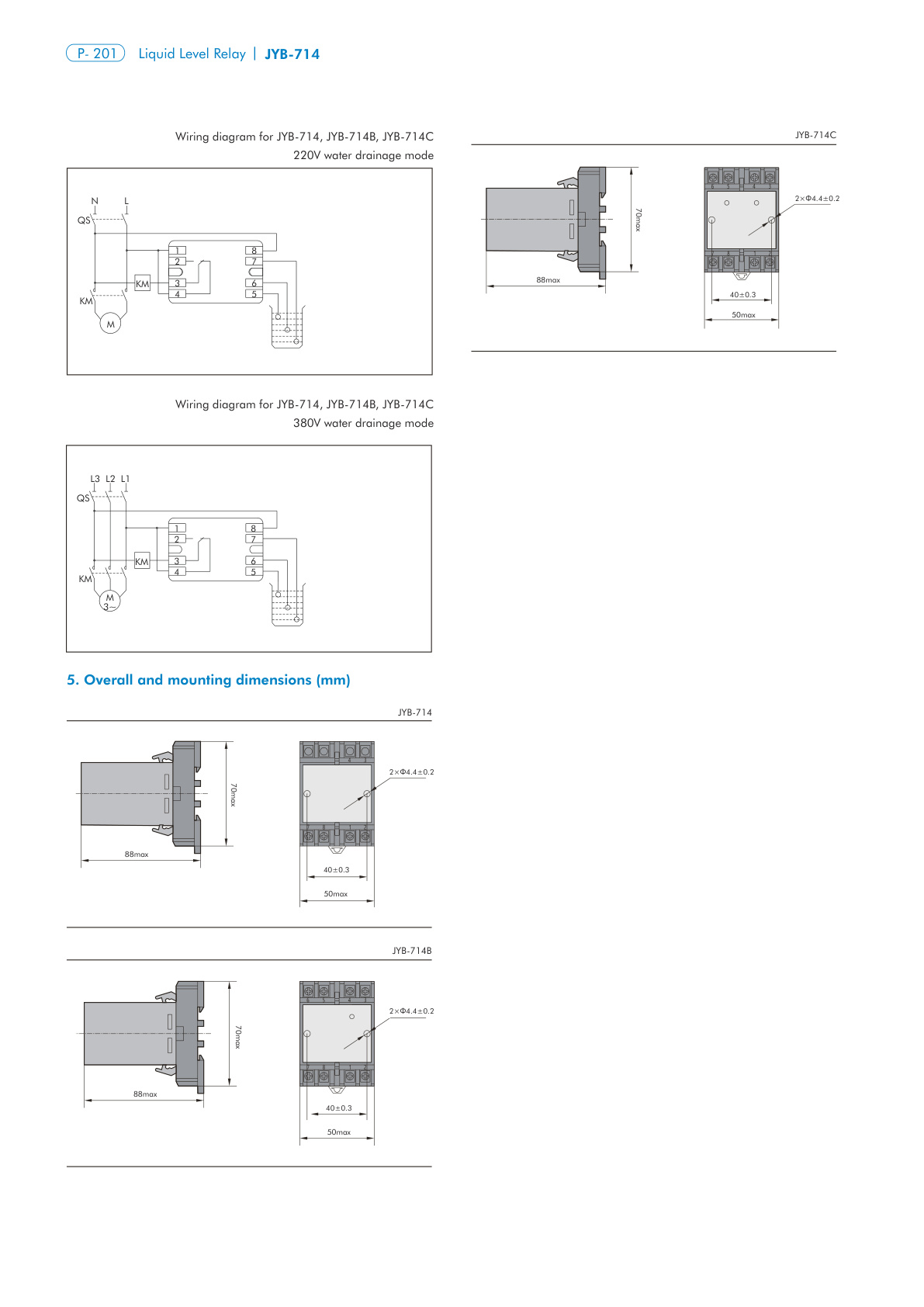

Product Catalog
For detailed specifications and technical data, please refer to the product catalog below.
