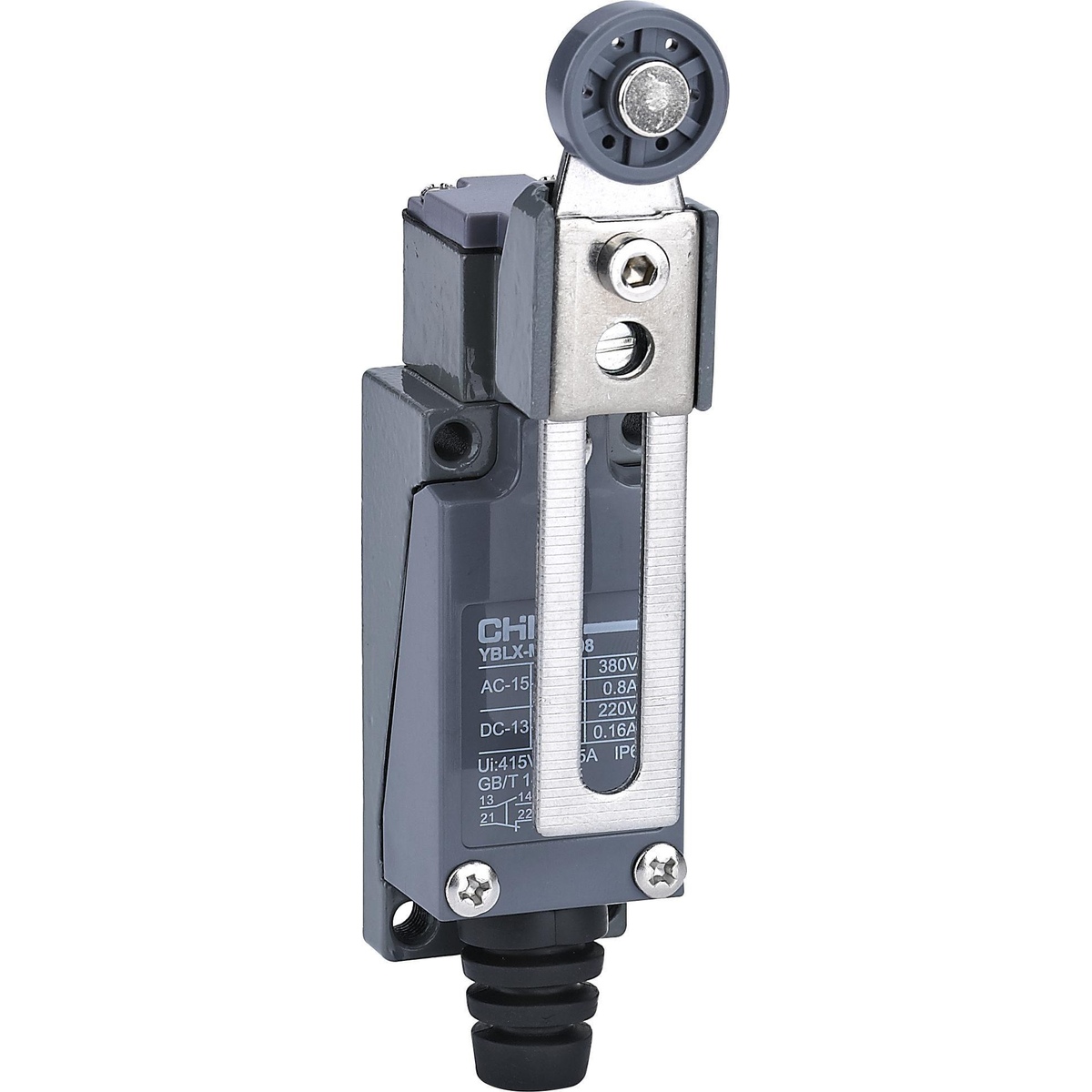

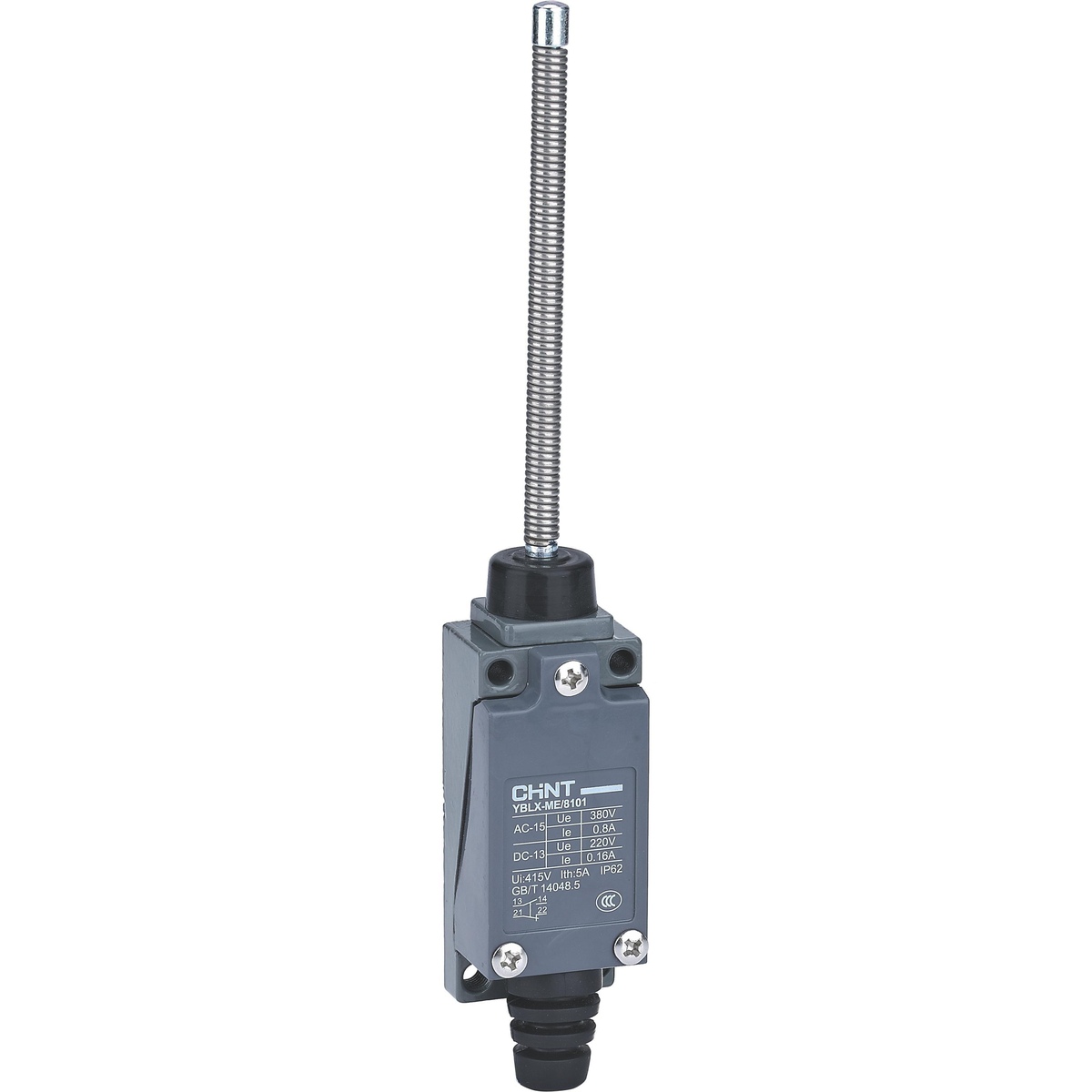

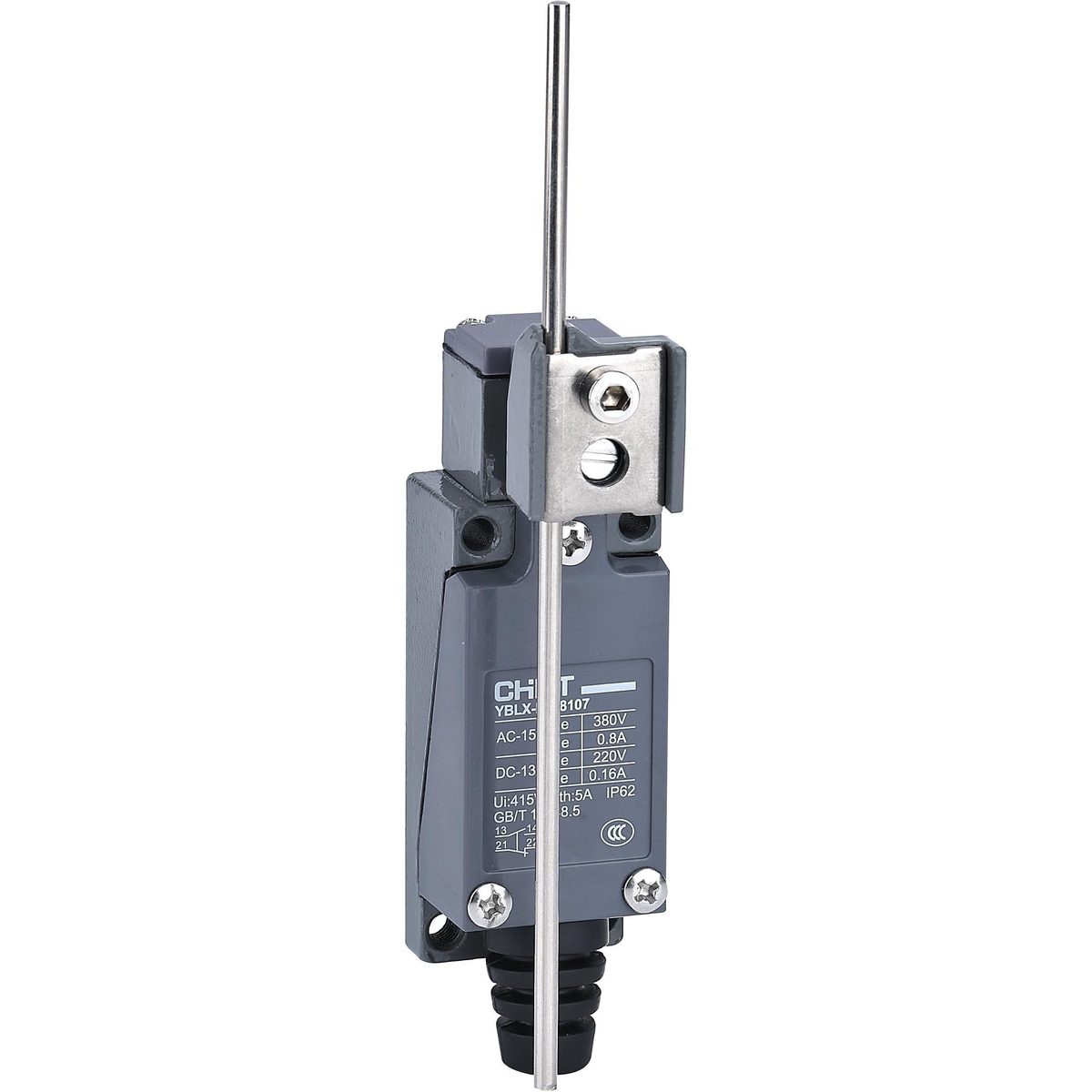

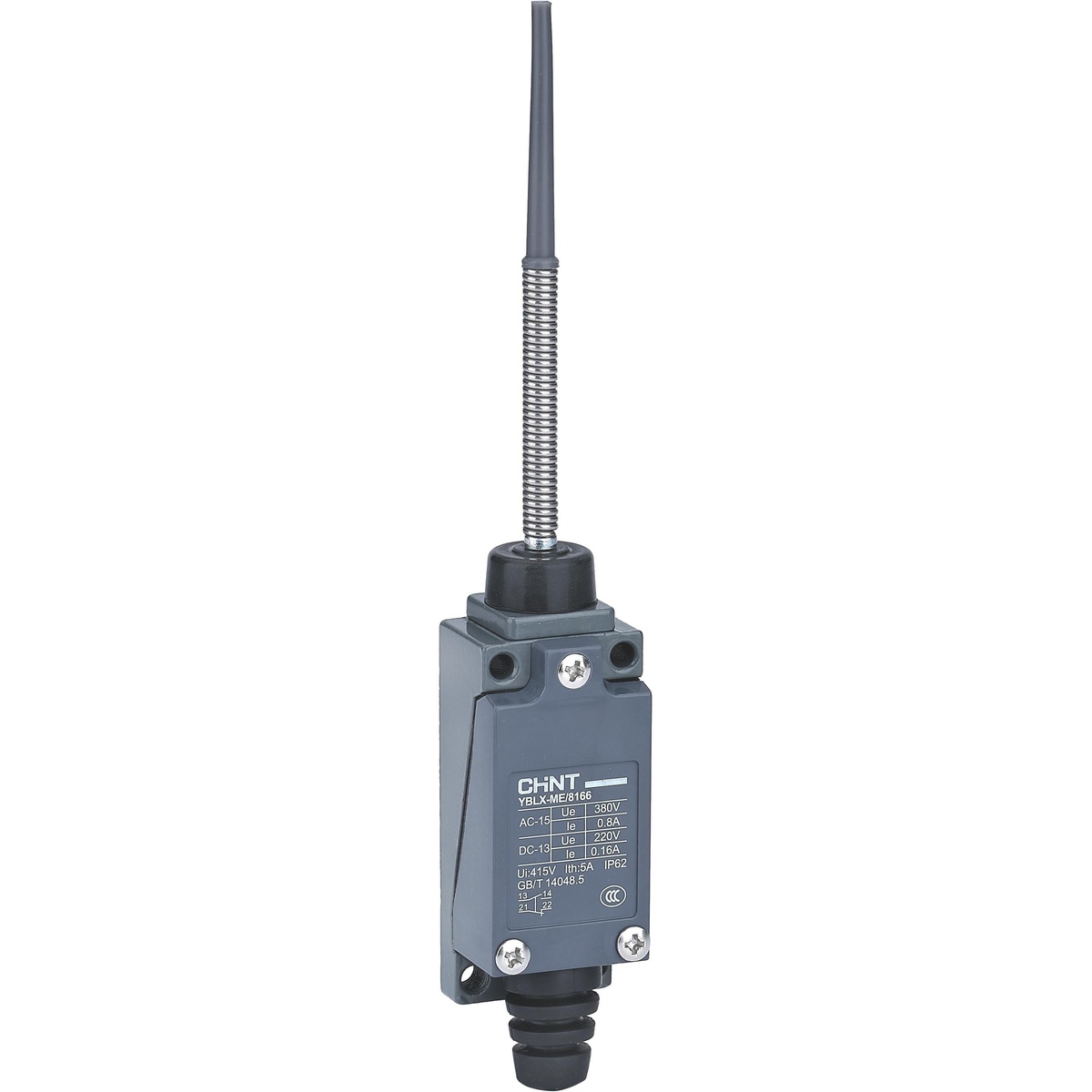

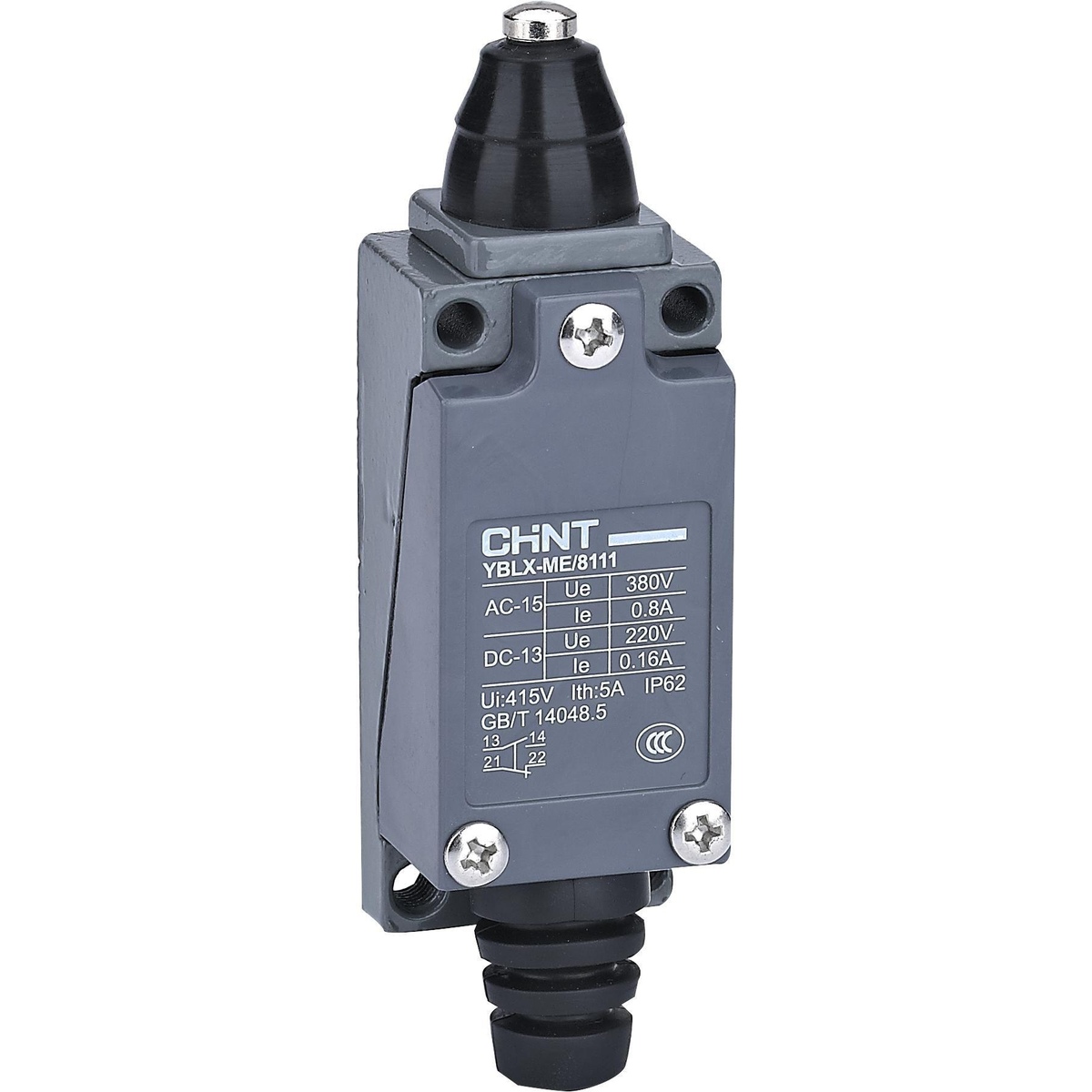

CHINT YBLX-ME Travel Switch, IP62

CHINT YBLX-ME travel switches detect mechanical position and control movement in machinery. Select the actuator reference to match the available space and travel.

Model
Configuration
Add to Enquiry
SKU: YBLX-ME Categories: Chint Electrical Materials, Chint Pushbutton & Pilot Lights
  • Description
  • Catalog
Description

CHINT · YBLX-ME Travel Switch, IP62

Product overview

CHINT YBLX-ME travel switches detect mechanical position and control movement in machinery. Select the actuator reference to match the available space and travel.

Technical selection summary

ProtectionIP62
AC control ratingAC-15: 380 V / 0.8 A
DC control ratingDC-13: 220 V / 0.16 A
ApplicationMachine travel, position and limit control

The catalogue specifies IP62, not IP65. Confirm actuator geometry and travel against the drawing; special rods or rollers require their exact suffix.

Typical applications

  • CHINT YBLX-ME travel switches detect mechanical position and control movement in machinery.

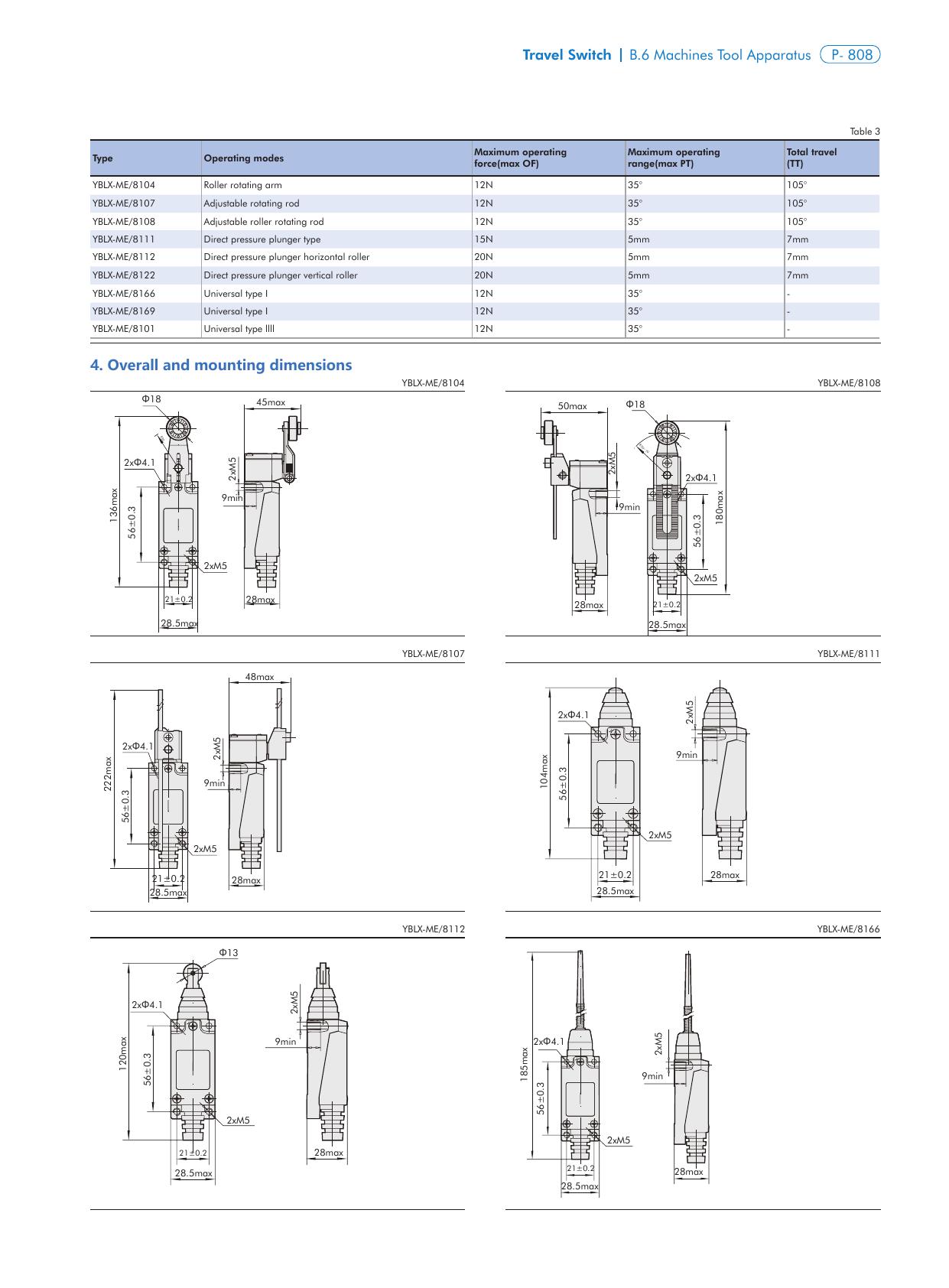

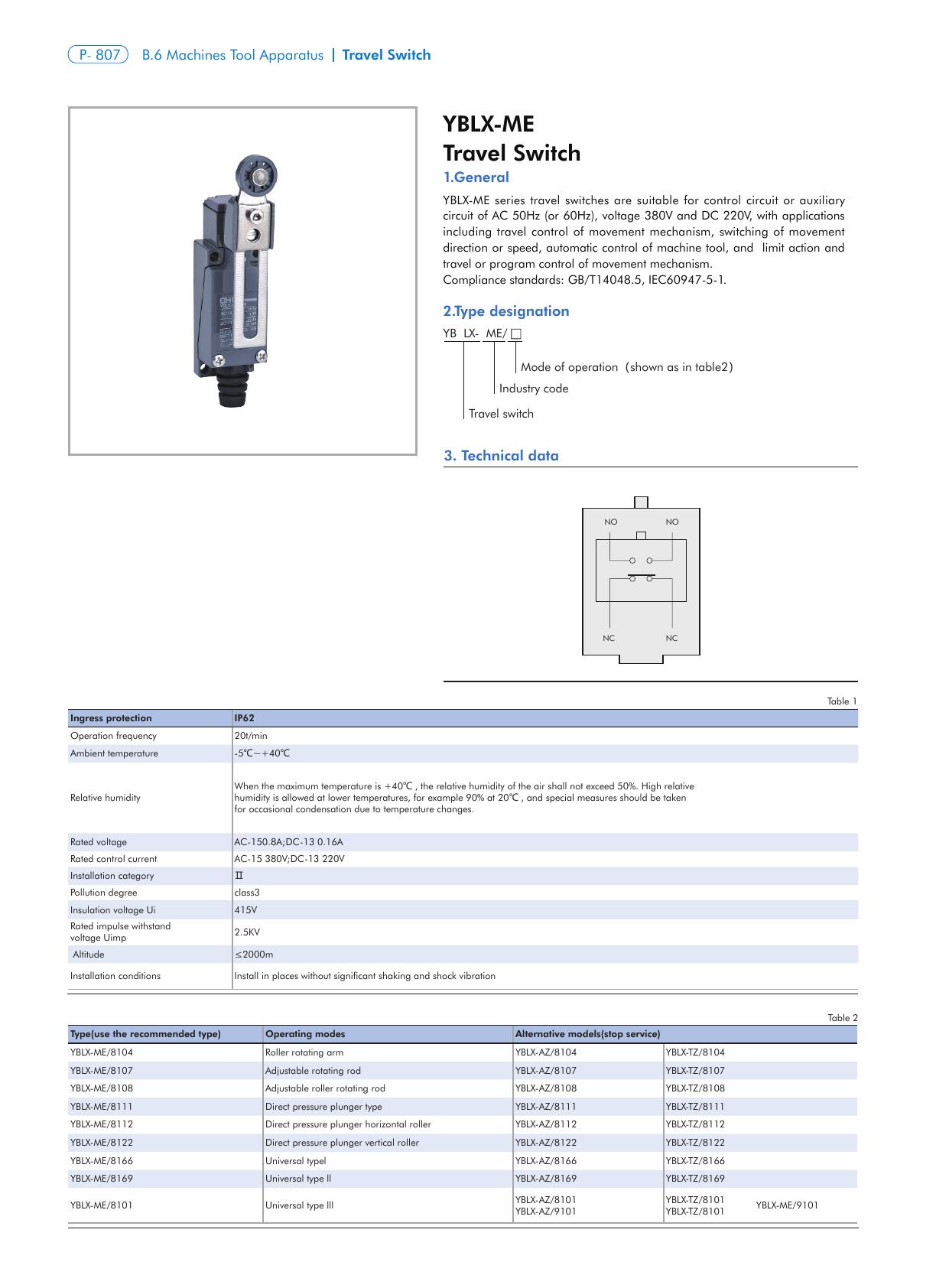

Product reference images and drawings

YBLX-ME manufacturer reference page 1YBLX-ME manufacturer reference page 2
Catalog
NameSizeRelease timeOperate
Chint YBLX-ME Travel Switch.pdf385.18 KB2026-11-14Download
