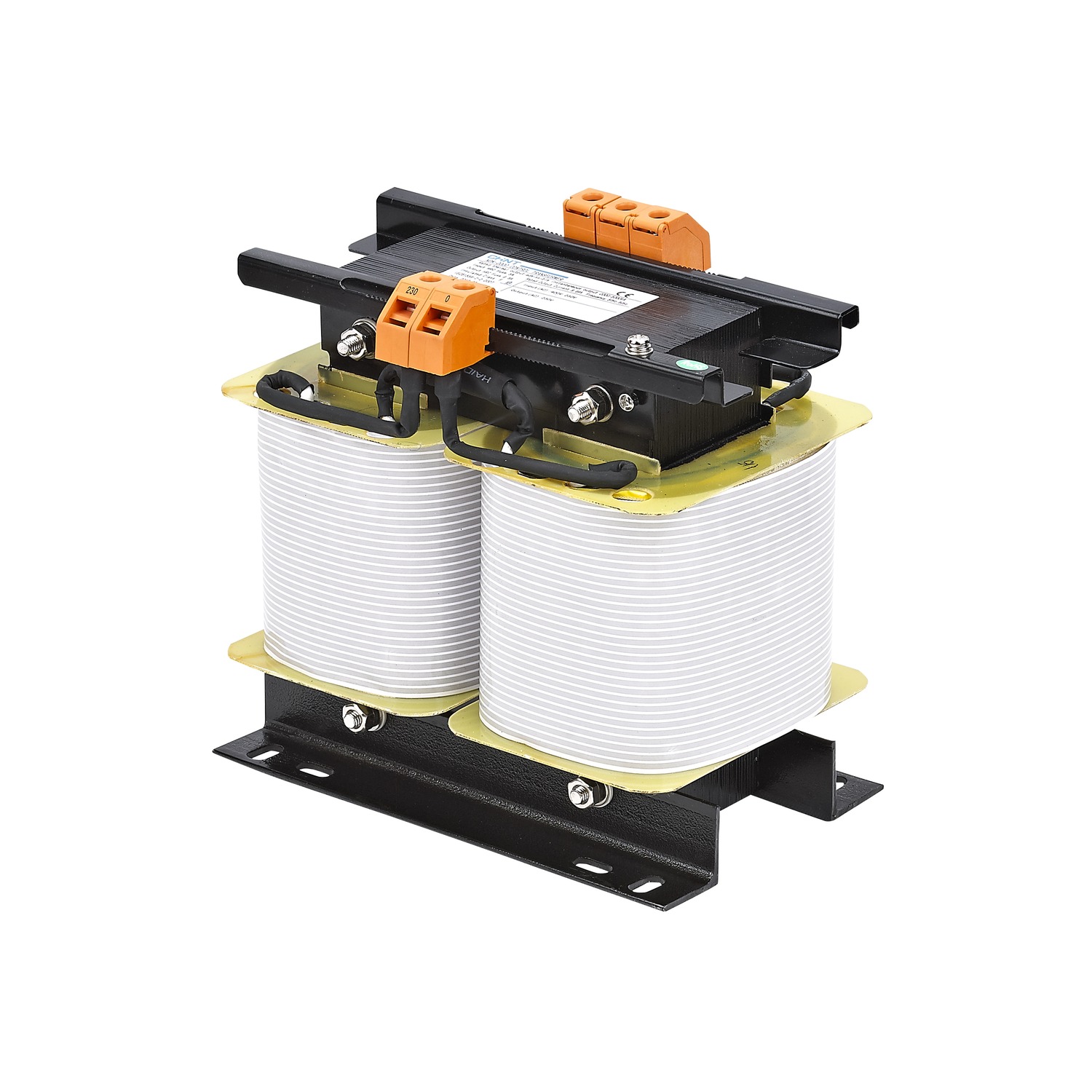

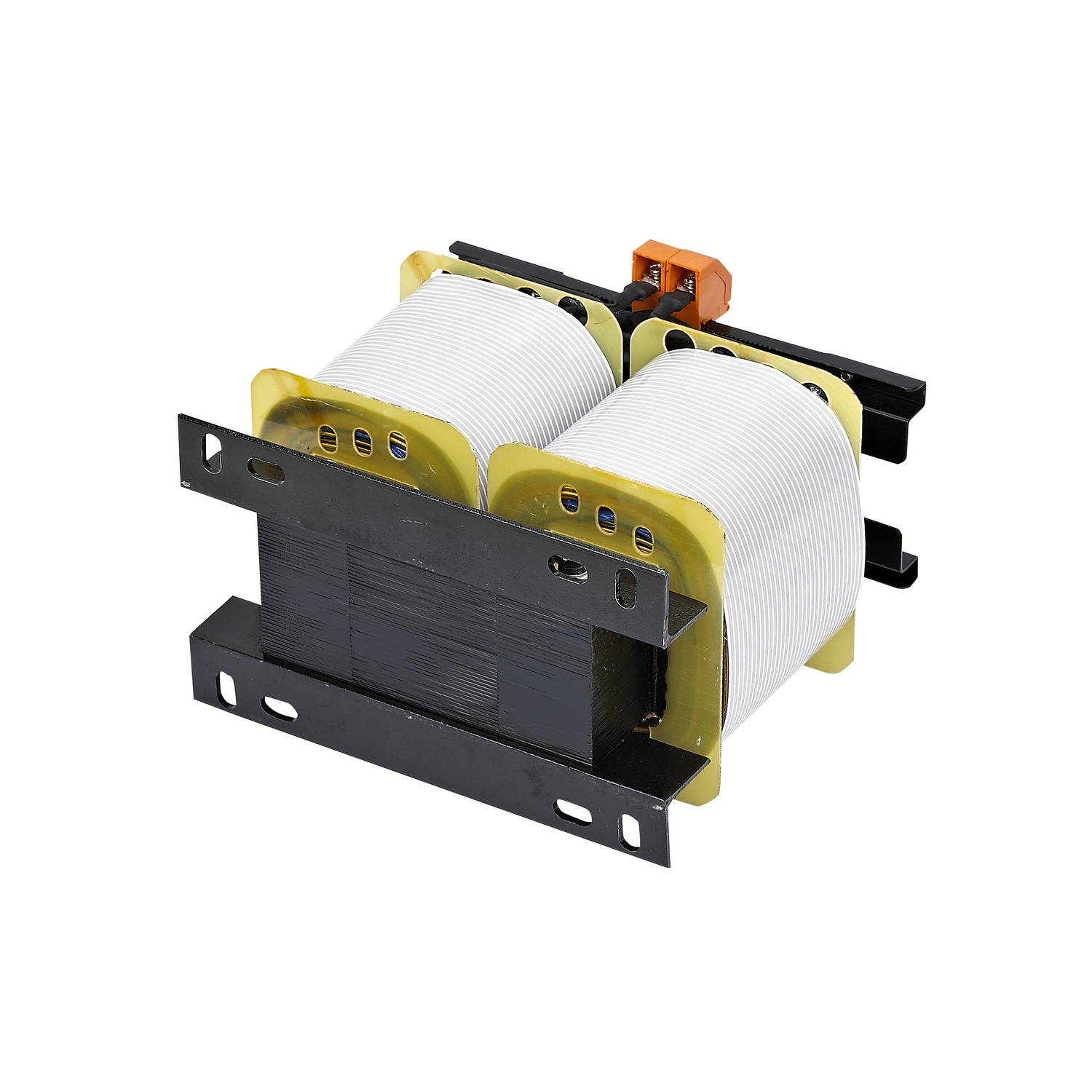

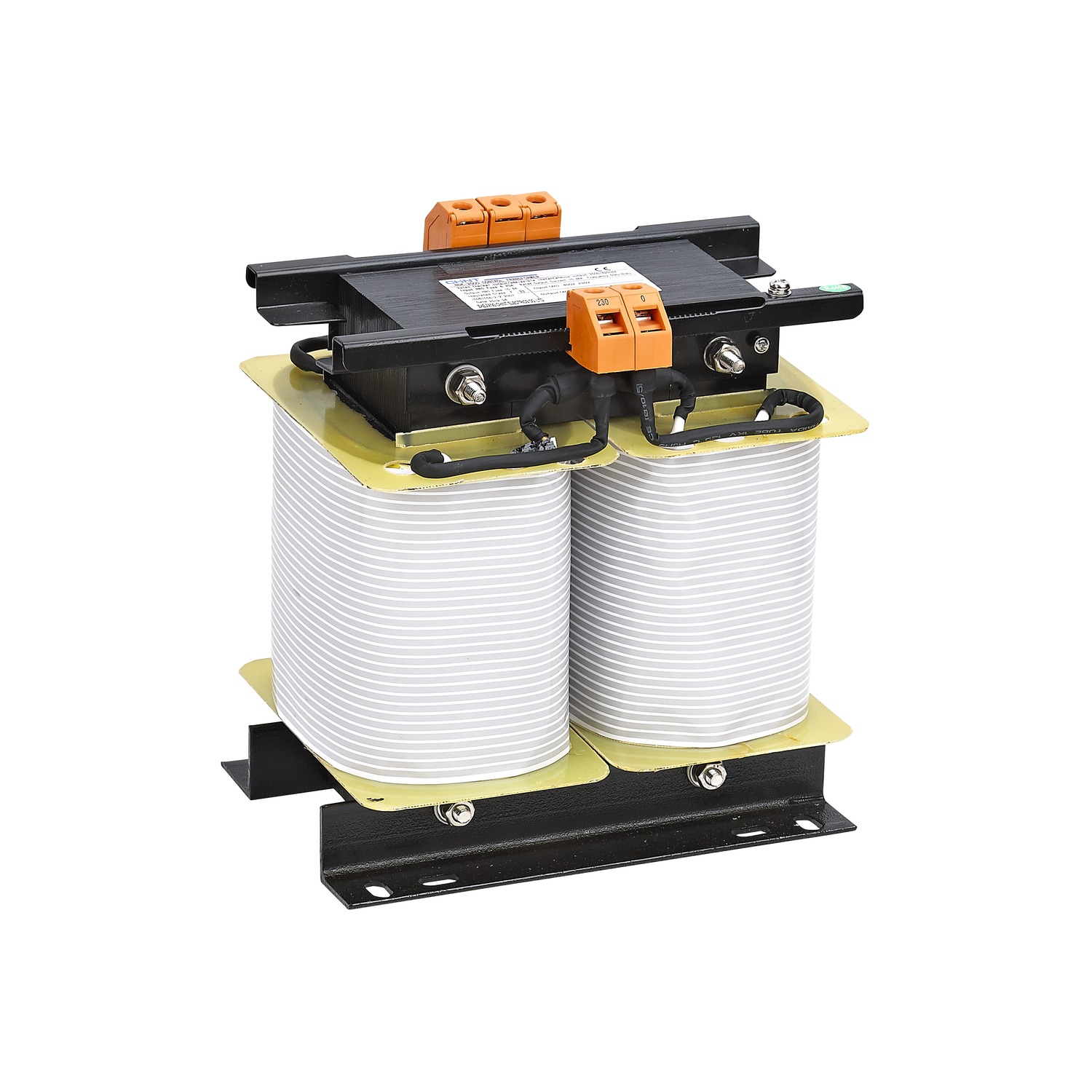

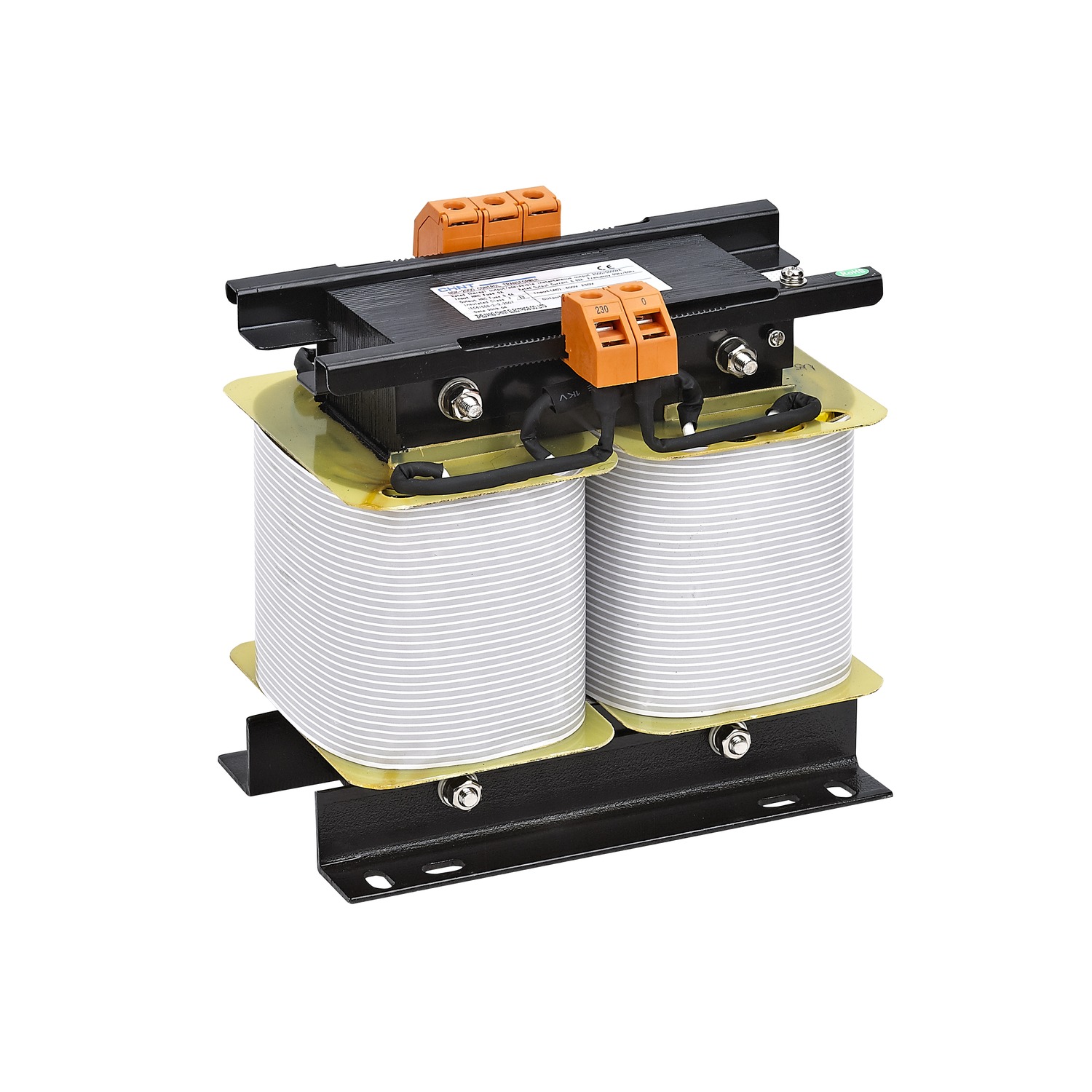

CHINT NDK Single-Phase Control Transformer, 25–5000 VA

CHINT NDK control transformers supply machine-tool control circuits, local lighting and indication circuits. Select the transformer by total connected VA and starting demand, then specify the input voltage and each required secondary output.

Rated capacity
Input voltage
Output voltage
Request a Quote

Send quantities and requirements together. Availability and final specifications are confirmed with your quotation.

SKU: NDK Category:
Description

CHINT · NDK

Product overview

CHINT NDK control transformers supply machine-tool control circuits, local lighting and indication circuits. Select the transformer by total connected VA and starting demand, then specify the input voltage and each required secondary output.

Technical selection summary

SeriesNDK
Rated capacity25–5000 VA
Primary voltage in catalogue230 V or 400 V
Secondary voltages in catalogue6, 12, 24, 36, 110, 127, 230 and 400 V; specify winding arrangement
Frequency50/60 Hz

The table summarizes the series. Available combinations depend on the exact manufacturer code, load duty and supply voltage. Confirm the selected configuration with your quotation.

Typical applications

  • Machine-tool control panels
  • Control-circuit power supply
  • Local lighting and indicator circuits

Specify your enquiry

For a focused quotation, include:

  • Required VA and connected loads
  • Input voltage and output winding voltages
  • Mounting dimensions and quantity

Download CHINT NDK catalogue (PDF)

Related products

CHINT NJBK1 Motor Protection Relay, 1–400 ACHINT NJX3 Miniature HVAC Relay with Quick-Connect TerminalsCHINT NCH8 DIN Rail Modular Contactor, 20–63 A

Product reference images and drawings

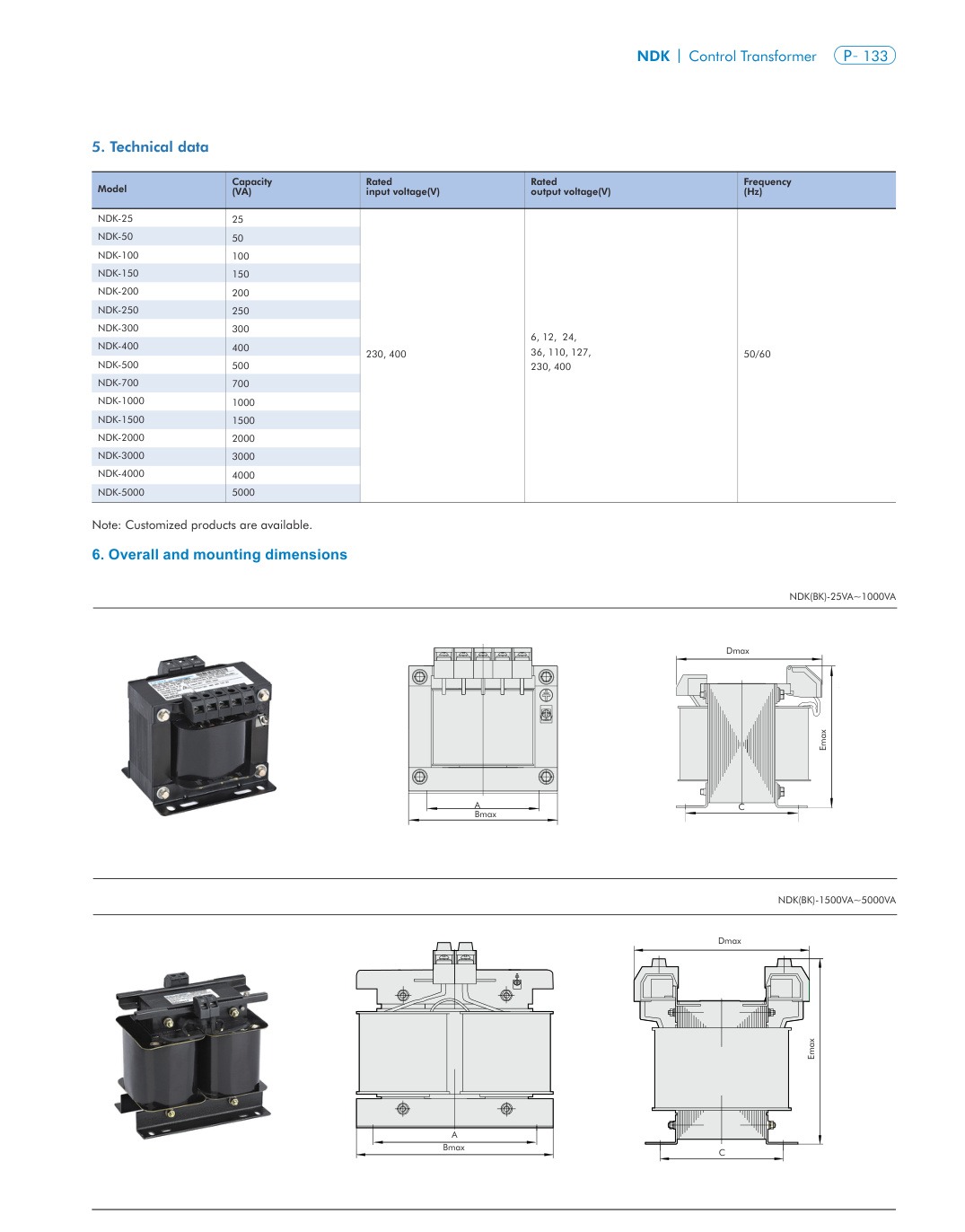

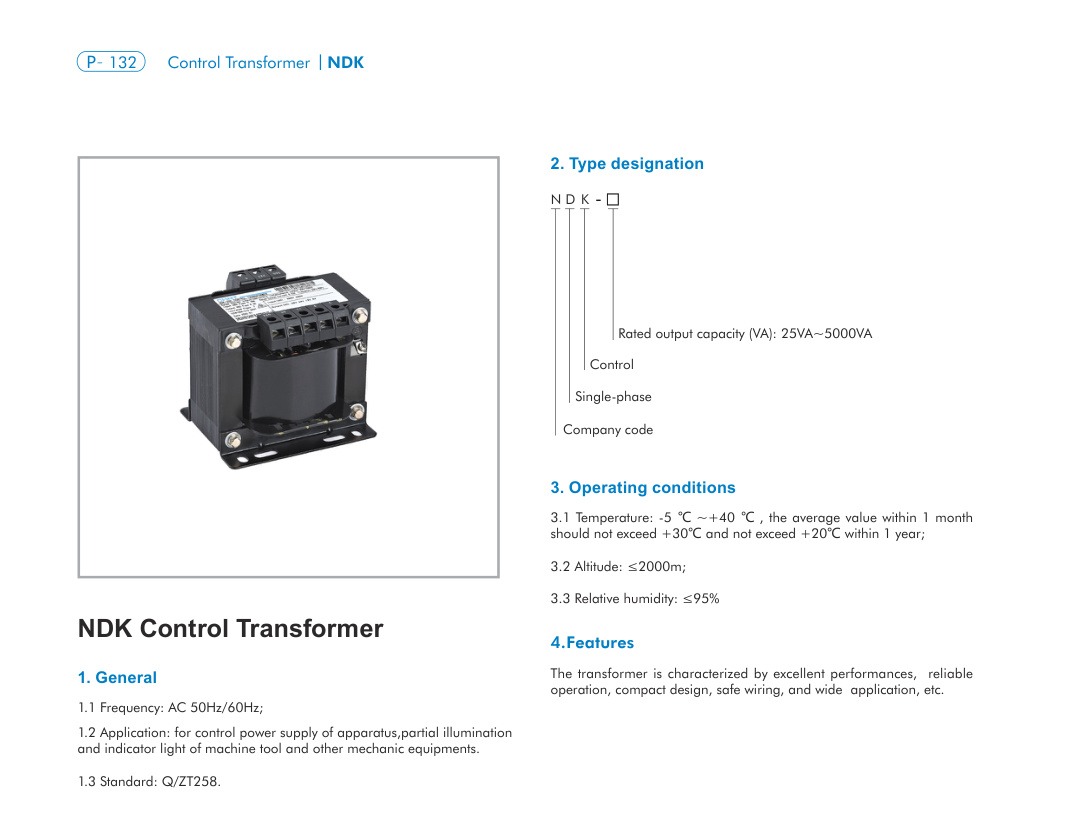

CHINT NDK manufacturer technical page 1CHINT NDK manufacturer technical page 2
Additional information
Rated capacity

25VA, 50VA, 100VA, 150VA, 200VA, 250VA, 300VA, 400VA, 500VA, 700VA, 1000VA, 1500VA, 2000VA, 3000VA, 4000VA, 5000VA

Input voltage

230V, 400V

Output voltage

6V, 12V, 24V, 36V, 110V, 127V, 230V, 400V

Technical Documents

TECHNICAL RESOURCES

Documents for CHINT NDK Single-Phase Control Transformer, 25–5000 VA

Check the exact model, rating and configuration in the linked document before ordering.

Download CHINT NDK catalogue (PDF)

Drawings and compliance documents

Tell us the model and destination market if you need dimensions, a wiring diagram or a certification document. Available documents and approvals depend on the exact product configuration.

Ask for product documents

Supplier: Shanghai Newtrend Electric Co., Ltd. Brand and manufacturer details are stated separately for each product.

Selection & Ordering

BEFORE YOU ORDER

Selection and ordering questions

What should I specify when ordering NDK?

Required VA and connected loads; Input voltage and output winding voltages; Mounting dimensions and quantity. Include the quantity and destination.

Can I enquire about several products together?

Add each selected configuration to the quote list, set its quantity and submit the list in one enquiry.
