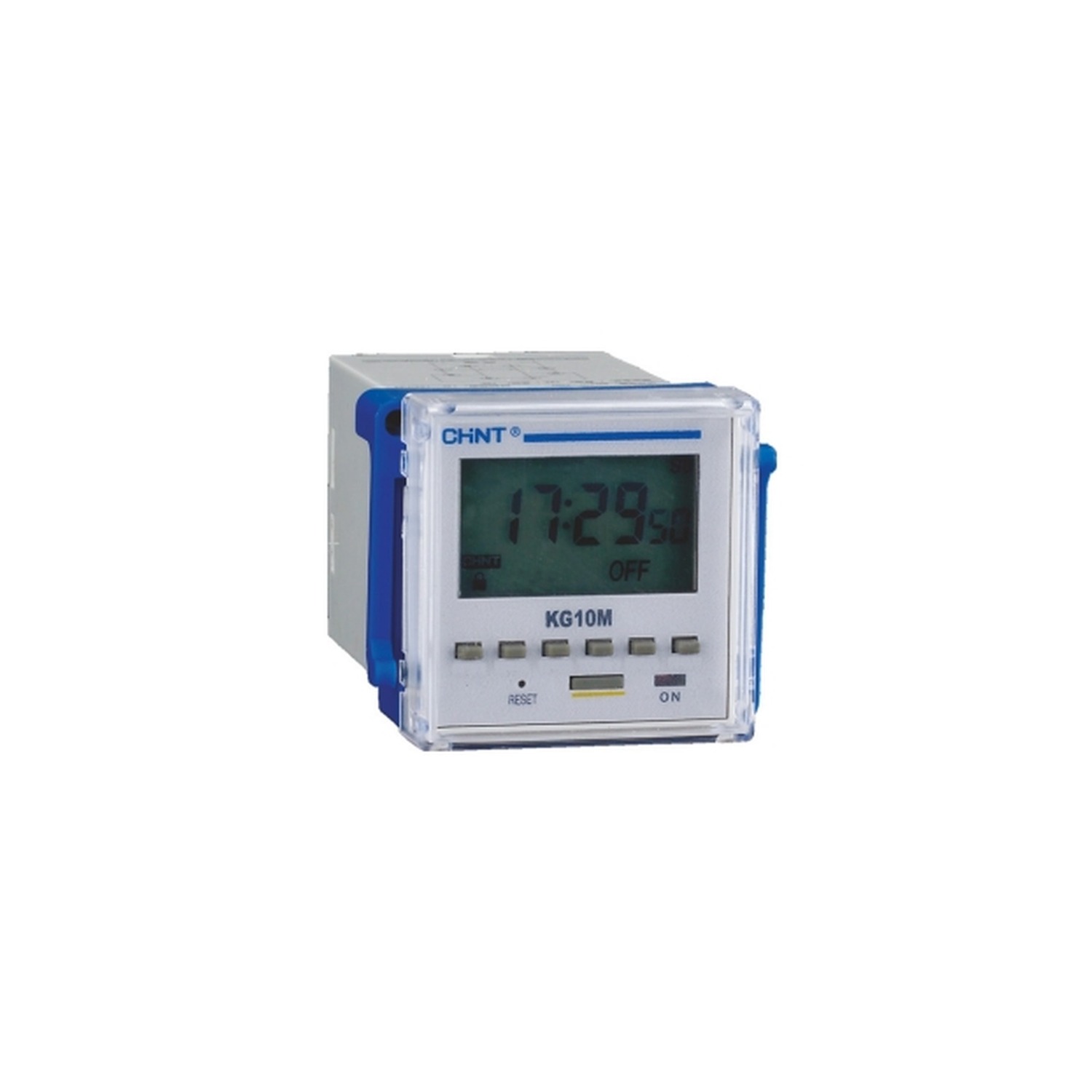

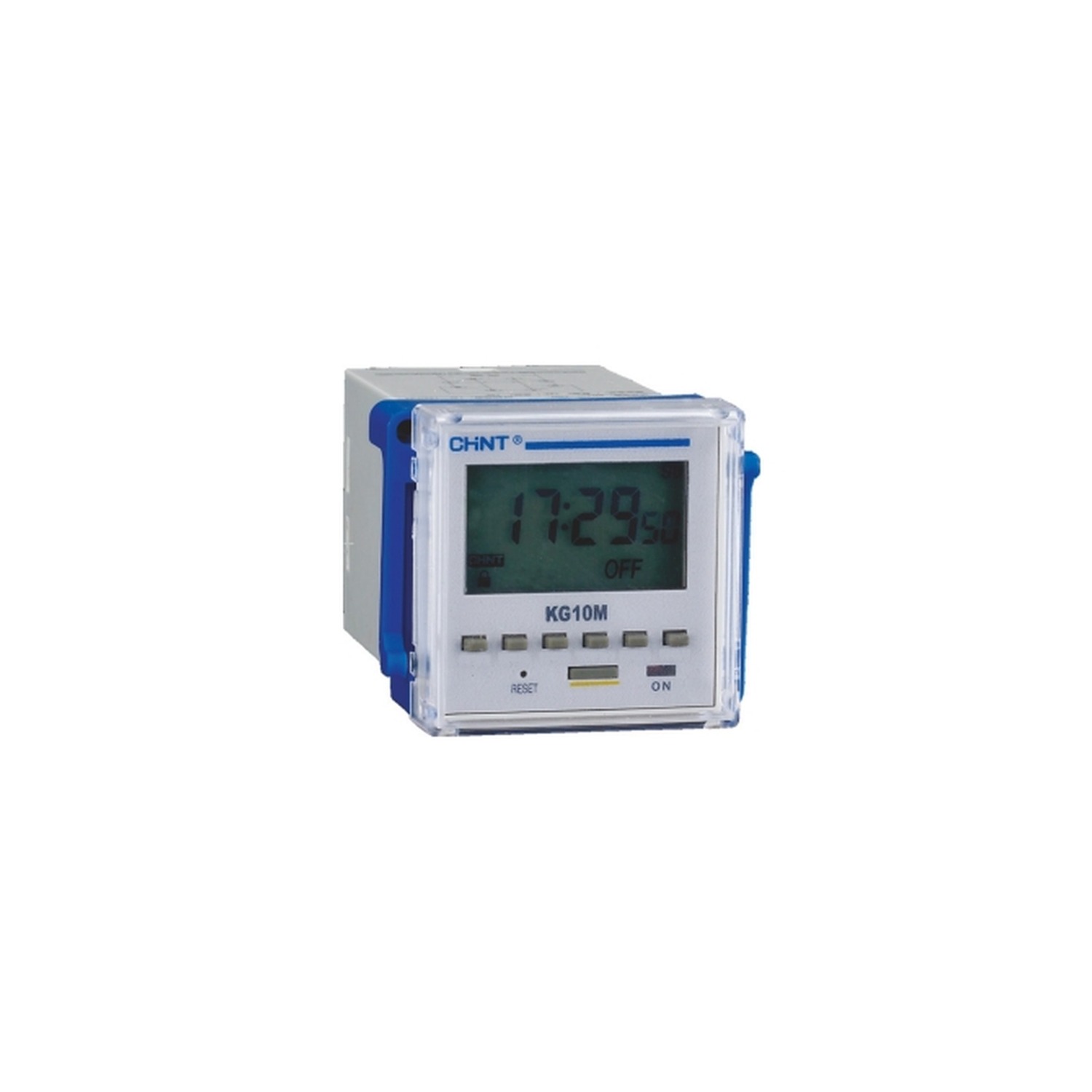

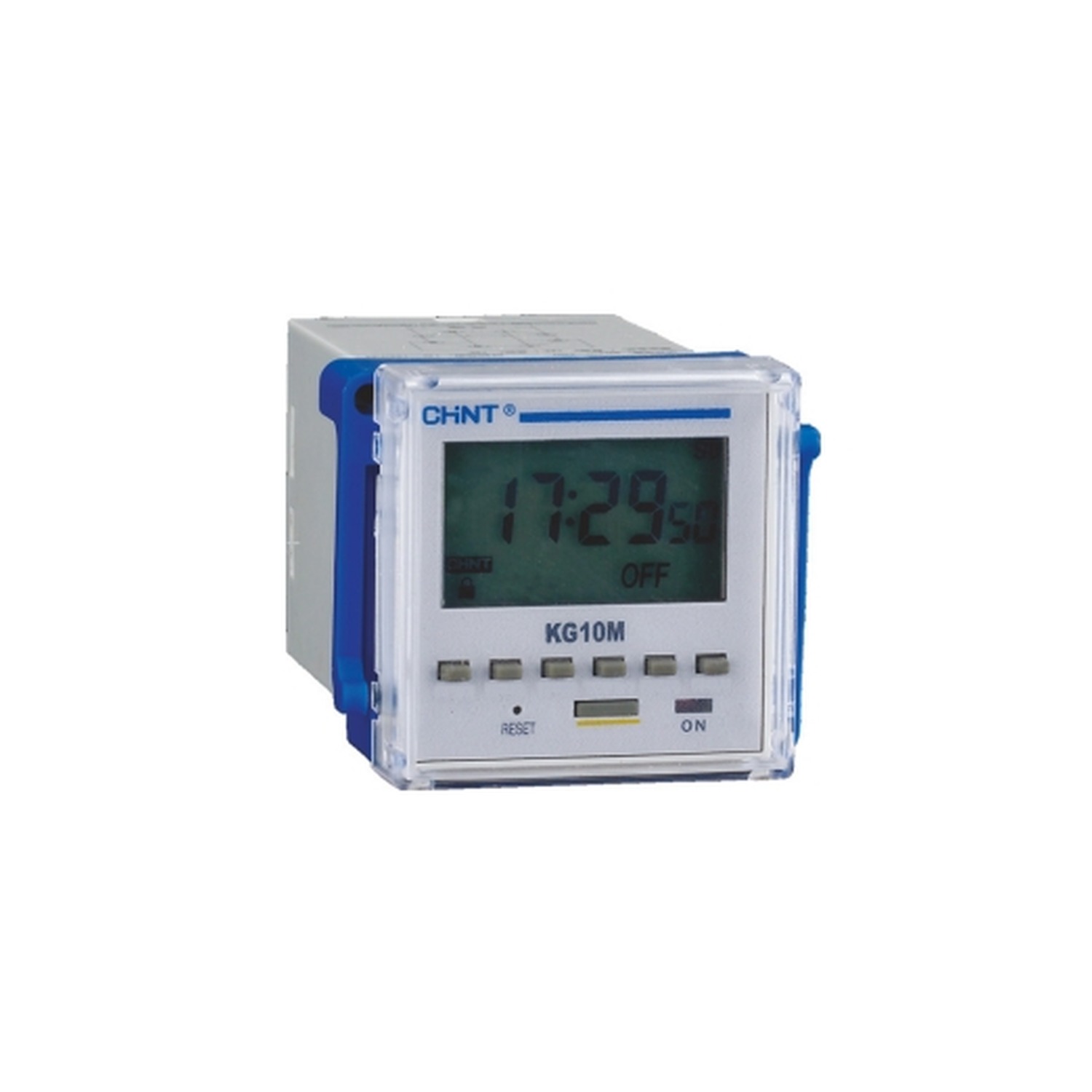

Chint KG10M
Programmable Time Switch
Panel-mount time switch with 16 programmable groups and 1min to 168h control range for automatic circuit control.
Product Overview
The Chint KG10M time switch controls timed connection and disconnection for street lamps, advertising lamps, and automatic control circuit equipment. Operating at 220V AC 50Hz/60Hz with a rated operating current of 3A at AC-15, it features 16 programmable groups across a time control range of 1min to 168h. Built for panel installation, it includes a rechargeable battery and complies with IEC 60947-5-1.

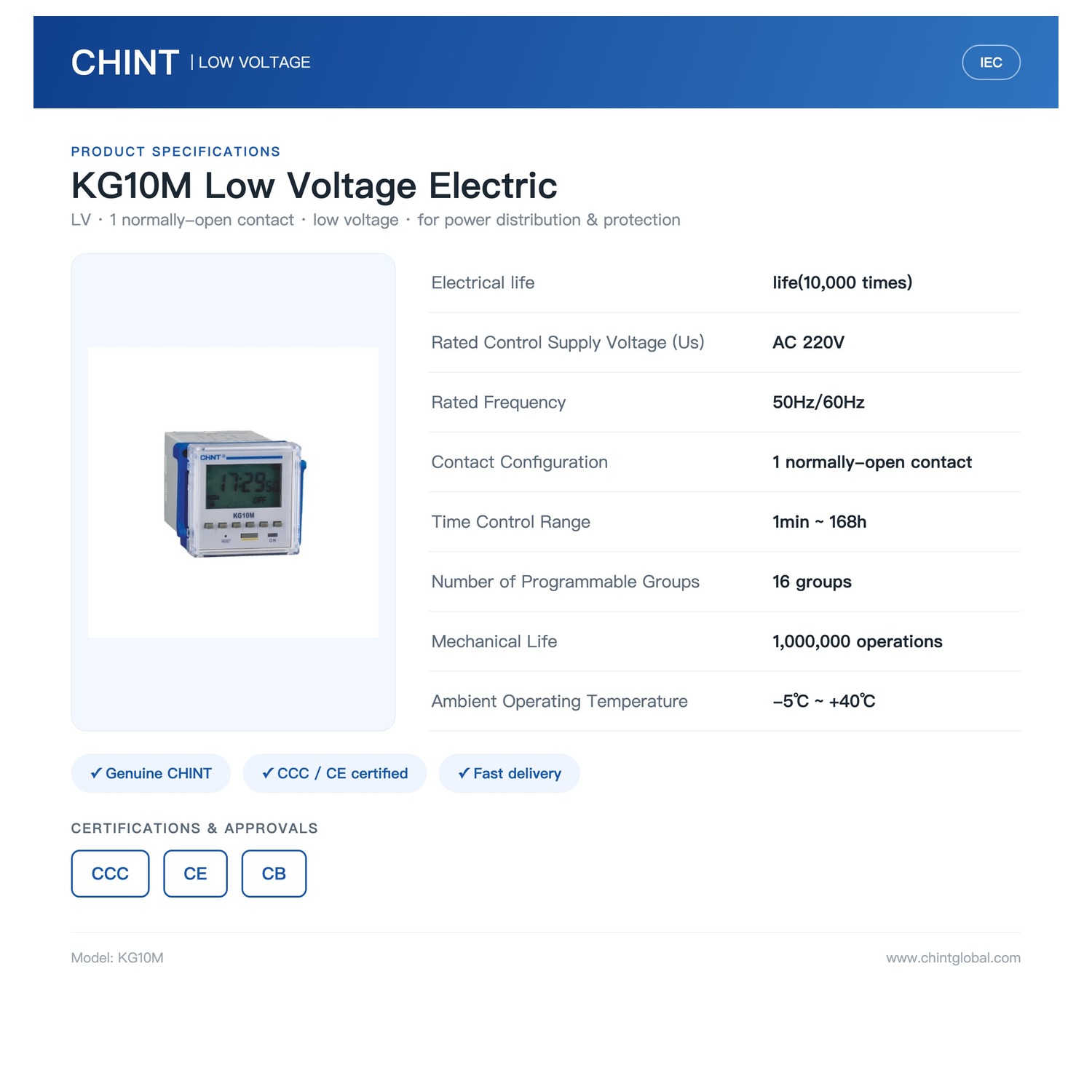

Technical Parameters
| Electrical life | life(10,000 times) |
| Rated Control Supply Voltage (Us) | AC 220V |
| Rated Frequency | 50Hz/60Hz |
| Contact Configuration | 1 normally-open contact |
| Time Control Range | 1min ~ 168h |
| Number of Programmable Groups | 16 groups |
| Mechanical Life | 1,000,000 operations |
| Ambient Operating Temperature | -5℃ ~ +40℃ |
| Standards Compliant | IEC 60947-5-1 |
| Rated Operating Voltage (Ue) | 220V AC |
| Rated Operating Current (Ie) | 3A (AC-15, 220V) |
| Allowable Voltage Fluctuation Range | 85%Us ~ 110%Us |
| Timing Error | ±2s/d |
| Operating Method | Manually opened, manually closed, automatic switch |
| Battery | Built-in rechargeable battery |
| Installation Method | Panel type |
| Brand | Chint |
| Model | KG10M |
| Product type | Programmable Time Switch |
| Applicable standard | IEC 60947-5-1 |
Key Selling Points
✓ Provides 16 programmable groups for scheduled circuit switching
✓ Covers a wide time control range from 1min to 168h
✓ Ensures timing accuracy with daily timing error within ±2s/d
✓ Includes a built-in rechargeable battery for power reserve
✓ Supports panel type installation for standard switchboard mounting
✓ Equipped with 1 normally-open contact rated at 3A (AC-15, 220V)
Technical Highlights
- Rated operating voltage (Ue): 220V AC at 50Hz/60Hz
- Rated operating current (Ie): 3A (AC-15, 220V)
- Rated control supply voltage (Us): AC 220V with allowable fluctuation range of 85%Us to 110%Us
- Durability: 100,000 electrical operations and 1,000,000 mechanical operations
- Operating methods: manually opened, manually closed, automatic switch
- Ambient operating temperature range: -5℃ to +40℃
- Standard compliance: IEC 60947-5-1
Reference Datasheet Pages
The following pages were selected from the model catalogue and are included for technical reference:

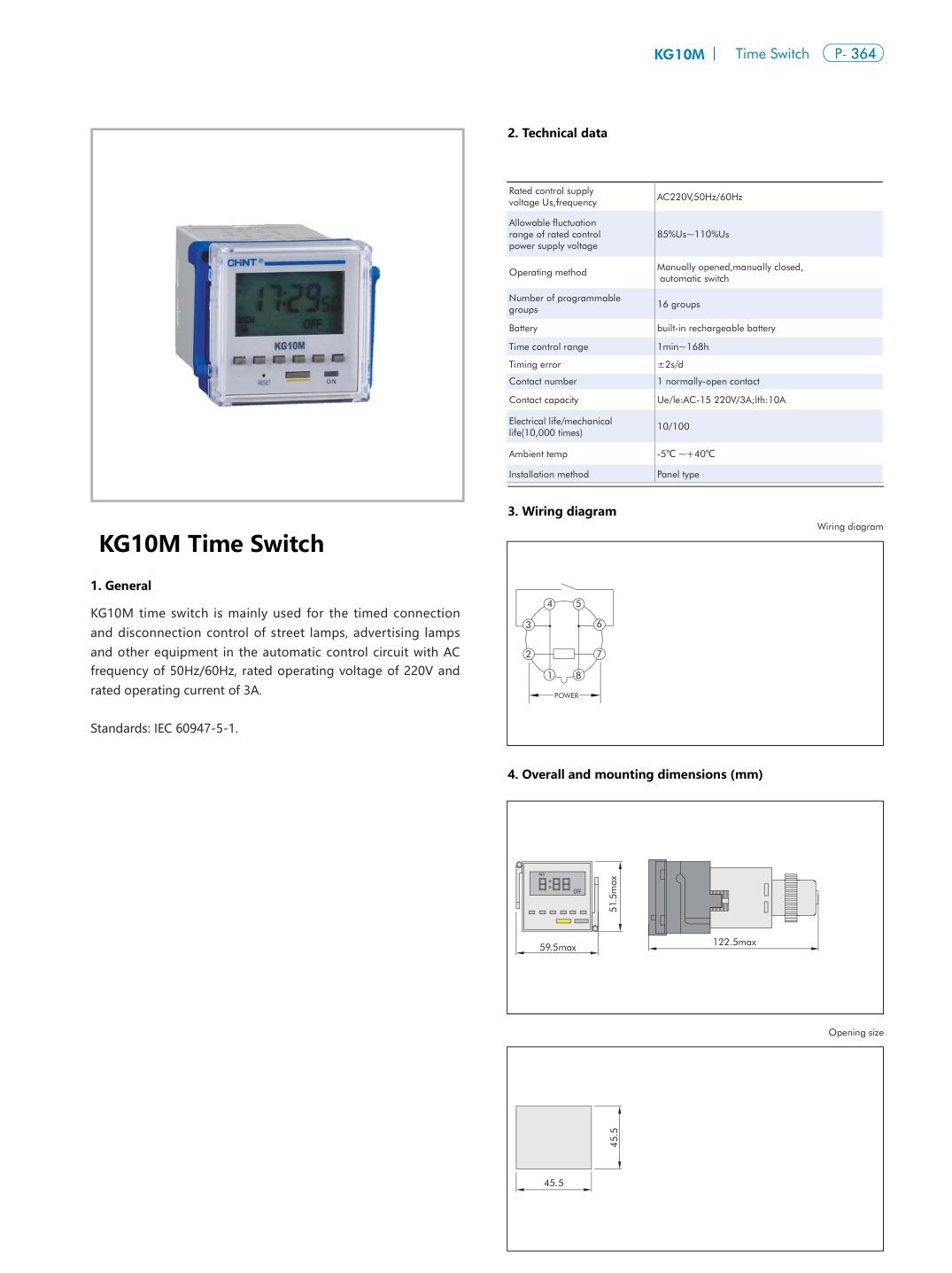

KG10M Catalog and Technical Data
