CHINT · Circuit breaker
Product overview
This CHINT CB-125A listing provides overload and short-circuit protection for AC distribution. Select the exact manufacturer model, pole count, rated current and trip characteristic, then match the installation fault level.
Technical selection summary
| Manufacturer model | CB-125A |
|---|---|
| Current choices on this page | 63A, 80A, 100A, 125A |
| Pole scope | 1P, 2P, 3P or 4P; confirm complete neutral/terminal construction |
| Trip characteristic | C / D; use the exact manufacturer release/curve row |
| AC supply reference | AC 220/230/240 V for 1P; AC 380/400/415 V for 2P/3P/4P; 50/60 Hz |
| Short-circuit reference | AC Icu 10 kA and Ics 7.5 kA in the exact CB-125A table |
| Installation / documents | 35 mm DIN rail; apply the exact manufacturer installation/derating instructions and obtain documents for the supplied version |
C and D identify the documented 8In and 12In magnetic-release versions, each with manufacturer tolerance. DC 60/110 V (1P) and 125/220 V (2P) versions have separate voltage-dependent fault ratings and must be ordered by the full DC code; this AC selection does not establish a DC version.
Typical applications
- Distribution or control panels matched to the exact device
- Replacement procurement using complete CHINT model and assembly information

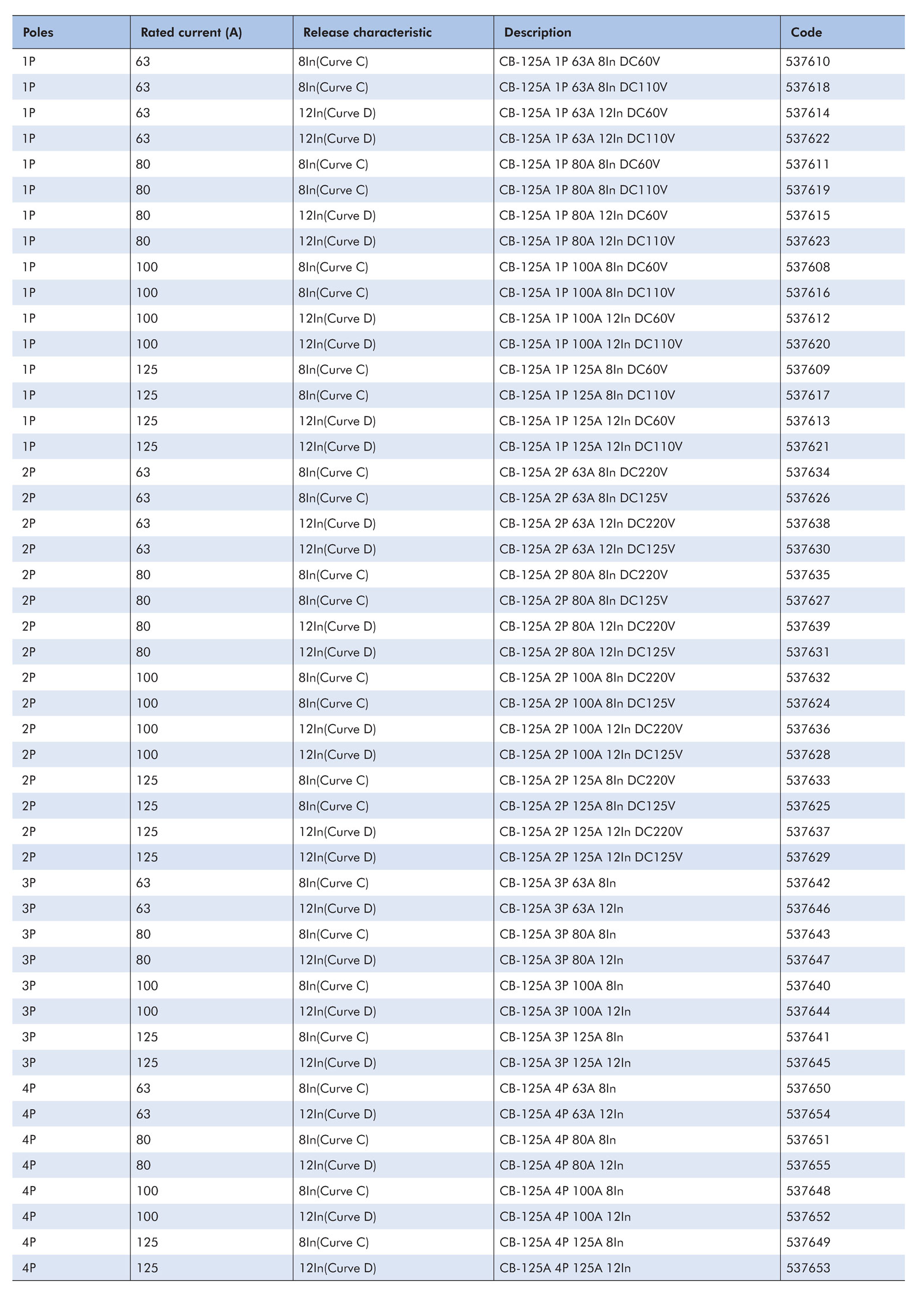

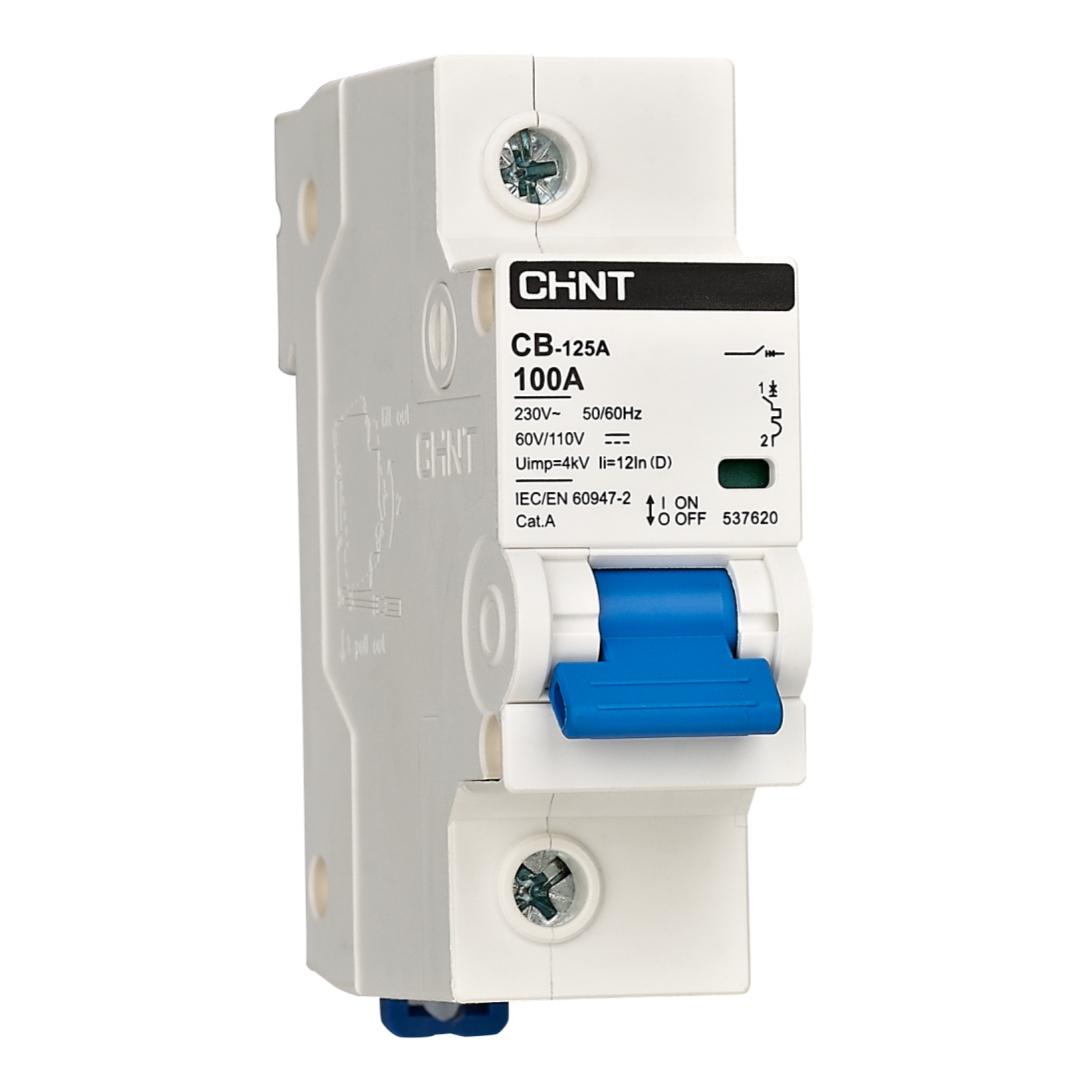

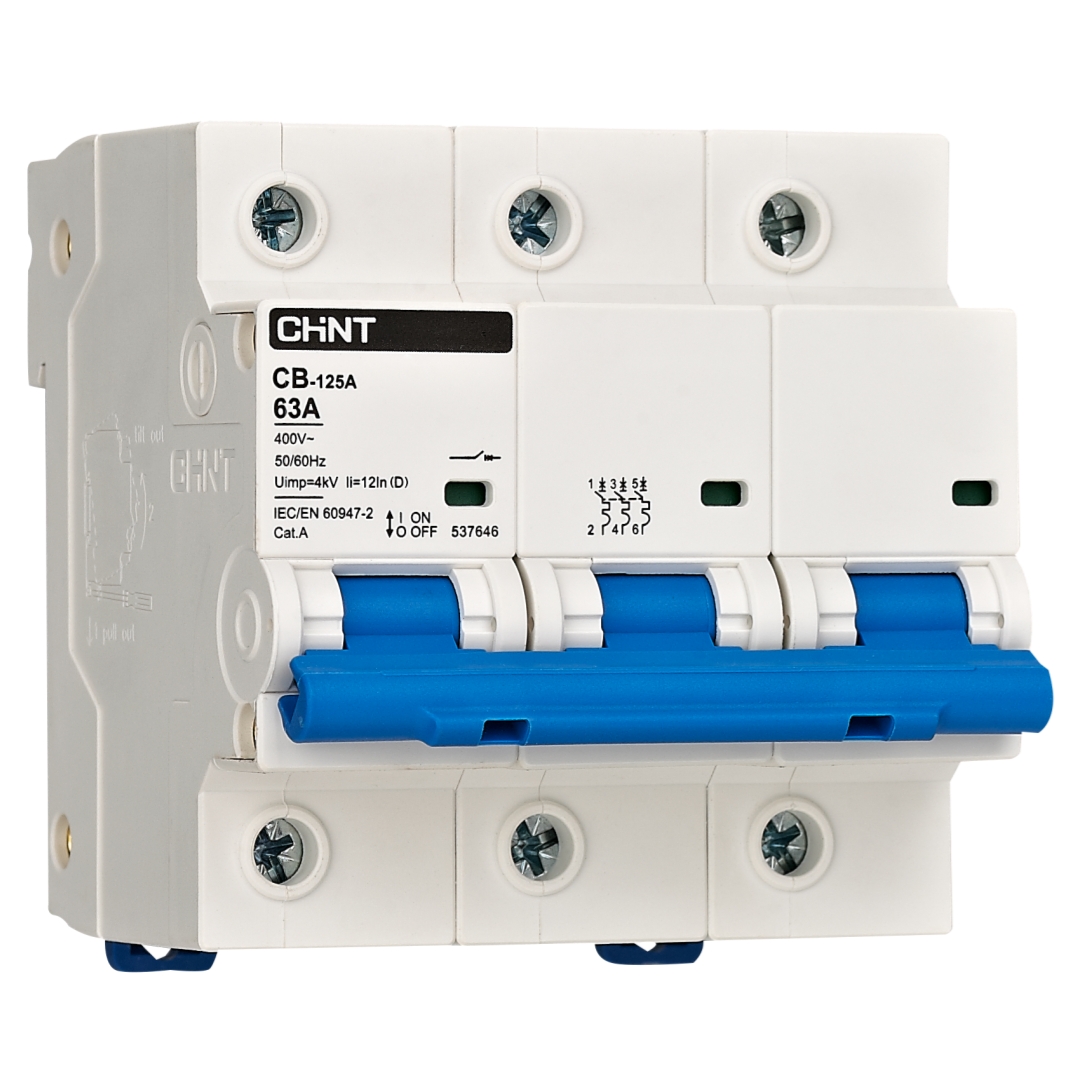

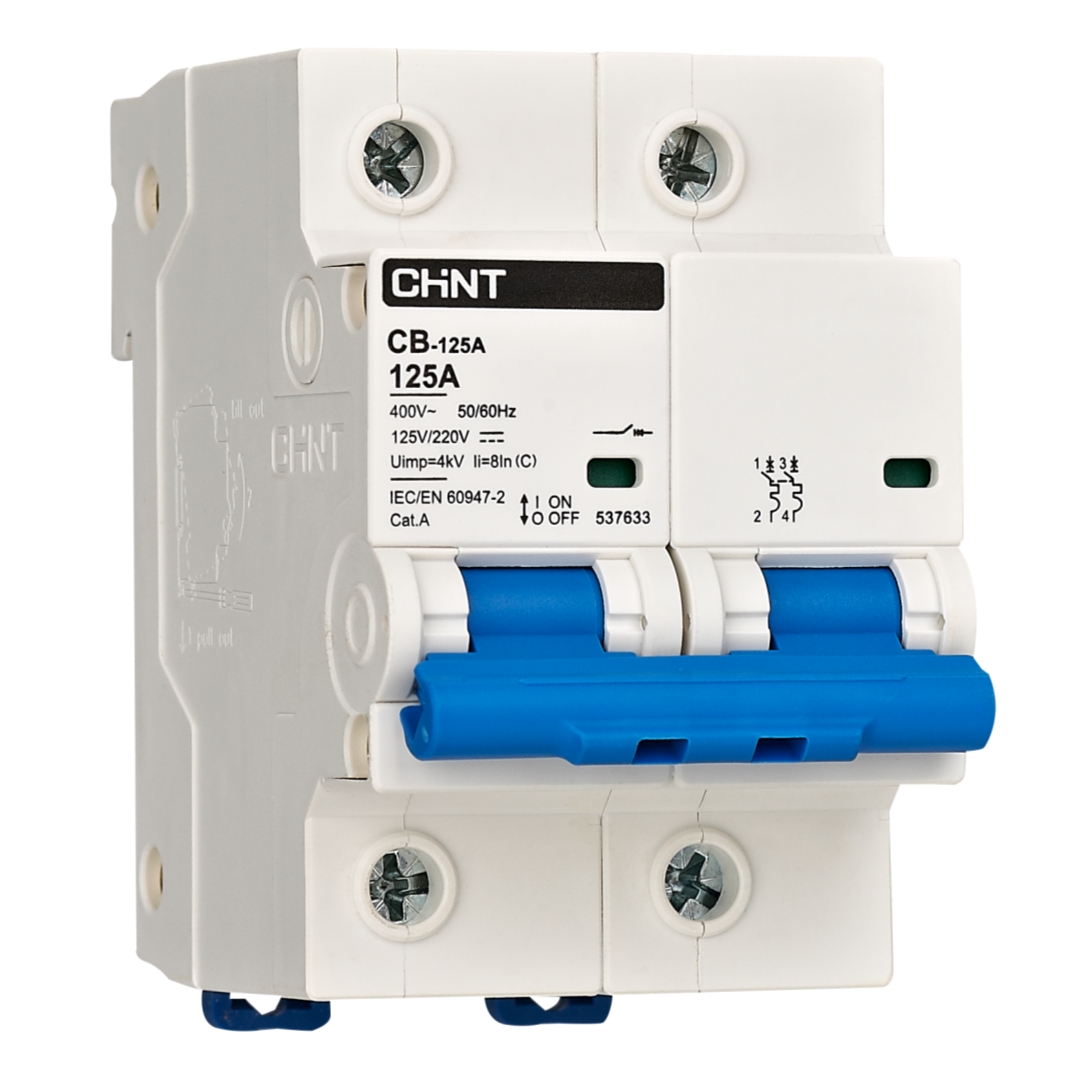

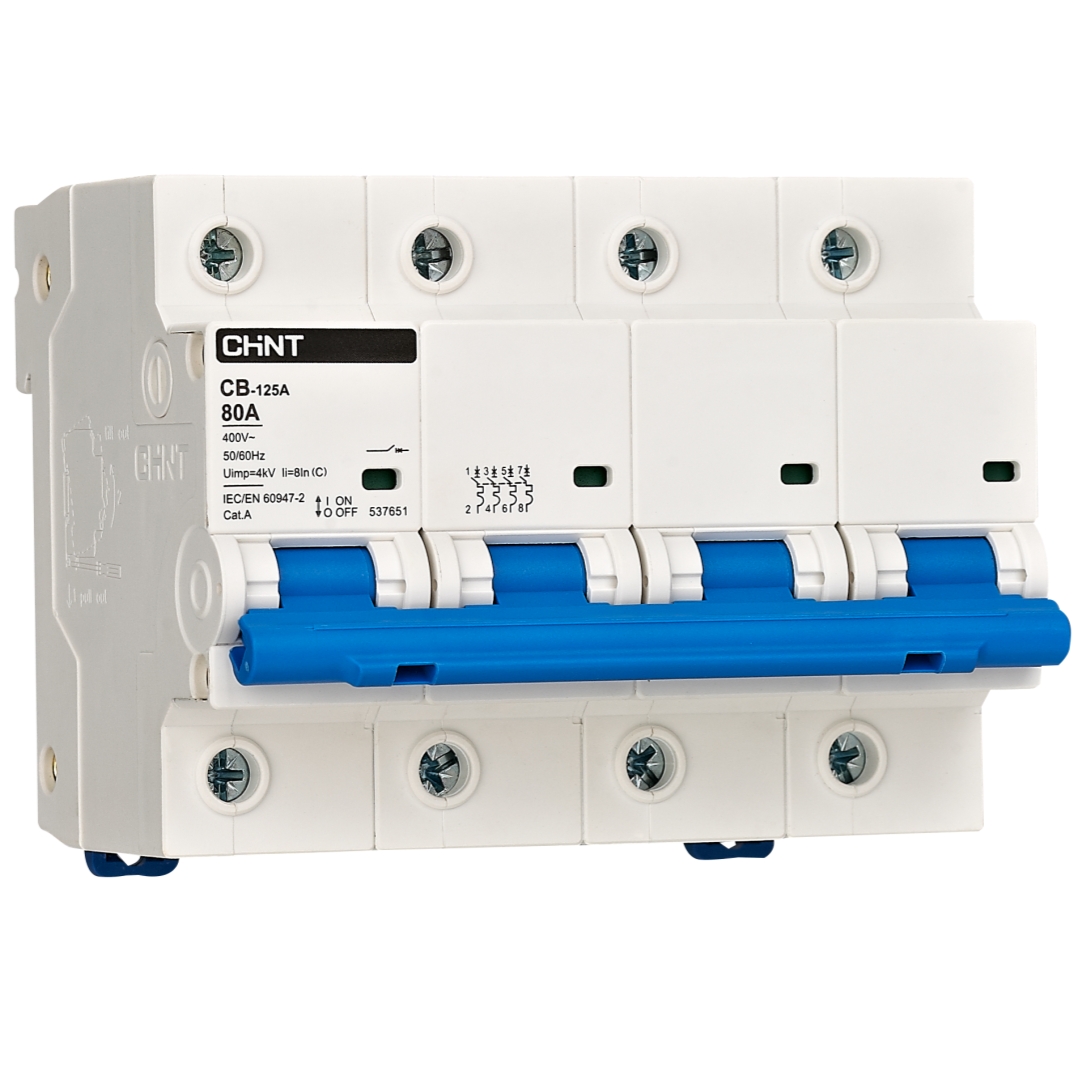

Product reference images and drawings
Match the exact manufacturer model, pole construction, voltage and connection drawing. Retained family images may show other versions.
