NewTrend ED125/ED250 Manual DC Emergency Disconnect, 125A/250A

NewTrend ED125 and ED250 manually operated battery disconnect switches. Model determines continuous current and momentary closing reference.

Model
Poles
Rated Current
Switch Model
Peak Closing Current
Maximum Ue
Add to Enquiry
SKU: 1769743538989309952 Category: DC Contactors
  • Description
  • Catalog
Description

NewTrend · ED

Product overview

NewTrend ED125 and ED250 manually operated battery disconnect switches. Model determines continuous current and momentary closing reference.

Technical selection summary

ParameterSpecification
Main circuitDC up to80V; single bridge contact, manual push-disconnect/pull-close
Peak closing currentED125:600A for ≤1s;ED250:1000A for ≤1s; not continuous current
Duty / protectionContinuous operating duty;IP50 in exact source tables
Contact voltage drop≤80mV at100A
Operating forceED125 open/close20-30N;ED250 open20-30N,close20-40N
Timing / enduranceClosing≤100ms,opening≤50ms;electrical≥10000,mechanical≥20000 operations
Environment-25 to+55°C;altitude≤2000m
InstallationRetain exact125/250 outline; source torque wording is not treated as an installation torque specification

No coil supply is required by this manual switch. ED300 has no accurate source table here and is excluded from selectable ratings. Catalogue IP50 replaces the unsupported old IP41 claim; exact installation and emergency duty must follow the supplied version.

Typical applications

  • Battery-vehicle emergency isolation

Open technical reference image

Product reference images and drawings

ED technical reference 1ED technical reference 2ED technical reference 3ED technical reference 4ED technical reference 5ED technical reference 6
Catalog
NameSizeRelease timeOperate

Related products

Check availability
NewTrend W100A / W100A-2 DC Contactor, 100A

NewTrend W100A / W100A-2 DC Contactor, 100A

NewTrend W100A / W100A-2 DC contactors. Select the actual supplied model and DC coil voltage; contact arrangement and rated current follow the selected model.
Check availability
NewTrend W400A 400A Normally Open DC Contactor
NewTrend W400A 400A Normally Open DC Contactor

NewTrend W400A 400A Normally Open DC Contactor

NewTrend W400A 400A single-pole normally open DC contactor. Select the DC coil voltage separately from the main circuit.
NewTrend W100-T-P-DE 500A Short-Time Reversing DC Contactor
NewTrend W100-T-P-DE 500A Short-Time Reversing DC Contactor

NewTrend W100-T-P-DE 500A Short-Time Reversing DC Contactor

Series illustration: photographs do not identify the selected coil voltage. NewTrend W100-T-P-DE reversing DC contactor for short-time winch and motor-direction control. Select the DC control coil independently from the main circuit.
250A Winch Solenoid Relay Contactor with Wireless Remote
250A Winch Solenoid Relay Contactor with Wireless Remote

250A Winch Solenoid Relay Contactor with Wireless Remote

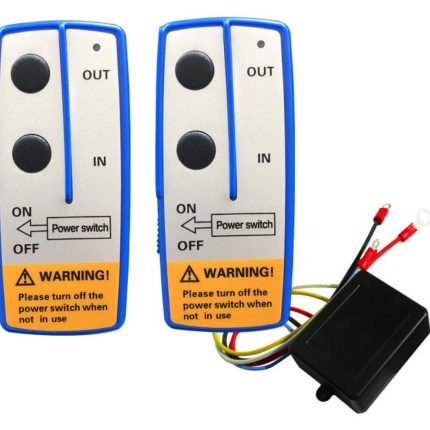

This W50-T-P-DE winch-contactor listing includes a wireless-remote reference. Match the supplied contactor, control receiver and motor wiring before installation.
