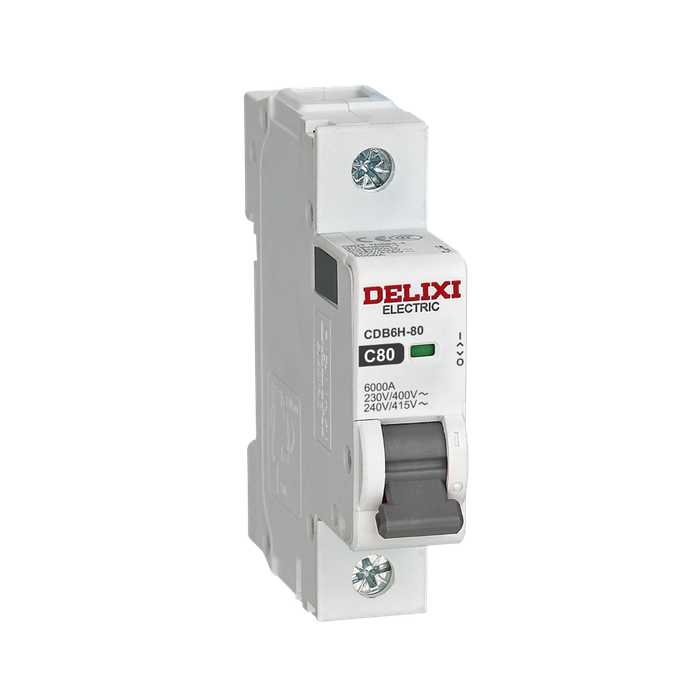

DELIXI ELECTRIC · CDB6H-80
Product overview
DELIXI CDB6H-80 provides thermal-magnetic overload and short-circuit protection. Select its documented current, poles and trip curve.
Technical selection summary
| Rated current | 80A |
|---|---|
| Poles / voltage | 1P:AC230/400V or 240/415V; 1P+N where listed:AC230/240V; other listed poles:AC400/415V |
| Frequency / breaking capacity | 50/60Hz; Icn6kA |
| Tripping curves | B, C, D; use the exact model manual characteristic |
| Installation | TH35-7.5 rail; 2N·m terminals; observe marked N poles |
Exact CDB6H-80 manual and nameplate are used. The80-frame manual lists80A only; the former1–80A range is removed.
Typical applications
- Electrical distribution or control circuits within the selected manufacturer ratings.
Product reference images and drawings
