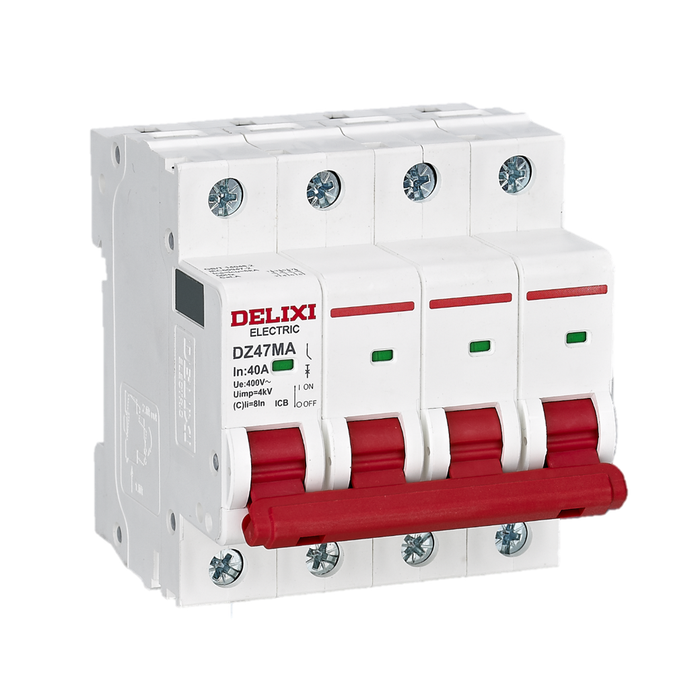

DELIXI DZ47MA Magnetic-Only Breaker, 1–63A
Click to enlarge
Home Electrical Accessories Others Delixi Electrical Materials Delixi MCB DELIXI DZ47MA Magnetic-Only Breaker, 1–63A
DELIXI CDB6i-80 MCB, 80A 6kA
DELIXI CDB6i-80 MCB, 80A 6kA
Back to products
NewTrend LE1D Enclosed DOL Motor Starter
NewTrend LE1D Enclosed DOL Motor Starter

DELIXI DZ47MA Magnetic-Only Breaker, 1–63A

DELIXI DZ47MA provides magnetic short-circuit protection without thermal overload protection. Select current, poles and the exact C or D magnetic setting.

Model
Poles
Rated Current
Magnetic Characteristic
Breaking Capacity (Icu)
Add to Enquiry
SKU: DZ47MA Category: Delixi MCB
  • Description
  • Catalog
Description

DELIXI ELECTRIC · DZ47MA

Product overview

DELIXI DZ47MA provides magnetic short-circuit protection without thermal overload protection. Select current, poles and the exact C or D magnetic setting.

Technical selection summary

Current options1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Poles / voltage1P:AC230V; 2P, 3P, 4P:AC400V
Magnetic settingC:Ii8In; D:Ii12In
Breaking capacityIcu6kA; Ics=Icu
Protection boundaryNo thermal overload release; provide coordinated overload protection where required

Use the exact English manufacturer manual for this single-magnetic breaker. C/D identify magnetic settings; this device must not be described as a standard thermal-magnetic overload breaker.

Typical applications

  • Electrical distribution or control circuits within the selected manufacturer ratings.

Product reference images and drawings

DZ47MA exact manufacturer selection and ratings page 1DZ47MA exact manufacturer selection and ratings page 2
Catalog
NameSizeRelease timeOperate
Delixi DZ47MA Magnetic-Only Breaker.pdf267.91 KB2026-10-28Download
