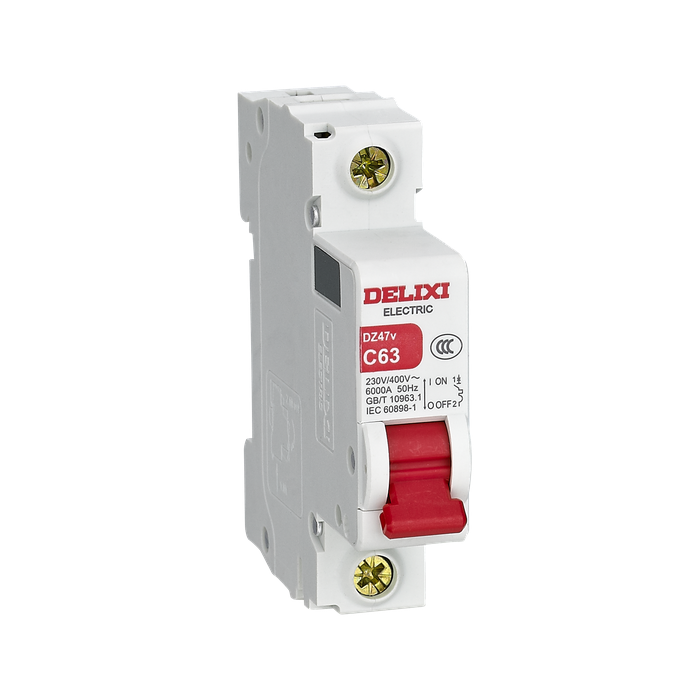

DELIXI DZ47v MCB, 1–63A 6kA
Click to enlarge
Home Electrical Accessories Others Delixi Electrical Materials Delixi MCB DELIXI DZ47v MCB, 1–63A 6kA
People Electric RDM5E Moulded Case Circuit Breaker, Electronic 32–800A
People Electric RDM5E Moulded Case Circuit Breaker, Electronic 32–800A
Back to products
DELIXI CDI-E102 Variable Frequency Drive
DELIXI CDI-E102 Variable Frequency Drive

DELIXI DZ47v MCB, 1–63A 6kA

DELIXI DZ47v provides thermal-magnetic overload and short-circuit protection. Select rated current,poles and the exact B,C orD tripping curve.

Model
Poles
Rated Current
Tripping Curve
Breaking Capacity
Add to Enquiry
SKU: DZ47v Category: Delixi MCB
  • Description
  • Catalog
Description

DELIXI ELECTRIC · DZ47v

Product overview

DELIXI DZ47v provides thermal-magnetic overload and short-circuit protection. Select rated current, poles and the exact B, C orD tripping curve.

Technical selection summary

Current options1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Pole / voltage pairs1P:AC230/400V; 1P+N:AC230V; 2P/3P/3P+N/4P:AC400V
Tripping curvesB:3–5In; C:5–10In; D:10–14In
Breaking capacity / frequencyIcn6kA; 50Hz
Mounting / terminals35mm DIN rail; top orbottom supply; up to25mm² conductor; 2.5N·m
Version boundaryBare DZ47v MCB; residual-current functions and 125A frames belong to other models

Use the voltage assigned to the selected pole construction. This page does not turn the AC DZ47v into a DC breaker or borrow RCBO functions from DZ47vLE/DZ47vPLE.

Typical applications

  • Electrical distribution and control assemblies within the selected documented ratings.

Product reference images and drawings

DZ47v exact manufacturer selection and ratings page 1DZ47v exact manufacturer selection and ratings page 2
Catalog
NameSizeRelease timeOperate
Delixi DZ47v MCB.pdf2.51 MB2026-10-27Download

Related products

DELIXI CDB6H-80 MCB, 80A 6kA

DELIXI CDB6H-80 MCB, 80A 6kA

DELIXI CDB6H-80 provides thermal-magnetic overload and short-circuit protection. Select its documented current, poles and trip curve.
DELIXI CDB9Z DC Breaker, 1–63A

DELIXI CDB9Z DC Breaker, 1–63A

DELIXI CDB9Z provides DC overload and short-circuit protection. Choose operating voltage first, then a supported pole arrangement, current and B/C setting.
DELIXI CDBA-63B/CDBAZ-63B 1P+N IoT Breaker, 6–63A

DELIXI CDBA-63B/CDBAZ-63B 1P+N IoT Breaker, 6–63A

DELIXI CDBA-63B and CDBAZ-63B are special-application monitored circuit breakers. Select AC or DC voltage, its linked trip characteristic and rated current.
DELIXI DZ47vZ DC MCB, 1P–3P 1–63A

DELIXI DZ47vZ DC MCB, 1P–3P 1–63A

DELIXI DZ47vZ provides overload and short-circuit protection in DC circuits. Select current, supported B/C characteristic and pole arrangement.
DELIXI CDYE T1+T2 / T2 Surge Protective Device

DELIXI CDYE T1+T2 / T2 Surge Protective Device

Series illustration: the retained photo shows an earlier CDYE-II/40 unit; the selection below follows the current manufacturer catalogue.

DELIXI CDYE limits transient overvoltage in AC230/400V distribution systems. Select the paired test class/discharge rating,poles,Uc and remote-contact option.

DELIXI CDB6iTC MCB, 1–63A 6kA

DELIXI CDB6iTC MCB, 1–63A 6kA

Manufacturer series illustration.

DELIXI CDB6iTC provides overload, short-circuit protection and isolation under GB/T14048.2. Select poles, the linked operating voltage, current and trip type.

DELIXI DZ47s-80 1P/2P 80A MCB Miniature Circuit Breaker

DELIXI DZ47s-80 1P/2P 80A MCB Miniature Circuit Breaker

The supplied DELIXI DZ47s-80 reference identifies an 80 A breaker with 1P and 2P selections.

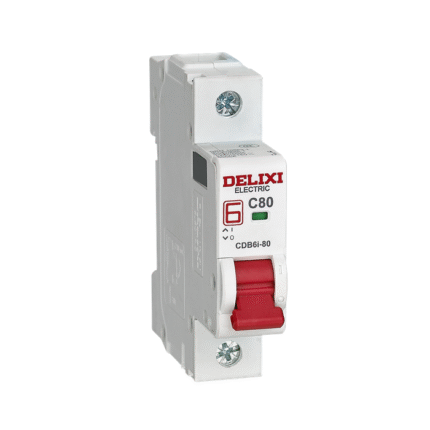

DELIXI CDB6i-80 MCB, 80A 6kA
