DELIXI ELECTRIC · CDB9Z
Product overview

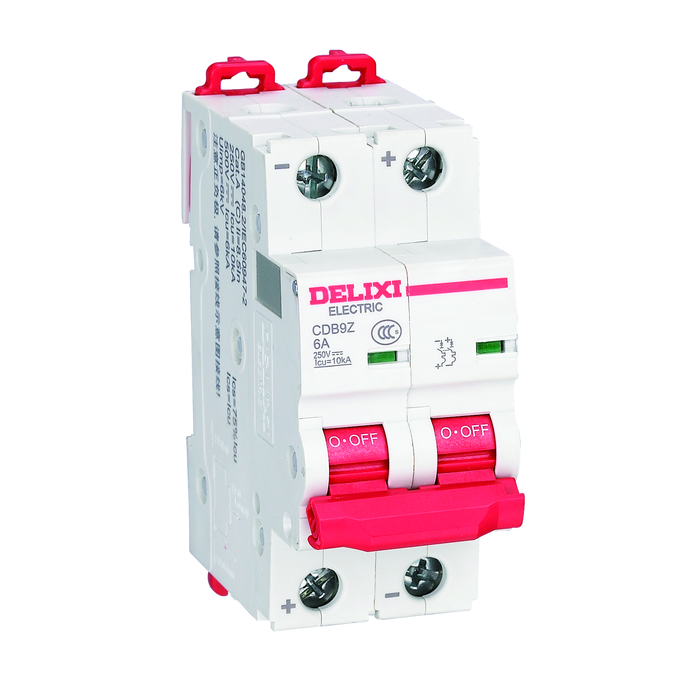

DELIXI CDB9Z provides DC overload and short-circuit protection. Choose operating voltage first, then a supported pole arrangement, current and B/C setting.
Technical selection summary
| Current options | 1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|---|---|
| Voltage / pole pairs | DC125V:1P; DC250V:1P or 2P; DC500V:2P; DC1000V:4P |
| Capacity by voltage | 10kA at125/250/500V; 6kA at1000V |
| Instantaneous setting | B:Ii5.5In; C:Ii8.5In |
| DC wiring | Polarised device; connect source/load, earthing and series poles exactly as shown in the manufacturer diagram |
The exact manual gives five voltage/pole pairs; 3P is not added. Breaking capacity follows the selected voltage and is retained in the configuration hint. The displayed reference identifies a configuration, not a fabricated manufacturer material number.
