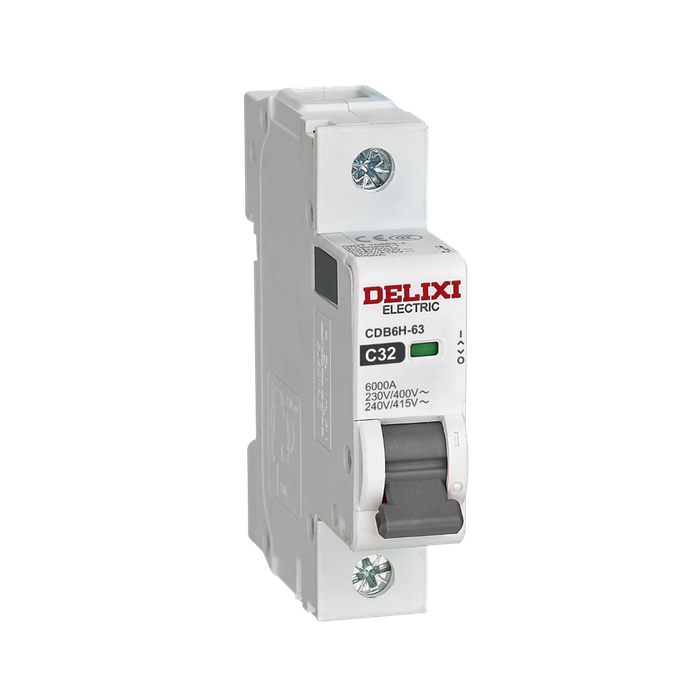

DELIXI CDB6H-63 MCB, 1–63A 6kA

DELIXI CDB6H-63 provides thermal-magnetic overload and short-circuit protection. Select its documented current, poles and trip curve.

Model
Poles
Rated Current
Tripping Curve
Breaking Capacity
Add to Enquiry
SKU: CDB6H-63 Category: Delixi MCB
  • Description
  • Catalog
Description

DELIXI ELECTRIC · CDB6H-63

Product overview

DELIXI CDB6H-63 provides thermal-magnetic overload and short-circuit protection. Select its documented current, poles and trip curve.

Technical selection summary

Rated current1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Poles / voltage1P:AC230/400V or 240/415V; 1P+N where listed:AC230/240V; other listed poles:AC400/415V
Frequency / breaking capacity50/60Hz; Icn6kA
Tripping curvesB, C, D; use the exact model manual characteristic
InstallationTH35-7.5 rail; 2N·m terminals; observe marked N poles

Exact CDB6H-63 manual and nameplate are used. The detailed rating table establishes the1P–4P scope used here; unverified neutral-pole combinations are not added.

Typical applications

  • Electrical distribution or control circuits within the selected manufacturer ratings.

Product reference images and drawings

CDB6H-63 exact manufacturer selection and ratings page 1CDB6H-63 exact manufacturer selection and ratings page 2
Catalog
NameSizeRelease timeOperate
Delixi CDB6H-63 MCB.pdf327.09 KB2026-10-28Download

Related products

DELIXI CDB6i 1P-4P MCB Miniature Circuit Breaker 6A-63A C-Curve
DELIXI CDB6i 1P-4P MCB Miniature Circuit Breaker 6A-63A C-Curve

DELIXI CDB6i 1P-4P MCB Miniature Circuit Breaker 6A-63A C-Curve

This DELIXI CDB6i listing covers miniature circuit-breaker selections with 1P–4P and 6–63 A references. Confirm the exact pole arrangement and C-curve version.

DELIXI CDYE T1+T2 / T2 Surge Protective Device

DELIXI CDYE T1+T2 / T2 Surge Protective Device

Series illustration: the retained photo shows an earlier CDYE-II/40 unit; the selection below follows the current manufacturer catalogue.

DELIXI CDYE limits transient overvoltage in AC230/400V distribution systems. Select the paired test class/discharge rating,poles,Uc and remote-contact option.

DELIXI DZ47sY Surge Protector SPD

DELIXI DZ47sY Surge Protector SPD

DELIXI DZ47sY surge protector SPD for AC 50Hz/60Hz power distribution systems, used to suppress transient overvoltage and discharge surge energy.

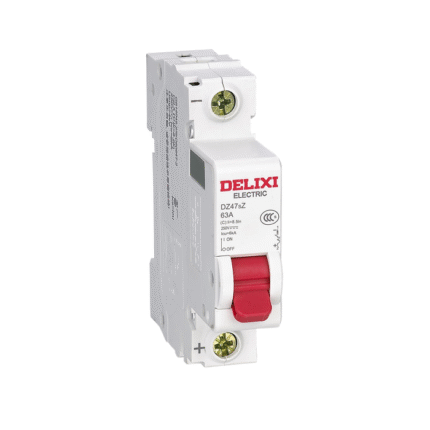

DELIXI DZ47sZ DC MCB, 1P–3P 1–63A

DELIXI DZ47sZ DC MCB, 1P–3P 1–63A

DELIXI DZ47sZ provides overload and short-circuit protection in DC circuits. Select current, supported B/C characteristic and pole arrangement.
DELIXI DZ47s-80 1P/2P 80A MCB Miniature Circuit Breaker

DELIXI DZ47s-80 1P/2P 80A MCB Miniature Circuit Breaker

The supplied DELIXI DZ47s-80 reference identifies an 80 A breaker with 1P and 2P selections.

DELIXI CDB9NTC/CDB9HTC AC Breaker, 1–63A

DELIXI CDB9NTC/CDB9HTC AC Breaker, 1–63A

Manufacturer catalogue illustration.

DELIXI CDB9NTC and CDB9HTC provide overload, short-circuit protection and isolation. Select6kA NTC or 10kA HTC, current, poles and C/D characteristic.

DELIXI CDB6iTC MCB, 1–63A 6kA

DELIXI CDB6iTC MCB, 1–63A 6kA

Manufacturer series illustration.

DELIXI CDB6iTC provides overload, short-circuit protection and isolation under GB/T14048.2. Select poles, the linked operating voltage, current and trip type.

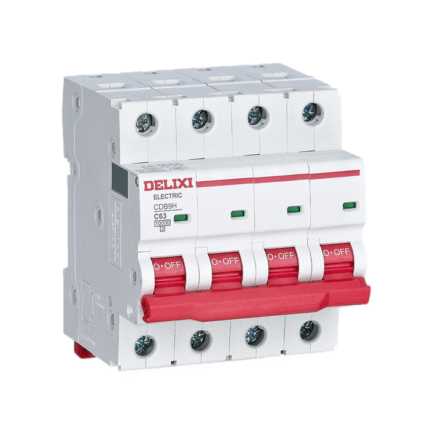

DELIXI CDB9N/CDB9H MCB, 1–63A
