DELIXI ELECTRIC · Surge protective device
Product overview

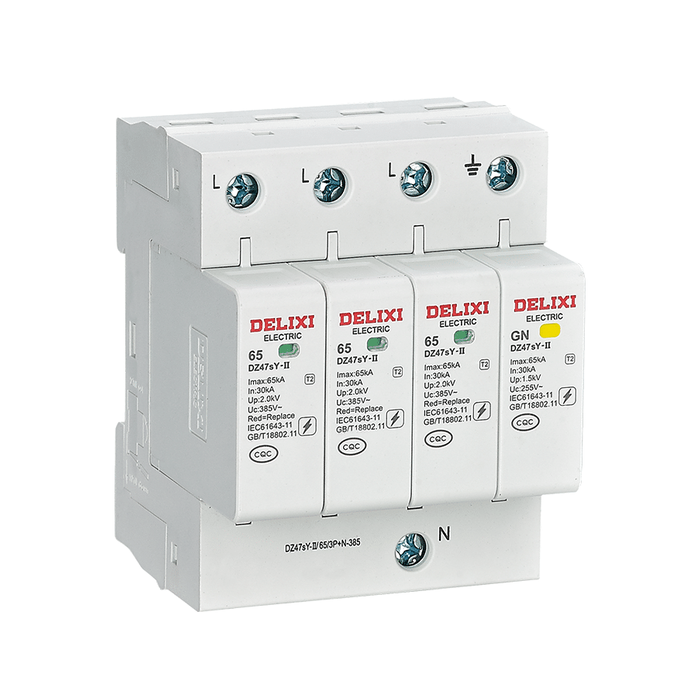

The DELIXI DZ47sY surge protective device is used to limit transient overvoltage in AC power distribution systems. This page covers the DZ47sY-I+II and DZ47sY-II references. Their impulse and discharge ratings use different test waveforms and must be selected by the exact suffix and installation requirements.
Technical selection summary
| Brand and series | DELIXI ELECTRIC DZ47sY |
|---|---|
| Product type | AC surge protective device (SPD) |
| Referenced standards | GB/T 18802.1; IEC 61643-11 |
| Rated system voltage Uo | 230 V phase voltage; distinct from the maximum continuous operating voltage Uc |
| Pole references | 1P, 2P, 3P, 4P, 1P+N and 3P+N; specify the required system arrangement |
| DZ47sY-I+II impulse reference | 10/350 μs Iimp: 12.5 / 15 / 25 kA; corresponding nominal discharge references In: 25 / 25 / 50 kA |
| DZ47sY-I+II Uc reference | 12.5 and 15 kA Iimp versions: 275 / 385 / 440 V. 25 kA Iimp version: 385 / 440 V. |
| DZ47sY-II discharge reference | 8/20 μs Imax: 20 / 40 / 65 / 80 / 120 / 160 kA; corresponding In: 10 / 20 / 30 / 40 / 60 / 80 kA |
| DZ47sY-II Uc reference | 275 / 385 / 440 V, selected for the exact version |
| Degree of protection | IP20 |
| Remote indication | Optional YX signalling accessory; confirm the exact accessory and contact requirements |
Iimp, Imax and In are different ratings and must not be interchanged. Select Uc, protection level Up, poles and backup protection for the exact device and supply system. The DZ47sY-III version in the manufacturer catalogue is a separate selection and is outside this page’s I+II / II reference scope.
Typical applications
- AC distribution boards requiring transient overvoltage protection
- Coordinated surge-protection installations with the matching backup protection
