DELIXI ELECTRIC · CDB9ZB-63
Product overview
DELIXI CDB9ZB-63 provides overload, short-delay short-circuit and instantaneous protection for DC distribution. Select current and 10kA or 20kA build.
Technical selection summary
| Current options | 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|---|---|
| Poles / voltage | 2P; DC250V |
| Capacity versions | Standard:10kA; H:20kA |
| Trip structure | Three-stage protection; not a selectable B/C/D miniature-breaker curve |
| Coordination | Use the exact upstream/downstream selective-protection and DC wiring data |
| Terminals | 25mm²; 2.5N·m |
The14 explicit original order rows establish2P, 16–63A and 10/20kA variants. Selective coordination requires factory confirmation of the exact short-delay thresholds and downstream breaker. The three stages are fixed product characteristics, not freely adjustable settings.
Typical applications
- Electrical distribution or control circuits within the selected manufacturer ratings.

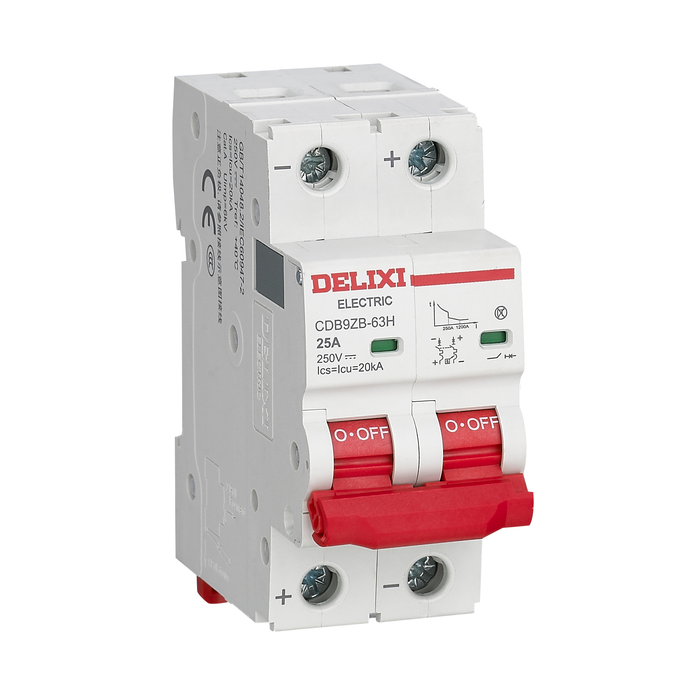

Product reference images and drawings
