DELIXI CDB9H-63K 2P/4P MCB, 20–63A 10kA
Click to enlarge
Home Electrical Accessories Others Delixi Electrical Materials Delixi MCB DELIXI CDB9H-63K 2P/4P MCB, 20–63A 10kA
CHINT NB7 Miniature Circuit Breaker, 1–63 A
CHINT NB7 Miniature Circuit Breaker, 1–63 A
Back to products
CHINT NXB-125 High-Current DIN Rail Circuit Breaker
CHINT NXB-125 High-Current DIN Rail Circuit Breaker

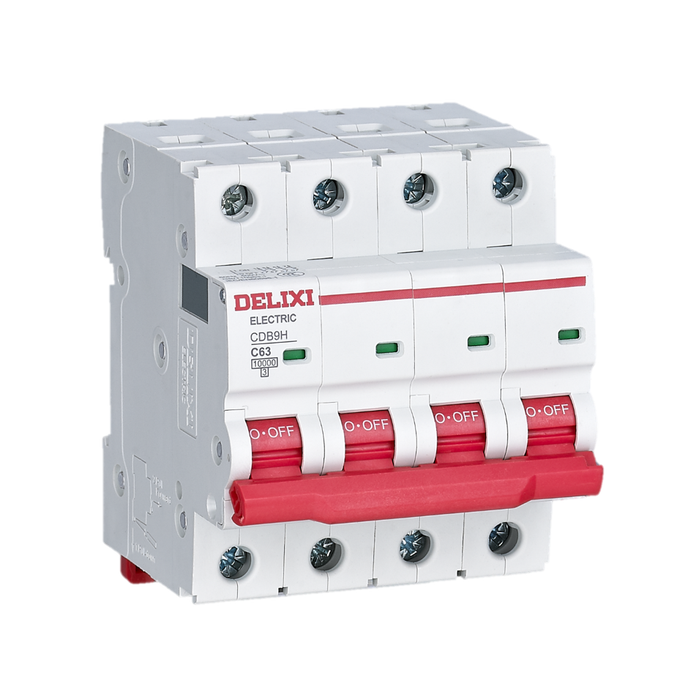

DELIXI CDB9H-63K 2P/4P MCB, 20–63A 10kA

Manufacturer catalogue illustration.

DELIXI CDB9H-63K is a thermal-magnetic miniature circuit breaker for the documented2P and 4P industry versions. Select the exact current and pole arrangement.

Model
Poles
Rated Current
Tripping Curve
Breaking Capacity
Add to Enquiry
SKU: CDB9H-63K Category: Delixi MCB
  • Description
  • Catalog
Description

DELIXI ELECTRIC · CDB9H-63K

Product overview

DELIXI CDB9H-63K is a thermal-magnetic miniature circuit breaker for the documented2P and 4P industry versions. Select the exact current and pole arrangement.

Technical selection summary

Exact current options20, 25, 32, 40, 50, 63A
Poles / curve2P or4P; C curve
Operating voltage / frequencyAC400V; 50Hz in the detailed rating table
Breaking capacity10kA
Ordering schemaCDB9HK63 +2/4 +C +current; 12 explicit order rows
Mounting / terminalsDIN rail; up to25mm²; 3.5N·m
Scope boundaryNot genericCDB9N/CDB9H, not1P and not1–16A orB/D curve

Select the exact K-version current and pole combination and use its detailed voltage rating. Other CDB9 families and tripping characteristics require their own exact selection.

Typical applications

  • Electrical distribution and control assemblies within the selected documented ratings.

Product reference images and drawings

CDB9H-63K exact manufacturer selection and ratings page 1CDB9H-63K exact manufacturer selection and ratings page 2
Catalog
NameSizeRelease timeOperate
Delixi CDB9H-63K 2P 4P MCB.pdf697.92 KB2026-10-27Download
