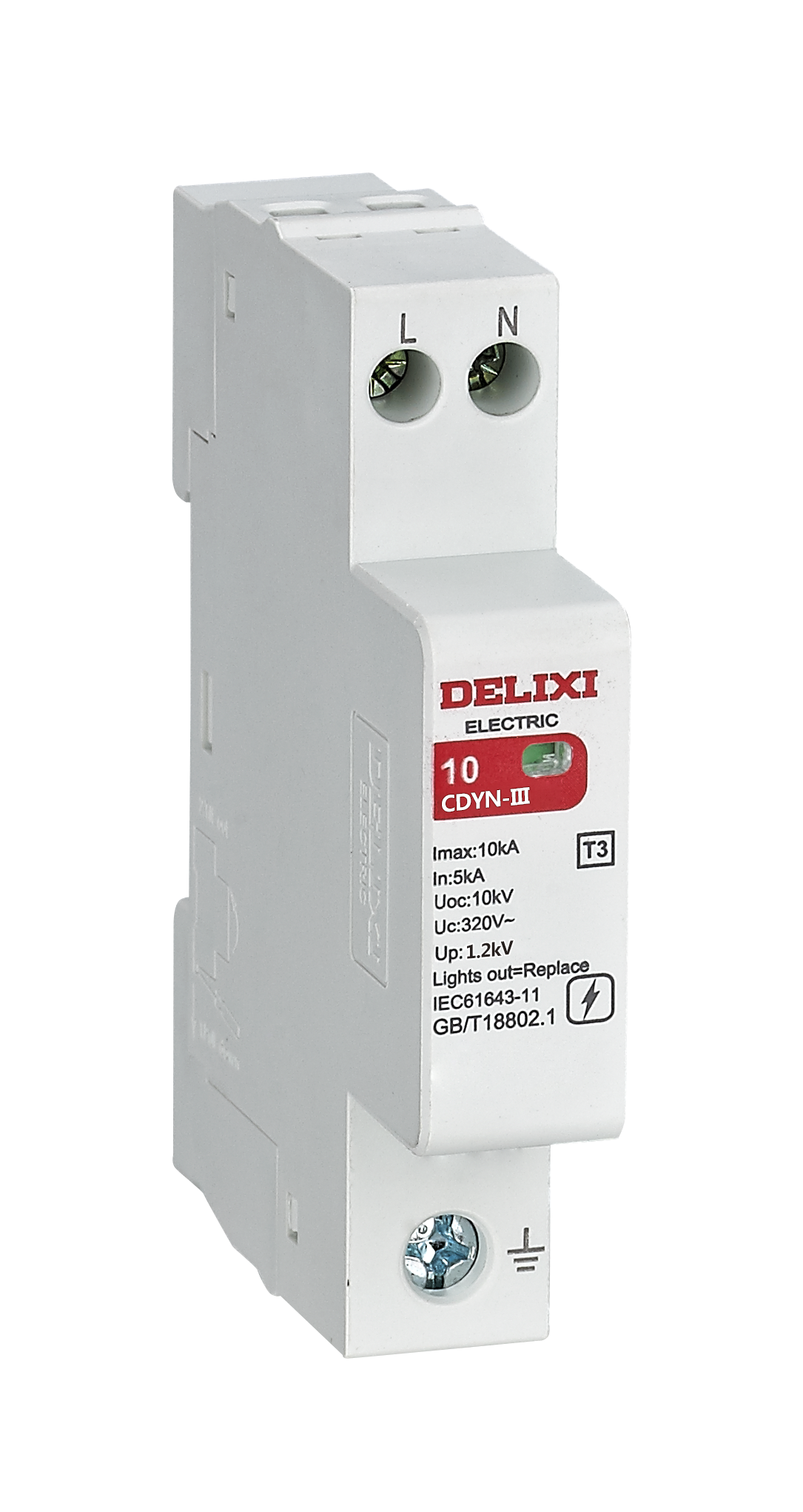

DELIXI CDYN Surge Protective Device
Click to enlarge
Home Electrical Accessories Others Delixi Electrical Materials Delixi MCB DELIXI CDYN Surge Protective Device
People Electric HY2 Motor Reversing Switch, 3–10kW at AC380V
People Electric HY2 Motor Reversing Switch, 3–10kW at AC380V
Back to products
NewTrend XRNT1 24kV 40A / 200A High-Voltage HRC Fuse Link
NewTrend XRNT1 24kV 40A / 200A High-Voltage HRC Fuse Link

DELIXI CDYN Surge Protective Device

DELIXI surge protective device for low-voltage surge protection applications.

Add to Enquiry
Category: Delixi MCB
  • Description
  • Technical Documents
  • Selection & Ordering
Description

DELIXI · AC surge protective device

Product overview

The DELIXI CDYN range limits transient overvoltage in AC power distribution systems. The manufacturer reference distinguishes CDYN-I+II, CDYN-II and CDYN-III versions for coordinated surge protection. Select the class, pole arrangement, continuous operating voltage and matching backup protection for the actual installation.

Technical selection summary

Brand and seriesDELIXI ELECTRIC CDYN
Product typeAC surge protective device (SPD)
Referenced standardsGB/T 18802.1; IEC 61643-11
Rated system voltage Uo230 V phase voltage; distinct from the maximum continuous operating voltage Uc
CDYN-I+II impulse reference10/350 μs Iimp: 12.5 or 15 kA; nominal discharge current In: 25 kA for either reference
CDYN-II discharge reference8/20 μs Imax: 20 / 40 / 65 / 80 / 120 / 160 kA; corresponding In: 10 / 20 / 30 / 40 / 60 / 80 kA
I+II and II pole / Uc references1P, 2P, 3P, 4P, 1P+N or 3P+N; Uc 275 / 385 / 440 V, selected for the exact version
CDYN-III terminal reference1P+N; Uc 320 V; combination-wave reference Uoc 10 kV / Isc 5 kA; Up 1.2 kV; built-in backup protection
Status indicationCheck the matching version indicator; red indicates a failed module requiring replacement.
Degree of protectionIP20
Remote indicationOptional signalling accessory for the applicable I+II / II version; confirm the required contacts.

Iimp, Imax, In and the III-class Uoc/Isc references describe different tests and cannot be interchanged. Match Uc, protection level Up, pole arrangement and backup device to the exact CDYN suffix and supply-system earthing arrangement; do not substitute the DC CDYNEZ series.

Typical applications

  • Main incoming switchboards with the matching I+II version
  • Sub-distribution boards with the matching II version
  • Terminal distribution boards using the III version

DELIXI CDYN / CDYNSCB technical reference (PDF)

Technical Documents

TECHNICAL RESOURCES

Documents for DELIXI CDYN Surge Protective Device

A downloadable document is not currently attached to this listing. Request the datasheet for your required model and configuration.

Request a datasheet

Drawings and compliance documents

Tell us the model and destination market if you need dimensions, a wiring diagram or a certification document. Available documents and approvals depend on the exact product configuration.

Ask for product documents

Supplier: Shanghai Newtrend Electric Co., Ltd. Brand and manufacturer details are stated separately for each product.

Selection & Ordering

BEFORE YOU ORDER

Selection and ordering questions

What information is needed for a quotation?

Send the exact model or selected configuration, required quantity, destination country and any project-specific requirements. Our team will confirm availability and the matching specification.

Are the same approvals available for every configuration?

No. Standards, certificates and market acceptance must be checked for the exact manufacturer model and configuration. Request the relevant document before specifying the product.

Can I include other products in the same enquiry?

Yes. Add the required products to your quote list, set the quantities and send one enquiry with your project requirements.
