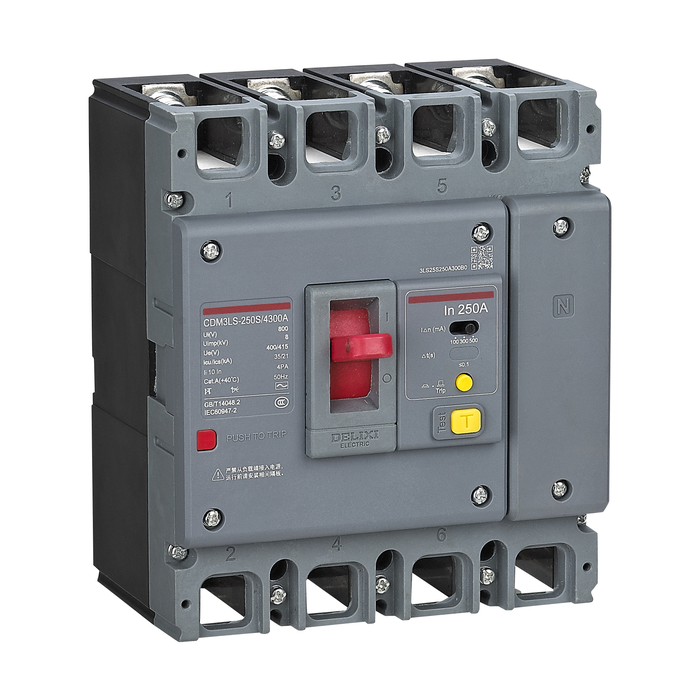

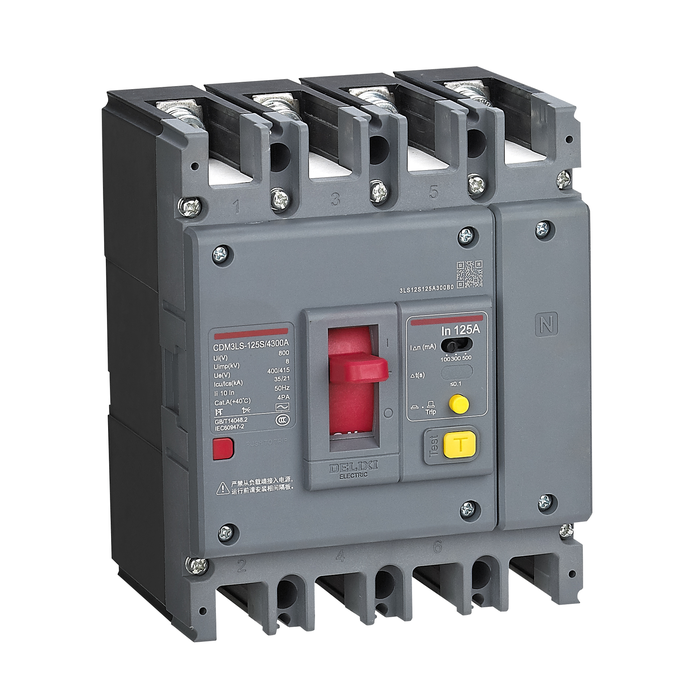

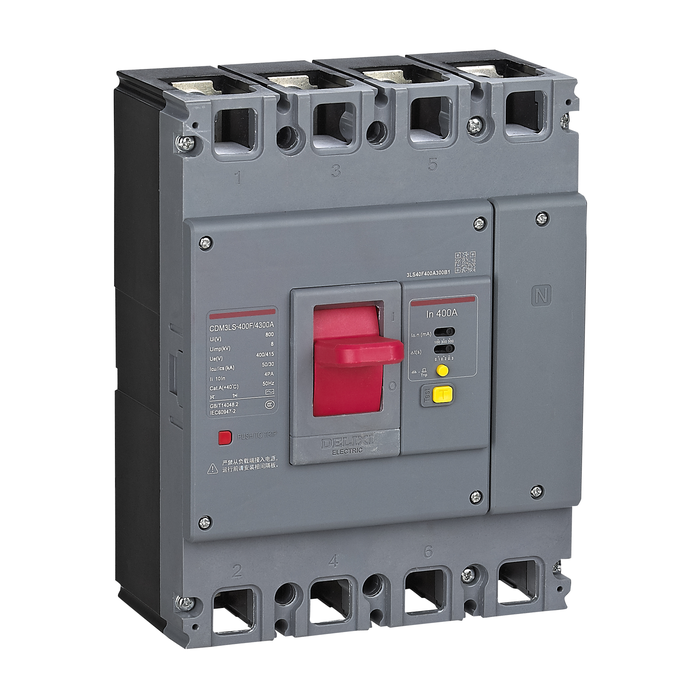

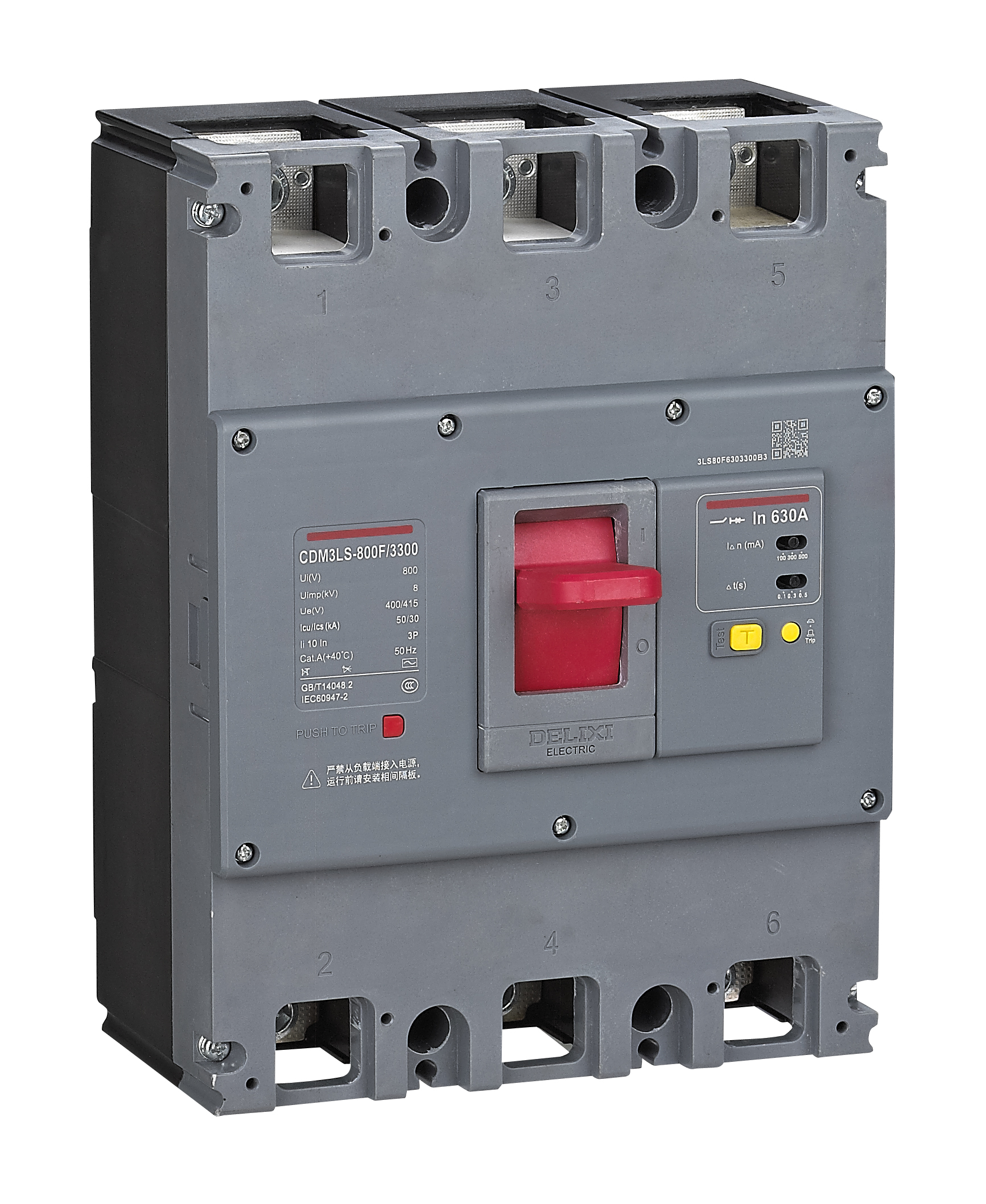

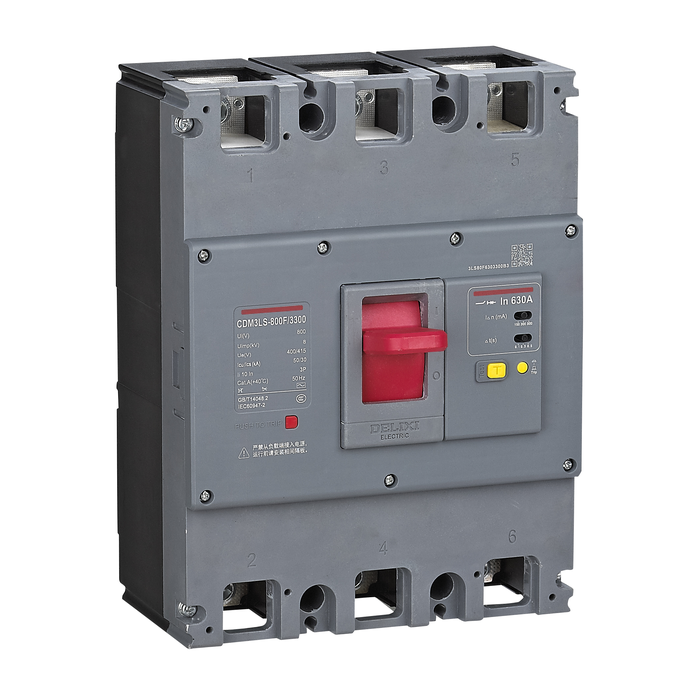

DELIXI CDM3LS MCCB Residual Current Circuit Breaker

DELIXI CDM3LS MCCB Residual Current Circuit Breaker. Moulded case circuit breaker for low-voltage distribution and protection applications.

Categories: Chint MCCB ACB, Delixi MCCB ACB, Electrical Accessories

Where to Use Chint MCCB?

The DELIXI CDM3LS MCCB Residual Current Circuit Breaker is designed for industrial power distribution, commercial building panels, motor protection circuits, and infrastructure projects. With rated current range of 10A - 1250A and AC 690V rating, this molded case circuit breaker provides reliable protection against overload, short-circuit, and undervoltage conditions. Perfect for ensuring electrical safety in demanding environments.

Why Choose Chint MCCB Series?

IEC/EN60947-2 Certified - Complies with international safety standards (CE, KEMA, EAC approved)
Reliable Breaking Capacity - High fault current interruption capability up to 100kA
Flexible Configuration - 3P / 4P pole options, adjustable current settings
Chint Original Quality - Direct from China's leading electrical manufacturer

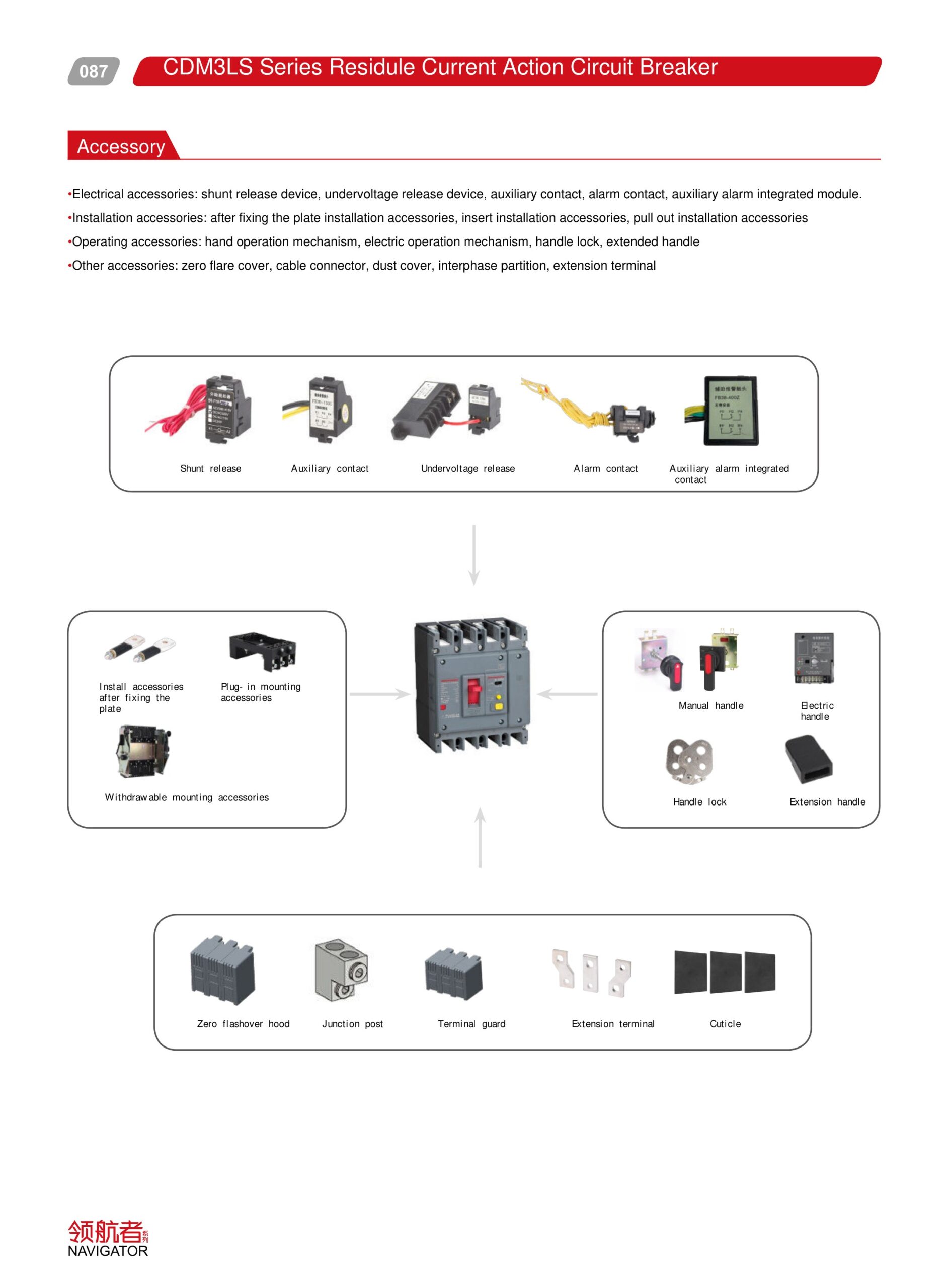

Easy Maintenance - Modular design allows quick replacement of accessories

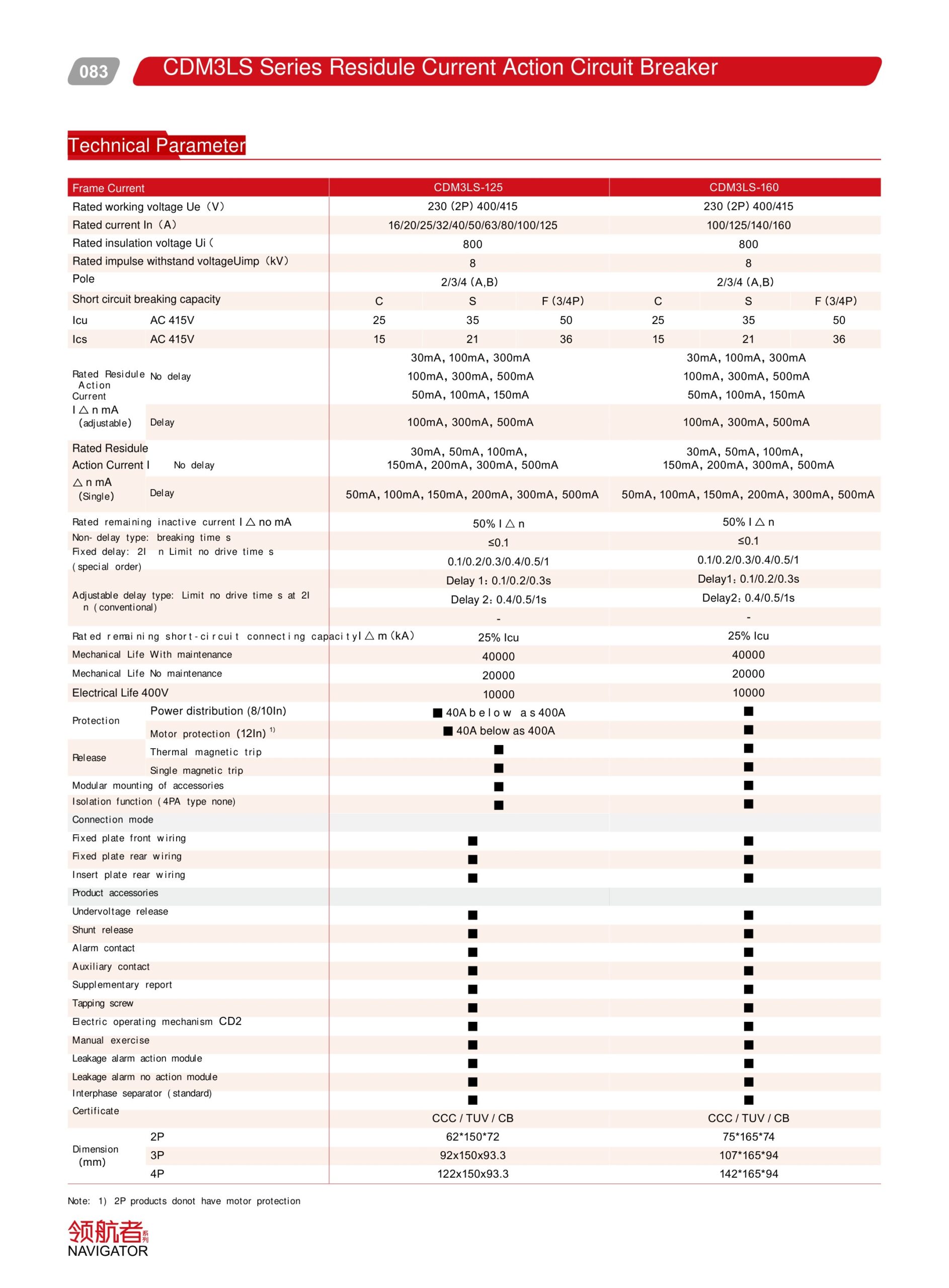

Technical Specifications

Parameter	Specification
Model Series	Chint MCCB
Type	Molded Case Circuit Breaker (MCCB)
Rated Current	10A - 1250A
Rated Voltage	690V AC
Pole Configuration	3P / 4P
Standard	IEC/EN 60947-2

Frequently Asked Questions

Q: What is the difference between MCCB and ACB?

A: MCCB (Molded Case Circuit Breaker) is used for currents up to 1600A in distribution panels. ACB (Air Circuit Breaker) handles higher currents (1000A-6300A) and is used in main power distribution boards. Choose MCCB for branch circuits and ACB for main incoming power.

Q: How do I select the right current rating?

A: Calculate your maximum load current and add 20-25% safety margin. For motor applications, consider the inrush current (typically 6-8 times rated current). Chint MCCB series offers multiple ratings from 10A - 1250A to match your needs.

Q: Can Chint MCCB be used for motor protection?

A: Yes, Chint MCCB series supports motor protection with adjustable thermal-magnetic trip units. Select a rating that accommodates the motor's starting current while providing overload protection during normal operation.
