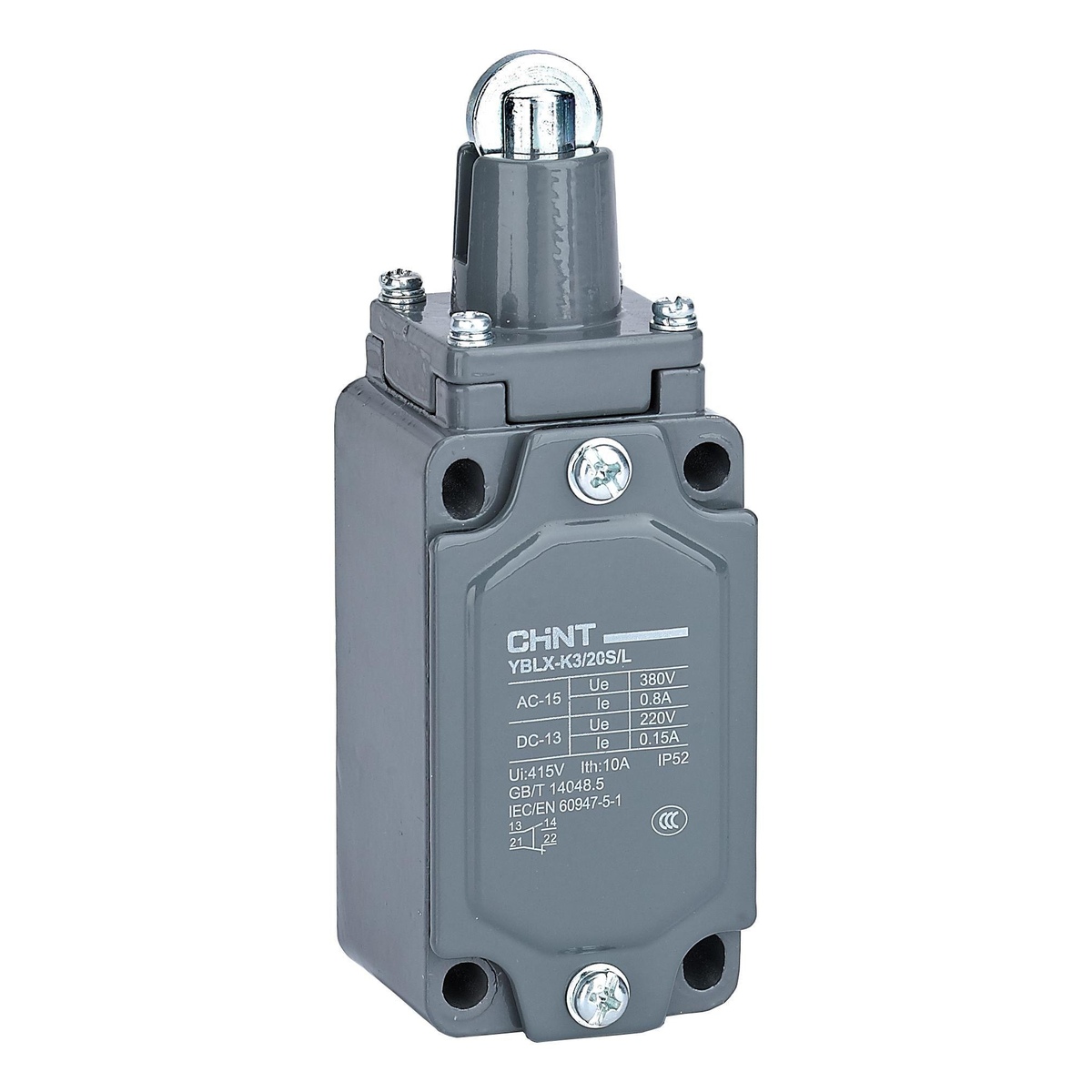

CHINT YBLX-K3 Travel Switch

Travel switch for travel control, direction change, speed change and procedure control in industrial movement mechanisms.

Model
Add to Enquiry
SKU: YBLX-K3 Categories: Electrical Accessories, Others
  • Description
  • Catalog
Description

CHINT · Travel switch

Product overview

The CHINT YBLX-K3 travel switch detects the position and travel of moving mechanisms in machine-tool and industrial control circuits. Select the complete manufacturer model for the required actuator and mounting construction.

Technical selection summary

Manufacturer modelsYBLX-K3/20S/Z / YBLX-K3/20S/L / YBLX-K3/20S/B / YBLX-K3/20S/T / YBLX-K3/20S/D / YBLX-K3/20S/J / YBLX-K3/20S/H1 / YBLX-K3/20S/H2 / YBLX-K3/20S/H3 / YBLX-K3/20S/W / YBLX-K3/20H/Z / YBLX-K3/20H/L / YBLX-K3/20H/B / YBLX-K3/20H/T / YBLX-K3/20H/D / YBLX-K3/20H/J / YBLX-K3/20H/H1 / YBLX-K3/20H/H2 / YBLX-K3/20H/H3 / YBLX-K3/20H/W
Actuator / construction20S: vertical housing; 20H: horizontal housing. Z/L: plunger/roller plunger; B/T: fixed/adjustable roller arm; D/J: flexible/adjustable metal rod; H1/H2/H3: cross actuator orientations; W: universal
Contacts1NO + 1NC; verify the terminal diagram for the exact construction
Switching dutyAC-15: 0.8 A at AC 380 V; DC-13: 0.15 A at DC 220 V
Reference conditionsUi 415 V; Uimp 2.5 kV. Shell and actuator codes form the complete manufacturer model
Protection / operationIP52; maximum operating frequency 20 operations/min
Ambient / installation−5 to +40 °C; altitude ≤2000 m; install without significant shaking or shock vibration
StandardIEC 60947-5-1 / GB/T 14048.5

Match the actuator direction, operating force, pretravel, total travel and mounting drawing to the exact model. Avoid excessive travel, prolonged depressed operation and excessive impact speed. These switches control auxiliary circuits; the stated AC-15/DC-13 current is not a motor power rating. Very light loads require contact-reliability assessment.

Typical applications

  • Travel and position control of industrial moving mechanisms
  • Machine-tool direction, speed and sequence control through a suitable control circuit

Product reference images and drawings

Match the exact model, construction and supplied revision. Family reference pages can show other ratings or versions.

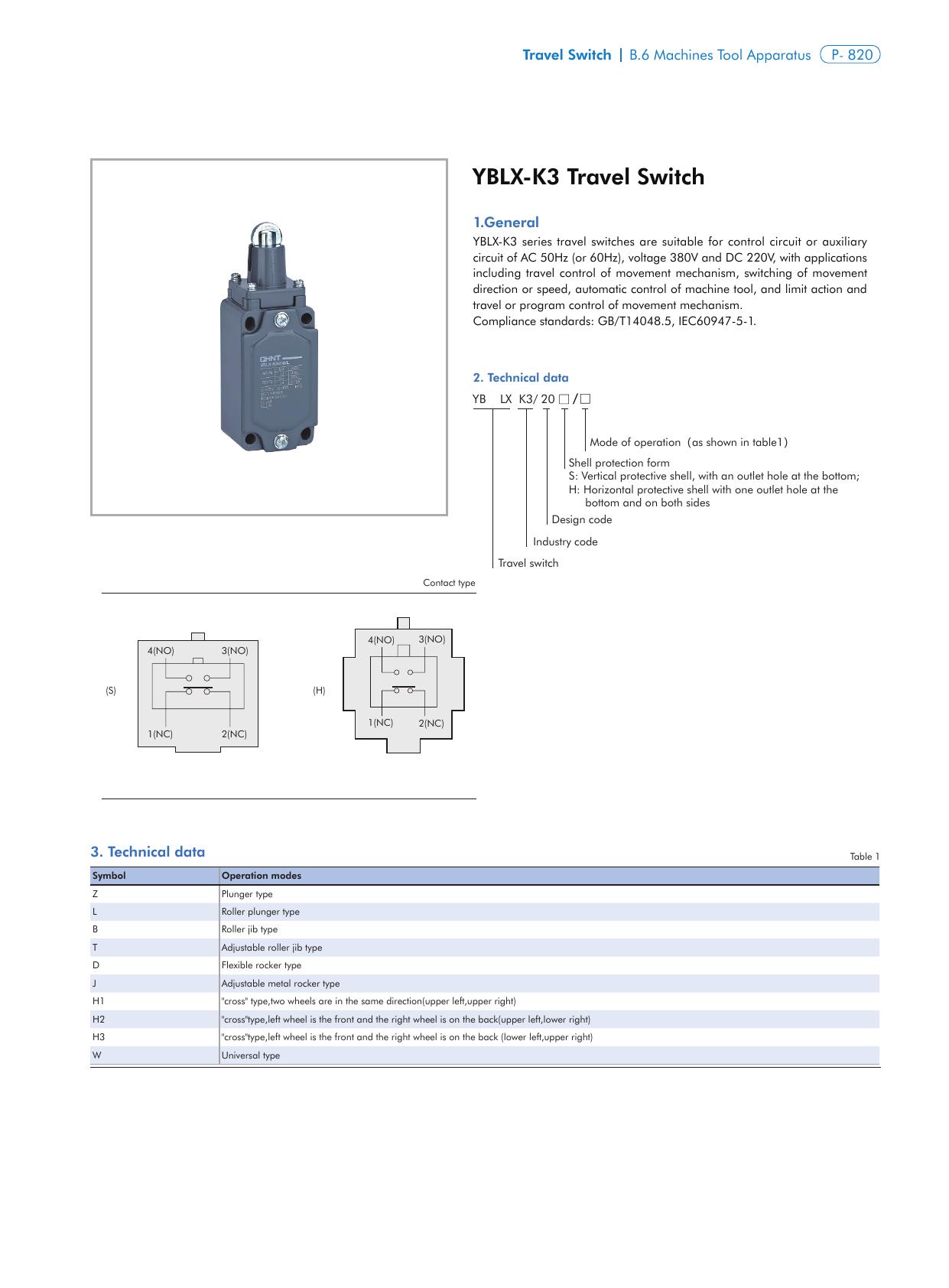

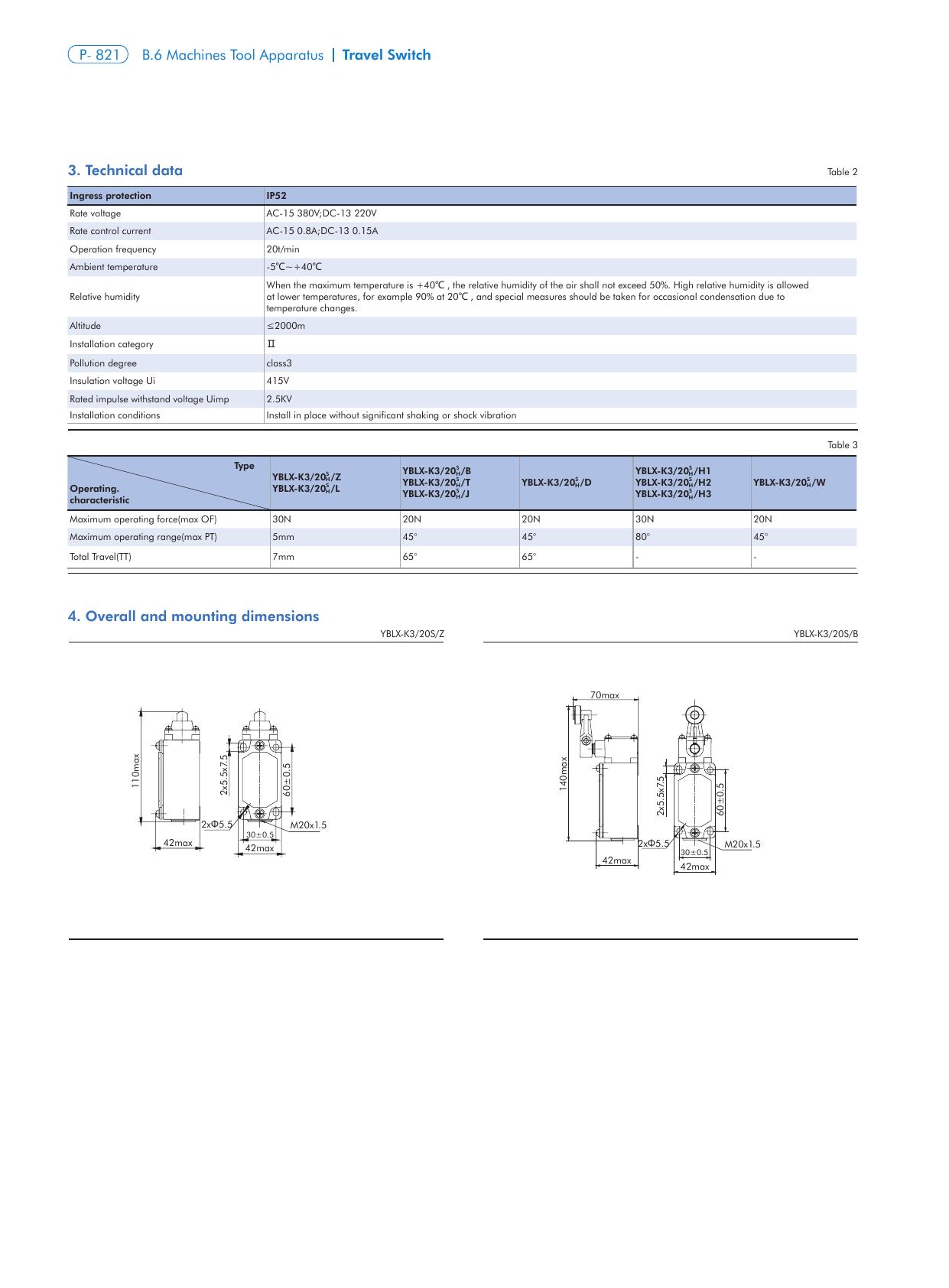

YBLX-K3 technical reference 1YBLX-K3 technical reference 2
Catalog
NameSizeRelease timeOperate

Related products
