CHINT JQX-13F Power Relay

Name: CHINT JQX-13F Power Relay
Brand: CHINT
SKU: JQX-13F

General-purpose power relay for switching, control and interface functions in industrial and electrical equipment.

Coil Voltage

Contact Form

Description

Product Overview

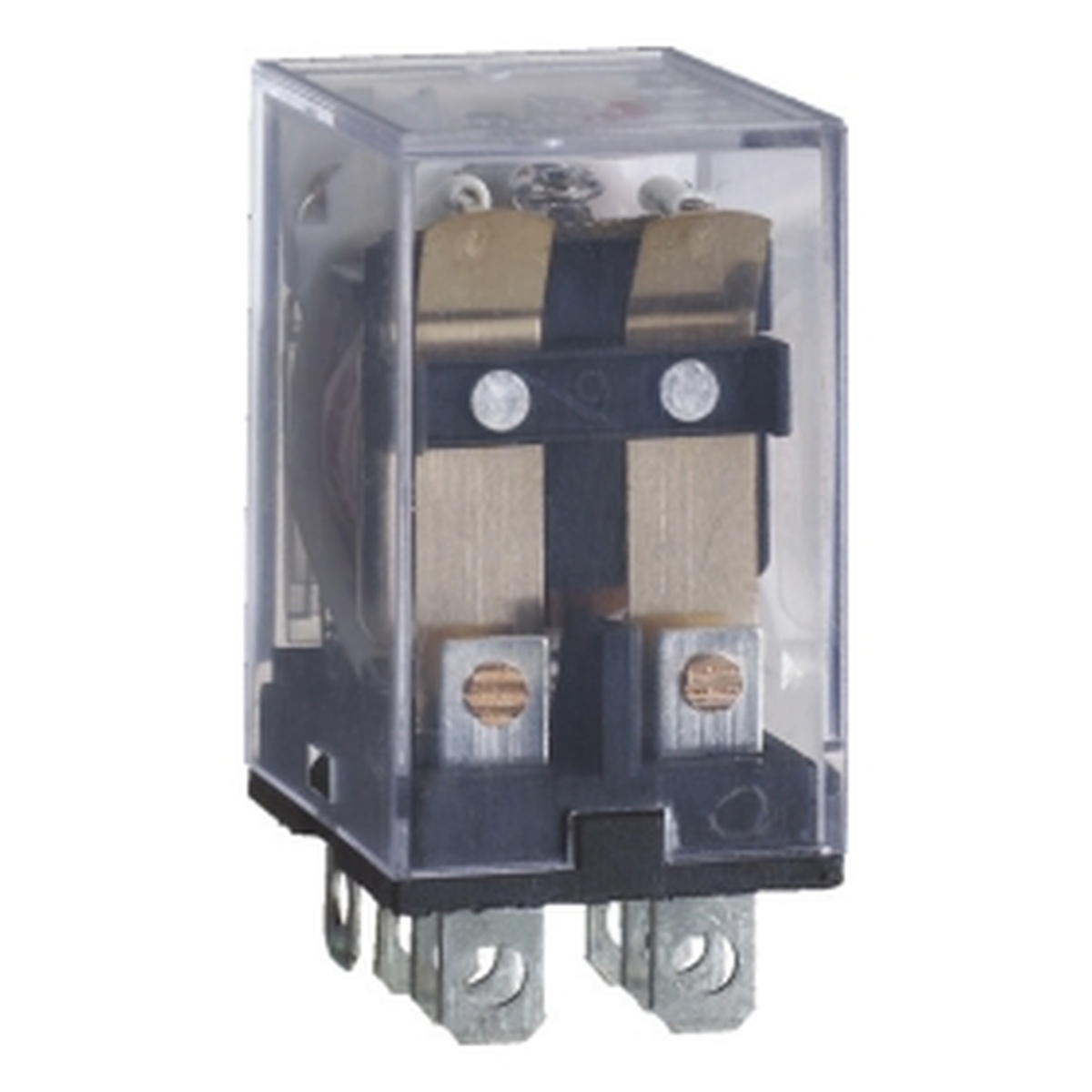

The CHINT JQX-13F Power Relay is a general-purpose relay designed for switching and interface duties in electrical equipment and industrial control systems.

Main Features

General-purpose power relay
Reliable switching contacts
Suitable for interface and control circuits
Compact relay structure
Designed for industrial electrical equipment

Technical Specifications

Parameter	Value
Product Type	Power Relay
Application	Switching and interface control
Function	General-purpose relay control
Mounting	Relay socket or PCB depending on version
Use Case	Industrial and electrical equipment
Contact Duty	Control and switching

Technical and Application Notes

The CHINT JQX-13F Power Relay is a general-purpose relay designed for switching and interface duties in electrical equipment and industrial control systems. The design is suitable for reliable industrial control applications requiring stable switching performance.

Typical Applications

Control cabinets
Electrical equipment
Signal interface circuits
General switching applications

Ordering Support

Please confirm model variant, actuator structure, contact arrangement and quantity before ordering.

Product Catalog

Additional information

Coil Voltage	AC 24V, AC 110V, AC 220V, AC 380V, DC 12V, DC 24V, DC 48V, DC 110V, DC 220V
Contact Form	1CO (SPDT), 2CO (DPDT), 3CO (3PDT), 4CO (4PDT)

Technical Datasheet & Downloads

📄 Technical Documentation & Product Specifications

Download official engineering datasheets, certified test standards (IEC / UL / CE), wiring diagrams, and dimensional drawings for CHINT JQX-13F Power Relay.

📥

Official Technical Datasheet (PDF) Complete electrical ratings, tripping characteristics, dimensions, and compliance specifications.

📐

2D/3D CAD & Dimensional Drawings STEP, DXF, and PDF CAD drawing files for panel builders and switchgear designers.
