CHINT NP6 16mm Flat Pushbutton, 5A, Momentary/Latching

Current5A edition. Main photo: legacy3A series illustration.

CHINT NP6 flat pushbuttons provide momentary or latching control with non-illuminated or LED heads. Select the linked contact/head/action and colour/lamp-voltage configuration.

Model
Thermal Current (Ith)
Contacts / Head / Action
Colour / LED Voltage
Mounting Diameter
Add to Enquiry
SKU: NP6 Categories: Electrical Accessories, Others
  • Description
  • Catalog
Description

CHINT · NP6 16mm Flat Pushbutton, 5A, Momentary/Latching

Product overview

CHINT NP6 flat pushbuttons provide momentary or latching control with non-illuminated or LED heads. Select the linked contact/head/action and colour/lamp-voltage configuration.

Technical selection summary

Confirmed editionUse the November2025 manufacturer manual and current5A thermal-current version,as confirmed by the supplier
Thermal current / contact dutyIth5A;AC-15:220V/0.5A,110V/0.7A;DC-13:220V/0.1A,24V/0.7A
Contacts11:1NO+1NC;22:2NO+2NC
Flat actuatorsB:momentary unlit;BS:latching unlit;D:momentary LED;DS:latching LED
Head shapesY:round;F:square;J:rectangular
LED supplyAC/DC6,12,24,36,48,110,220V in the current manual;only exact recorded colour/voltage/base combinations are offered
Mounting / protection16mm opening;25mm minimum centre spacing;IP65 front
Insulation / impulseUi250V;Uimp2.5kV

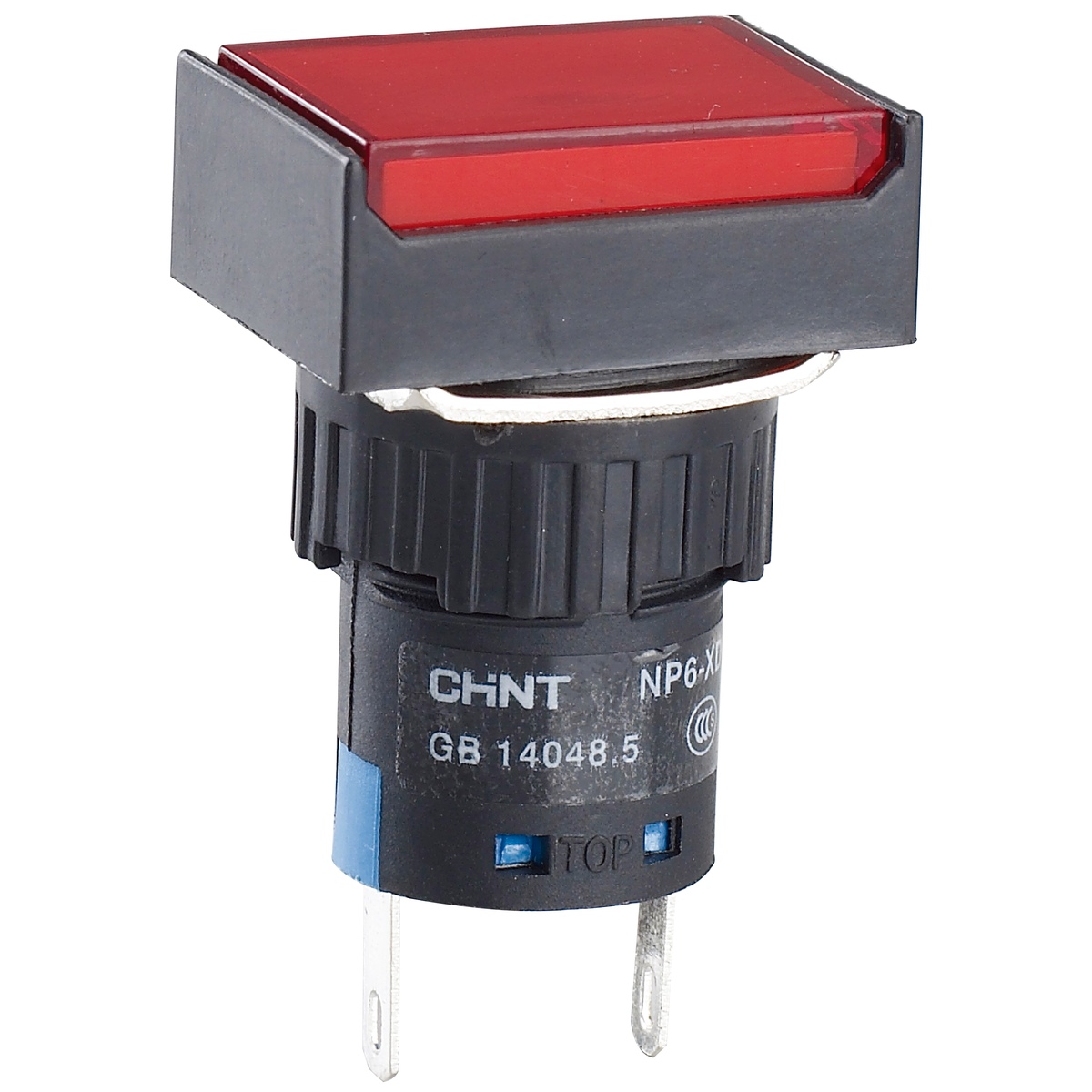

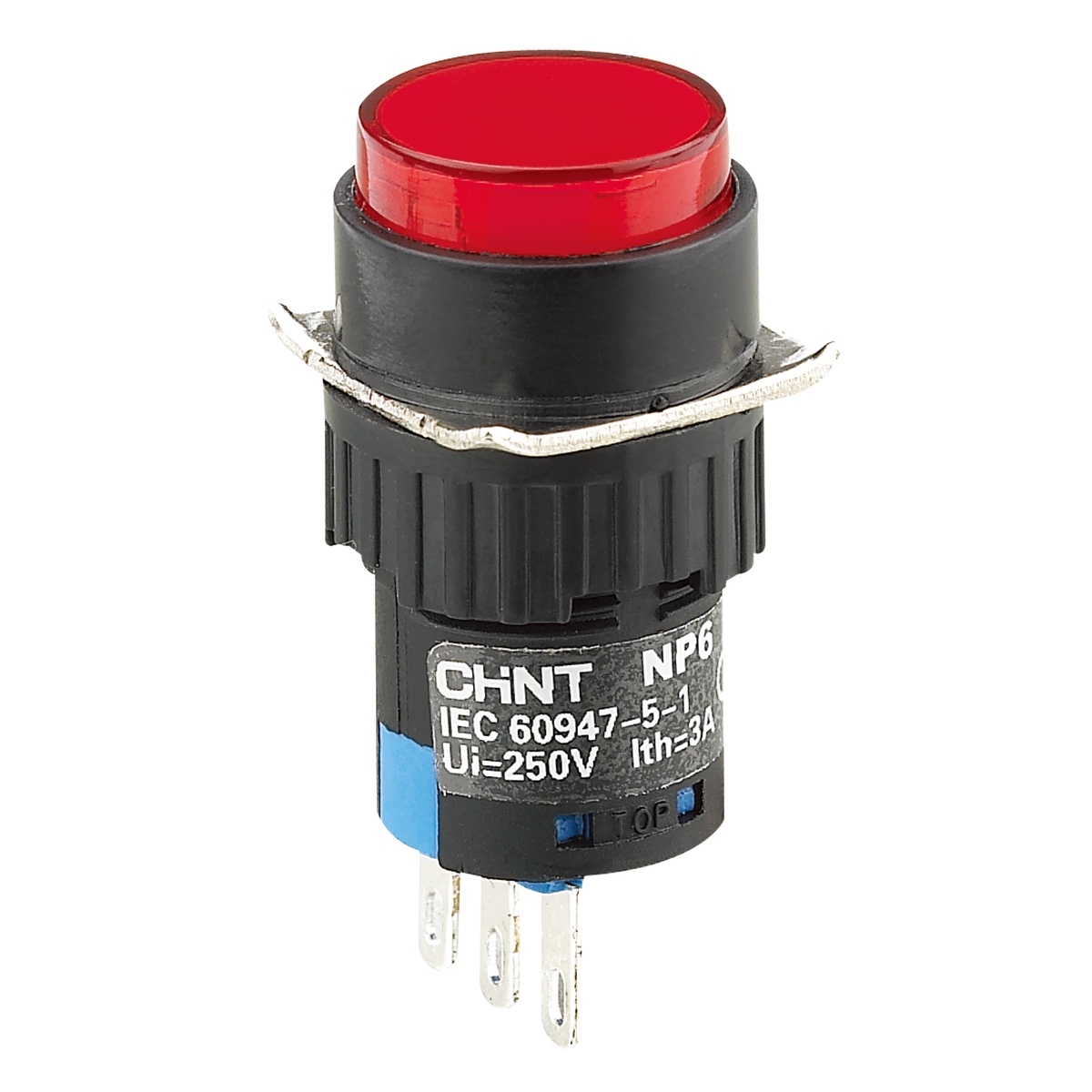

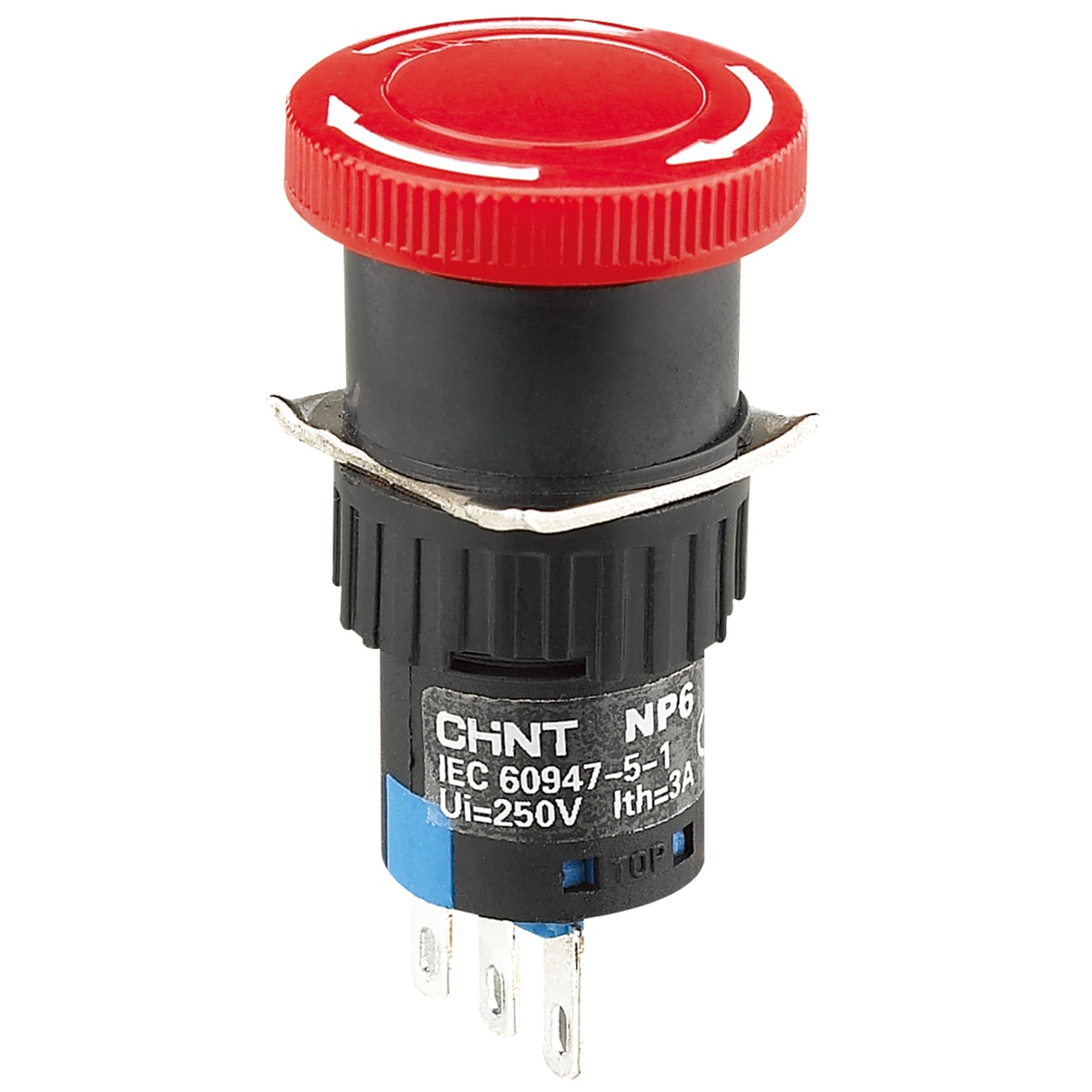

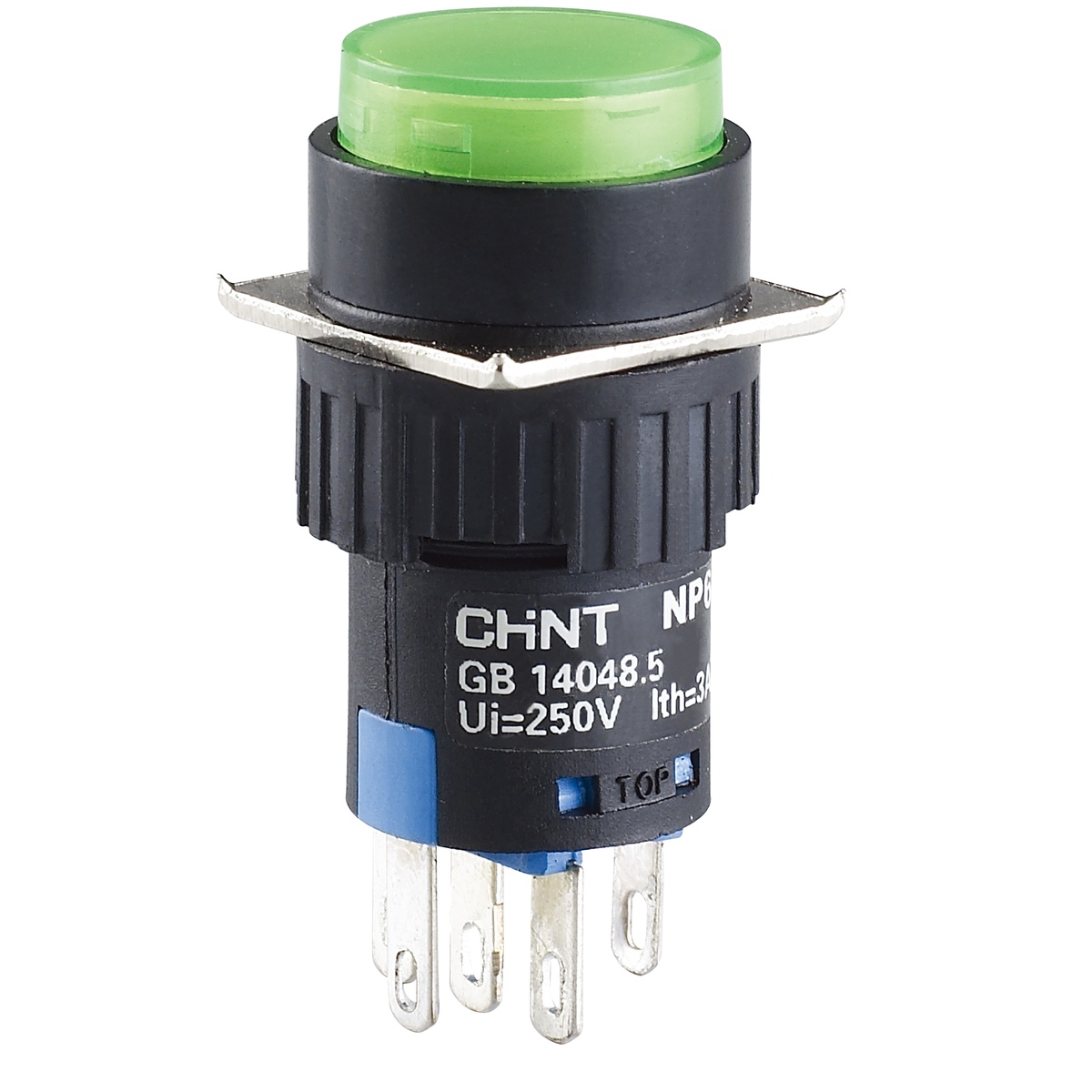

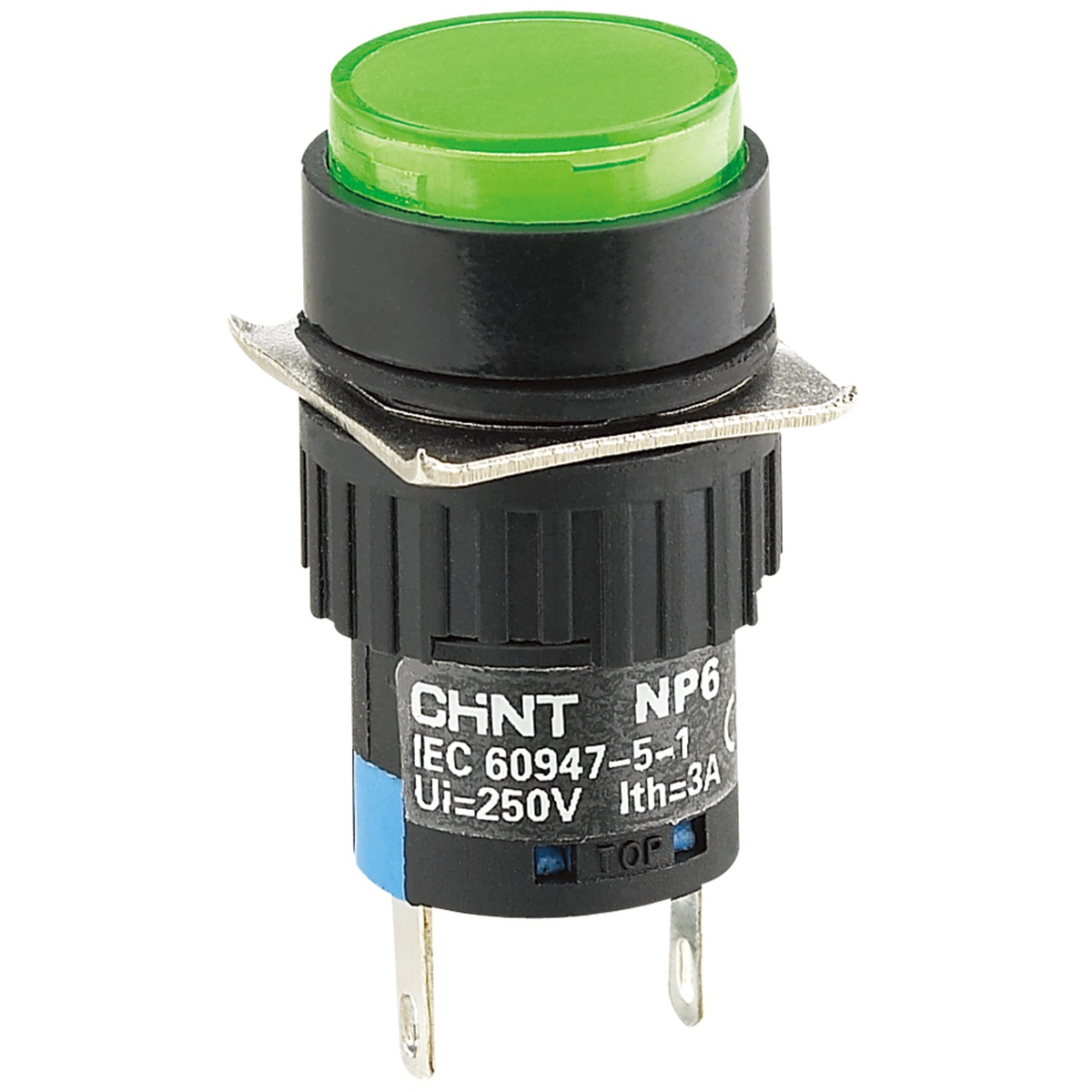

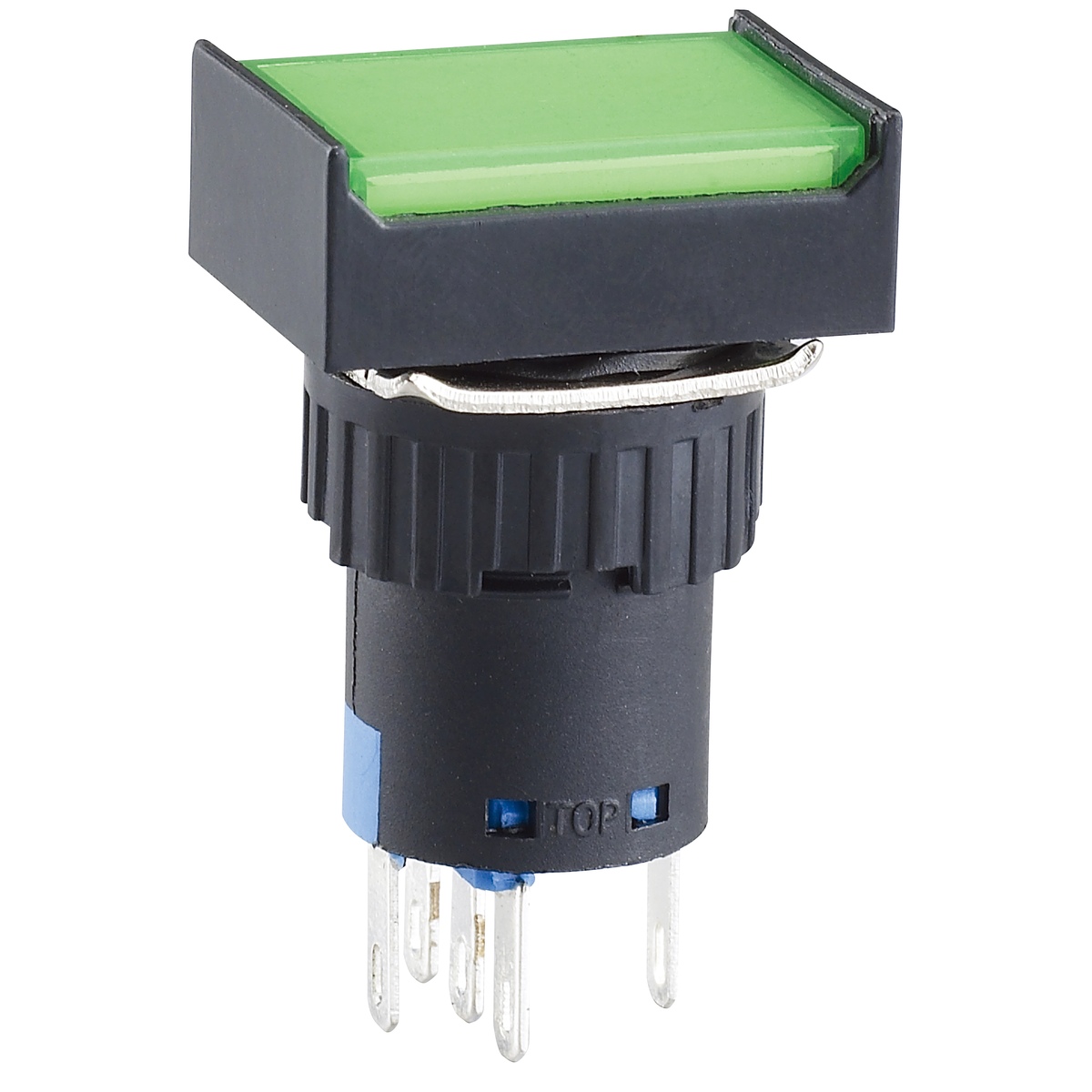

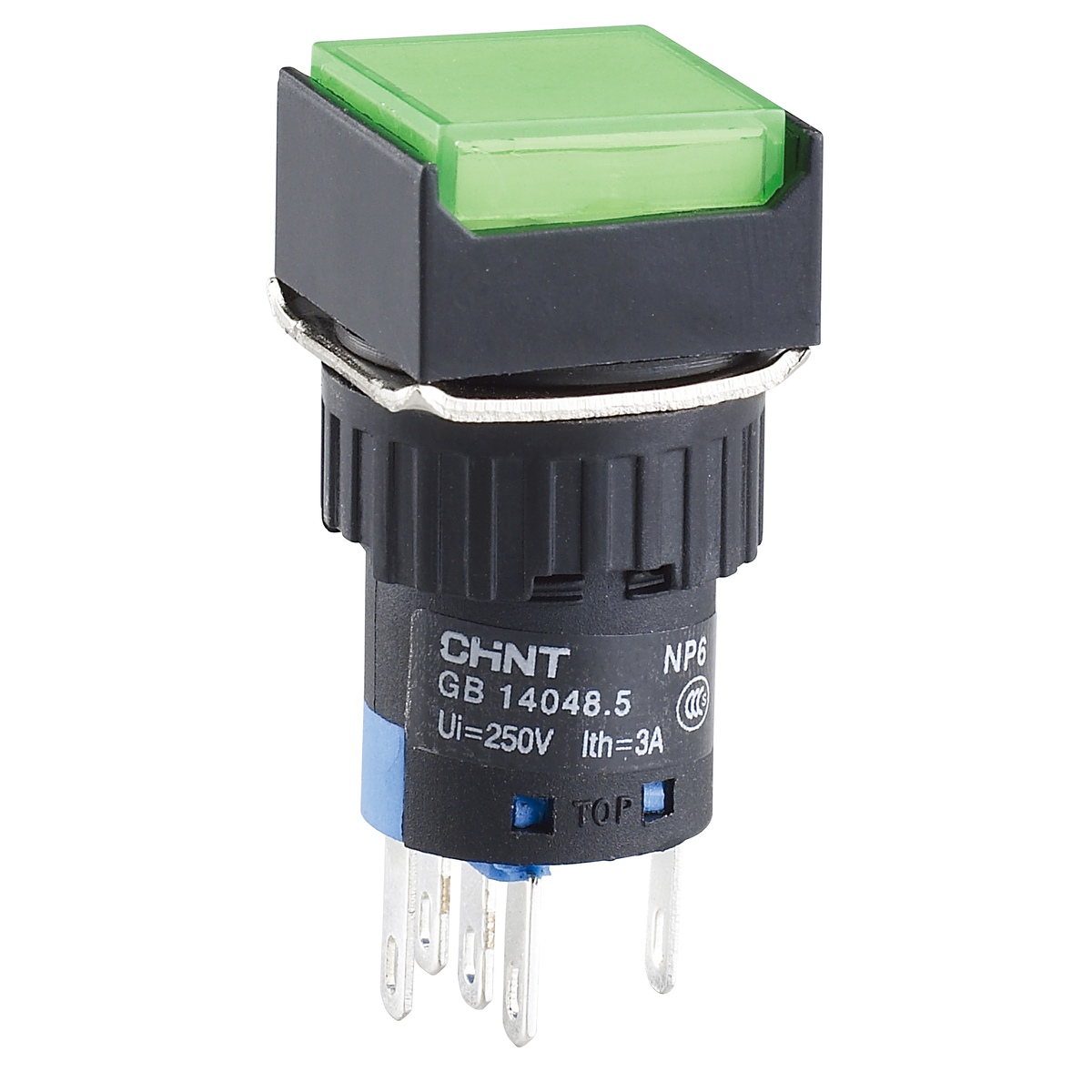

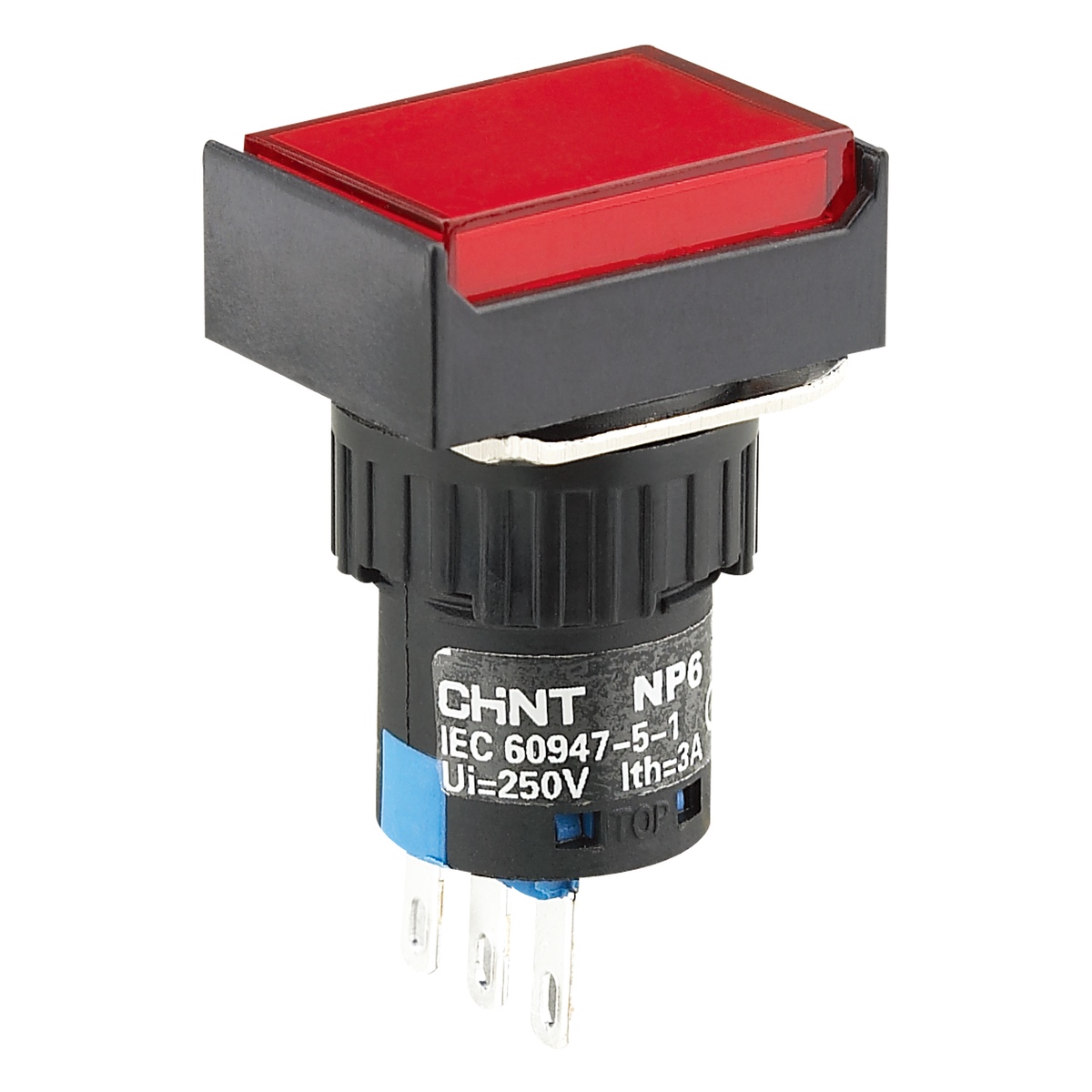

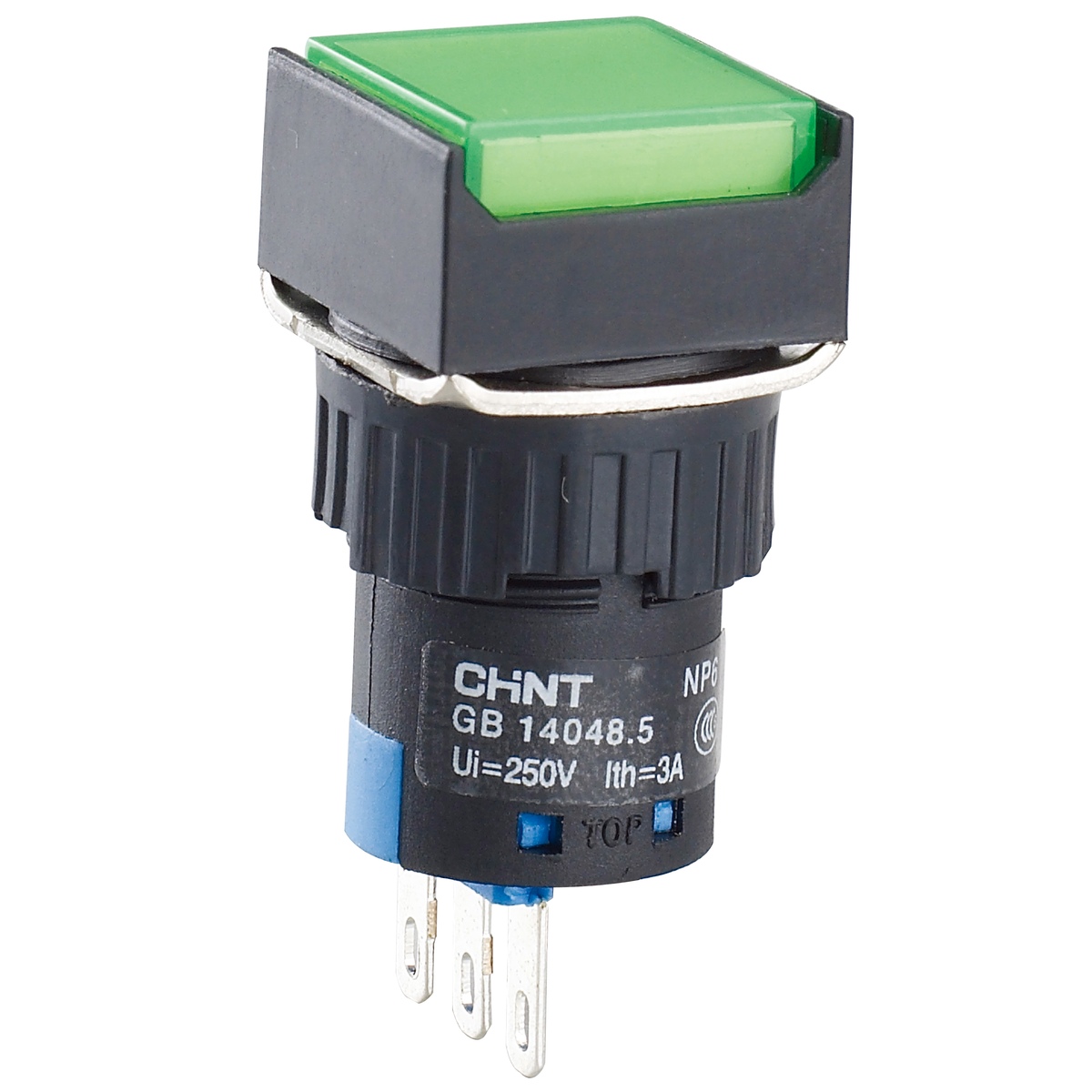

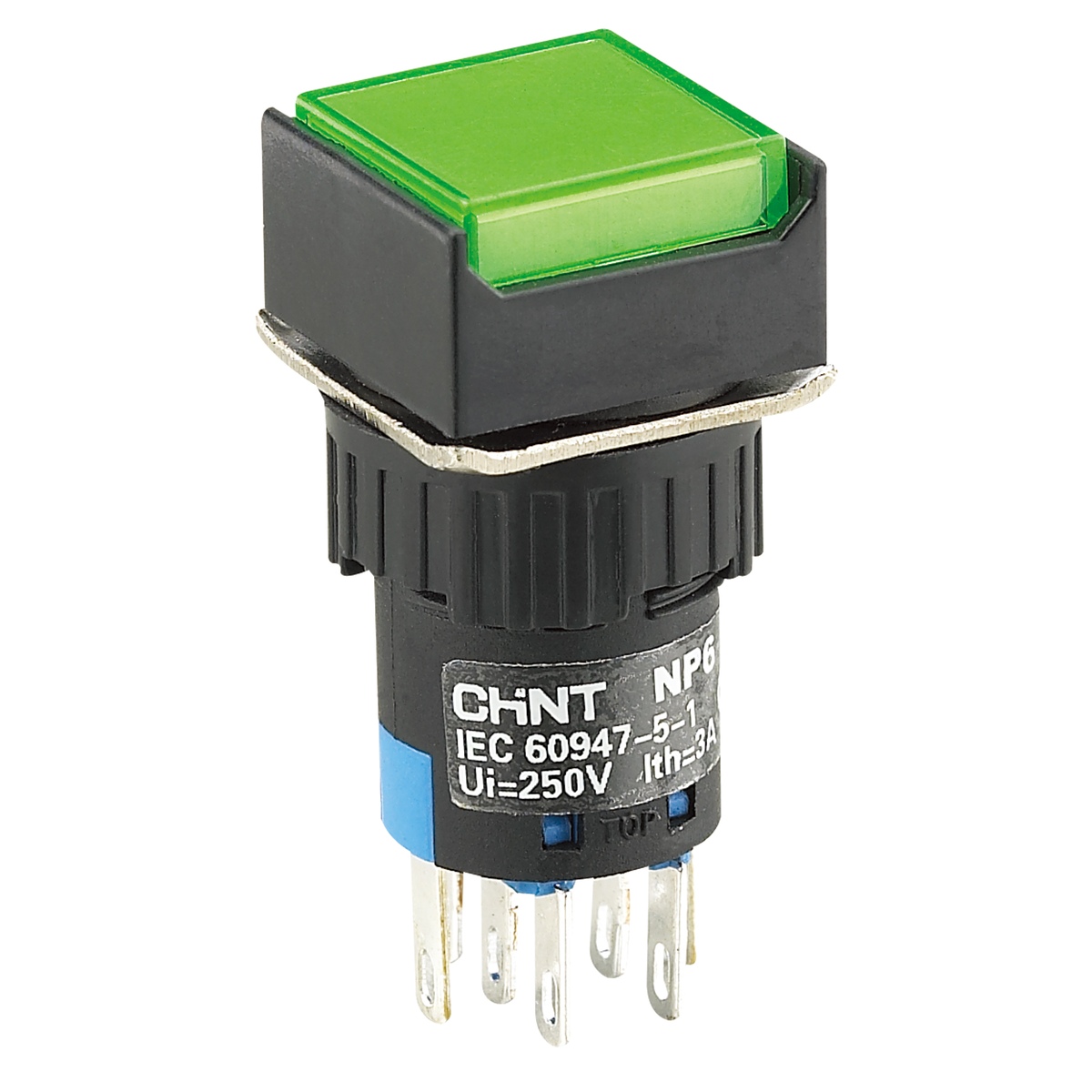

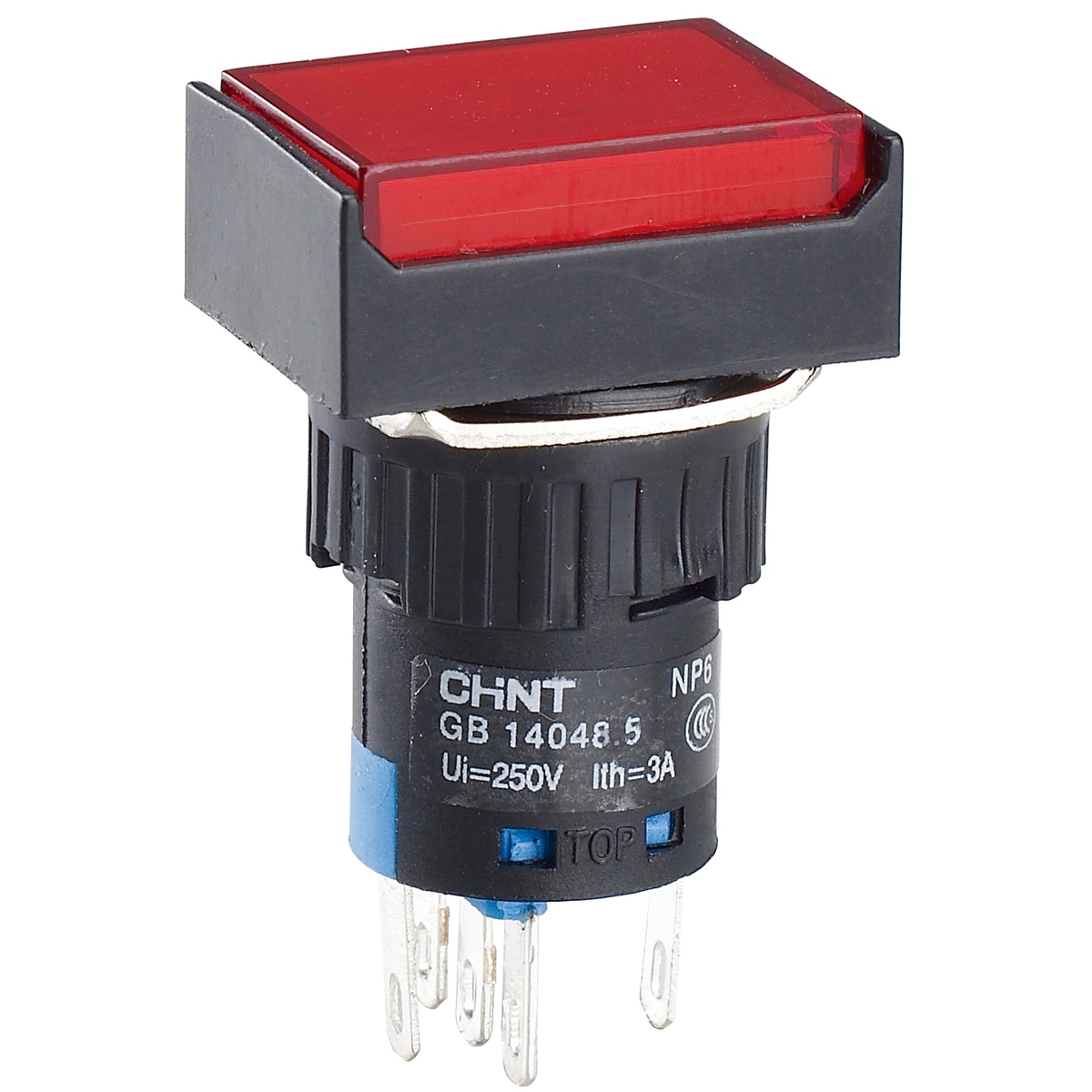

PhotographRetained main photo is a legacy3A nameplate series illustration. The offered specification is the supplier-confirmed current5A edition
Selection scope300 exact recorded flat-head stock configurations;not a free combination of every colour,voltage and actuator

The legacy photo is not the rating authority for the confirmed current edition. Contact thermal current is different from AC-15/DC-13 switching current. Lamp voltage applies only to LED heads;unlit heads have no lamp supply. Mushroom,key and selector constructions require their own exact model.

Typical applications

  • CHINT NP6 flat pushbuttons provide momentary or latching control with non-illuminated or LED heads.

Product reference images and drawings

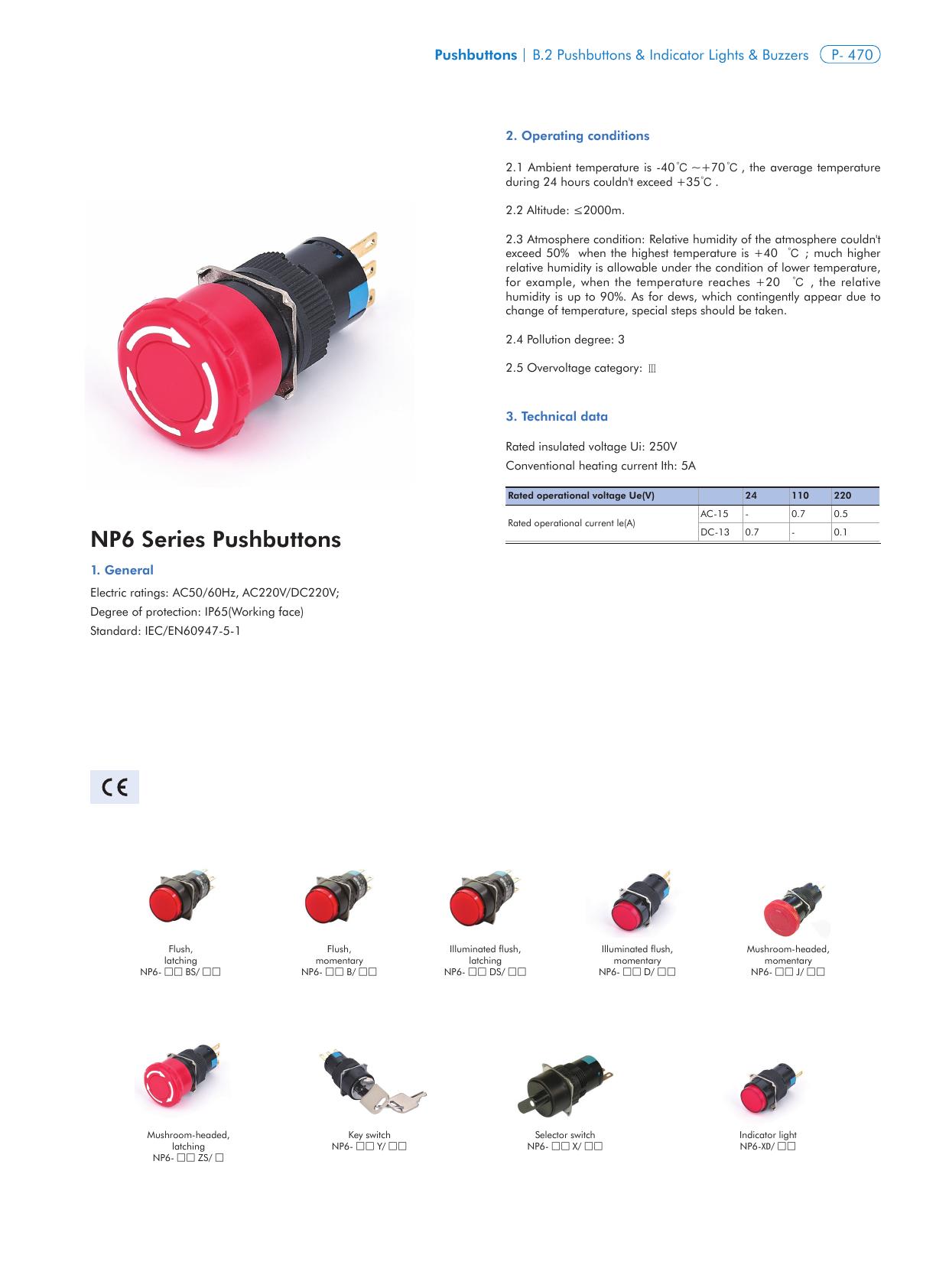

NP6 Flat Pushbutton retained manufacturer reference page 1NP6 Flat Pushbutton retained manufacturer reference page 2NP6 Flat Pushbutton retained manufacturer reference page 3
Catalog
NameSizeRelease timeOperate
Chint NP6 16mm Flat Pushbutton.pdf721.70 KB2026-10-27Download
