CHINT NR8 Series Thermal Overload Relay

Thermal overload relay for motor overload and phase-failure protection in industrial control circuits.

Model
Current Setting Range
Add to Enquiry
SKU: NR8 Categories: Electrical Accessories, Others
  • Description
  • Catalog
Description

CHINT · Thermal overload relay

Product overview

The CHINT NR8 thermal overload relay provides overload and phase-failure protection for AC motors. Choose the manufacturer frame model and a documented adjustable current range that contains the motor nameplate current; a frame rating is not a universal current setting.

Technical selection summary

Manufacturer modelsNR8-16 / NR8-38 / NR8-100 / NR8-200 / NR8-630
Current range selectionSelect only a range allowed for the chosen frame in the controls above. The documented family spans 0.1–630 A across separate settings
NR8-16 settings0.1-0.14A, 0.14-0.2A, 0.18-0.25A, 0.22-0.32A, 0.28-0.4A, 0.35-0.5A, 0.45-0.63A, 0.55-0.8A, 0.7-1A, 0.9-1.25A, 1.1-1.6A, 1.4-2A, 1.8-2.5A, 2.2-3.2A, 2.8-4A, 3.5-5A, 4.5-6.3A, 5.5-8A, 7.5-10A, 9-13A, 12-16A
NR8-38 settings0.1-0.14A, 0.14-0.2A, 0.18-0.25A, 0.22-0.32A, 0.28-0.4A, 0.35-0.5A, 0.45-0.63A, 0.55-0.8A, 0.7-1A, 0.9-1.25A, 1.1-1.6A, 1.4-2A, 1.8-2.5A, 2.2-3.2A, 2.8-4A, 3.5-5A, 4.5-6.3A, 5.5-8A, 7.5-10A, 9-13A, 12-16A, 14-20A, 18-24A, 23-32A, 30-38A
NR8-100 settings23-32A, 30-40A, 37-50A, 48-65A, 55-70A, 63-80A, 80-93A, 80-100A
NR8-200 / NR8-630 settingsNR8-200: 80-160A, 100-200A; NR8-630: 125-250A, 200-400A, 315-630A
Protection / frequencyThree-phase bimetal; trip class 10A; temperature compensation; overload and phase failure; AC 50/60 Hz
Reset / mounting16/38/100: manual or automatic reset, plug-in contactor mounting; 200/630: manual reset, independent mounting
Auxiliary contacts1NO + 1NC, electrically separate; AC-15: 1.5 A at 380/400 V; DC-13: 0.2 A at 220 V
Electrical / environmental referenceUi 690 V; −5 to +40 °C, 24-hour average ≤35 °C; altitude ≤2000 m; IEC 60947-4-1

Match the exact contactor and relay mounting arrangement. The overload relay does not provide short-circuit interruption; coordinate it with the specified upstream protective device and wiring. Set current from the motor and installation data, and assess restart safety before selecting automatic reset. NR8 is the thermal series; NRE8 electronic relay specifications do not apply.

Typical applications

  • Overload and phase-failure protection in motor starter control assemblies
  • Replacement of a matched thermal relay with the correct frame and adjustable range

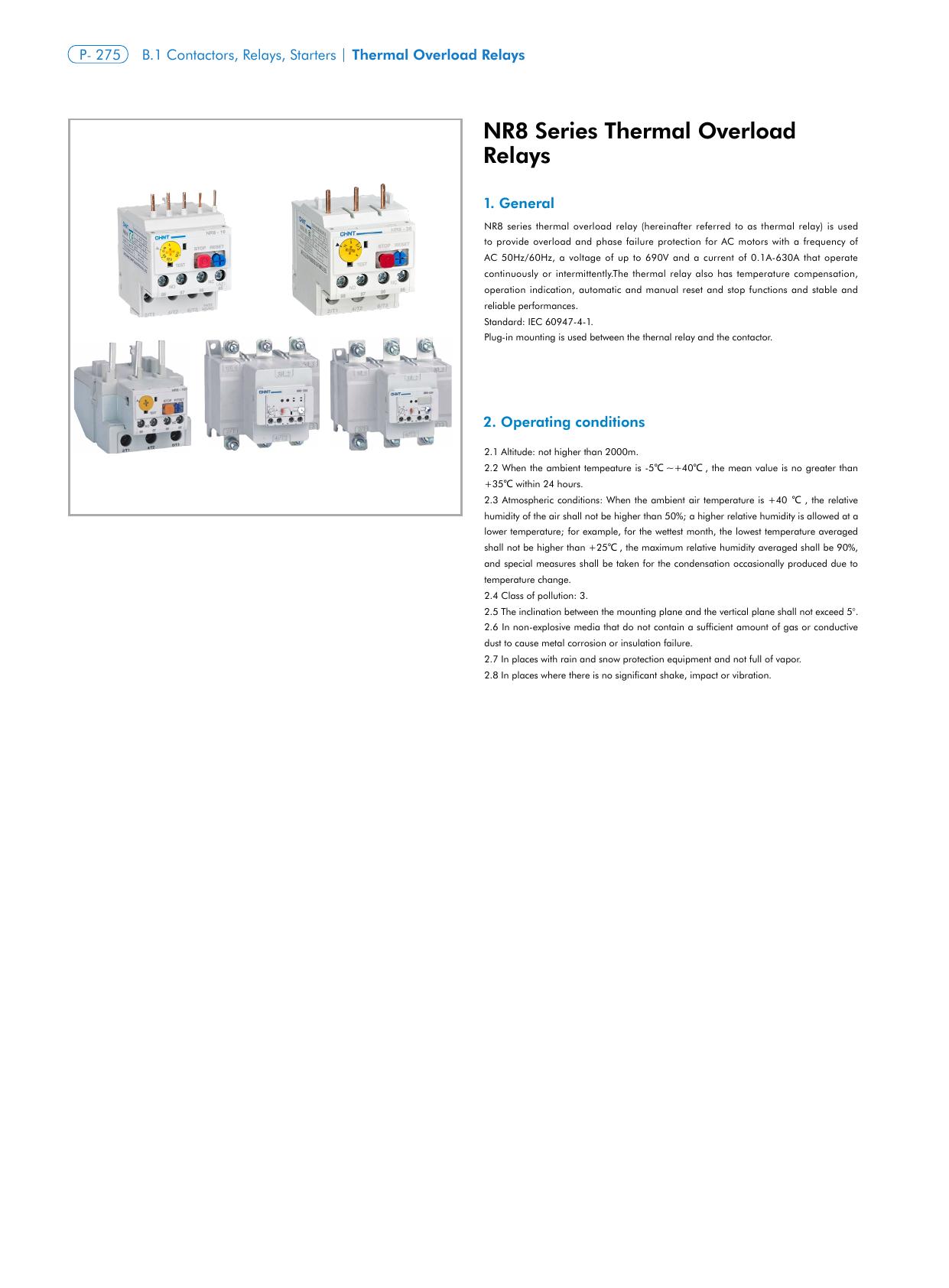

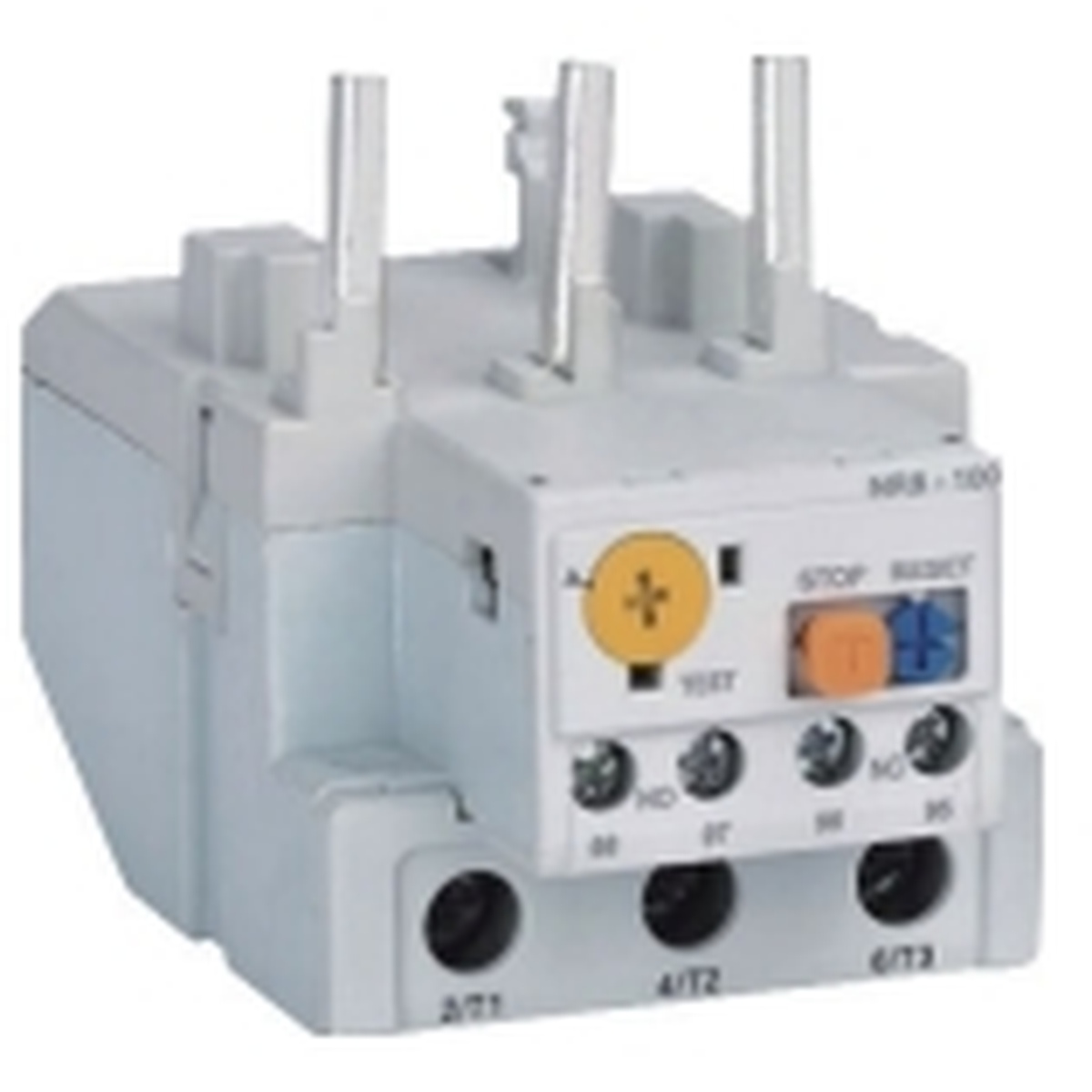

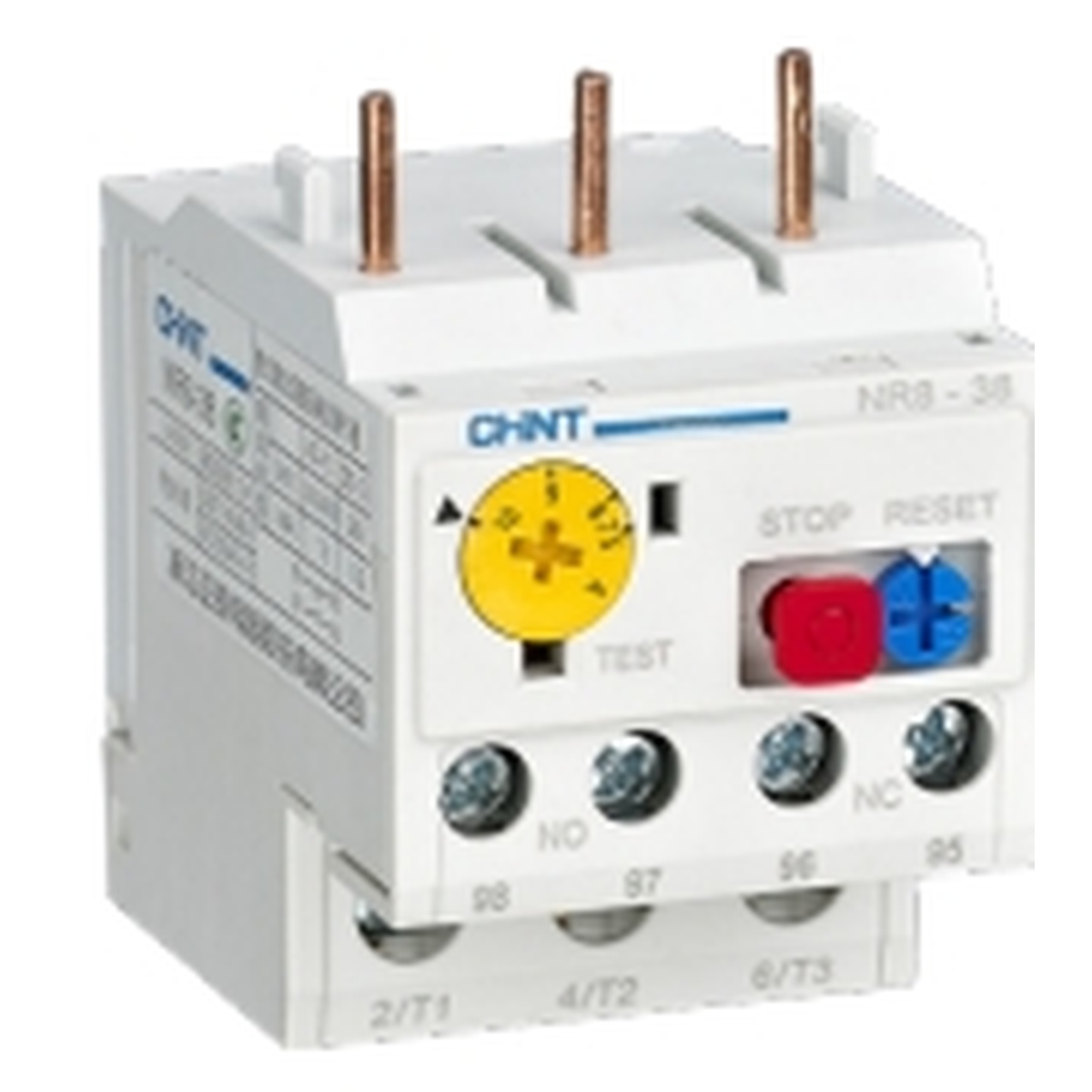

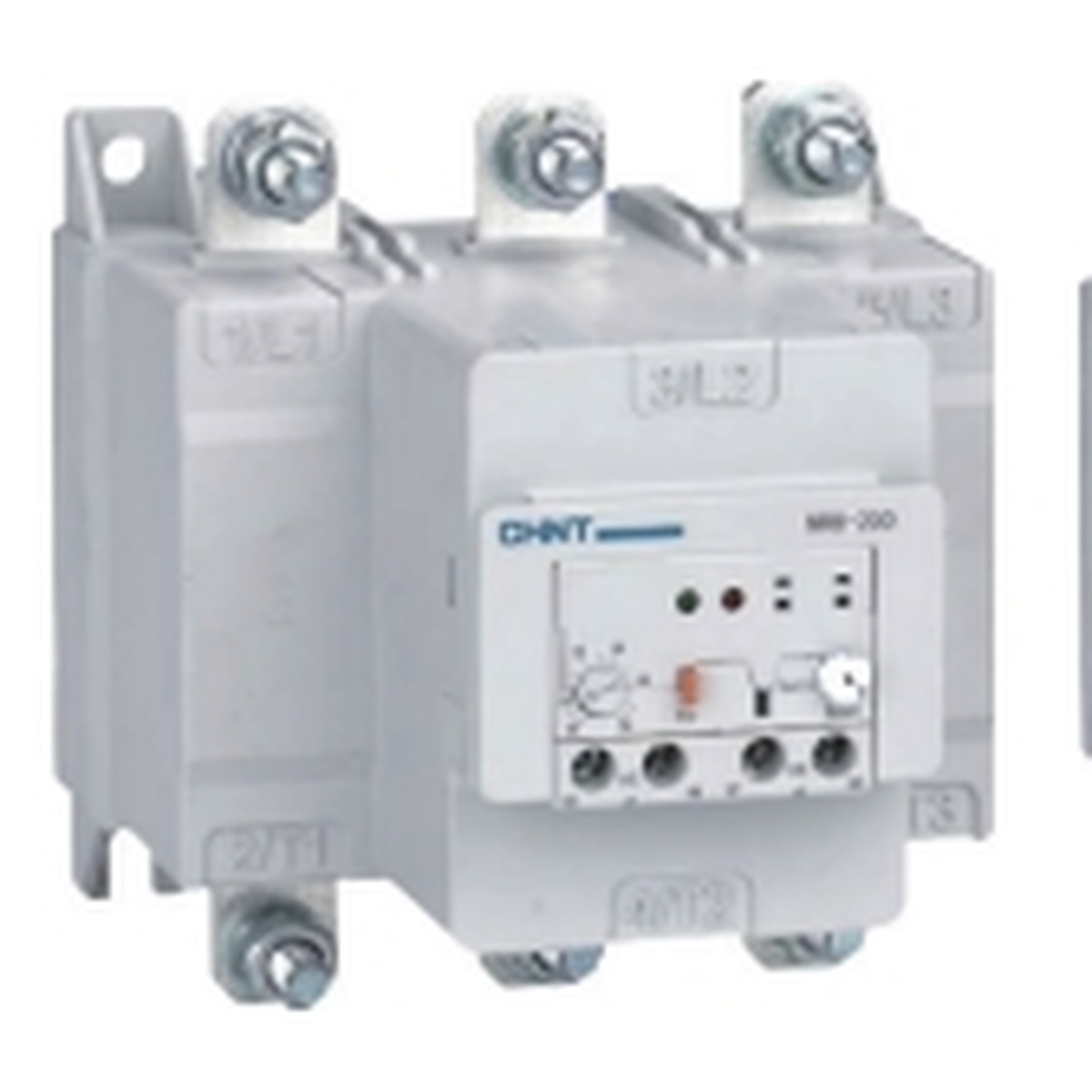

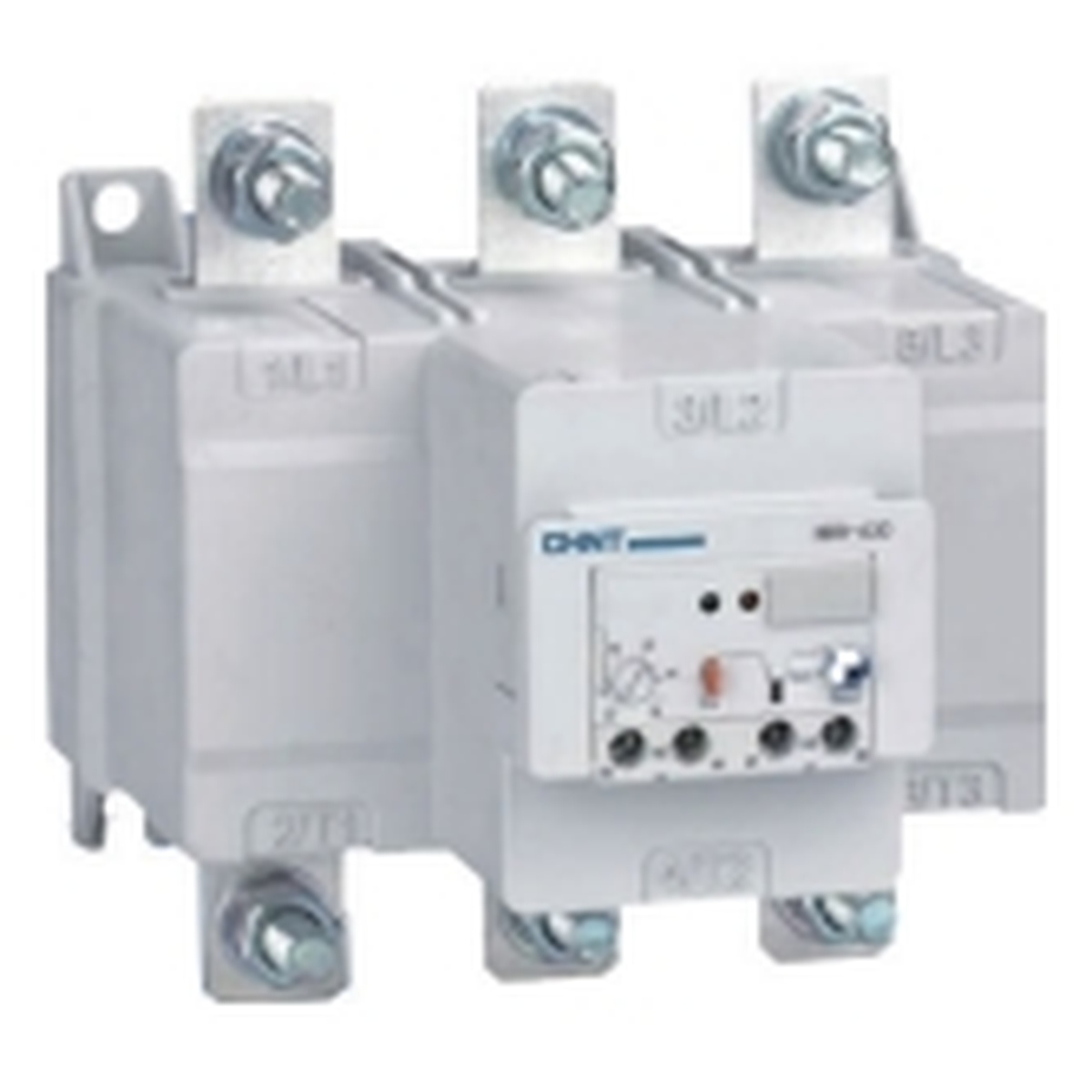

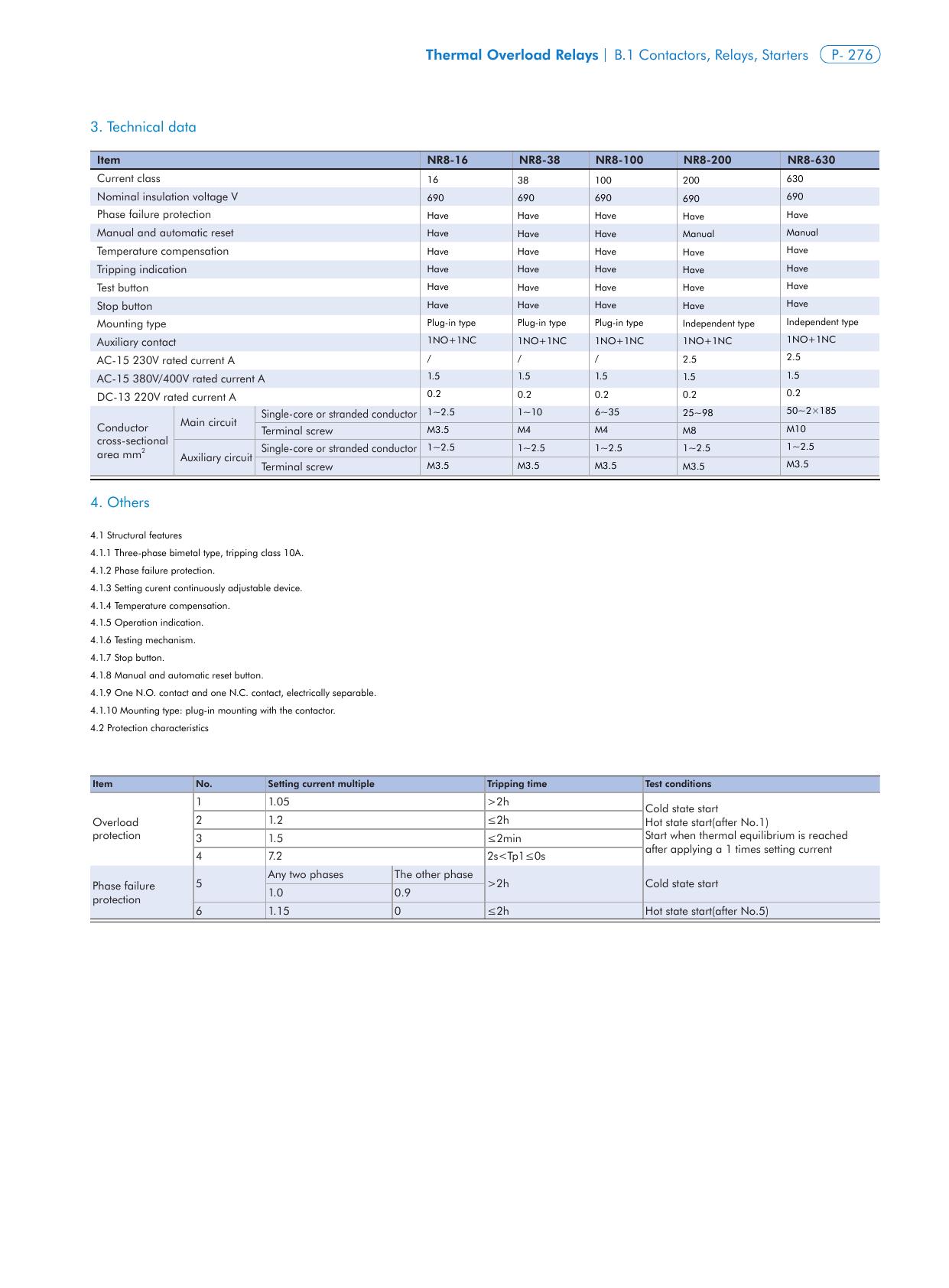

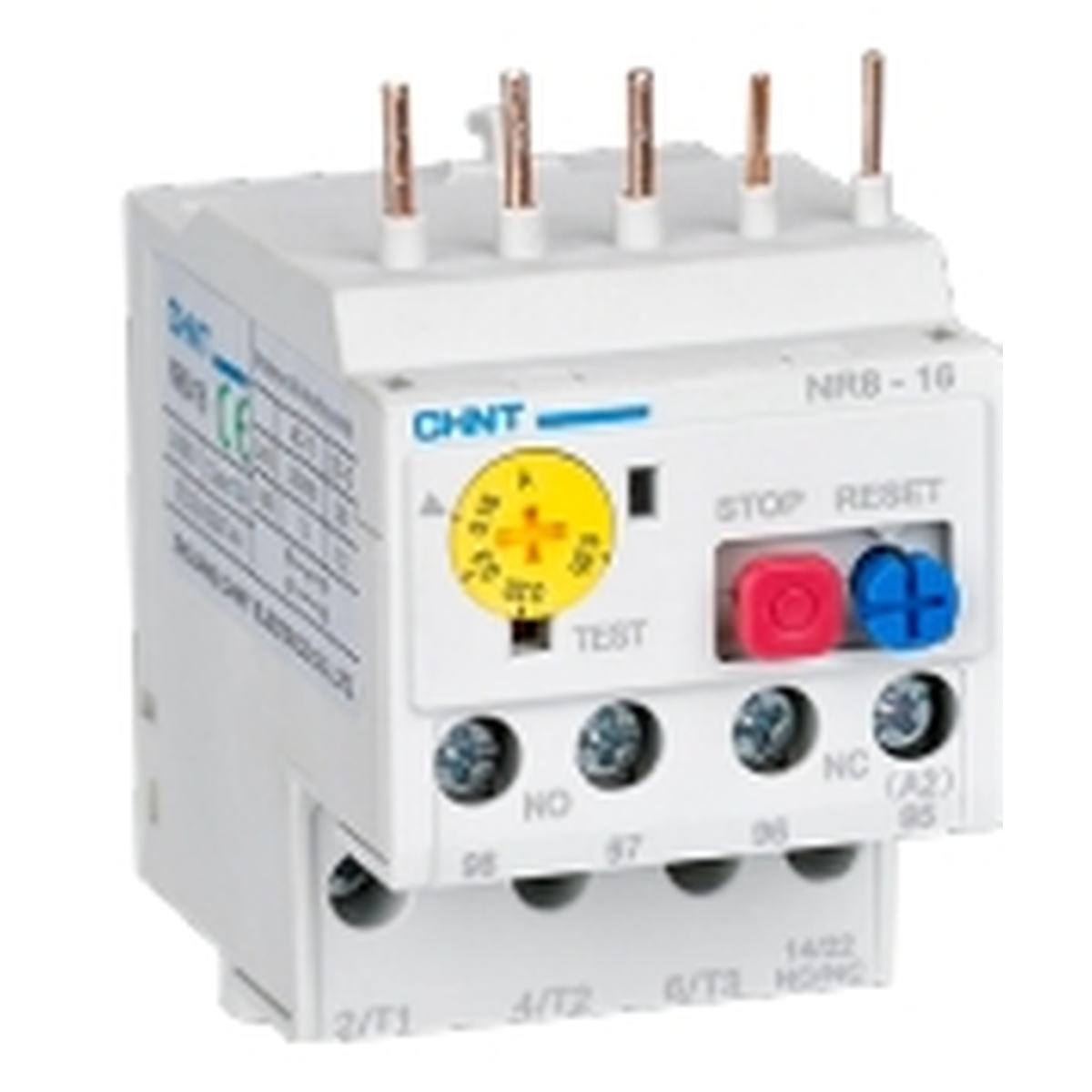

Product reference images and drawings

Match the exact model, construction and supplied revision. Family reference pages can show other ratings or versions.

NR8 technical reference 1NR8 technical reference 2
Catalog
NameSizeRelease timeOperate
