DELIXI · Self-resetting voltage protector
Product overview

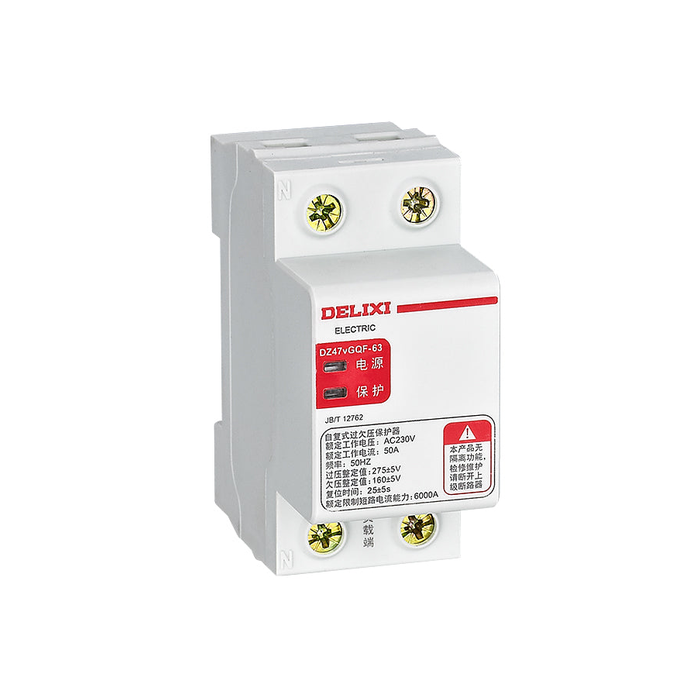

The DELIXI DZ47vGQF automatically disconnects and restores a circuit in response to the documented overvoltage and undervoltage conditions. The reference separates 1P+N and 3P+N versions and distinguishes top-incoming GQF from bottom-incoming GQR wiring.
Technical selection summary
| Brand and series | DELIXI DZ47vGQF |
|---|---|
| 1P+N voltage / current selections | 230 V AC; 20, 25, 32, 40, 50, 63 or 80 A |
| 3P+N voltage / current selections | 400 V AC; 20, 25, 32, 40, 50, 63, 80 or 100 A |
| Frequency | 50 Hz |
| Overvoltage trip / restoration, L–N | 275 ±5 V trip; restoration at ≤253 V |
| Overvoltage disconnection reference | 3–15 s at 275 V; 1–3 s at 300 V; 0.25–0.75 s at 350 V; 0.1–0.2 s at 400 V |
| Undervoltage trip / restoration, L–N | 160 ±5 V trip; restoration reference ≥195 V |
| Undervoltage disconnection / reset delay | 0.6–5 s undervoltage disconnection; 25 ±5 s self-reset delay |
| Conditional short-circuit current reference | 20–80 A versions: 6 kA; 100 A version: 4.5 kA |
| Mounting / protection | 35 mm DIN rail; body IP20, IP40 when installed in a distribution enclosure |
| Operating environment reference | −35°C to +70°C; altitude ≤2000 m |
| Reference standard | JB/T 12762-2015 |
The 100 A selection is listed for 3P+N only. Confirm GQF top-incoming wiring, the neutral/phase terminal arrangement and the exact current rating. GQR reverse-feed versions require their own complete code; do not reverse the feed direction by assumption.
Typical applications
- Voltage-supervision protection in matched single-phase distribution circuits
- Matched three-phase circuits using the documented 3P+N version
Specify your enquiry
For a focused quotation, include:
- Complete model, quantity and 1P+N or 3P+N arrangement
- System voltage, frequency and rated current
- Incoming-feed direction and neutral/phase terminal arrangement
- Required trip/restoration behavior and installation conditions
