Delixi CDLE6 CDLE6Y AC400V 250A 400A 630A 800A 50Hz 60Hz RCCB MCB Residual Current Operated Circuit Breaker

Name: Delixi CDLE6 CDLE6Y AC400V 250A 400A 630A 800A 50Hz 60Hz RCCB MCB Residual Current Operated Circuit Breaker
Brand: DELIXI
SKU: CDLE6

Description

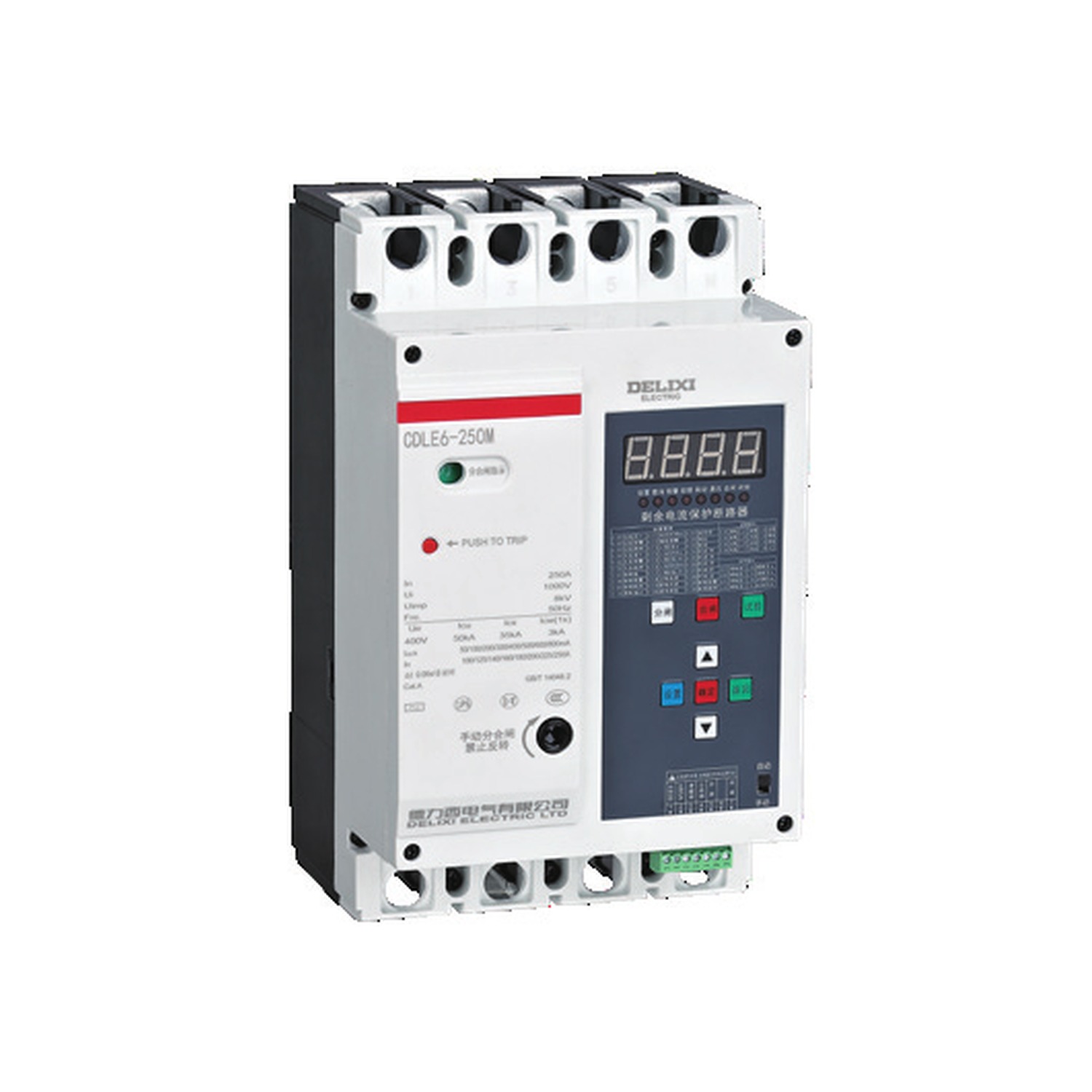

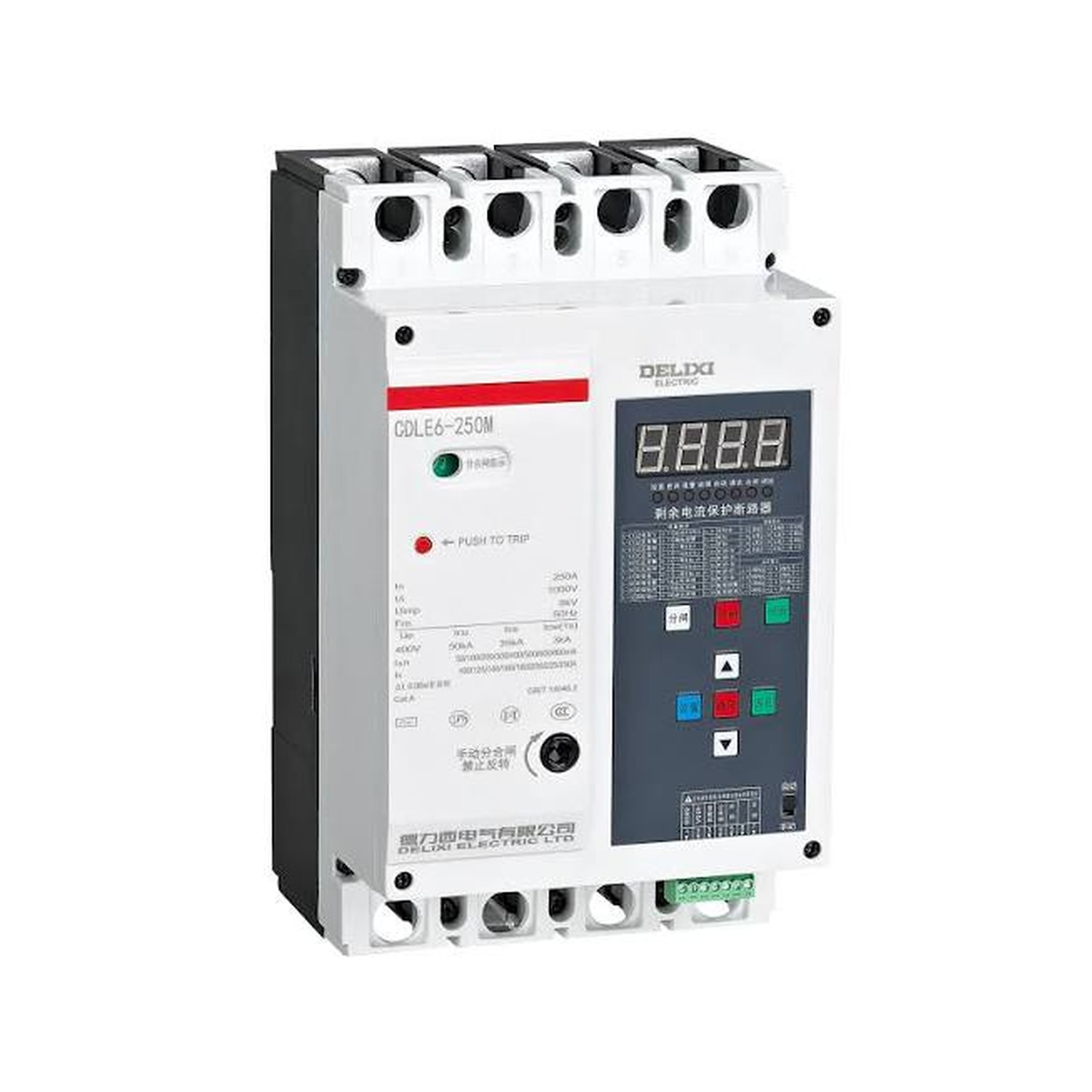

Delixi CDLE6 Residual Current Circuit Breaker

Integrated 3P+N electronic residual current protection with digital display and RS485 communication.

Product Overview

The Delixi CDLE6 residual current operated circuit breaker provides electronic protection for three-phase four-wire TT distribution networks operating at AC 400 V and 50 Hz. Available in 100 A to 800 A frame sizes, it features an electronic release with adjustable overload, short-time short circuit, and instantaneous protection settings. The breaker incorporates Type AC residual current protection with 20 to 60 s automatic reclosing for delayed versions, a digital display for real-time monitoring, and external RS485 communication supporting DL/T 645 or Modbus protocols.

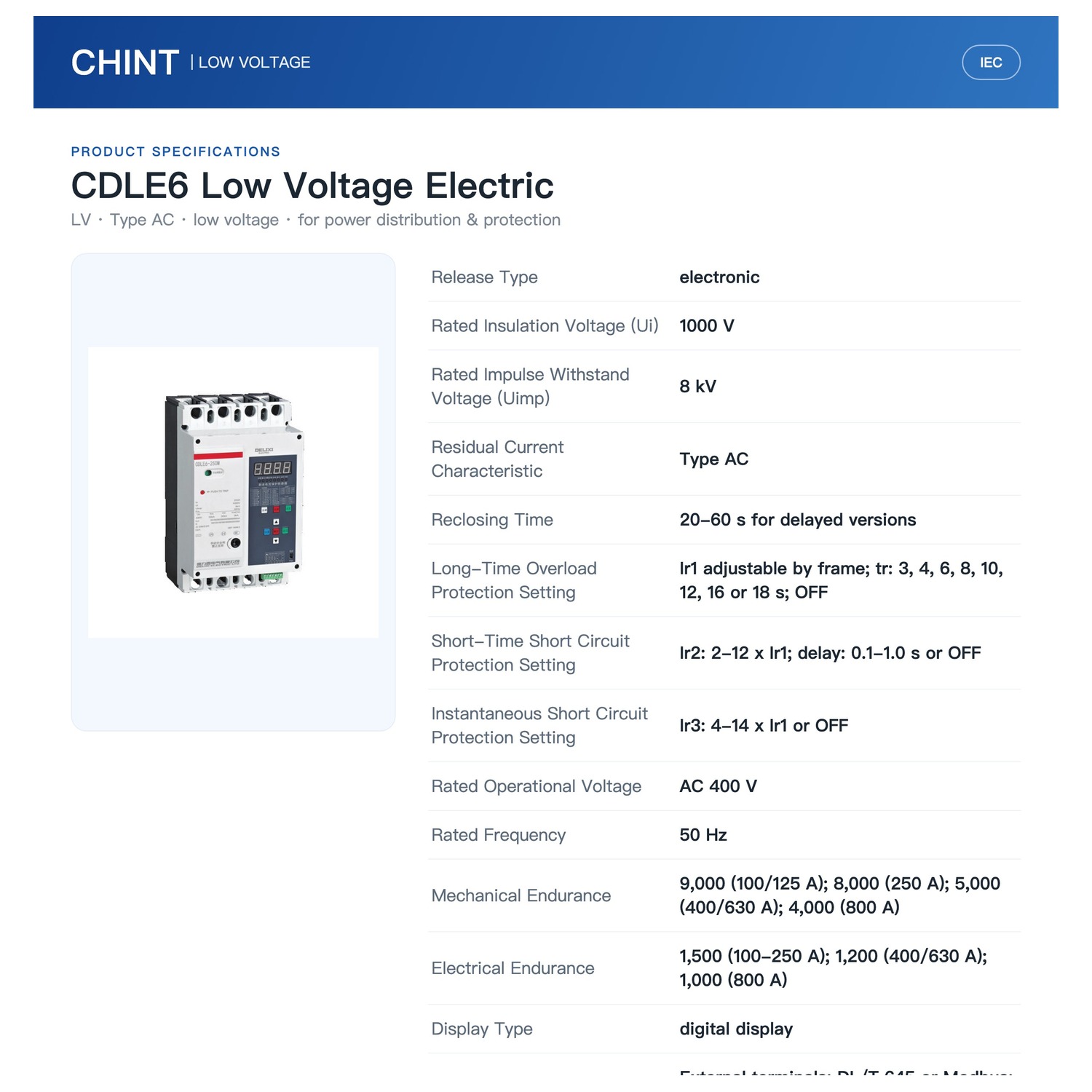

Technical Parameters

Residual Current Characteristic	Type AC
Reclosing Time	20-60 s for delayed versions
Long-Time Overload Protection Setting	Ir1 adjustable by frame; tr: 3, 4, 6, 8, 10, 12, 16 or 18 s; OFF
Short-Time Short Circuit Protection Setting	Ir2: 2-12 x Ir1; delay: 0.1-1.0 s or OFF
Instantaneous Short Circuit Protection Setting	Ir3: 4-14 x Ir1 or OFF
Rated Operational Voltage	AC 400 V
RS485 Communication	External terminals; DL/T 645 or Modbus; address 1-255; 600-38,400 bit/s
Model	CDLE6

Key Selling Points

✓ Integrated 3P+N configuration designed for AC 400 V and 50 Hz three-phase four-wire TT distribution networks.

✓ Electronic release providing adjustable overload Ir1, short-time short circuit Ir2, and instantaneous Ir3 protection settings.

✓ Type AC residual operating current protection with typical 30 mA non-delay setting and steps up to 1000 mA.

✓ Automatic reclosing feature with reclosing time of 20 to 60 s for delayed versions.

✓ Real-time digital display for parameter monitoring and system status.

✓ External RS485 terminals supporting DL/T 645 or Modbus communication from 600 to 38,400 bit/s.

Technical Highlights

Rated operational voltage of AC 400 V at 50 Hz rated frequency.
Rated insulation voltage Ui of 1000 V and impulse withstand voltage Uimp of 8 kV.
100 A to 800 A frame sizes with frame-dependent adjustable load current settings.
Residual operating current setting of 30 mA non-delay with steps up to 1000 mA.
Mechanical endurance up to 9,000 cycles and electrical endurance up to 1,500 operations.
Neutral pole options offering standard right-side or variant left-side neutral placement.

Selection Guide

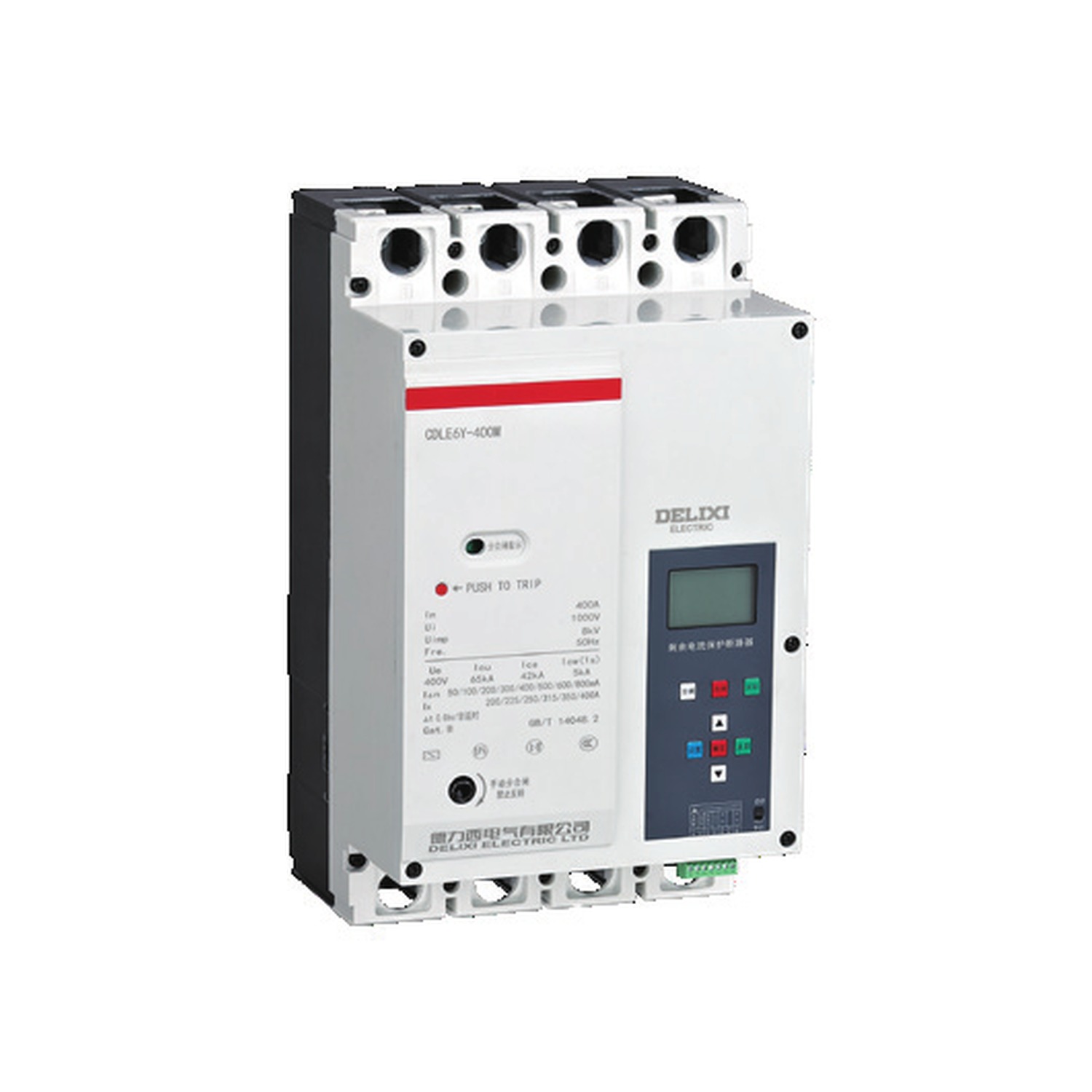

Select CDLE6 for digital display or CDLE6Y for LCD display, with standard right-neutral or optional left-neutral configurations across 100 A to 800 A frame sizes.

Reference Datasheet Pages

The following pages were selected from the model catalogue and are included for technical reference:

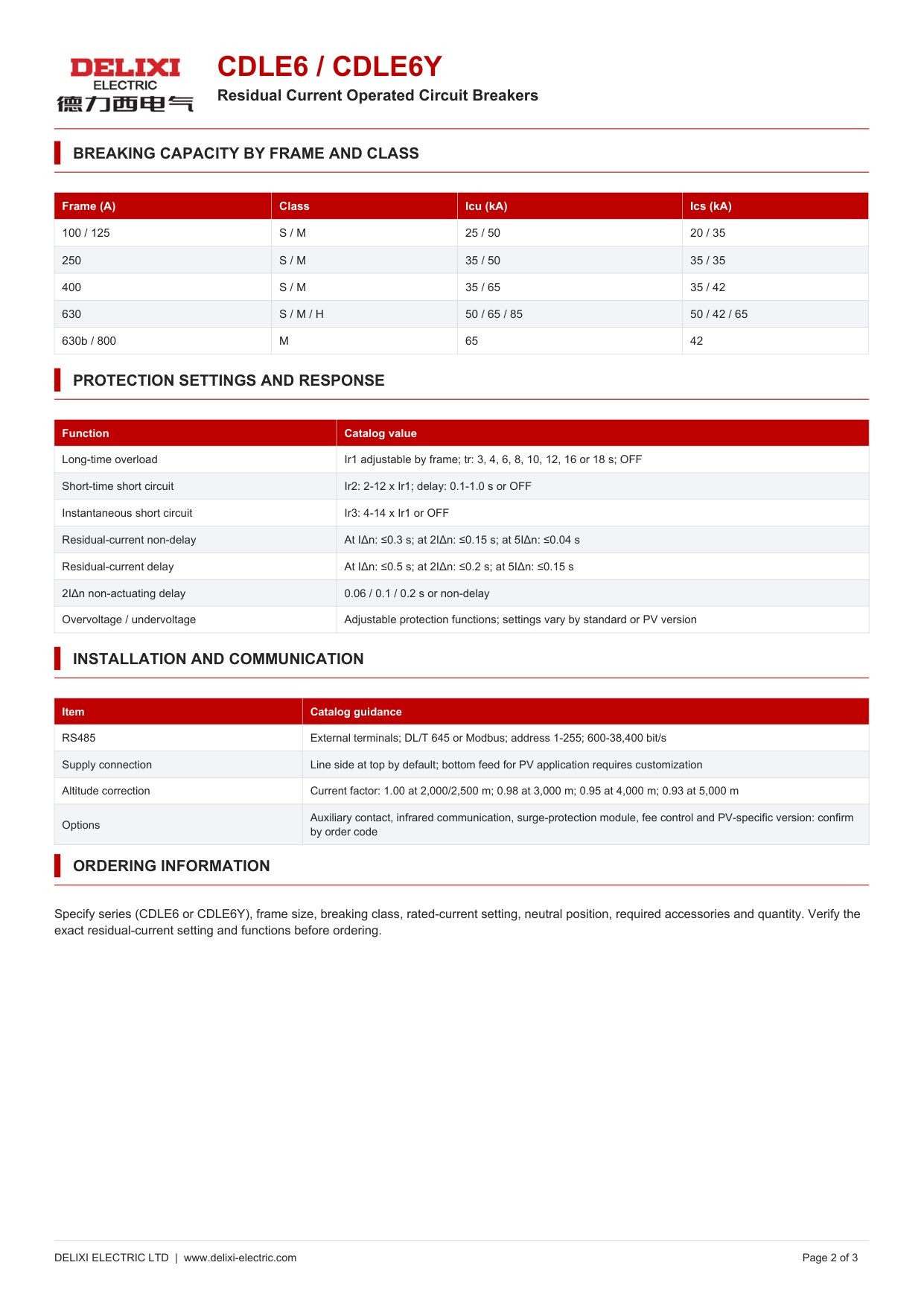

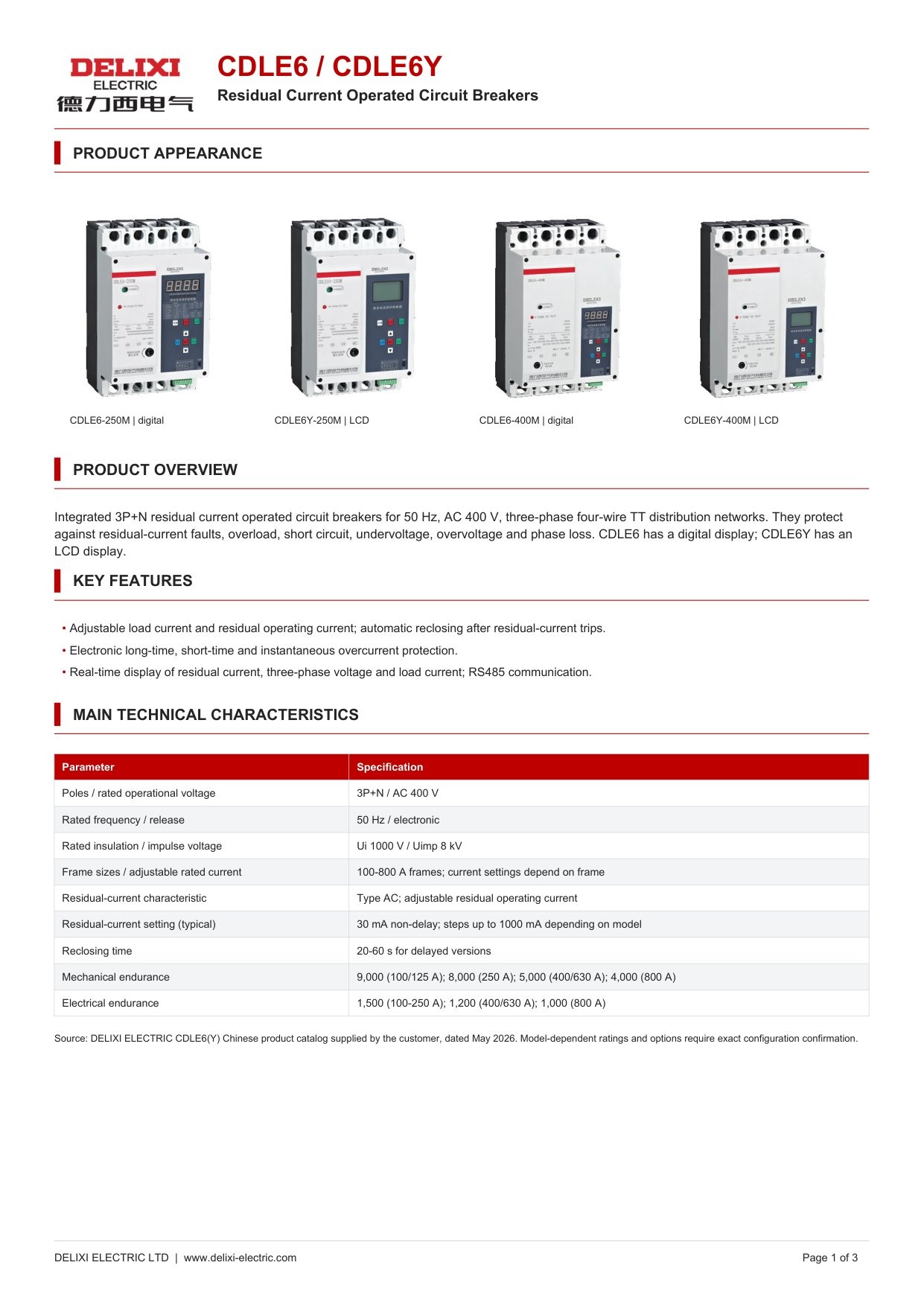

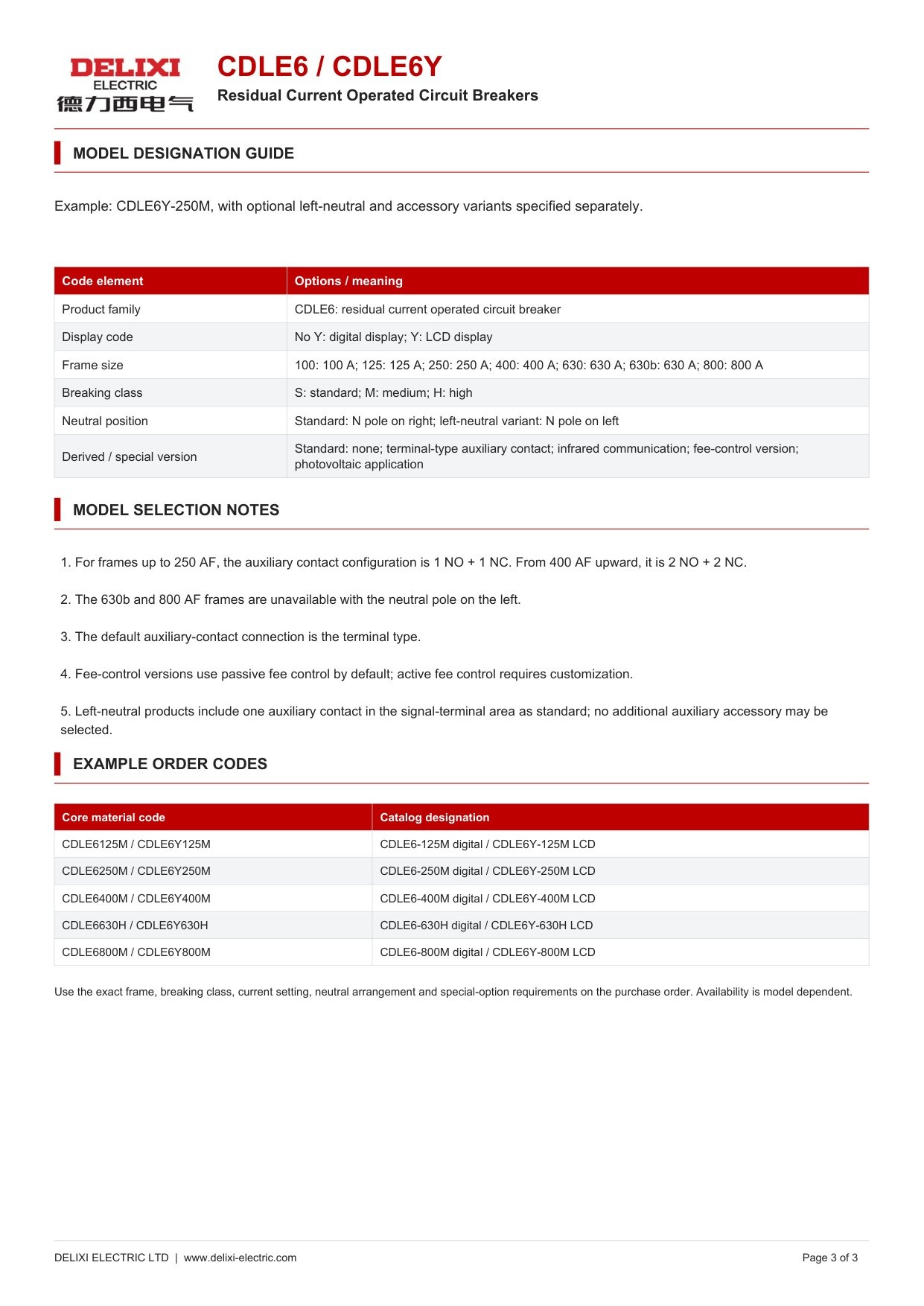

CDLE6 Catalog and Technical Data

Additional information

Rated Operational Voltage	AC 400 V
Model	CDLE6
Frame Size	100 A, 125 A, 250 A, 400 A, 630 A, 630b (630 A), 800 A
Breaking Class	S / M / H (availability depends on frame)
Residual Operating Current	30 mA to 1000 mA (model-dependent)
Number of Poles	3P+N

Technical Datasheet & Downloads

📄 Technical Documentation & Product Specifications

Download official engineering datasheets, certified test standards (IEC / UL / CE), wiring diagrams, and dimensional drawings for Delixi CDLE6 CDLE6Y AC400V 250A 400A 630A 800A 50Hz 60Hz RCCB MCB Residual Current Operated Circuit Breaker.

📥

Official Technical Datasheet (PDF) Complete electrical ratings, tripping characteristics, dimensions, and compliance specifications.

📐

2D/3D CAD & Dimensional Drawings STEP, DXF, and PDF CAD drawing files for panel builders and switchgear designers.

Technical FAQ & Selection Guide

💡 Frequently Asked Technical Questions & Selection Guide

Pure engineering specifications, tripping curve parameters, and electrical selection guidance for panel builders and system designers.

Curve Selection

How to choose between Tripping Curves B, C, and D for this miniature circuit breaker?

Curve B trips at 3–5 In (designed for resistive loads, electric heating, and domestic appliances with negligible inrush). Curve C trips at 5–10 In (the standard international choice for residential and commercial lighting, socket outlets, and small induction motors). Curve D trips at 10–14 In (specifically engineered for high-inrush inductive equipment such as industrial transformers, heavy motors, compressors, and welding circuits).

Breaking Capacity

How do I determine whether 6kA or 10kA breaking capacity is required for my installation?

Breaking capacity (Icn/Icu) must exceed the calculated prospective short-circuit fault current at the installation point. 6kA (IEC 60898-1) is standard for residential consumer units and sub-distribution branch circuits located downstream. 10kA (IEC 60947-2) is required for industrial facilities, main switchboards, commercial distribution panels, or circuits situated close to supply transformers where fault levels are high.

Poles & Neutral Isolation

How to choose the correct number of poles (1P, 1P+N, 2P, 3P, 3P+N, 4P) for single-phase and three-phase circuits?

For single-phase 230V circuits: 1P provides active phase protection; 1P+N or 2P isolates both live and neutral lines simultaneously (essential for TT earthing systems and sensitive sub-panels). For three-phase 400V systems: 3P protects balanced 3-wire motor loads; 3P+N or 4P is required for 4-wire mixed single-phase loads to ensure complete neutral disconnection during isolation.

DC vs AC Application

Can this circuit breaker be used in DC circuits (Solar PV, Battery Storage, Telecom)?

Standard AC breakers cannot safely extinguish DC arcs due to the absence of natural zero-crossing current. For DC circuits (60V to 1000V DC), select specialized DC breakers (such as DZ158-125 DC or NM8NDC series) equipped with permanent magnetic arc-blowout chutes and strictly observe polarity wiring to prevent arc re-ignition.

Modular Accessories & Interlocks

What modular accessories and mechanical interlocks can be fitted to this breaker?

Standard modular clip-on accessories can be mounted directly on the side without tools: OF (Auxiliary Contact for remote status indication), SD (Alarm Contact for trip fault signaling), MX (Shunt Trip for remote emergency tripping), MN (Under-voltage Release for voltage loss protection), and NXBZ mechanical interlock kits for manual generator/mains transfer switches.
