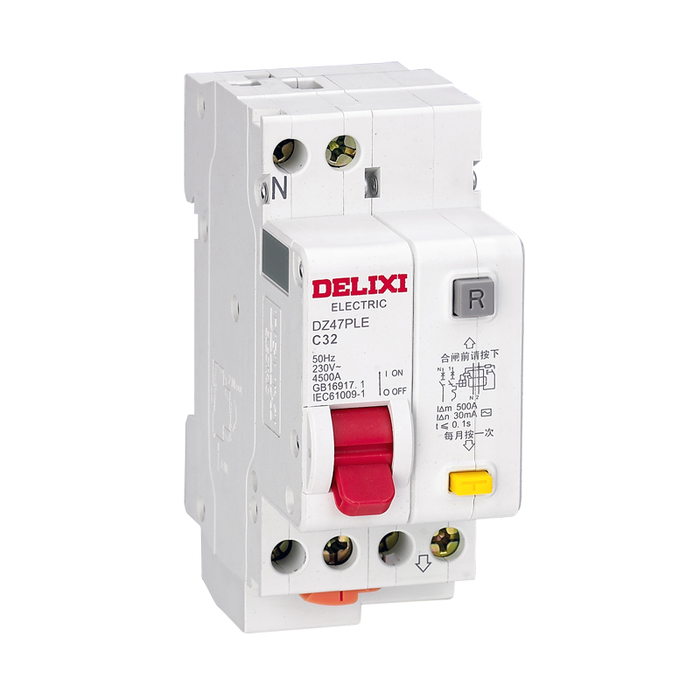

DELIXI DZ47PLE 1P+N RCBO, 6–40A 30mA
Click to enlarge
Home Electrical Accessories Others Delixi Electrical Materials Delixi RCCB RCBO DELIXI DZ47PLE 1P+N RCBO, 6–40A 30mA
DELIXI CDM3E Electronic MCCB, 32–1600A
DELIXI CDM3E Electronic MCCB, 32–1600A
Back to products
People Electric RDM5 Moulded Case Circuit Breaker, 10–800A
People Electric RDM5 Moulded Case Circuit Breaker, 10–800A

DELIXI DZ47PLE 1P+N RCBO, 6–40A 30mA


You save

DELIXI DZ47PLE combines overload,short-circuit and residual-current protection in a 1P+N device. Select rated current,C orD curve and the documented overvoltage option.

Model
Poles
Rated Current
Tripping Curve
Residual Current
Breaking Capacity
Leakage Type
Overvoltage Protection
Add to Enquiry
SKU: 1600508701371 Category: Delixi RCCB RCBO
  • Description
  • Catalog
Description

DELIXI ELECTRIC · DZ47PLE

Product overview

DELIXI DZ47PLE combines overload, short-circuit and residual-current protection in a 1P+N device. Select rated current, C orD curve and the documented overvoltage option.

Technical selection summary

Poles / supply1P+N; AC230V; 50Hz
Rated current / curves6A, 10A, 16A, 20A, 25A, 32A, 40A; C orD
Residual selection30mA; AC sine-wave marking on the actual/reference nameplate; no TypeA/B orother residual setting is added
Breaking capacityIcn4.5kA
Overvoltage versionG:trip at280V±14V; standard:without that protection
Mounting / terminals35mm DIN rail; top supply; up to16mm² conductor; 2N·m
Protection identityRCBO with overcurrent protection, not an RCCB without that function

Only the exact C/D, 6–40A, 30mA ordering schema is used. G is a separate overvoltage build; its absence is not equivalent to having voltage protection. Do not copy the A-type, 10mA or6kA options of a PLES model.

Typical applications

  • Electrical distribution and control assemblies within the selected documented ratings.

Product reference images and drawings

DZ47PLE official English technical catalogue page 1DZ47PLE official English technical catalogue page 2
Catalog
NameSizeRelease timeOperate
Delixi DZ47PLE 1P+N RCBO.pdf333.43 KB2026-10-28Download
