CHINT · Variable frequency drive
Product overview

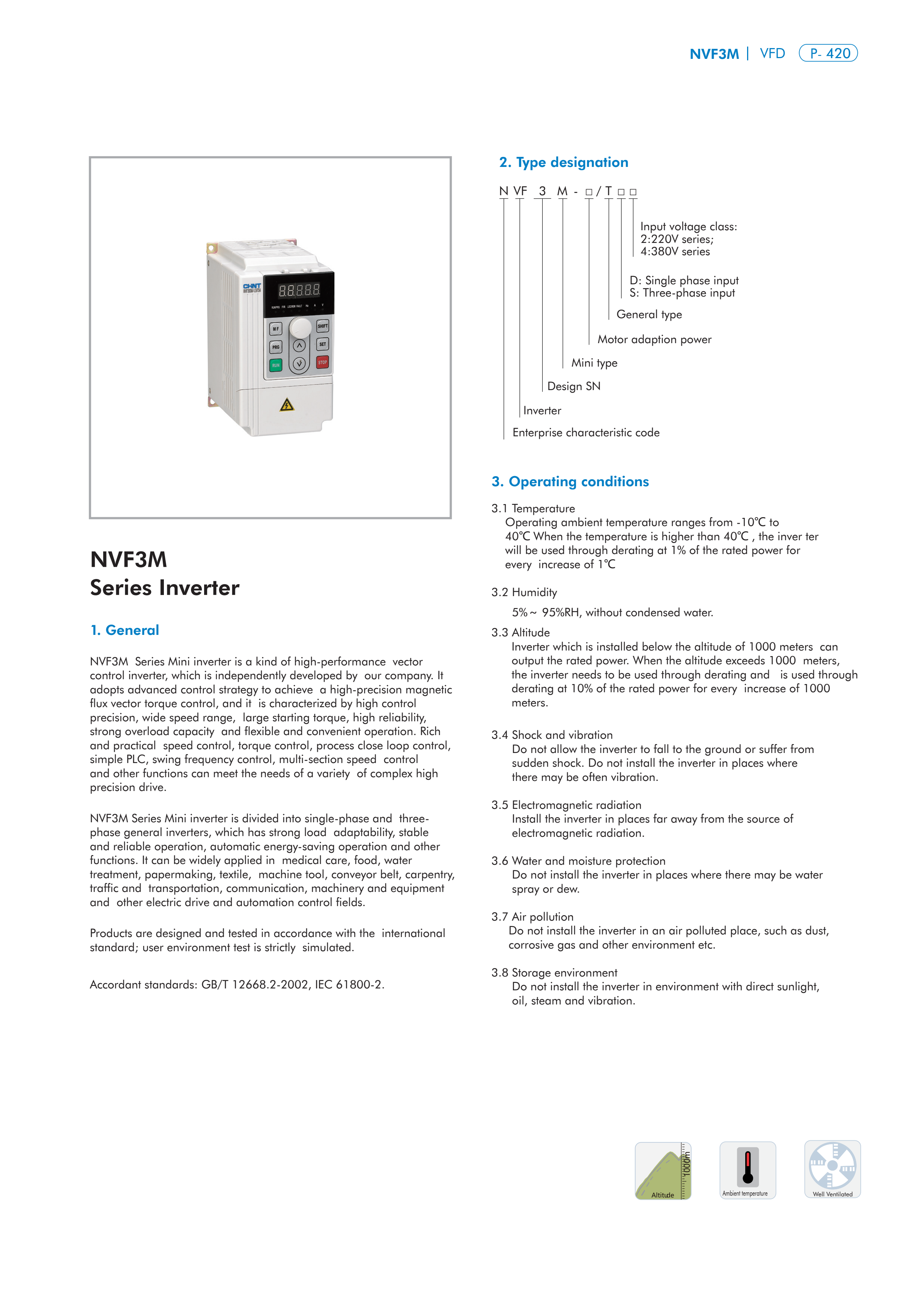

CHINT NVF3M is a compact variable-frequency inverter with V/F and sensorless-vector control. Match the input phase and voltage code to the available supply, then select the drive using the motor and application duty.

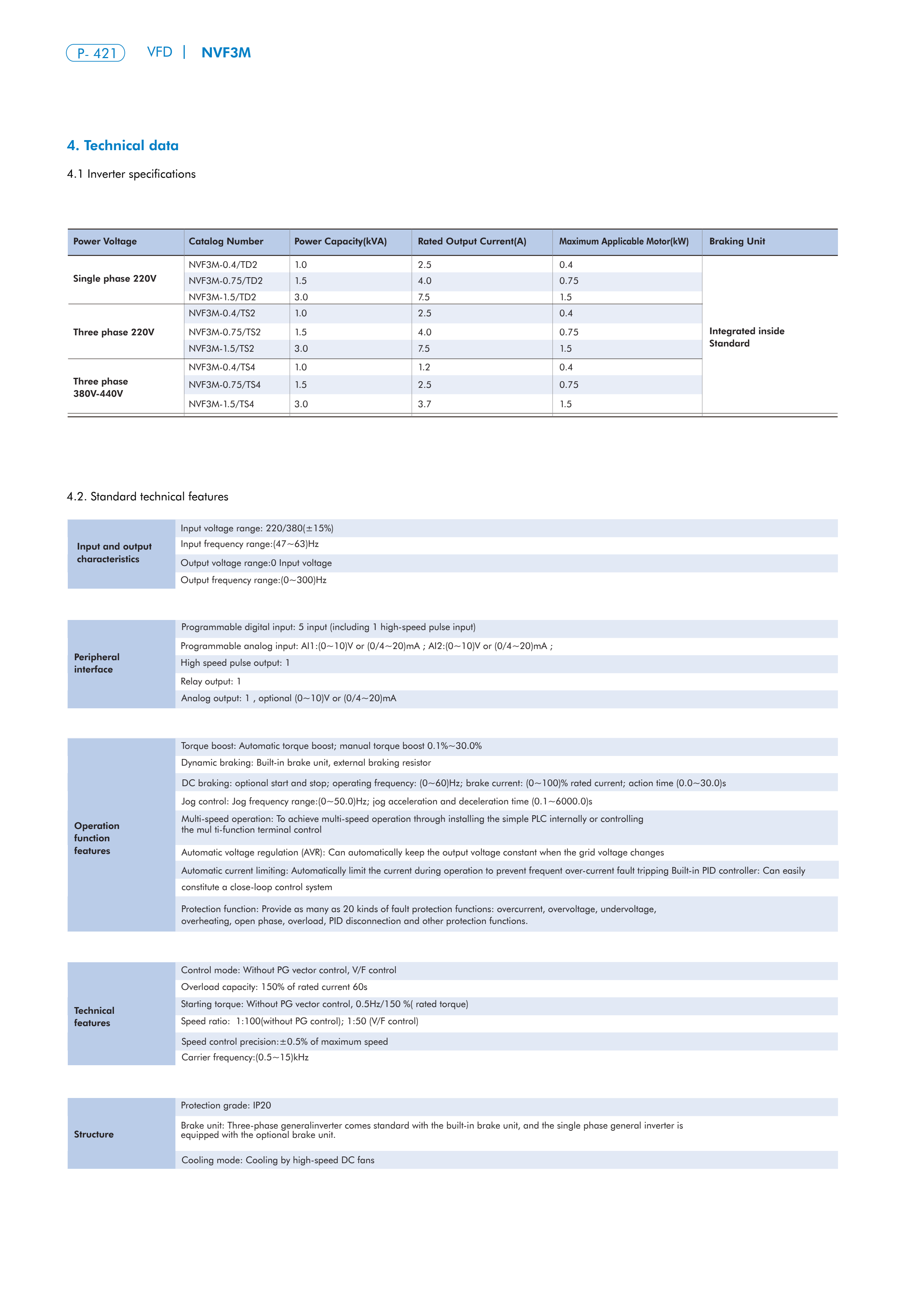

Technical selection summary
| Series | NVF3M |
|---|---|
| Voltage families | 220 V and 380 V series |
| Input-phase codes | D: single phase; S: three phase, depending on model |
| Control modes | V/F and vector control without PG |
| Communication | RS485 interface |
| Reference standard | IEC 61800-2 |
The table summarizes the series. Not every rating and option is available in every combination. Confirm the complete manufacturer code and its applicable documents before ordering.
Typical applications
- Conveyors and machine tools
- Pumps and ventilation
- Compact motor speed-control panels
Specify your enquiry
For a focused quotation, include:
- Exact motor power/current
- Input phase and voltage
- Load duty, control signals and communication requirements
Download CHINT NVF3M catalogue (PDF)
