CHINT · NB2LE-80ZT Smart RCBO, 6–80 A
Product overview
CHINT NB2LE-80ZT combines overcurrent, over/undervoltage and residual-current protection with electrical measurement and remote control. Select a complete catalogue reference.
Technical selection summary
| Current scope | 6–80 A according to the complete reference |
|---|---|
| Poles / rated voltage | 1P+N: AC230 V; 3P+N: AC400 V |
| Residual sensitivity / type | 10, 30, 100 or 300 mA; A or AC only as listed |
| Curves | C; D only for the listed 3P+N 6/10/16/20 A references |
| Breaking capacity | 6 kA |
Only complete references extracted from the 80ZT ordering table are selectable. Do not construct a Cartesian product of poles, curve, current, leakage type and sensitivity.
Typical applications
- CHINT NB2LE-80ZT combines overcurrent, over/undervoltage and residual-current protection with electrical measurement and remote control.

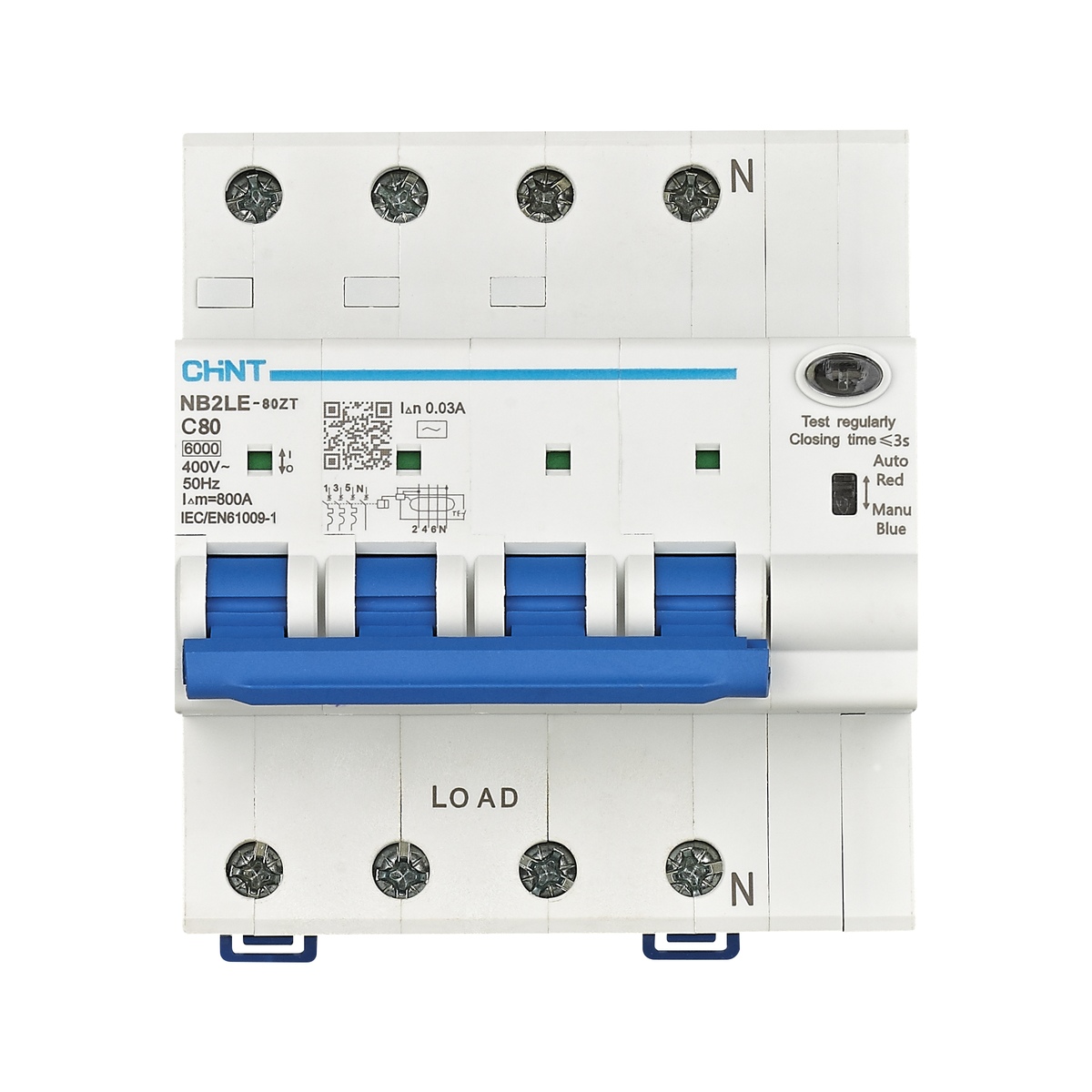

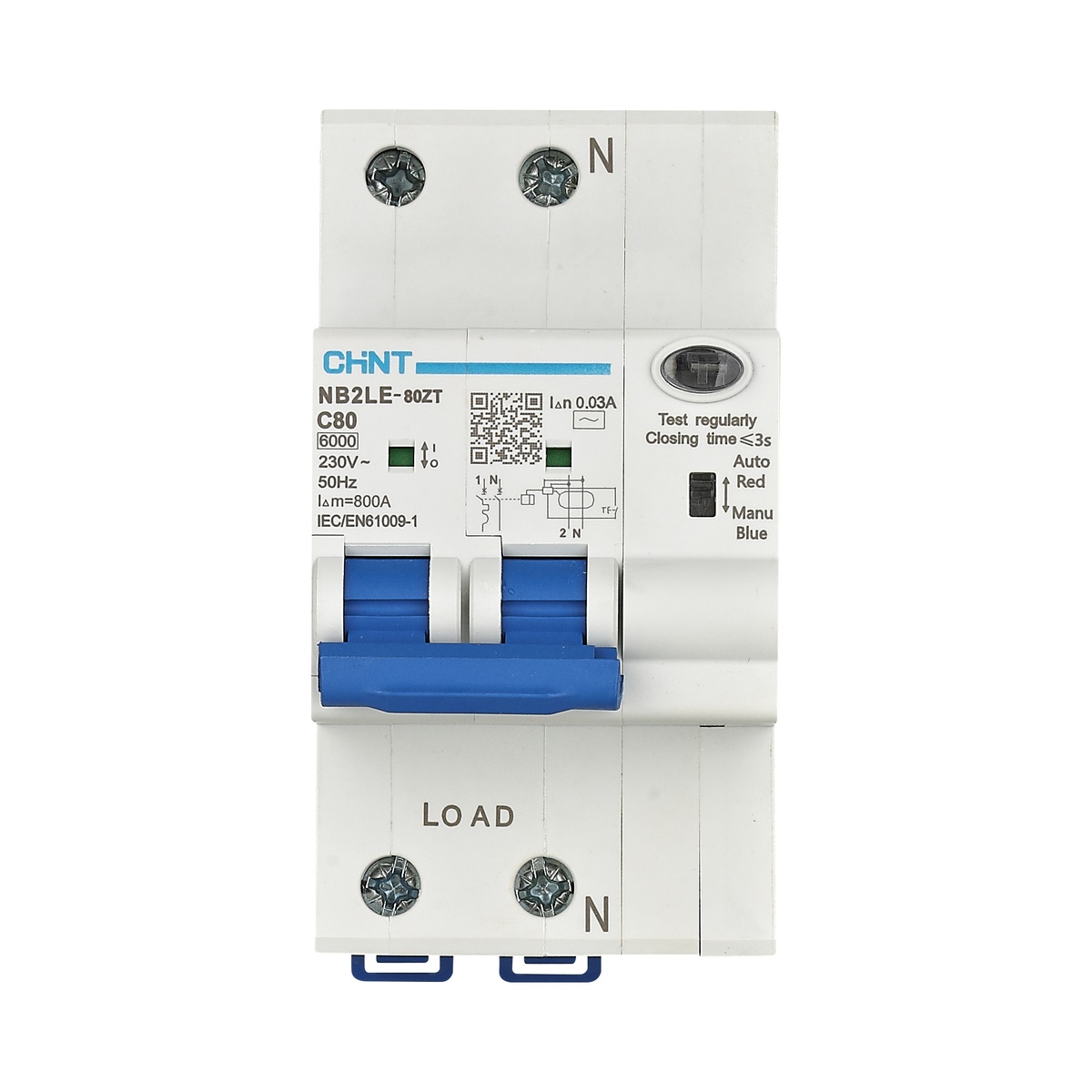

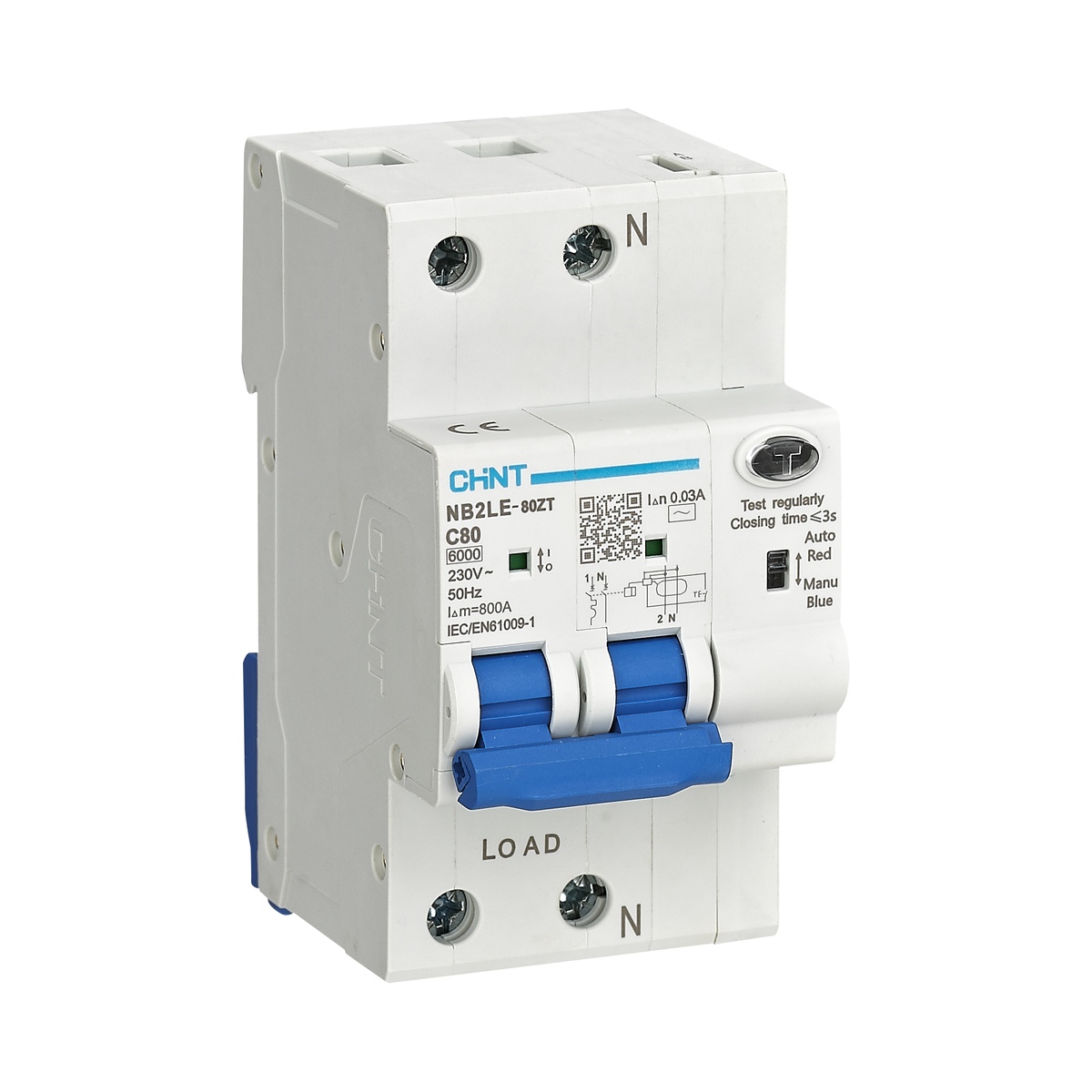

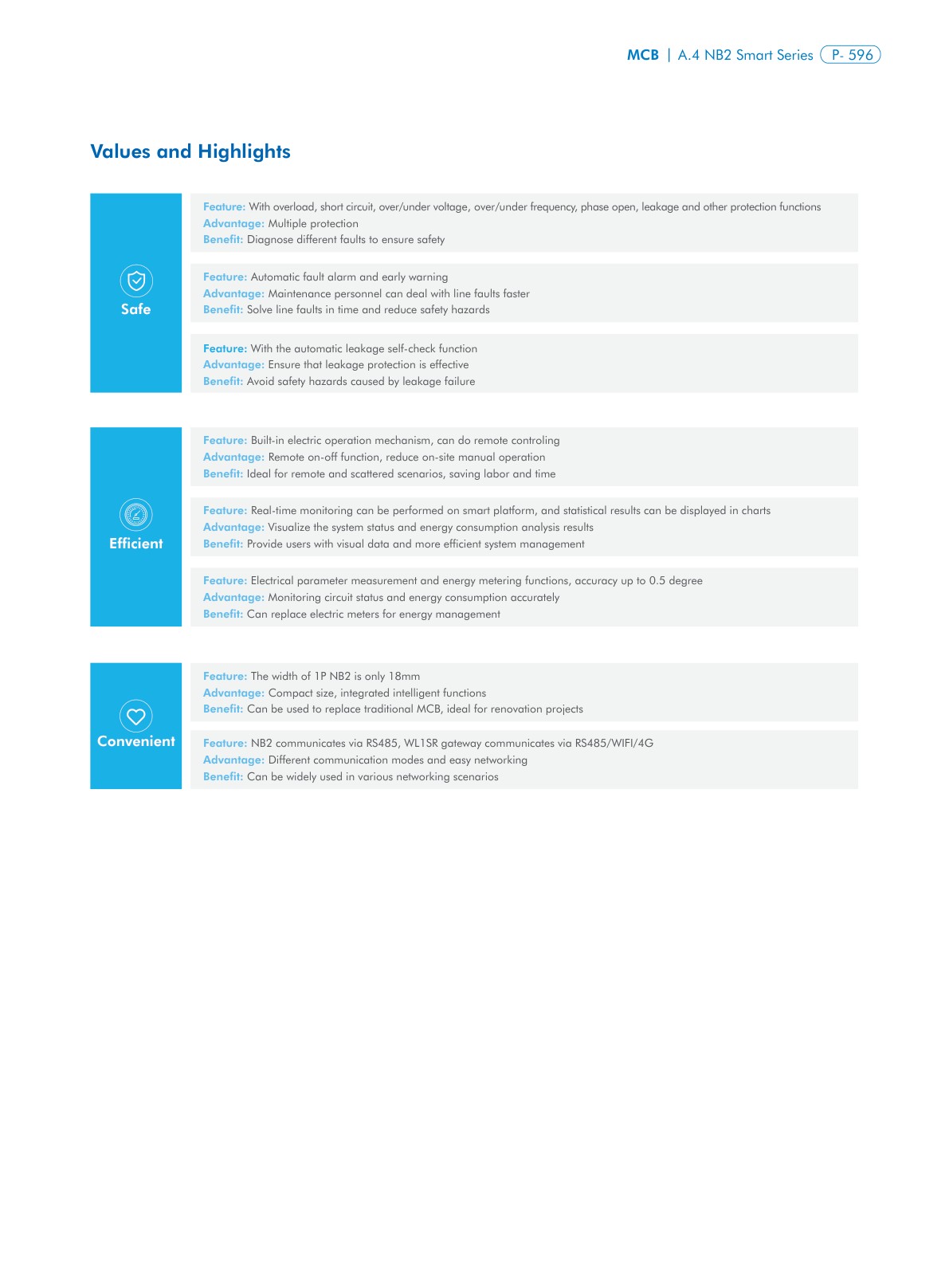

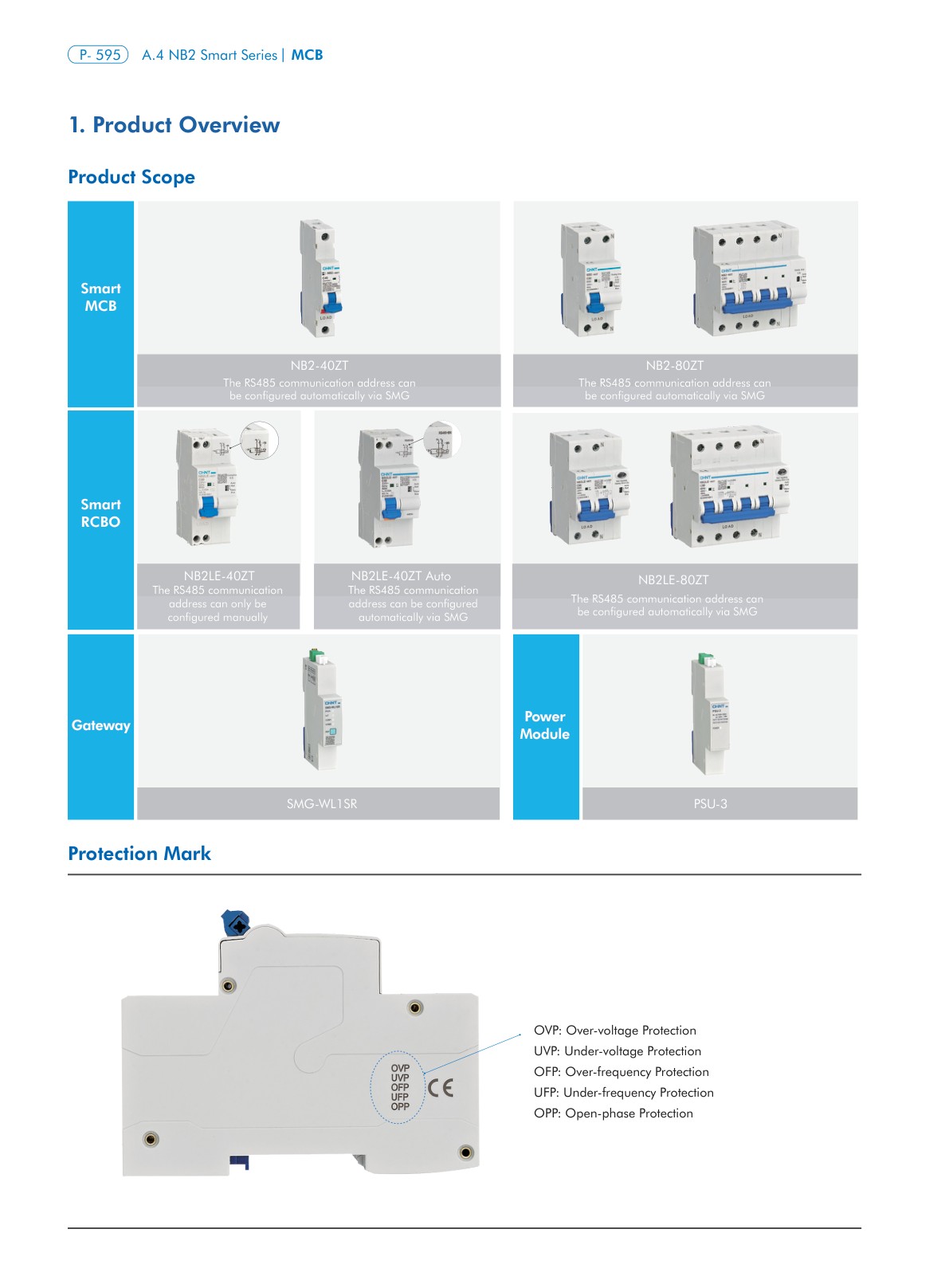

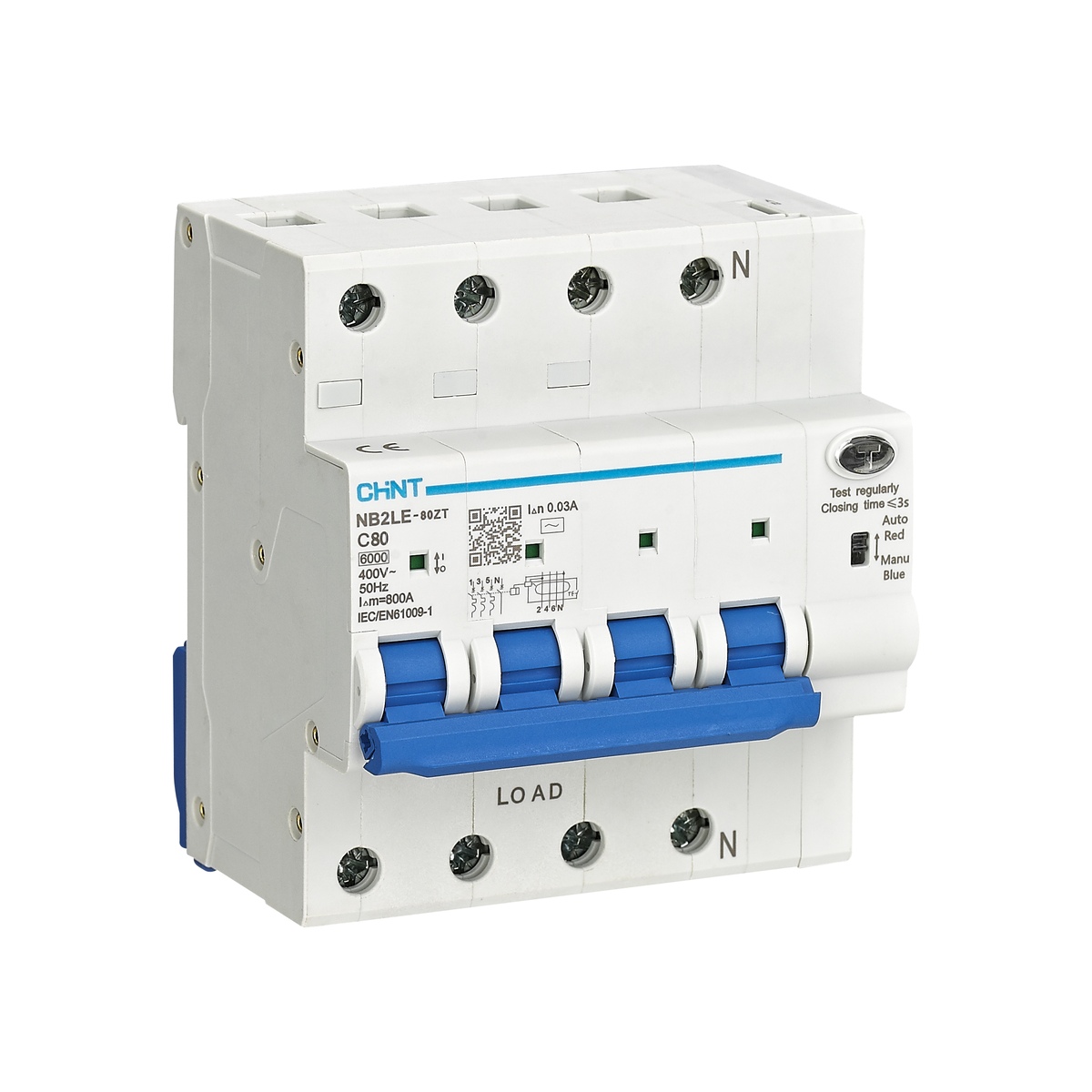

Product reference images and drawings
