DELIXI DZ47PLES 1P+N RCBO, 6–40A
Click to enlarge
Home Electrical Accessories Others Delixi Electrical Materials Delixi RCCB RCBO DELIXI DZ47PLES 1P+N RCBO, 6–40A
DELIXI CDI-E180 Variable Frequency Drive
DELIXI CDI-E180 Variable Frequency Drive
Back to products
People Electric RDM5E Moulded Case Circuit Breaker, Electronic 32–800A
People Electric RDM5E Moulded Case Circuit Breaker, Electronic 32–800A

DELIXI DZ47PLES 1P+N RCBO, 6–40A

Manufacturer catalogue illustration.

DELIXI DZ47PLES combines residual-current and overcurrent protection in an 18mm 1P+N unit. Select the exact current,curve,breaking-capacity and residual-protection version.

Model
Poles
Rated Current
Tripping Curve
Residual Current
Breaking Capacity
Leakage Type
Add to Enquiry
Category: Delixi RCCB RCBO
  • Description
  • Catalog
Description

DELIXI ELECTRIC · DZ47PLES

Product overview

DELIXI DZ47PLES combines residual-current and overcurrent protection in an 18mm 1P+N unit. Select the exact current, curve, breaking-capacity and residual-protection version.

Technical selection summary

Poles / voltage / frequency1P+N; AC230/240V; 50/60Hz
Rated current / curve6A, 10A, 16A, 20A, 25A, 32A, 40A; B orC
Icn ordering codeA:4.5kA; N:6kA
Residual settingDefault30mA; R10:10mA
Residual waveform typeDefaultAC; finalA suffix:TypeA
Dimensions / terminals18mm module; top supply; up to16mm²; 2N·m
Type distinctionTripping curve B is an overcurrent characteristic, not TypeB residual-current detection

Use the full ordering combination. The capacity code A at the beginning and the optional TypeA suffix at the end have different meanings.

Typical applications

  • Electrical distribution and control assemblies within the selected documented ratings.

Product reference images and drawings

DZ47PLES exact manufacturer selection and ratings page 1DZ47PLES exact manufacturer selection and ratings page 2
Catalog
NameSizeRelease timeOperate
Delixi DZ47PLES 1P+N RCBO.pdf307.74 KB2026-10-27Download

Related products

DELIXI DZ47PLEY-63 1P+N RCBO 6A-63A 30-300mA Residual Breaker

DELIXI DZ47PLEY-63 1P+N RCBO 6A-63A 30-300mA Residual Breaker

The supplied DZ47PLEY-63 reference identifies a 1P+N RCBO with 6–63 A selections and overload, short-circuit and residual-current protection.

DELIXI DZ47LE-125 10kA RCBO RCD 63A-125A Residual Current Breaker

DELIXI DZ47LE-125 10kA RCBO RCD 63A-125A Residual Current Breaker

This DZ47LE-125 listing concerns a high-current residual-current breaker. Select the exact poles, rated current and residual-current sensitivity.

DELIXI CDLE6/CDLE6Y Electronic Residual-Current MCCB, 125–800A
DELIXI CDLE6/CDLE6Y Electronic Residual-Current MCCB, 125–800A

DELIXI CDLE6/CDLE6Y Electronic Residual-Current MCCB, 125–800A

DELIXI CDLE6 and CDLE6Y provide electronic overload, short-circuit and residual-current protection for AC400V,50Hz TT systems. Select the documented frame/class, digital or LCD controller and required overload-current setting.
DELIXI CDB6LESi Miniature Earth Residual Current Circuit Breaker

DELIXI CDB6LESi Miniature Earth Residual Current Circuit Breaker

DELIXI CDB6LESi Miniature Earth Residual Current Circuit Breaker. Residual current protection device for low-voltage distribution applications.
DELIXI CDB9LE-125 RCBO, 63–125A 10kA

DELIXI CDB9LE-125 RCBO, 63–125A 10kA

Manufacturer catalogue illustration.

DELIXI CDB9LE-125 combines overload, short-circuit and residual-current protection. Select current, poles, C/D curve, residual setting and the supported overvoltage version.

Check availability
DELIXI DZ47sLE RCBO, 6–63A 6kA

DELIXI DZ47sLE RCBO, 6–63A 6kA

DELIXI DZ47sLE combines overload, short-circuit and residual-current protection. Select poles, current, residual setting and the supported trip/overvoltage version.

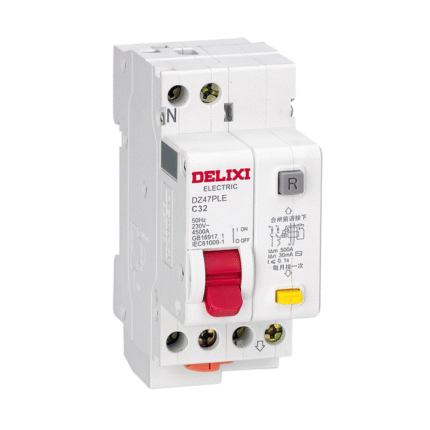

DELIXI DZ47PLE 1P+N RCBO, 6–40A 30mA
