DELIXI CDW3 Air Circuit Breaker, 400–6300A
Click to enlarge
Home Electrical Accessories Others Delixi Electrical Materials Delixi MCCB ACB DELIXI CDW3 Air Circuit Breaker, 400–6300A
DELIXI SBW 3-phase Compensation Voltage Stabilizer
DELIXI SBW 3-phase Compensation Voltage Stabilizer
Back to products
DELIXI CDM3 Molded Case Circuit Breaker
DELIXI CDM3 Molded Case Circuit Breaker

DELIXI CDW3 Air Circuit Breaker, 400–6300A

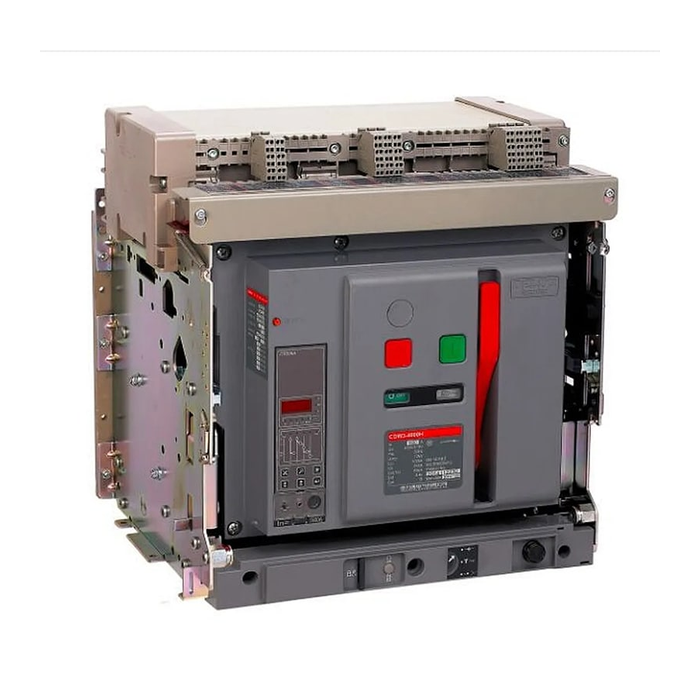

Series illustration. DELIXI CDW3 provides intelligent low-voltage air-circuit-breaker protection. Select the exact frame/breaking class, current, poles, construction and matched control supply.

Model
Poles
Rated Current
Rated Voltage
Construction
Mounting
Control Supply
Controller
Add to Enquiry
Category: Delixi MCCB ACB
  • Description
  • Additional information
  • Technical Documents
  • Selection & Ordering
Description

DELIXI ELECTRIC · CDW3

Product overview

DELIXI CDW3 provides intelligent low-voltage air-circuit-breaker protection. Select the exact frame/breaking class, current, poles, construction and matched control supply.

Technical selection summary

Frame / currentThe current options follow the original frame/current dot matrix, not a free400–6300A range for every frame
Poles / construction1000–4000frames:3P/4P, fixed/drawout.6300frame:drawout only; 6300A rated unit:3P only
ControllerSelect standard iTR326A, optional iTR326 or iTR326H; protection and communication functions follow the chosen controller build
Control supplyChoose matched MX shunt, XF closing and MCH motor supply:AC220/230V, AC380/400V, DC110V or DC220V. Undervoltage release and delay modules are separate options
Breaking capacityIcu at AC400/415V:1000N42; 1600N50/H66; 2000N/H80; 2500N80/H100; 3200N80/H100; 4000N/H100; 6300N120kA. Ics and 690V values remain separate in the source table
Operating / insulationAC400/415V or AC690V; 50/60Hz; Ui1000V; Uimp12kV. Do not confuse insulation voltage with operating voltage
Drawings / settingsComplete source includes frame-specific outlines, clearances, terminal and secondary-circuit wiring, trip settings, derating and controller diagrams

Selected controller and matched closing/shunt/motor supply are selected here. Optional undervoltage, extra contacts, communication and interlocks are specified separately. Overall installation and earthing follow the exact frame, fixed/drawout construction and manufacturer drawings.

Typical applications

  • DELIXI CDW3 provides intelligent low-voltage air-circuit-breaker protection.

CDW3 exact manufacturer reference PDF

Product reference images and drawings

CDW3 original technical reference 1CDW3 original technical reference 2CDW3 original technical reference 3CDW3 original technical reference 4CDW3 original technical reference 5CDW3 original technical reference 6CDW3 original technical reference 7CDW3 original technical reference 8CDW3 original technical reference 9CDW3 original technical reference 10CDW3 original technical reference 11CDW3 original technical reference 12CDW3 original technical reference 13CDW3 original technical reference 14CDW3 original technical reference 15CDW3 original technical reference 16CDW3 original technical reference 17CDW3 original technical reference 18CDW3 original technical reference 19CDW3 original technical reference 20CDW3 original technical reference 21CDW3 original technical reference 22CDW3 original technical reference 23CDW3 original technical reference 24CDW3 original technical reference 25CDW3 original technical reference 26
Additional information
Model

CDW3

Construction

1000N, 1600N, 1600H, 2000N, 2000H, 2500N, 2500H, 3200N, 3200H, 4000N, 4000H, 6300N

Rated Current

400A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A, 4000A, 5000A, 6300A

Poles

3P, 4P

Mounting

Fixed, Drawout

Rated Voltage

AC400/415V, AC690V

Control Supply

AC220/230V, AC380/400V, DC110V, DC220V

Controller

iTR326A, iTR326, iTR326H

Technical Documents

TECHNICAL RESOURCES

Documents for DELIXI CDW3 Air Circuit Breaker, 400–6300A

A downloadable document is not currently attached to this listing. Request the datasheet for your required model and configuration.

Request a datasheet

Drawings and compliance documents

Tell us the model and destination market if you need dimensions, a wiring diagram or a certification document. Available documents and approvals depend on the exact product configuration.

Ask for product documents

Supplier: Shanghai Newtrend Electric Co., Ltd. Brand and manufacturer details are stated separately for each product.

Selection & Ordering

BEFORE YOU ORDER

Selection and ordering questions

What information is needed for a quotation?

Send the exact model or selected configuration, required quantity, destination country and any project-specific requirements. Our team will confirm availability and the matching specification.

Are the same approvals available for every configuration?

No. Standards, certificates and market acceptance must be checked for the exact manufacturer model and configuration. Request the relevant document before specifying the product.

Can I include other products in the same enquiry?

Yes. Add the required products to your quote list, set the quantities and send one enquiry with your project requirements.

Related products

DELIXI CDM6Li Residual Current Operated Circuit Breaker MCCB

DELIXI CDM6Li Residual Current Operated Circuit Breaker MCCB

DELIXI CDM6Li residual current operated circuit breaker for power distribution and motor protection. 3P/4P, 125A-160A, with leakage protection.
DELIXI CDWNEGZ DC Switch Disconnector, 630–4000A

DELIXI CDWNEGZ DC Switch Disconnector, 630–4000A

Series illustration. DELIXI CDWNEGZ isolates and switches PV or energy-storage DC circuits. Select the documented frame/pole construction and its linked current, operating voltage, mounting and matched accessory supply.

DELIXI CDM3G Switch Disconnector, 63–800A

DELIXI CDM3G Switch Disconnector, 63–800A

Series illustration. DELIXI CDM3G provides infrequent load switching and isolation in low-voltage distribution. Select the exact frame/current, poles, operating voltage and supported mounting for the manual-handle base unit.

DELIXI CDM6i Moulded Case Circuit Breaker MCCB

DELIXI CDM6i Moulded Case Circuit Breaker MCCB

DELIXI CDM6i moulded case circuit breaker for low-voltage distribution and protection. 3P/4P, 125A-800A series, 50/60Hz, thermomagnetic trip.
